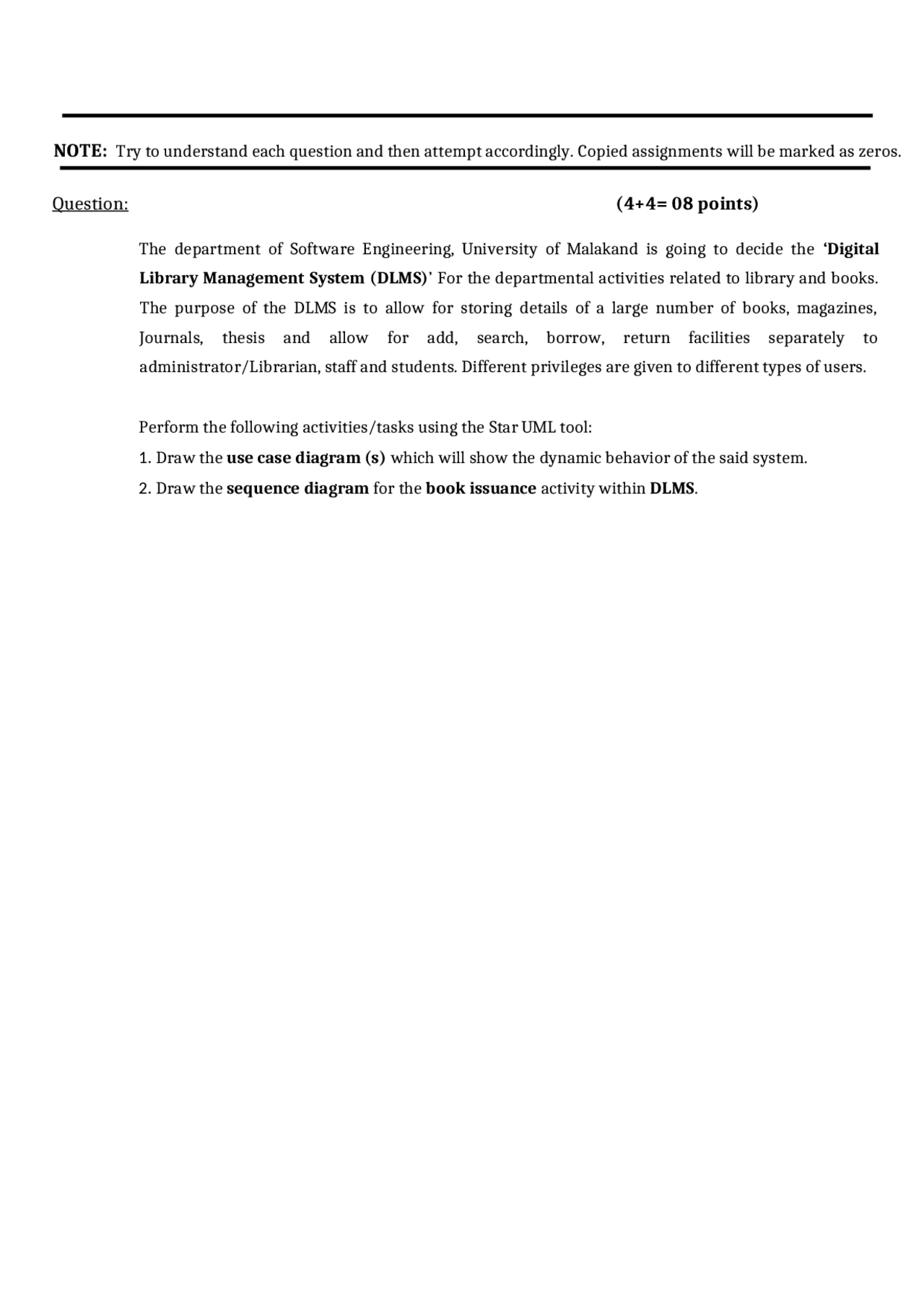

NOTE: Try to understand each question and then attempt accordingly. Copied assignments will be marked as zeros.
Question: (4+4= 08 points)
The department of Software Engineering, University of Malakand is going to decide the ‘Digital
Library Management System (DLMS)’ For the departmental activities related to library and books.
The purpose of the DLMS is to allow for storing details of a large number of books, magazines,
Journals, thesis and allow for add, search, borrow, return facilities separately to
administrator/Librarian, staff and students. Different privileges are given to different types of users.
Perform the following activities/tasks using the Star UML tool:
1. Draw the use case diagram (s) which will show the dynamic behavior of the said system.
2. Draw the sequence diagram for the book issuance activity within DLMS.
