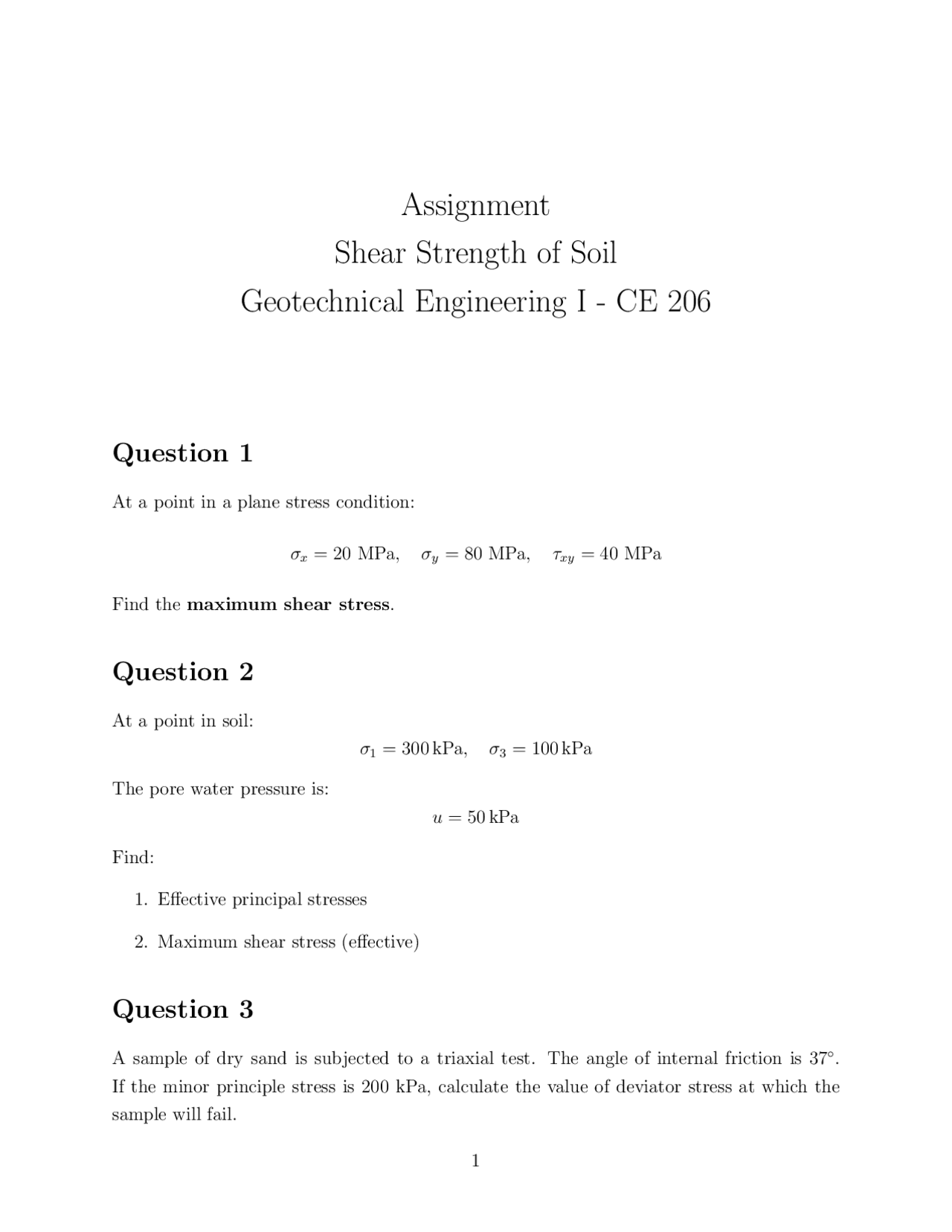

Assignment
Shear Strength of Soil
Geotechnical Engineering I - CE 206
Question 1
At a point in a plane stress condition:
σx = 20 MPa, σy = 80 MPa, τxy = 40 MPa
Find the maximum shear stress.
Question 2
At a point in soil: σ 1 = 300 kPa, σ 3 = 100 kPa
The pore water pressure is: u = 50 kPa
Find:
- Effective principal stresses
- Maximum shear stress (effective)
Question 3
A sample of dry sand is subjected to a triaxial test. The angle of internal friction is 37◦. If the minor principle stress is 200 kPa, calculate the value of deviator stress at which the sample will fail.
1
Question 4
The following test results at failure conditions are obtained from consolidated undrained triaxial tests on samples from a saturated clay stratum.
σ 3 (kg/cm^2 ) σd (kg/cm^2 ) u (pore water pressure) (kg/cm^2 ) Sample 1 2.75 1.50 1. Sample 2 4.25 2.20 2.
Determine the shear strength parameters.
Question 5
An NC clay was consolidated at a stress of 150 kPa and then sheared undrained by com- pression. Deviator stress at failure is 100 kPa and pore water pressure is 88 kPa. Determine total and effective shear strength parameters.
