This assignment focuses on fundamental concepts in electrical circuits and basic electrical engineering. It presents a series of problems designed to test students' understanding of circuit analysis techniques, including nodal analysis, mesh analysis, superposition, and thevenin's theorem. The assignment is suitable for undergraduate students in electrical engineering or related fields.
Typology: Schemes and Mind Maps
1 / 2
This page cannot be seen from the preview
Don't miss anything!

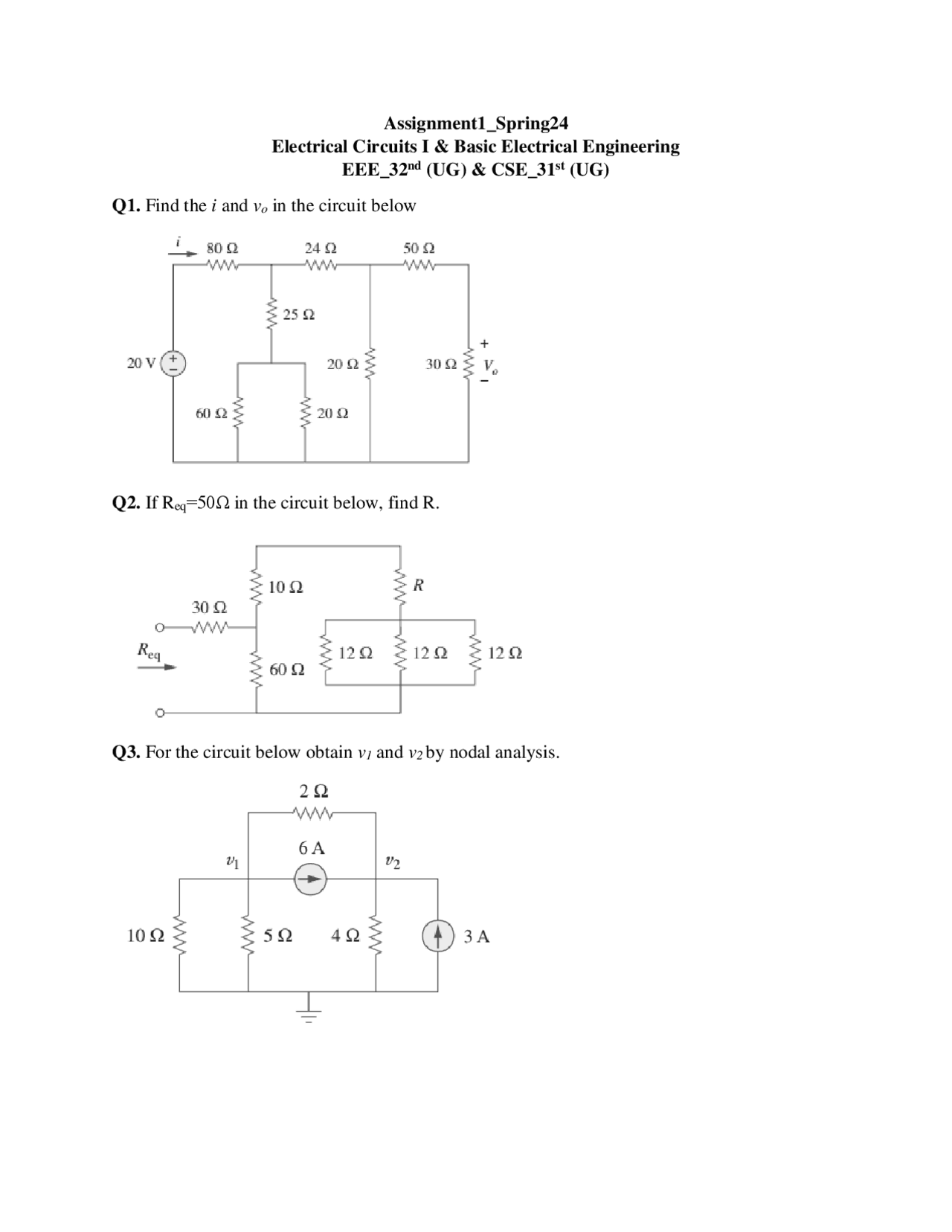

Assignment1_Spring 24 Electrical Circuits I & Basic Electrical Engineering EEE_3 2 nd^ (UG) & CSE_31st^ (UG) Q1. Find the i and vo in the circuit below Q2. If Req=50Ω in the circuit below, find R. Q3. For the circuit below obtain v 1 and v 2 by nodal analysis.
Q4. Apply mesh analysis to the circuit below and obtain Io. Q5. Find io in the circuit below using superposition. Q6. Apply Thevenin’s theorem to find Vo in the circuit below. Q7. Find the Thevenin equivalent of the circuit below at terminals a-b.
