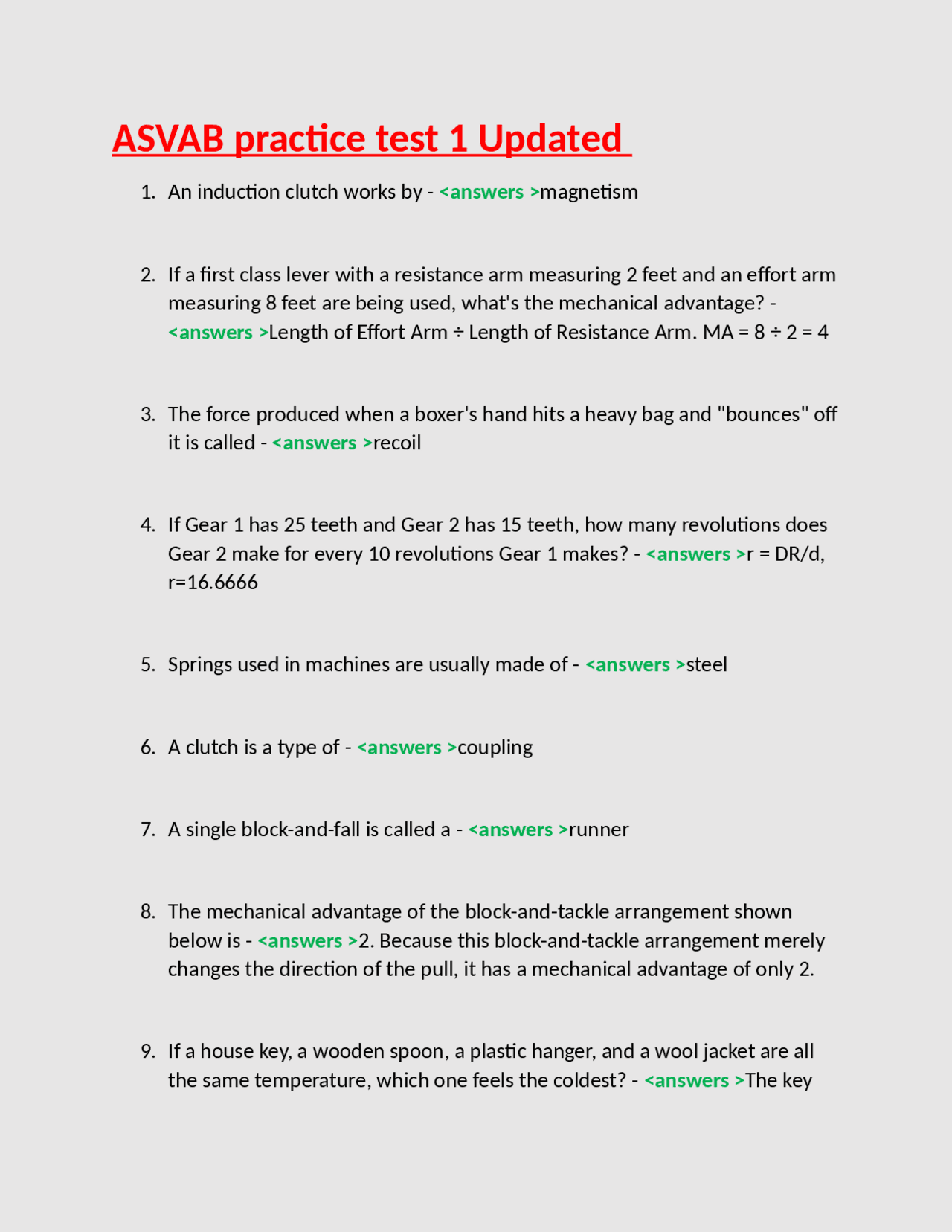

ASVAB practice test 1 Updated
1. An induction clutch works by - <answers >magnetism
2. If a first class lever with a resistance arm measuring 2 feet and an effort arm
measuring 8 feet are being used, what's the mechanical advantage? -
<answers >Length of Effort Arm ÷ Length of Resistance Arm. MA = 8 ÷ 2 = 4
3. The force produced when a boxer's hand hits a heavy bag and "bounces" off
it is called - <answers >recoil
4. If Gear 1 has 25 teeth and Gear 2 has 15 teeth, how many revolutions does
Gear 2 make for every 10 revolutions Gear 1 makes? - <answers >r = DR/d,
r=16.6666
5. Springs used in machines are usually made of - <answers >steel
6. A clutch is a type of - <answers >coupling
7. A single block-and-fall is called a - <answers >runner
8. The mechanical advantage of the block-and-tackle arrangement shown
below is - <answers >2. Because this block-and-tackle arrangement merely
changes the direction of the pull, it has a mechanical advantage of only 2.
9. If a house key, a wooden spoon, a plastic hanger, and a wool jacket are all
the same temperature, which one feels the coldest? - <answers >The key
pf3
pf4
pf5
pf8

Partial preview of the text

Download ASVAB Practice Test 1: Physics and Mechanics and more Exams Science education in PDF only on Docsity!

ASVAB practice test 1 Updated

  1. An induction clutch works by - magnetism
  2. If a first class lever with a resistance arm measuring 2 feet and an effort arm measuring 8 feet are being used, what's the mechanical advantage? - Length of Effort Arm ÷ Length of Resistance Arm. MA = 8 ÷ 2 = 4
  3. The force produced when a boxer's hand hits a heavy bag and "bounces" off it is called - recoil
  4. If Gear 1 has 25 teeth and Gear 2 has 15 teeth, how many revolutions does Gear 2 make for every 10 revolutions Gear 1 makes? - r = DR/d, r=16.
  5. Springs used in machines are usually made of - steel
  6. A clutch is a type of - coupling
  7. A single block-and-fall is called a - runner
  8. The mechanical advantage of the block-and-tackle arrangement shown below is - 2. Because this block-and-tackle arrangement merely changes the direction of the pull, it has a mechanical advantage of only 2.
  9. If a house key, a wooden spoon, a plastic hanger, and a wool jacket are all the same temperature, which one feels the coldest? - The key

will feel coldest because metal is a better conductor than the other materials 10.A way to determine the amount of power being used is? - The formula for determining power is Power = Work ÷ Time. 11.A wood tool, a silver tool, and a steel tool are placed in boiling water for cleaning. Which tool gets the hottest? - Silver is the best conductor, so it becomes hottest 12.If an alternator overcharges the battery, a likely explanation is - **<answers

** The voltage regulator isn't working properly 13.A primary advantage of the electronic ignition system over conventional ignition systems is - The electronic ignition system provides a higher voltage 14.The primary purpose of piston rings is to - seal the combustion chamber and allow the pistons to move freely 15.Connecting rods connect the piston to the - crankshaft 16.In an overhead valve system (OHV), what mechanism opens and closes the valves? - rocker arms 17.The difference between a single-acting and an opposed piston engine is - Single-acting piston engines have one piston per cylinder and opposed piston engines have two

27.How many diodes should you expect to find in a bridge rectifier? - **<answers

** A bridge rectifier is also known as a full wave rectifier, usually containing 4 diodes 28.Another name for cycles per second is: - hertz 29.When current flows through a wire, the following influences are present - voltage, ohms, amperes 30.Millihenries are related to - inductors 31.Radar can operate at frequencies as high as - 100,000 MHz 32.Radio waves travel - at the speed of light 33.Changing alternating current to direct current is called - AC to DC is a process called rectification 34.Insulated fittings can be used to splice wires, thus eliminating the need for - soldering the wires together 35.How many wires do serial cables used on computers have? - 9 36.To produce greater storage of electrons and more capacitance, capacitors should - be connected in parallel

37.A light bulb is 60 watts. Operated at 120 volts, how much current does it draw? - Power = Current × Voltage or, written another way, Current = Power/Voltage. 60/120 = 0.5 ampere 38.A fuse with a higher-than-required rating used in an electrical circuit - may not work properly 39.Neutral wire is always: - whitish or natural 40.To measure electrical power, you would use a - wattmeter 41.secure - safe 42.assimilate - absorb 43.proficient - adept 44.plenary - full 45.goad - incite 46.headlong - recklessly 47.flagrant - glaring

60.to commission - to authorize 61.succinct - concise 62.demise - death 63.burrow - nestle 64.prevails - persists 65.contravene - obstruct 66.chasm - hole 67.susceptible - gullible 68.A series of cell divisions that results in the formation of an embryo is called - mitosis 69.The process by which energy is provided at the cellular level is called - metabolism 70.Light waves travel at a rate of about - 186,000 mps 71.The largest moon in the solar system is - Ganymede

72.Which inorganic substance is present in the greatest quantity inside animal cells? - water 73.Cell protoplasm is made up mostly of: - water 74.The chamber of the heart that pumps blood to the lungs is called the - right ventricle 75.The atomic number of an atom is determined by - # of protons 76.How many planets in the solar system have rings? - 4 77.Not counting the sun, the closest star to the Earth is - Proxima Centauri
