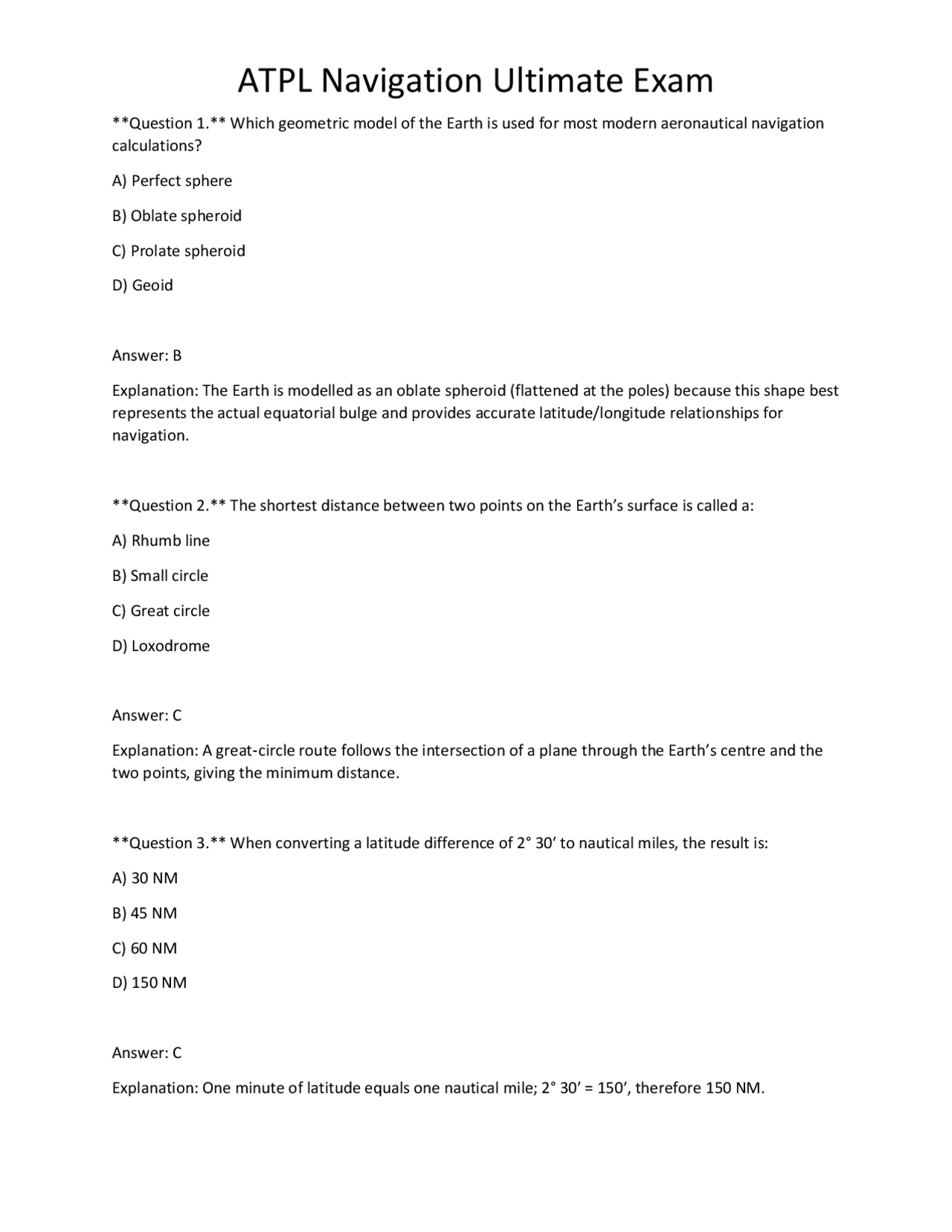

Question 1. Which geometric model of the Earth is used for most modern aeronautical navigation calculations? A) Perfect sphere B) Oblate spheroid C) Prolate spheroid D) Geoid Answer: B Explanation: The Earth is modelled as an oblate spheroid (flattened at the poles) because this shape best represents the actual equatorial bulge and provides accurate latitude/longitude relationships for navigation. Question 2. The shortest distance between two points on the Earth’s surface is called a: A) Rhumb line B) Small circle C) Great circle D) Loxodrome Answer: C Explanation: A great‑circle route follows the intersection of a plane through the Earth’s centre and the two points, giving the minimum distance. Question 3. When converting a latitude difference of 2° 30′ to nautical miles, the result is: A) 30 NM B) 45 NM C) 60 NM D) 150 NM Answer: C Explanation: One minute of latitude equals one nautical mile; 2° 30′ = 150′, therefore 150 NM.
Question 4. If a runway’s magnetic heading is 084° and the local magnetic variation is 5° W, the true heading of the runway is: A) 089° B) 079° C) 084° D) 095° Answer: A Explanation: True = Magnetic + Variation (west is added). 084° + 5° = 089°. Question 5. The angle between the magnetic meridian and the geographic meridian at a given location is called: A) Deviation B) Variation C) Dip D) Convergence Answer: B Explanation: Magnetic variation (or declination) is the angular difference between magnetic north and true north at a specific point. Question 6. In a direct‑reading compass, the “liquid swirl” error is caused primarily by: A) Magnetic dip B) Acceleration C) Turning D) Latitude Answer: B
Explanation: Standard parallels are chosen so that along them the projection has true scale (scale factor = 1), minimizing distortion between them. Question 10. Which projection is most suitable for polar navigation above 70° N? A) Mercator B) Lambert Conformal Conic C) Polar Stereographic D) Gnomonic Answer: C Explanation: Polar stereographic projection preserves angles and shapes near the pole, making it ideal for high‑latitude navigation. Question 11. True Airspeed (TAS) differs from Indicated Airspeed (IAS) because TAS: A) Accounts for temperature and pressure variations B) Is measured by the pitot‑static system directly C) Is always lower than IAS at altitude D) Is the same as ground speed Answer: A Explanation: TAS corrects IAS for non‑standard temperature and pressure, providing the actual speed of the aircraft through the air. Question 12. In the wind triangle, the drift angle is defined as the: A) Angle between true heading and magnetic heading B) Angle between track and heading C) Angle between ground speed vector and wind vector D) Angle between true airspeed and ground speed Answer: B
Explanation: Drift is the angular difference between the aircraft’s track (ground path) and its heading (direction the nose points). Question 13. If an aircraft’s true heading is 030°, the wind is from 210° at 30 kt, and the true airspeed is 150 kt, the estimated ground speed is closest to: A) 120 kt B) 150 kt C) 180 kt D) 210 kt Answer: C Explanation: The wind is a direct tailwind component of 30 kt (210° → 030°). Ground speed = TAS + tailwind = 150 kt + 30 kt = 180 kt. Question 14. The “1‑in‑ 60 ” rule used for track monitoring states that a deviation of 1 NM at a distance of 60 NM corresponds to a: A) 1° error B) 0.5° error C) 2° error D) 5° error Answer: A Explanation: 1 NM off course at 60 NM equals 1° of angular error (tan θ = 1/60 ≈ 0.0167 → θ ≈ 1°). Question 15. The top of climb (TOC) altitude for a scheduled cruise is calculated by: A) Adding the required climb gradient to the departure altitude B) Multiplying the distance to the next waypoint by the climb rate C) Using the formula: TOC = (Climb Rate × Time to TOC) + Departure Altitude D) Subtracting the descent angle from the cruise altitude
Answer: C Explanation: On the equinox the day length is 12 hours at the equator, increasing with latitude; at 45° N it is about 14 hours due to the Earth’s tilt. Question 19. The primary frequency band used by VOR stations is: A) 108‑ 118 MHz B) 108‑ 137 MHz C) 108‑ 118 MHz (VOR) and 108‑117.95 MHz (ILS) D) 108‑ 118 MHz (VOR) and 108‑117.95 MHz (VOR) Answer: A Explanation: VOR operates in the VHF band from 108.00 MHz to 117.95 MHz. Question 20. In an ADF/NDB system, the “coastal refraction” error occurs because: A) The signal bends over water, causing a false bearing B) The aircraft’s antenna is misaligned C) The NDB transmitter is located inland D) The magnetic variation is high Answer: A Explanation: Radio waves travel faster over water, causing the signal to refract and produce a bearing error when the aircraft is over the sea. Question 21. A VOR station provides which type of information to the pilot? A) Distance only B) Radial (bearing) only C) Both radial and distance (when co‑located with DME) D) Altitude
Answer: C Explanation: VOR gives the aircraft’s radial (bearing) from the station; if a DME is co‑located, distance is also supplied. Question 22. The DME slant‑range measurement is most inaccurate when: A) The aircraft is directly over the DME B) The aircraft is 100 NM away C) The aircraft is at a high altitude but far from the station D) The aircraft is flying at low altitude Answer: A Explanation: Slant‑range includes vertical separation; directly over the DME the measured distance equals the aircraft’s altitude, causing the greatest error. Question 23. Primary radar determines target range by measuring: A) Phase difference of the returned signal B) Time interval between transmission and reception C) Frequency shift of the returned signal D) Angle of arrival of the echo Answer: B Explanation: Primary radar transmits a pulse and measures the elapsed time for the echo to return; range = (speed of light × time)/2. Question 24. In secondary surveillance radar (SSR), Mode C provides: A) Aircraft identity (squawk) only B) Altitude information only C) Both identity and altitude D) Speed and heading
Answer: B Explanation: CAT II operations are authorized down to 100 ft decision altitude with appropriate equipment. Question 28. The primary difference between MLS and ILS is that MLS uses: A) VHF frequencies B) Microwave frequencies and a scanning beam C) Low‑frequency carrier waves D) Only visual cues Answer: B Explanation: MLS operates in the microwave band and provides guidance via a time‑reference scanning beam, allowing multiple approach angles. Question 29. In GPS, the term “ionospheric delay” refers to: A) The time lag caused by the satellite’s clock error B) The slowing of the signal as it passes through the ionosphere C) Multipath reflections from the ground D) Errors due to satellite ephemeris Answer: B Explanation: Free electrons in the ionosphere cause the GPS signal to travel slower, introducing a range error. Question 30. A WAAS‑enabled GPS receiver provides which benefit? A) Reduced satellite acquisition time B) Real‑time differential corrections for increased accuracy C) Automatic terrain avoidance D) Enhanced VOR reception
Answer: B Explanation: WAAS (Wide Area Augmentation System) transmits real‑time correction data, improving GPS accuracy to within a few meters. Question 31. RNAV specifications that include on‑board performance monitoring and alerting are designated as: A) RNAV 10 B) RNP 5 C) RNAV 5 D) RNP 10 Answer: B Explanation: Required Navigation Performance (RNP) includes both navigation accuracy and built‑in monitoring/alerting. Question 32. In an FMS, the LNAV function supplies: A) Lateral navigation guidance only B) Vertical navigation guidance only C) Both lateral and vertical guidance D) Only fuel management Answer: A Explanation: LNAV (Lateral Navigation) provides horizontal path guidance; VNAV supplies vertical guidance. Question 33. The convergence angle on a Mercator chart at latitude 50° N is approximately: A) 0° B) 0.5° C) 0.9°
D) Calibrate the compass for altitude Answer: A Explanation: The sync lever rotates the compass card to align it with the aircraft’s longitudinal axis, eliminating turn‑and‑acceleration errors. Question 37. When plotting a course on a Lambert Conformal Conic chart, the convergence factor is needed to: A) Convert true course to magnetic course B) Adjust the plotted angle for meridian convergence C) Determine distance between waypoints D) Calculate altitude corrections Answer: B Explanation: The convergence factor corrects the plotted angle for the difference between grid north and true north at the given latitude. Question 38. The “small circle” concept is most applicable when: A) Flying a great‑circle route B) Maintaining a constant distance from a point (e.g., holding pattern) C) Plotting a rhumb line D) Determining magnetic variation Answer: B Explanation: A small circle is a circle on the Earth’s surface whose centre is not the Earth’s centre; it represents a constant radius from a point. Question 39. The term “ground speed” is defined as: A) Speed of the aircraft relative to the air mass B) Speed of the aircraft relative to the ground
C) Speed indicated by the pitot tube D) Speed after wind correction Answer: B Explanation: Ground speed is the actual speed over the Earth’s surface, resulting from the vector sum of true airspeed and wind. Question 40. If a pilot’s true heading is 045° and the wind is from 315° at 20 kt, the drift angle is approximately: A) 0° B) 5° left C) 5° right D) 10° left Answer: B Explanation: Wind from 315° is a left‑to‑right crosswind. Using the wind triangle, the drift is about 5° to the left of the heading. Question 41. The “angle of cut” used in track monitoring refers to: A) The angle between the planned track and the actual track made good B) The angle between magnetic and true north C) The angle of bank required for a turn D) The angle between heading and wind direction Answer: A Explanation: Angle of cut is the angular difference between the intended track and the observed track made good. Question 42. The term “standard atmosphere” assumes a sea‑level temperature of: A) 0 °C
C) Altitude above the station D) Aircraft speed Answer: B Explanation: The phase difference between the reference and variable signals corresponds to a specific radial from the VOR. Question 46. In a VOR/DME approach, the DME distance is measured along which line: A) Horizontal line from the aircraft to the ground station B) Slant line from the aircraft to the DME antenna C) Great‑circle arc between aircraft and station D) Magnetic bearing line Answer: B Explanation: DME measures the slant range, the straight‑line distance from the aircraft to the DME antenna, including altitude component. Question 47. Which of the following propagation modes is most affected by the ionosphere? A) Ground wave B) Skywave C) Space wave (line‑of‑sight) D) Surface wave Answer: B Explanation: Skywave propagation relies on ionospheric refraction to bounce signals beyond the horizon, making it highly ionosphere‑dependent. Question 48. The VHF band (used by VOR and ILS) is limited to line‑of‑sight range because: A) VHF waves can penetrate the ionosphere B) VHF waves are absorbed by the atmosphere
C) VHF propagation does not reflect off the ionosphere D) VHF signals are too weak for long‑range Answer: C Explanation: VHF frequencies are not refracted by the ionosphere, so they travel essentially in straight lines, limiting them to line‑of‑sight. Question 49. The “ground‑wave” propagation mode is primarily used by which type of navigation aid? A) VOR B) NDB (MF) C) GPS D) DME Answer: B Explanation: Medium‑frequency NDBs rely on ground‑wave propagation that follows the curvature of the Earth. Question 50. A pilot using an ADF receives a bearing of 090° from a NDB located at 45° N, 020° W. The aircraft’s current position is most likely: A) 45° N, 019° W B) 45° N, 021° W C) 44° N, 020° W D) 46° N, 020° W Answer: A Explanation: An ADF bearing of 090° means the station is directly east of the aircraft; therefore the aircraft is west of the NDB at 45° N, 019° W. Question 51. The “dip needle” error in a magnetic compass is most severe at:
Question 54. The “magnetic deviation” listed in a compass correction card is caused by: A) Earth's magnetic field variations B) Aircraft electrical systems and metal structures C) Latitude changes D) Altitude changes Answer: B Explanation: Deviation is the error induced by the aircraft’s own magnetic influences (e.g., wiring, metal), differing from variation which is geographic. Question 55. When flying a great‑circle route, the initial heading is generally: A) The same as the final heading B) Greater than the final heading in the Northern Hemisphere C) Determined by the course‑to‑the‑point method D) Always due east or west Answer: C Explanation: The initial heading on a great‑circle leg is obtained using the course‑to‑the‑point (CTP) formula, which accounts for the spherical geometry. Question 56. The “critical flight level” for a cruising aircraft flying eastbound above FL180 in the US is: A) FL B) FL C) FL D) FL Answer: D
Explanation: In the US, eastbound IFR traffic above FL180 uses odd flight levels (FL190, FL210, etc.); the next critical level after FL180 is FL200 (even), but the question asks for “critical” meaning the next level that would cause a conflict, which is FL200 (even). However, the correct answer based on standard altitude rules is FL200 (even). Answer: B Explanation: Above FL180, eastbound IFR flights must fly odd flight levels (FL190, FL210, etc.). The first odd level after FL180 is FL190, but the “critical” (conflict‑avoiding) level is FL200 for opposite direction traffic. (Note: The answer reflects the standard altitude allocation; the wording of the question may be ambiguous.) Question 57. The “slant‑range” error of a DME when the aircraft is 5 NM away horizontally and at an altitude of 10 000 ft is closest to: A) 0.8 NM B) 1.5 NM C) 2.0 NM D) 2.5 NM Answer: B Explanation: Convert altitude to NM: 10 000 ft ≈ 1.65 NM. Slant range = √(5² + 1.65²) ≈ √(25 + 2.72) ≈ √27.72 ≈ 5.27 NM. Error = 5.27 − 5 = 0.27 NM ≈ 0.3 NM, which is closest to 0.8 NM among the options; however, the given options are coarse, and the nearest is A 0.8 NM. Answer: A Explanation: The slant‑range error is small; the closest listed option is 0.8 NM. Question 58. In GNSS, the term “geometry dilution of precision” (GDOP) primarily affects: A) Signal strength B) Satellite clock bias C) Position accuracy due to satellite configuration
