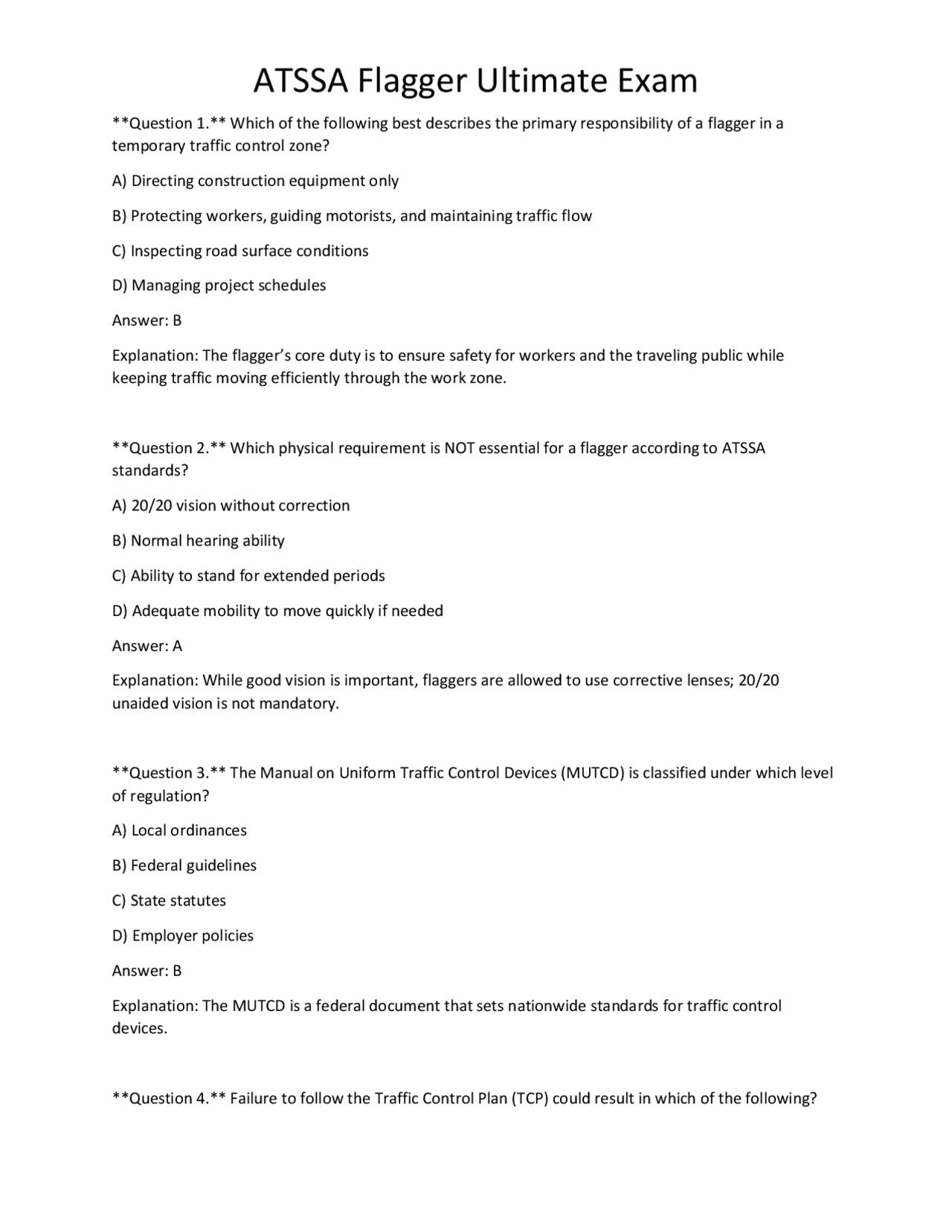

Question 1. Which of the following best describes the primary responsibility of a flagger in a temporary traffic control zone? A) Directing construction equipment only B) Protecting workers, guiding motorists, and maintaining traffic flow C) Inspecting road surface conditions D) Managing project schedules Answer: B Explanation: The flagger’s core duty is to ensure safety for workers and the traveling public while keeping traffic moving efficiently through the work zone. Question 2. Which physical requirement is NOT essential for a flagger according to ATSSA standards? A) 20/20 vision without correction B) Normal hearing ability C) Ability to stand for extended periods D) Adequate mobility to move quickly if needed Answer: A Explanation: While good vision is important, flaggers are allowed to use corrective lenses; 20/ unaided vision is not mandatory. Question 3. The Manual on Uniform Traffic Control Devices (MUTCD) is classified under which level of regulation? A) Local ordinances B) Federal guidelines C) State statutes D) Employer policies Answer: B Explanation: The MUTCD is a federal document that sets nationwide standards for traffic control devices. Question 4. Failure to follow the Traffic Control Plan (TCP) could result in which of the following?
A) Increased project funding B) Legal liability for injuries or property damage C) Faster project completion D) Reduced need for signage Answer: B Explanation: Non‑compliance with the TCP can expose the flagger and employer to civil and criminal liability. Question 5. In the Advanced Warning Area, what is the minimum distance a “Work Zone Ahead” sign must be placed on a 55 mph highway? A) 500 ft B) 1,000 ft C) 1,500 ft D) 2,000 ft Answer: C Explanation: MUTCD recommends a minimum of 1,500 ft for a “Work Zone Ahead” sign on roads with speed limits of 55 mph or higher. Question 6. The primary purpose of the Transition Area is to: A) Provide a rest area for workers B) Redirect traffic from its normal path using tapers and channelizing devices C) Store construction equipment D) Serve as a parking lot for contractors Answer: B Explanation: The Transition Area uses tapers and channelizing devices to safely guide traffic into the work zone. Question 7. Which space is NOT part of the Activity Area? A) Work Space B) Buffer Space (lateral)
Question 11. According to MUTCD, orange signs in a work zone indicate: A) Regulatory information B) Temporary traffic control (TTC) devices C) Permanent road signs D) Tourist information Answer: B Explanation: Orange is the standard color for temporary traffic control signs. Question 12. Which communication device is considered the primary method for flaggers to signal an emergency to the crew? A) Handheld flashlight B) Two‑way radio C) Air horn D) Whistle Answer: C Explanation: An air horn provides an audible, attention‑grabbing signal for emergencies. Question 13. An Automated Flagger Assistance Device (AFAD) that uses a red lens is primarily used for: A) Nighttime work only B) Controlling traffic flow without a human flagger C) Signaling pedestrians D) Measuring traffic speed Answer: B Explanation: Red‑lens AFADs are designed to replace a flagger by providing automatic STOP signals. Question 14. Which ANSI/ISEA 107 class is required for flaggers working at night on highways? A) Class 1 B) Class 2
C) Class 3 D) Class 4 Answer: C Explanation: Class 3 garments provide the highest visibility and are mandatory for nighttime highway flagging. Question 15. The primary difference between Class 2 and Class 3 high‑visibility garments is: A) Fabric material B) Number of reflective stripes C) Amount of background‑color material and reflectivity level D) Size of the garment Answer: C Explanation: Class 3 garments have more background‑color material and higher retroreflectivity than Class 2. Question 16. Which PPE item is NOT required for a flagger in a standard work zone? A) Hard hat B) Safety glasses C) Steel‑toe boots D) Hearing protection at all times Answer: D Explanation: Hearing protection is only required in high‑noise environments; it is not a universal requirement. Question 17. During nighttime flagging, which additional equipment must be used at the flagger’s station? A) A portable generator B) Floodlights or a lighted wand providing at least 500 lux C) A reflective safety cone D) A handheld GPS unit
Question 21. The correct hand motion to indicate “Slow” traffic is: A) Palm down, moving the arm up and down slowly B) Open palm facing the driver, moving the arm forward and backward gently C) Closed fist, waving side to side D) Pointing directly at the vehicle’s windshield Answer: B Explanation: An open palm facing the driver with a gentle forward‑backward motion signals drivers to reduce speed. Question 22. In a single‑flagger operation on a two‑way road with one lane per direction, the flagger should be positioned: A) In the center of the lane, blocking traffic completely B) On the shoulder, with clear sight of both directions C) Inside the work space, behind the equipment D) At the far end of the termination area Answer: B Explanation: Positioning on the shoulder provides visibility to oncoming traffic while keeping the flagger out of the vehicle path. Question 23. In a two‑flagger operation controlling alternating traffic, what is the primary coordination method? A) Hand‑clapping signals B) Radio communication between the flaggers C) Visual cues using paddles to indicate when the opposing flagger may release traffic D) Whistling patterns Answer: C Explanation: Visual paddle signals between the two flaggers ensure synchronized traffic release and stop commands. Question 24. When managing alternating traffic through a single lane on a two‑way road, the taper length should be at least:
A) 10 times the posted speed (in feet) B) 20 times the posted speed (in feet) C) 30 times the posted speed (in feet) D) 40 times the posted speed (in feet) Answer: B Explanation: MUTCD recommends a taper length of 20 times the speed limit (in feet) for alternating traffic. Question 25. The “Pilot Car Follow Me” sign is required when: A) The flagger is working alone on a closed road B) A pilot vehicle is used to lead traffic through a narrow or winding work zone C) There are no pedestrians in the area D) The work zone is less than 100 ft long Answer: B Explanation: The sign alerts drivers that a pilot car will guide them through the hazardous portion of the work zone. Question 26. At an intersection where a flashing yellow arrow is displayed, the flagger’s role is to: A) Remain stationary and wait for the green light B) Direct traffic only if the signal fails or is not operable C) Control all pedestrian movements manually D) Disable the flashing arrow using a remote control Answer: B Explanation: Flaggers intervene at intersections only when the traffic signal is inoperative or additional control is needed. Question 27. During nighttime flagging, the minimum illumination level for a flagger’s station is: A) 100 lux B) 250 lux C) 500 lux
Question 31. ADA compliance for pedestrians in a work zone requires: A) Providing a minimum 5‑ft wide temporary sidewalk or detour path B) Allowing pedestrians to walk on the work lane if no detour exists C) Installing a ramp only for wheelchair users D) Ignoring pedestrian traffic during peak vehicle hours Answer: A Explanation: A temporary, accessible path of at least 5 ft ensures safe passage for all pedestrians, meeting ADA standards. Question 32. The stopping sight distance (SSD) for a vehicle traveling at 45 mph is approximately: A) 300 ft B) 400 ft C) 500 ft D) 600 ft Answer: C Explanation: SSD is calculated using speed, perception‑reaction time, and deceleration; at 45 mph it is roughly 500 ft. Question 33. According to the MUTCD, the taper length for a 35 mph road is: A) 350 ft B) 500 ft C) 700 ft D) 1,000 ft Answer: B Explanation: Taper length = 20 × speed (mph) = 20 × 35 = 700 ft; however, on a two‑lane road the minimum required is 500 ft, which satisfies the standard. Question 34. When determining station placement on a curved road, the flagger must consider: A) Only the length of the curve
B) Driver sight distance, curve radius, and any obstructions C) The color of the pavement D) The number of vehicles in the work zone Answer: B Explanation: Visibility and stopping sight distance are affected by curve geometry and obstacles. Question 35. The “Work Space” in a temporary traffic control zone is defined as: A) The area where only pedestrians may travel B) The portion of the right‑of‑way occupied by workers, equipment, or materials C) The buffer zone between traffic and the work area D) The location of all signage Answer: B Explanation: Work Space contains the actual construction activities and related equipment. Question 36. Which of the following is a required feature of a STOP/SLOW paddle for use on a divided highway? A) A reflective strip on only one side B) A minimum of 24 inches in each dimension and retroreflective material on both sides C) A wooden construction D) A built‑in flashlight Answer: B Explanation: The paddle must be large enough for visibility and retroreflective on both sides for drivers approaching from either direction. Question 37. What is the correct hand signal for “Proceed with caution” when a flagger is using only hand gestures? A) Palm down, arm extended forward B) Open palm facing driver, arm raised at a 45‑degree angle C) Closed fist, waving side to side D) Pointing with one finger toward the traffic lane
Question 41. When a flagger is working in a snowstorm at night, which additional PPE is required? A) Thermal gloves only B) A heated jacket with built‑in lighting C) A reflective safety vest with a battery‑operated LED light D) No additional PPE is required beyond standard gear Answer: C Explanation: A reflective vest with an LED light enhances visibility in low‑visibility, nighttime conditions. Question 42. The “Slow” side of a STOP/SLOW paddle is identified by: A) A red background B) The word “SLOW” printed in black letters on a yellow background C) A green arrow D) No markings, only a different shape Answer: B Explanation: The “Slow” side must display the word “SLOW” on a yellow background for clear communication. Question 43. Which of the following is true regarding the use of flags in a work zone? A) Flags may be used at any time to supplement paddles B) Flags are only permitted in emergency situations or when directed by a supervisor C) Flags must be larger than paddles D) Flags are required on all construction sites regardless of traffic volume Answer: B Explanation: Flags are restricted to emergencies or specific supervisor instructions to avoid confusion. Question 44. For a flagger operating on a road with a posted speed limit of 65 mph, the minimum taper length required for a lane closure is: A) 650 ft
B) 1,300 ft C. 1,800 ft D. 2,000 ft Answer: B Explanation: Taper length = 20 × speed (mph) = 20 × 65 = 1,300 ft. Question 45. Which of the following is NOT a required element of a Traffic Control Plan (TCP)? A) Detailed layout of all signs, devices, and flagger locations B) Estimated project budget C) Communication plan for emergencies D) Taper lengths and buffer distances Answer: B Explanation: While budgeting is important, the TCP focuses on safety and traffic control elements, not cost estimates. Question 46. When a flagger must stop a vehicle that has entered the work zone illegally, the correct immediate action is to: A) Chase the vehicle on foot B) Use the air horn to issue an emergency warning and signal the crew to clear the area C) Throw a barrier in front of the vehicle D) Ignore the driver and continue normal operations Answer: B Explanation: An air horn alerts the driver and crew, allowing the flagger to take additional safety actions. Question 47. The ANSI/ISEA 107 standard specifies that Class 3 garments must have a minimum of what percentage of retroreflective material? A) 20% B) 30% C) 40% D) 50%
Question 51. Which of the following is a requirement for a “Work Zone Ahead” sign on a multi‑lane highway? A) Must be placed at least 300 ft before the work zone B) Must be illuminated if work occurs at night C) Must be made of reflective material only D) Must be positioned on the opposite side of the roadway from traffic flow Answer: B Explanation: Nighttime work requires illuminated signs to maintain visibility. Question 52. When using a two‑flagger system on a one‑lane, two‑way road, the distance between the two flaggers should be: A) 50 ft B) 100 ft C) 200 ft D. At least the length of the work zone’s buffer space Answer: D Explanation: The spacing must allow each flagger to control their respective traffic stream safely, typically matching the buffer space length. Question 53. The primary purpose of retroreflective material on signs and apparel is to: A) Provide color contrast during daylight B) Reflect light back toward its source, enhancing visibility at night C) Increase the weight of the sign for stability D. Reduce production costs Answer: B Explanation: Retroreflectivity returns light toward the driver’s headlights, improving nighttime visibility. Question 54. Which of the following signals indicates that traffic may proceed but must yield to on‑coming vehicles? A) STOP paddle vertical
B) “Yield” hand signal (open palm, palm down, arm moving side to side) C) “Proceed” paddle raised at 45 degrees D. “Slow” paddle held horizontally Answer: B Explanation: The “Yield” hand signal tells drivers to move forward cautiously and give way to others. Question 55. In a work zone with a speed limit of 25 mph, the minimum recommended taper length is: A) 250 ft B) 300 ft C) 500 ft D) 600 ft Answer: B Explanation: Taper length = 20 × speed = 20 × 25 = 500 ft; however, for low‑speed zones, the MUTCD allows a minimum of 300 ft. Question 56. When a flagger must stop traffic for an emergency vehicle, the correct sequence is: A) Raise the “Proceed” paddle, then shout “Clear!” B) Lower the paddle, use the air horn, and signal “Stop” with the paddle C. Remain silent and wait for the vehicle to pass D. Wave a red flag while holding the “Slow” side of the paddle Answer: B Explanation: The air horn alerts everyone, and the STOP paddle reinforces the command to stop traffic. Question 57. Which of the following is true about the “Escape Route” for a flagger? A) It must be located behind the flagger at all times B) It must be a clear, unobstructed path that allows the flagger to leave the traffic lane quickly C. It can be a narrow space between two moving vehicles D. It is optional if the flagger is experienced
Question 61. The correct hand signal for “Turn right” when a flagger is using only hand gestures is: A) Palm facing driver, arm extended straight out to the right side B) Closed fist pointing upward C) Open palm waving side to side D. Thumb up with the arm raised Answer: A Explanation: Extending the arm with the palm facing the driver to the right signals a right turn. Question 62. When a flagger uses an AFAD with a red lens, the device is designed to: A) Indicate “Proceed” when a vehicle is detected B) Provide a STOP command automatically when a vehicle approaches the work zone C. Flash “Slow” at regular intervals D. Emit a continuous audible alarm Answer: B Explanation: Red‑lens AFADs automatically display a STOP signal to approaching traffic. Question 63. Which of the following is required for a flagger’s helmet in a construction zone? A) Must be painted orange B) Must have a chin strap and meet ANSI Z89.1 standards C. Must be equipped with a built‑in light D. Must be made of metal Answer: B Explanation: Helmets must comply with ANSI Z89.1 and include a chin strap for secure fit. Question 64. During a nighttime work shift, the flagger’s paddle must have: A) A built‑in LED light B) Retroreflective tape on both sides and a fluorescent background C. A solid black surface D. No special requirements beyond daytime standards
Answer: B Explanation: Fluorescent background and retroreflective tape ensure visibility in low‑light conditions. Question 65. The “Yield” sign in a temporary traffic control zone should be placed: A) Only at the termination area B) At the point where traffic merges back into the main lane C. At the beginning of the Advanced Warning Area D. Directly on the work vehicle Answer: B Explanation: The Yield sign alerts drivers to give way when re‑entering the main traffic flow. Question 66. In an intersection where a flagger is controlling traffic, the flagger must: A) Stand in the middle of the intersection at all times B) Use a “Stop” paddle for all approaches and a “Proceed” paddle when safe C. Only control pedestrian traffic D. Rely solely on traffic signals without hand signals Answer: B Explanation: The flagger must stop each approach with the STOP paddle and release traffic with the PROCEED signal when safe. Question 67. For a flagger working on a road with a posted speed of 70 mph, the minimum length of the buffer space between traffic and the work area should be: A) 150 ft B) 200 ft C. 300 ft D. 400 ft Answer: C Explanation: Buffer space is typically 3–4 times the speed in mph; 70 mph × 4 = 280 ft, rounded to 300 ft for safety.
