CAD Level 1 Award in Parametric ModellingHomework
AutoCAD - Exercise 10

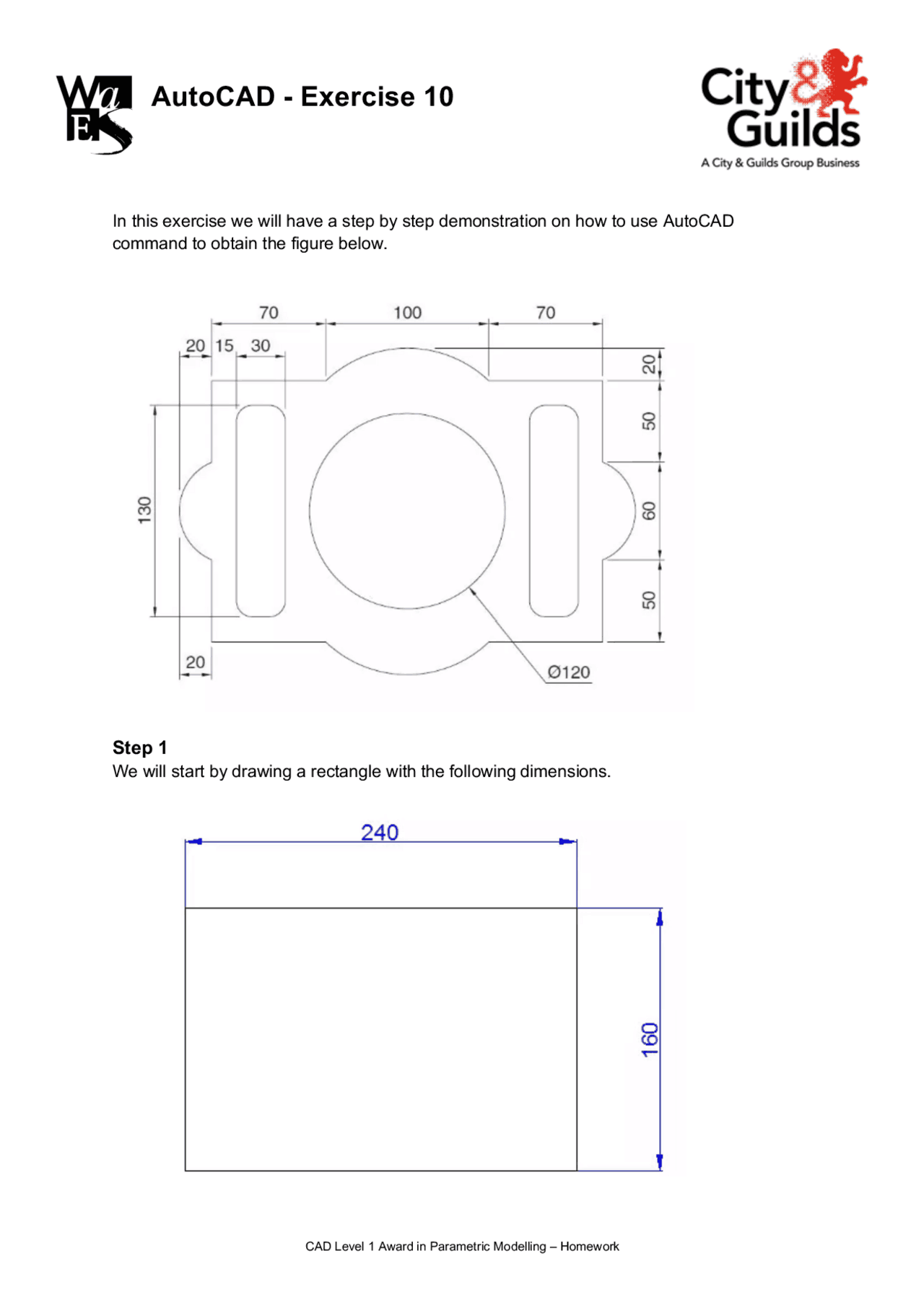

In this exercise we will have a step by step demonstration on how to use AutoCAD
command to obtain the figure below.
Step 1
We will start by drawing a rectangle with the following dimensions.
pf3
pf4
pf5

Partial preview of the text

Download AutoCAD Parametric Modelling Homework: Creating Rounded Rectangles and more Slides Control Systems in PDF only on Docsity!

AutoCAD - Exercise 10

In this exercise we will have a step by step demonstration on how to use AutoCAD command to obtain the figure below.

Step 1

We will start by drawing a rectangle with the following dimensions.

Step 2

You should be able to find the middle of each side, so create a gap of 100 and 60 cantered at the middle of each side. And draw a line perpendicular of 20 of length. The line will help draw arcs since will need 3 points to draw each of our arcs. You also need to draw a diagonal, this will serve to draw the circle, we need to be able to draw a circle cantered right at the centre of our rectangle. Here we can draw our circle with no hassle using the diagonal of the rectangle, and we are sure the circle is at its right place.

You can try using this technique to find the starting point of the triangle we are trying to draw. But if you are not able to follow this, you can simply draw lines, use them, and delete them when you are done with them.

Step 5

Now we need to get those rounded shapes of radius 10 on each edge of the rectangle we have just drawn. Use the FILLET command. To use the FILLET command:

  1. Click on the icon shown on the figure above
  2. Type “R” on your keyboard and press ENTER
  3. Type “10” and press ENTER
  4. Select the first side of the corner to round
  5. Select the second side of the corner to round Repeat this for the other 3 corners. Notice You do not have to go through 2 and 3, for the other corners, go from 1 to 4, 5. AutoCAD have saved the dimension of the radius you specified and will keep it like the default value while using this command until you decide to change it. By default, the value of this radius is set to zero, that is why you changed it.

You should obtain this.

Step 7

Now use the MIRROR command to obtain the rectangle on the right, since it is a symmetry of the figure we have just drawn. Use the centre of the circle as centre of the symmetry.
