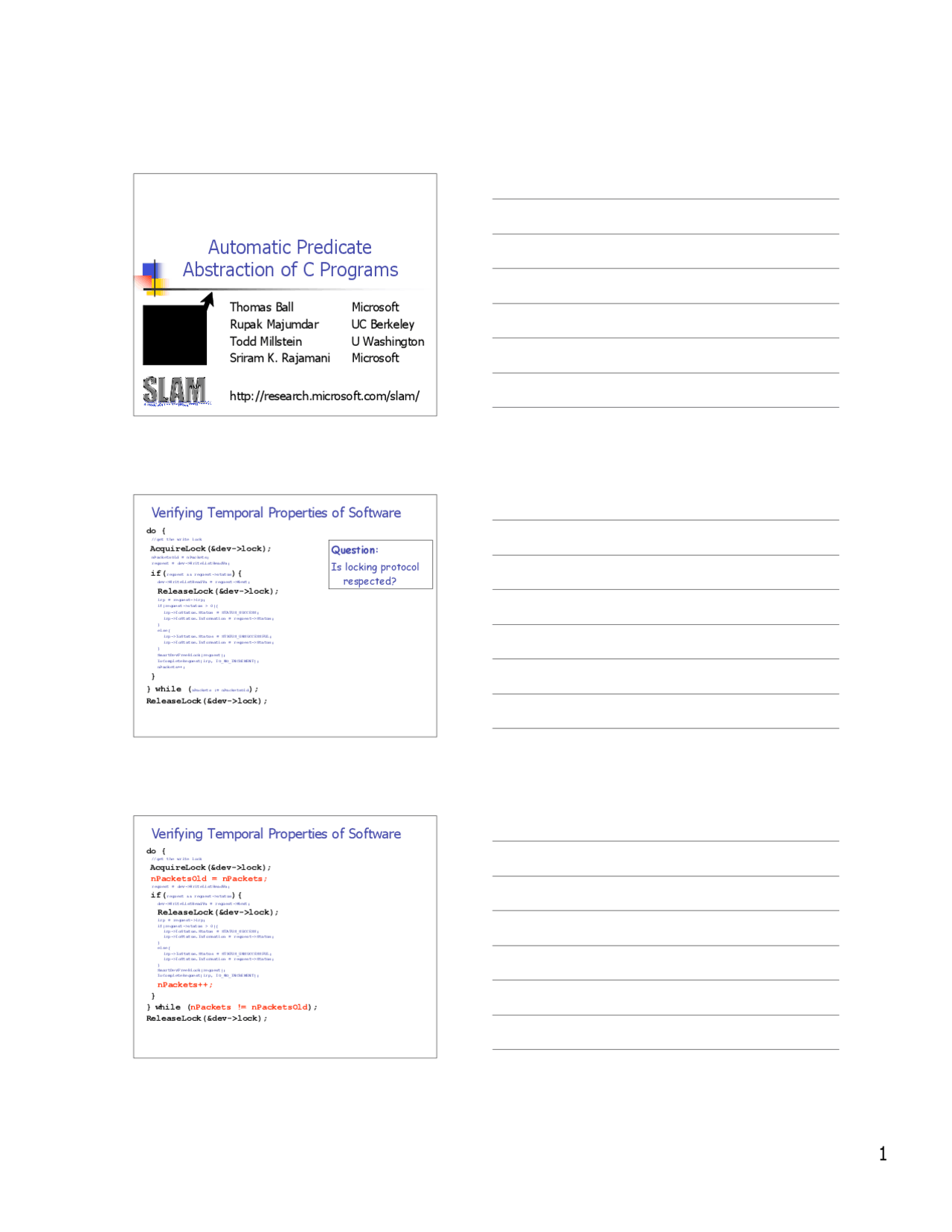

Automatic Predicate
Abstraction of C Programs
Thomas Ball Microsoft
Rupak Majumdar UC Berkeley
Todd Millstein U Washington
Sriram K. Rajamani Microsoft
http://research.microsoft.com/slam/
S^ o^ ft w^ a^ r e P^ r Tools o^ d^ u c^ tiv ity do { //get the write lock AcquireLock(&dev->lock); nPacketsOld = nPackets; request = dev->WriteListHeadVa; if( dev->WriteListHeadVarequest && request->status = request->Next; ){ ReleaseLock(&dev->lock); irp = request->irp; if(request->status irp->IoStatus.Status > 0){ = STATUS_SUCCESS; }^ irp->IoStatus.Information^ =^ request->Status; else{ irp->IoStatus.Status = STATUS_UNSUCCESSFUL; }^ irp->IoStatus.Information^ =^ request->Status; SmartDevFreeBlock(request); IoCompleteRequest(irp, IO_NO_INCREMENT); nPackets++; } } while ( nPackets != nPacketsOld ); ReleaseLock(&dev->lock); Question: Is locking protocol respected?
Verifying Temporal Properties of Software
Verifying Temporal Properties of Software
do { //get the write lock AcquireLock(&dev->lock); nPacketsOld = nPackets; request = dev->WriteListHeadVa; if( dev->WriteListHeadVarequest && request->status = request->Next; ){ ReleaseLock(&dev->lock); irp = request->irp; if(request->status irp->IoStatus.Status > 0){ = STATUS_SUCCESS; }^ irp->IoStatus.Information^ =^ request->Status; else{ irp->IoStatus.Status = STATUS_UNSUCCESSFUL; }^ irp->IoStatus.Information^ =^ request->Status; SmartDevFreeBlock(request); IoCompleteRequest(irp, IO_NO_INCREMENT); nPackets++; } } while (nPackets != nPacketsOld); ReleaseLock(&dev->lock);
do { AcquireLock(); b = true; if () { ReleaseLock(); b = b? false : ; } } while ( !b ); ReleaseLock(); do { //get the write lock AcquireLock(&dev->lock); nPacketsOld = nPackets; request = dev->WriteListHeadVa; if( dev->WriteListHeadVarequest && request->status = request->Next; ){ ReleaseLock(&dev->lock); irp = request->irp; if(request->status irp->IoStatus.Status > 0){ = STATUS_SUCCESS; }^ irp->IoStatus.Information^ =^ request->Status; else{ irp->IoStatus.Status = STATUS_UNSUCCESSFUL; }^ irp->IoStatus.Information^ =^ request->Status; SmartDevFreeBlock(request); IoCompleteRequest(irp, IO_NO_INCREMENT); nPackets++; } } while (nPackets != nPacketsOld); ReleaseLock(&dev->lock);
Predicate Abstraction
C program
Boolean program Predicate Abstraction (C2bp) Model Checking (Bebop) [PASTE 2001, Spin 2000] Predicate Discovery (Newton)
E = {e 1 ,...,e n}
no yes
C2bp: Predicate Abstraction
for C Programs
Given
n P : a C program
n E = {e 1 ,...,e n} : set of C boolean expressions
over the variables in P
n no side effects, no procedure calls
Produce a boolean program B
n same control-flow structure as P
n only vars are 3-valued booleans {b 1 ,...,b n}
n properties true of B are true of P
Strengthening
S(e) is the best predicate over {e 1 ,...,en} that
implies e:
n a minterm is a conjunction d 1 ^ ... ^ dn,
where di = ei or di = !ei
n S(e) = disjunction of all minterms that
imply e
n use decision procedure to check implication
Abstracting Assignments
n S(wp(s, ei)) is true before s implies
predicate ei is true after s
n S(!wp(s, ei)) is true before s implies
predicate ei is false after s
bi = S(wp(s, ei))? true :
S(!wp(s, ei))? false :
Assignment Example
Statement in P: Predicates in E: y = y+1; {x==y} Weakest Precondition: wp(y=y+1, x==y) = x==y+ Strengthenings: S(x==y+1) = false S(x!=y+1)) = x==y Abstraction of s in B: b = b? false : *;
Handling Pointers
Weakest Precondition: wp(*p=3, x==5) = x==5 What if *p and x alias? We use Das’s pointer analysis [PLDI 2000] to prune disjuncts representing infeasible alias scenarios. Correct Weakest Precondition: (p==&x && 3==5) || (p!=&x && x==5) Statement in P: Predicates in E: *p = 3; {x==5}
Abstracting Conditionals
in P:
if (expr) {...} else {...}
in B:
if (*) {assume(W(expr)); ...}
else {assume(W(!expr)); ...}
weakening : W(expr) = !S(!expr)
Handling Procedures
n each predicate in E is annotated as being
either global or local to a particular
procedure
n procedures abstracted in two passes:
n a signature is produced for each procedure in isolation n procedure calls are abstracted given the callees’ signatures
Predicate-sensitive Alias Analysis
prev = NULL; newl = NULL; while (curr) { next = curr->next; if (curr->val > v) { if (prev) prev->next = next; curr->next = newl; L: newl = curr; } else prev = curr; curr = nextCurr; } prev == NULL curr == NULL prev->val > v curr->val > v (curr!=NULL) && ( prev==NULL || (prev->val <= v) && (curr->val >v) ) implies (prev != curr) at label L
