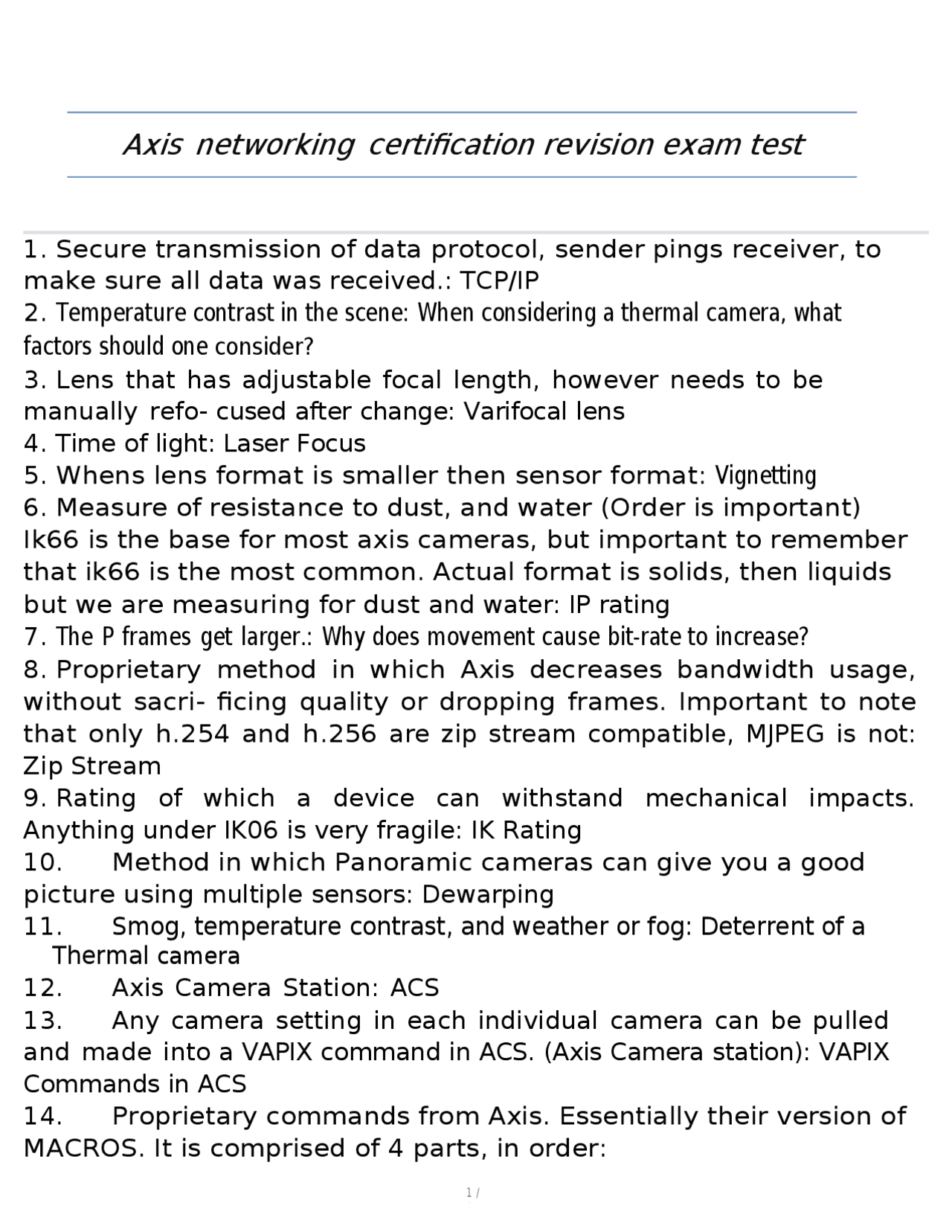

Axis networking certification revision exam test
1.
Secure transmission of data protocol, sender pings receiver, to
make sure all
data was received.: TCP/IP
2.
Temperature contrast in the scene:
When considering a thermal camera, what
factors should one
consider?
3. Lens that has adjustable focal length, however needs to be
manually refo- cused after change: Varifocal lens
4. Time of light: Laser Focus
5.
Whens lens format is smaller then sensor format:
Vignetting
6.
Measure of resistance to dust, and water (Order is important)
Ik66 is the base for most axis cameras, but important to remember
that ik66 is the most common. Actual format is solids, then liquids
but we are measuring for dust
and water: IP rating
7.
The
P
frames
get
larger.:
Why does
movement cause
bit-rate to
increase?
8.
Proprietary method in which Axis decreases bandwidth usage,
without sacri- ficing quality or dropping frames. Important to note
that only h.254 and h.256
are zip stream compatible, MJPEG is not:
Zip Stream
9. Rating of which a device can withstand mechanical impacts.
Anything under IK06 is very fragile: IK Rating
10.
Method in which Panoramic cameras can give you a good
picture using
multiple sensors: Dewarping
11.
Smog, temperature contrast, and weather or fog: Deterrent of a
Thermal
camera
12. Axis Camera Station: ACS
13. Any camera setting in each individual camera can be pulled
and made into a VAPIX command in ACS. (Axis Camera station): VAPIX
Commands in ACS
14.
Proprietary commands from Axis. Essentially their version of
MACROS. It is comprised of 4 parts, in order:
