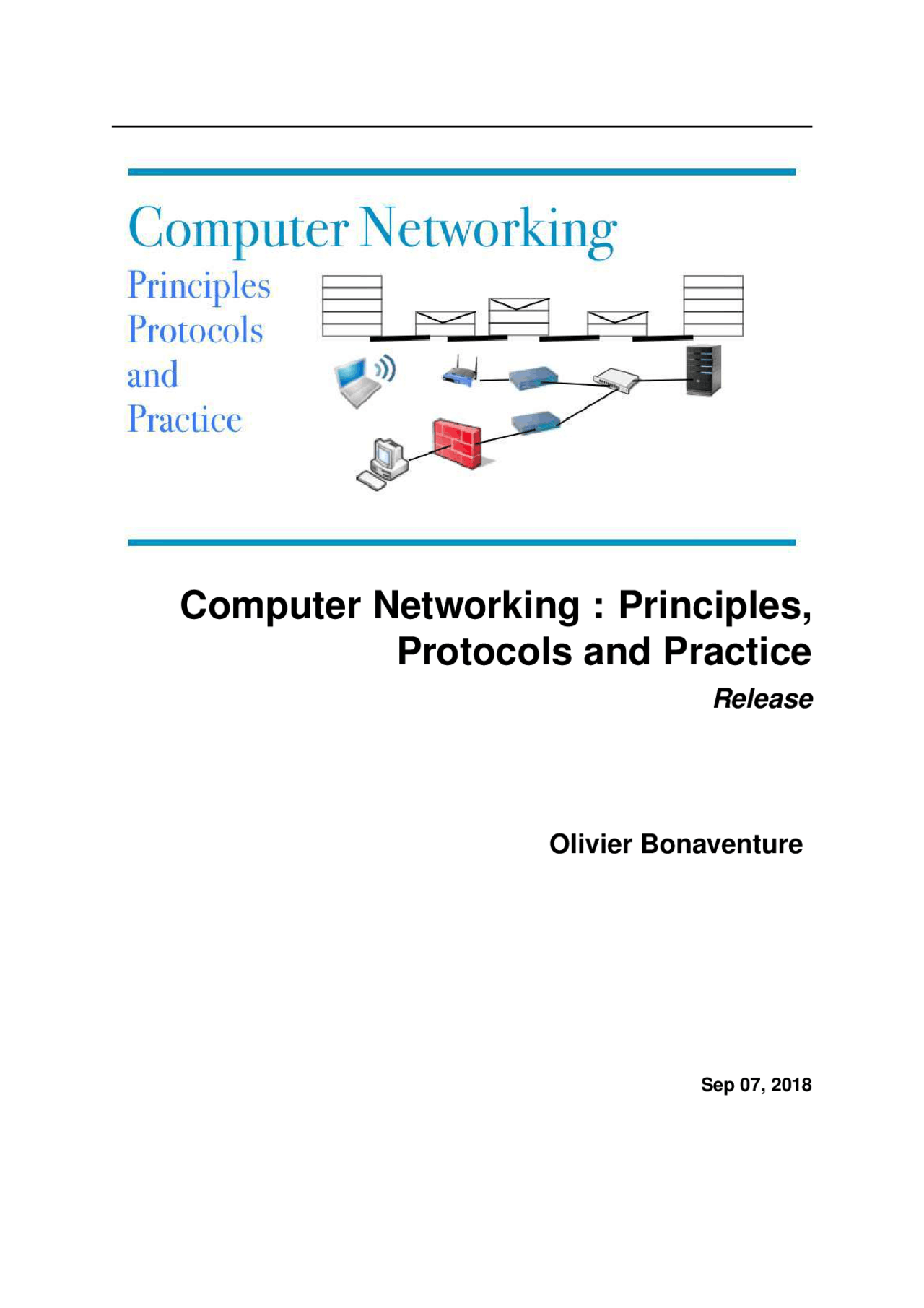

Computer Networking : Principles,

Protocols and Practice

Release

Olivier Bonaventure

Sep 07, 2018

ii

• 1 Preface
  • 1.1 About the author
• 2 Part 1: Principles
  • 2.1 Connecting two hosts
  • 2.2 Building a network
  • 2.3 Applications
  • 2.4 The transport layer
  • 2.5 Naming and addressing
  • 2.6 Sharing resources
  • 2.7 The reference models
  • 2.8 Network security
• 3 Part 2: Protocols
  • 3.1 The application layer
  • 3.2 The Domain Name System
  • 3.3 Electronic mail
  • 3.4 Remote login
  • 3.5 The HyperText Transfer Protocol
  • 3.6 Remote Procedure Calls
  • 3.7 Transport Layer Security
  • 3.8 Securing the Domain Name System
  • 3.9 Internet transport protocols
  • 3.10 The User Datagram Protocol
  • 3.11 The Transmission Control Protocol
  • 3.12 The Stream Control Transmission Protocol
  • 3.13 Congestion control
  • 3.14 The network layer
  • 3.15 The IPv6 subnet
  • 3.16 Routing in IP networks
  • 3.17 Intradomain routing
  • 3.18 Interdomain routing
  • 3.19 Datalink layer technologies
• 4 Appendices
  • 4.1 Glossary
  • 4.2 Bibliography
  • 4.3 Indices and tables
• Bibliography
• Index
• Contents

CHAPTER 1

Preface

This is the current draft of the second edition of the Computer Networking : Principles, Protocols and Practice.

The first edition of this ebook has been written by Olivier Bonaventure. Laurent Vanbever, Virginie Van den Schriek, Damien Saucez and Mickael Hoerdt have contributed to exercises. Pierre Reinbold designed the icons used to represent switches and Nipaul Long has redrawn many figures in the SVG format. Stephane Bortzmeyer sent many suggestions and corrections to the text. Additional information about the textbook is available at http://inl.info.ucl.ac.be/CNP

Note: Computer Networking : Principles, Protocols and Practice, (c) 2011, Olivier Bonaventure, Universite catholique de Louvain (Belgium) and the collaborators listed above, used under a Creative Commons Attribution (CC BY) license made possible by funding from The Saylor Foundation’s Open Textbook Challenge in order to be incorporated into Saylor.org’ collection of open courses available at http://www.saylor.org. Full license terms may be viewed at : http://creativecommons.org/licenses/by/3.0/

1.1 About the author

Olivier Bonaventure is currently professor at Universite catholique de Louvain (Belgium) where he leads the IP Networking Lab. His research has been focused on Internet protocols for more than twenty years. Together with his Ph.D. students, he has developed traffic engineering techniques, performed various types of Internet measurements, improved the performance of routing protocols such as BGP and IS-IS and participated to the development of new Internet protocols including shim6, LISP and Multipath TCP. He frequently contributes to standardisation within the IETF.

4 Chapter 1. Preface

techniques allow to create point-to-point links while radio-based techniques, depending on the directionality of the antennas, can be used to build networks containing devices spread over a small geographical area.

2.1.1 The physical layer

These physical media can be used to exchange information once this information has been converted into a suitable electrical signal. Entire telecommunication courses and textbooks are devoted to the problem of converting analog or digital information into an electrical signal so that it can be transmitted over a given physical link. In this book, we only consider two very simple schemes that allow to transmit information over an electrical cable. This enables us to highlight the key problems when transmitting information over a physical link. We are only interested in techniques that allow to transmit digital information through the wire and will focus on the transmission of bits, i.e. either 0 or 1.

Note: Bit rate

In computer networks, the bit rate of the physical layer is always expressed in bits per second. One Mbps is one million bits per second and one Gbps is one billion bits per second. This is in contrast with memory specifica- tions that are usually expressed in bytes (8 bits), KiloBytes ( 1024 bytes) or MegaBytes (1048576 bytes). Thus transferring one MByte through a 1 Mbps link lasts 8.39 seconds.

Bit rate Bits per second 1 Kbps 103 1 Mbps 106 1 Gbps 109 1 Tbps 1012

To understand some of the principles behind the physical transmission of information, let us consider the simple case of an electrical wire that is used to transmit bits. Assume that the two communicating hosts want to transmit one thousand bits per second. To transmit these bits, the two hosts can agree on the following rules :

• On the sender side :
  • set the voltage on the electrical wire at +5V during one millisecond to transmit a bit set to 1
  • set the voltage on the electrical wire at -5V during one millisecond to transmit a bit set to 0
• On the receiver side :
  • every millisecond, record the voltage applied on the electrical wire. If the voltage is set to +5V, record the reception of bit 1. Otherwise, record the reception of bit 0

This transmission scheme has been used in some early networks. We use it as a basis to understand how hosts com- municate. From a Computer Science viewpoint, dealing with voltages is unusual. Computer scientists frequently rely on models that enable them to reason about the issues that they face without having to consider all implemen- tation details. The physical transmission scheme described above can be represented by using a time-sequence diagram.

A time-sequence diagram describes the interactions between communicating hosts. By convention, the communi- cating hosts are represented in the left and right parts of the diagram while the electrical link occupies the middle of the diagram. In such a time-sequence diagram, time flows from the top to the bottom of the diagram. The trans- mission of one bit of information is represented by three arrows. Starting from the left, the first horizontal arrow represents the request to transmit one bit of information. This request is represented by using a primitive which can be considered as a kind of procedure call. This primitive has one parameter (the bit being transmitted) and a name (DATA.request in this example). By convention, all primitives that are named something.request correspond to a request to transmit some information. The dashed arrow indicates the transmission of the corresponding electrical signal on the wire. Electrical and optical signals do not travel instantaneously. The diagonal dashed arrow indi- cates that it takes some time for the electrical signal to be transmitted from Host A to Host B. Upon reception of the electrical signal, the electronics on Host B‘s network interface detects the voltage and converts it into a bit. This bit is delivered as a DATA.indication primitive. All primitives that are named something.indication correspond to the reception of some information. The dashed lines also represents the relationship between two (or more)

6 Chapter 2. Part 1: Principles

primitives. Such a time-sequence diagram provides information about the ordering of the different primitives, but the distance between two primitives does not represent a precise amount of time.

Host A Physical link Host B DATA.req(0) 0 DATA.ind(0)

Time-sequence diagrams are usual when trying to understand the characteristics of a given communication scheme. When considering the above transmission scheme, is it useful to evaluate whether this scheme allows the two communicating hosts to reliably exchange information? A digital transmission will be considered as reliable when a sequence of bits that is transmitted by a host is received correctly at the other end of the wire. In practice, achieving perfect reliability when transmitting information using the above scheme is difficult. Several problems can occur with such a transmission scheme.

The first problem is that electrical transmission can be affected by electromagnetic interferences. These inter- ferences can have various sources including natural phenomenons like thunderstorms, variations of the magnetic field, but also can be caused by interference with other electrical signals such as interference from neighboring cables, interferences from neighboring antennas, ... Due to all these interferences, there is unfortunately no guar- antee that when a host transmit one bit on a wire, the same bit is received at the other end. This is illustrated in the figure below where a DATA.request(0) on the left host leads to a Data.indication(1) on the right host.

Host A Physical link Host B DATA.req(0)

DATA.ind(1)

With the above transmission scheme, a bit is transmitted by setting the voltage on the electrical cable to a specific value during some period of time. We have seen that due to electromagnetic interferences, the voltage measured by the receiver can differ from the voltage set by the transmitter. This is the main cause of transmission errors. However, this is not the only type of problem that can occur. Besides defining the voltages for bits 0 and 1 , the above transmission scheme also specifies the duration of each bit. If one million bits are sent every second, then each bit lasts 1 microsecond. On each host, the transmission (resp. the reception) of each bit is triggered by a local clock having a 1 MHz frequency. These clocks are the second source of problems when transmitting bits over a wire. Although the two clocks have the same specification, they run on different hosts, possibly at a different temperature and with a different source of energy. In practice, it is possible that the two clocks do not operate at exactly the same frequency. Assume that the clock of the transmitting host operates at exactly 1000000 Hz while the receiving clock operates at 999999 Hz. This is a very small difference between the two clocks. However, when using the clock to transmit bits, this difference is important. With its 1000000 Hz clock, the transmitting host will generate one million bits during a period of one second. During the same period, the receiving host will sense the wire 999999 times and thus will receive one bit less than the bits originally transmitted. This small difference in clock frequencies implies that bits can “disappear” during their transmission on an electrical cable. This is illustrated in the figure below.

Host A Physical link Host B DATA.req(0)

DATA.ind(0)

DATA.req(0)

DATA.req(1)

DATA.ind(1)

A similar reasoning applies when the clock of the sending host is slower than the clock of the receiving host. In this case, the receiver will sense more bits than the bits that have been transmitted by the sender. This is illustrated in the figure below where the second bit received on the right was not transmitted by the left host.

2.1. Connecting two hosts 7

same transmission medium to exchange bits. Being able to exchange bits is important as virtually any information can be encoded as a sequence of bits. Electrical engineers are used to processing streams of bits, but computer scientists usually prefer to deal with higher level concepts. A similar issue arises with file storage. Storage devices such as hard-disks also store streams of bits. There are hardware devices that process the bit stream produced by a hard-disk, but computer scientists have designed filesystems to allow applications to easily access such storage devices. These filesystems are typically divided into several layers as well. Hard-disks store sectors of 512 bytes or more. Unix filesystems group sectors in larger blocks that can contain data or inodes representing the structure of the filesystem. Finally, applications manipulate files and directories that are translated in blocks, sectors and eventually bits by the operating system.

Computer networks use a similar approach. Each layer provides a service that is built above the underlying layer and is closer to the needs of the applications. The datalink layer builds upon the service provided by the physical layer. We will see that it also contains several functions.

2.1.2 The datalink layer

Computer scientists are usually not interested in exchanging bits between two hosts. They prefer to write software that deals with larger blocks of data in order to transmit messages or complete files. Thanks to the physical layer service, it is possible to send a continuous stream of bits between two hosts. This stream of bits can include logical blocks of data, but we need to be able to extract each block of data from the bit stream despite the imperfections of the physical layer. In many networks, the basic unit of information exchanged between two directly connected hosts is often called a frame. A frame can be defined has a sequence of bits that has a particular syntax or structure. We will see examples of such frames later in this chapter.

To enable the transmission/reception of frames, the first problem to be solved is how to encode a frame as a sequence of bits, so that the receiver can easily recover the received frame despite the limitations of the physical layer.

If the physical layer were perfect, the problem would be very simple. We would simply need to define how to encode each frame as a sequence of consecutive bits. The receiver would then easily be able to extract the frames from the received bits. Unfortunately, the imperfections of the physical layer make this framing problem slightly more complex. Several solutions have been proposed and are used in practice in different network technologies.

Framing

The framing problem can be defined as : “How does a sender encode frames so that the receiver can efficiently extract them from the stream of bits that it receives from the physical layer”.

A first solution to this problem is to require the physical layer to remain idle for some time after the transmission of each frame. These idle periods can be detected by the receiver and serve as a marker to delineate frame boundaries. Unfortunately, this solution is not acceptable for two reasons. First, some physical layers cannot remain idle and always need to transmit bits. Second, inserting an idle period between frames decreases the maximum bit rate that can be achieved.

Note: Bit rate and bandwidth

Bit rate and bandwidth are often used to characterize the transmission capacity of the physical service. The original definition of bandwidth, as listed in the Webster dictionary is a range of radio frequencies which is occupied by a modulated carrier wave, which is assigned to a service, or over which a device can operate. This definition corresponds to the characteristics of a given transmission medium or receiver. For example, the human ear is able to decode sounds in roughly the 0-20 KHz frequency range. By extension, bandwidth is also used to represent the capacity of a communication system in bits per second. For example, a Gigabit Ethernet link is theoretically capable of transporting one billion bits per second.

Given that multi-symbol encodings cannot be used by all physical layers, a generic solution which can be used with any physical layer that is able to transmit and receive only bits 0 and 1 is required. This generic solution is called stuffing and two variants exist : bit stuffing and character stuffing. To enable a receiver to easily delineate

2.1. Connecting two hosts 9

the frame boundaries, these two techniques reserve special bit strings as frame boundary markers and encode the frames so that these special bit strings do not appear inside the frames.

Bit stuffing reserves the 01111110 bit string as the frame boundary marker and ensures that there will never be six consecutive 1 symbols transmitted by the physical layer inside a frame. With bit stuffing, a frame is sent as follows. First, the sender transmits the marker, i.e. 01111110. Then, it sends all the bits of the frame and inserts an additional bit set to 0 after each sequence of five consecutive 1 bits. This ensures that the sent frame never contains a sequence of six consecutive bits set to 1. As a consequence, the marker pattern cannot appear inside the frame sent. The marker is also sent to mark the end of the frame. The receiver performs the opposite to decode a received frame. It first detects the beginning of the frame thanks to the 01111110 marker. Then, it processes the received bits and counts the number of consecutive bits set to 1. If a 0 follows five consecutive bits set to 1 , this bit is removed since it was inserted by the sender. If a 1 follows five consecutive bits sets to 1 , it indicates a marker if it is followed by a bit set to 0. The table below illustrates the application of bit stuffing to some frames.

Original frame Transmitted frame 0001001001001001001000011 01111110000100100100100100100001101111110 0110111111111111111110010 01111110011011111011111011111011001001111110 01111110 0111111001111101001111110

For example, consider the transmission of 0110111111111111111110010. The sender will first send the 01111110 marker followed by 011011111. After these five consecutive bits set to 1 , it inserts a bit set to 0 followed by 11111. A new 0 is inserted, followed by 11111. A new 0 is inserted followed by the end of the frame 110010 and the 01111110 marker.

Bit stuffing increases the number of bits required to transmit each frame. The worst case for bit stuffing is of course a long sequence of bits set to 1 inside the frame. If transmission errors occur, stuffed bits or markers can be in error. In these cases, the frame affected by the error and possibly the next frame will not be correctly decoded by the receiver, but it will be able to resynchronize itself at the next valid marker.

Bit stuffing can be easily implemented in hardware. However, implementing it in software is difficult given the complexity of performing bit manipulations in software. Software implementations prefer to process characters than bits, software-based datalink layers usually use character stuffing. This technique operates on frames that contain an integer number of characters. In computer networks, characters are usually encoded by relying on the ASCII table. This table defines the encoding of various alphanumeric characters as a sequence of bits. RFC 20 provides the ASCII table that is used by many protocols on the Internet. For example, the table defines the following binary representations :

• A : 1000011 b
• 0 : 0110000 b
• z : 1111010 b
• @ : 1000000 b
• space : 0100000 b

In addition, the ASCII table also defines several non-printable or control characters. These characters were de- signed to allow an application to control a printer or a terminal. These control characters include CR and LF, that are used to terminate a line, and the BEL character which causes the terminal to emit a sound.

• NUL: 0000000 b
• BEL: 0000111 b
• CR : 0001101 b
• LF : 0001010 b
• DLE: 0010000 b
• STX: 0000010 b
• ETX: 0000011 b

Some characters are used as markers to delineate the frame boundaries. Many character stuffing techniques use the DLE, STX and ETX characters of the ASCII character set. DLE STX (resp. DLE ETX) is used to mark the

10 Chapter 2. Part 1: Principles

• the interactions between the datalink layer entity and the framing sublayer are represented by using send instead of DATA.req and recvd instead of DATA.ind

When running on top of a perfect framing sublayer, a datalink entity can simply issue a send(SDU) upon arrival of a DATA.req(SDU) 1 .Similarly, the receiver issues a DATA.ind(SDU) upon receipt of a recvd(SDU). Such a simple protocol is sufficient when a single SDU is sent. This is illustrated in the figure below.

Host A Host B DATA.req(SDU) Frame(SDU) DATA.ind(SDU)

Unfortunately, this is not always sufficient to ensure a reliable delivery of the SDUs. Consider the case where a client sends tens of SDUs to a server. If the server is faster that the client, it will be able to receive and process all the segments sent by the client and deliver their content to its user. However, if the server is slower than the client, problems may arise. The datalink entity contains buffers to store SDUs that have been received as a Data.request but have not yet been sent. If the application is faster than the physical link, the buffer may become full. At this point, the operating system suspends the application to let the datalink entity empty its transmission queue. The datalink entity also uses a buffer to store the received frames that have not yet been processed by the application. If the application is slow to process the data, this buffer may overflow and the datalink entity will not able to accept any additional frame. The buffers of the datalink entity have a limited size and if they overflow, the arriving frames will be discarded, even if they are correct.

To solve this problem, a reliable protocol must include a feedback mechanism that allows the receiver to inform the sender that it has processed a frame and that another one can be sent. This feedback is required even though there are no transmission errors. To include such a feedback, our reliable protocol must process two types of frames :

• data frames carrying a SDU
• control frames carrying an acknowledgment indicating that the previous frames was processed correctly

These two types of frames can be distinguished by dividing the frame in two parts :

• the header that contains one bit set to 0 in data frames and set to 1 in control frames
• the payload that contains the SDU supplied by the application

The datalink entity can then be modelled as a finite state machine, containing two states for the receiver and two states for the sender. The figure below provides a graphical representation of this state machine with the sender above and the receiver below.

The above FSM shows that the sender has to wait for an acknowledgement from the receiver before being able to transmit the next SDU. The figure below illustrates the exchange of a few frames between two hosts.

Host A Host B DATA.req(a) D(a) DATA.ind(a) C(OK)

DATA.req(b) D(b) DATA.ind(b) C(OK)

Note: Services and protocols

An important aspect to understand before studying computer networks is the difference between a service and a protocol. In order to understand the difference between the two, it is useful to start with real world examples. The traditional Post provides a service where a postman delivers letters to recipients. The Post defines precisely which types of letters (size, weight, etc) can be delivered by using the Standard Mail service. Furthermore, the format

(^1) SDU is the acronym of Service Data Unit. We use it as a generic term to represent the data that is transported by a protocol.

12 Chapter 2. Part 1: Principles

Fig. 2.4: Finite state machine of the simplest reliable protocol

of the envelope is specified (position of the sender and recipient addresses, position of the stamp). Someone who wants to send a letter must either place the letter at a Post Office or inside one of the dedicated mailboxes. The letter will then be collected and delivered to its final recipient. Note that for the regular service the Post usually does not guarantee the delivery of each particular letter, some letters may be lost, and some letters are delivered to the wrong mailbox. If a letter is important, then the sender can use the registered service to ensure that the letter will be delivered to its recipient. Some Post services also provide an acknowledged service or an express mail service that is faster than the regular service.

Reliable data transfer on top of an imperfect link

The datalink layer must deal with the transmission errors. In practice, we mainly have to deal with two types of errors in the datalink layer :

• Frames can be corrupted by transmission errors
• Frames can be lost or unexpected frames can appear

A first glance, loosing frames might seem strange on single link. However, if we take framing into account, transmission errors can affect the frame delineation mechanism and make the frame unreadable. For the same reason, a receiver could receive two (likely invalid) frames after a sender has transmitted a single frame.

To deal with these types of imperfections, reliable protocols rely on different types of mechanisms. The first problem is transmission errors. Data transmission on a physical link can be affected by the following errors :

• random isolated errors where the value of a single bit has been modified due to a transmission error
• random burst errors where the values of n consecutive bits have been changed due to transmission errors
• random bit creations and random bit removals where bits have been added or removed due to transmission errors

The only solution to protect against transmission errors is to add redundancy to the frames that are sent. Informa- tion Theory defines two mechanisms that can be used to transmit information over a transmission channel affected by random errors. These two mechanisms add redundancy to the transmitted information, to allow the receiver to

2.1. Connecting two hosts 13

• a header that contains the fields used by the reliable protocol to ensure reliable delivery. The header contains a checksum or Cyclical Redundancy Check (CRC) [Williams1993] that is used to detect transmission errors
• a payload that contains the user data

Some headers also include a length field, which indicates the total length of the frame or the length of the payload.

The simplest error detection scheme is the checksum. A checksum is basically an arithmetic sum of all the bytes that a frame is composed of. There are different types of checksums. For example, an eight bit checksum can be computed as the arithmetic sum of all the bytes of (both the header and trailer of) the frame. The checksum is computed by the sender before sending the frame and the receiver verifies the checksum upon frame reception. The receiver discards frames received with an invalid checksum. Checksums can be easily implemented in software, but their error detection capabilities are limited. Cyclical Redundancy Checks (CRC) have better error detection capabilities [SGP98], but require more CPU when implemented in software.

Note: Checksums, CRCs, ...

Most of the protocols in the TCP/IP protocol suite rely on the simple Internet checksum in order to verify that a received packet has not been affected by transmission errors. Despite its popularity and ease of implementation, the Internet checksum is not the only available checksum mechanism. Cyclical Redundancy Checks (CRC) are very powerful error detection schemes that are used notably on disks, by many datalink layer protocols and file formats such as zip or png. They can easily be implemented efficiently in hardware and have better error-detection capabilities than the Internet checksum [SGP98]. However, CRCs are sometimes considered to be too CPU- intensive for software implementations and other checksum mechanisms are preferred. The TCP/IP community chose the Internet checksum, the OSI community chose the Fletcher checksum [Sklower89]. Nowadays there are efficient techniques to quickly compute CRCs in software [Feldmeier95]

Since the receiver sends an acknowledgement after having received each data frame, the simplest solution to deal with losses is to use a retransmission timer. When the sender sends a frame, it starts a retransmission timer. The value of this retransmission timer should be larger than the round-trip-time, i.e. the delay between the transmis- sion of a data frame and the reception of the corresponding acknowledgement. When the retransmission timer expires, the sender assumes that the data segment has been lost and retransmits it. This is illustrated in the figure

below.

Host A Host B DATA.req(a) start timer (^) D(a) DATA.ind(a)

C(OK) cancel timer

DATA.req(b) start timer D(b)

timer expires D(b) DATA.ind(b)

C(OK)

Unfortunately, retransmission timers alone are not sufficient to recover from losses. Let us consider, as an example, the situation depicted below where an acknowledgement is lost. In this case, the sender re- transmits the data segment that has not been acknowledged. Unfortunately, as illustrated in the figure be- low, the receiver considers the retransmission as a new segment whose payload must be delivered to its

2.1. Connecting two hosts 15

user.

Host A Host B DATA.req(a) start timer (^) D(a) DATA.ind(a)

C(OK) cancel timer

DATA.req(b) start timer (^) D(b) DATA.ind(b)

C(OK)

timer expires D(b) DATA.ind(b) !!!!!

C(OK)

To solve this problem, datalink protocols associate a sequence number to each data frame. This sequence number is one of the fields found in the header of data frames. We use the notation D(x,...) to indicate a data frame whose sequence number field is set to value x. The acknowledgements also contain a sequence number indicating the data frames that it is acknowledging. We use OKx to indicate an acknowledgement frame that confirms the reception of D(x,...). The sequence number is encoded as a bit string of fixed length. The simplest reliable protocol is the Alternating Bit Protocol (ABP).

The Alternating Bit Protocol uses a single bit to encode the sequence number. It can be implemented easily. The sender and the receiver only require a four-state Finite State Machine.

Fig. 2.5: Alternating bit protocol : Sender FSM

The initial state of the sender is Wait for D(0,...). In this state, the sender waits for a Data.request. The first data frame that it sends uses sequence number 0. After having sent this frame, the sender waits for an OK acknowledgement. A frame is retransmitted upon expiration of the retransmission timer or if an acknowledgement with an incorrect sequence number has been received.

The receiver first waits for D(0,...). If the frame contains a correct CRC, it passes the SDU to its user and sends OK0. If the frame contains an invalid CRC, it is immediately discarded. Then, the receiver waits for D(1,...). In this state, it may receive a duplicate D(0,...) or a data frame with an invalid CRC. In both cases, it returns an OK frame to allow the sender to recover from the possible loss of the previous OK0 frame.

Note: Dealing with corrupted frames

The receiver FSM of the Alternating bit protocol discards all frames that contain an invalid CRC. This is the safest approach since the received frame can be completely different from the frame sent by the remote host. A receiver

16 Chapter 2. Part 1: Principles
