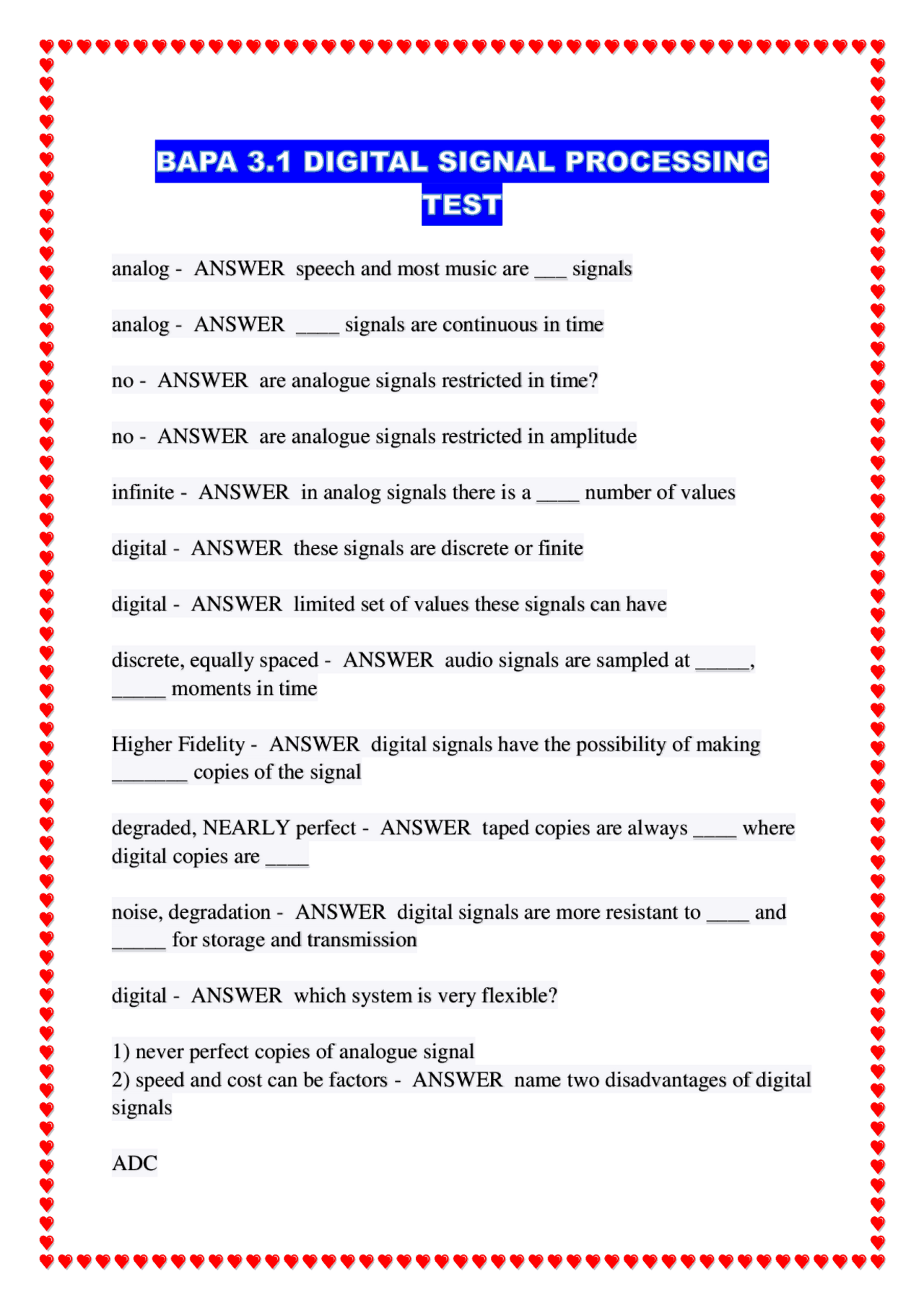

analog - ANSWER speech and most music are ___ signals
analog - ANSWER ____ signals are continuous in time
no - ANSWER are analogue signals restricted in time?
no - ANSWER are analogue signals restricted in amplitude
infinite - ANSWER in analog signals there is a ____ number of values
digital - ANSWER these signals are discrete or finite
digital - ANSWER limited set of values these signals can have
discrete, equally spaced - ANSWER audio signals are sampled at _____,
_____ moments in time
Higher Fidelity - ANSWER digital signals have the possibility of making
_______ copies of the signal
degraded, NEARLY perfect - ANSWER taped copies are always ____ where
digital copies are ____
noise, degradation - ANSWER digital signals are more resistant to ____ and
_____ for storage and transmission
digital - ANSWER which system is very flexible?
1) never perfect copies of analogue signal
2) speed and cost can be factors - ANSWER name two disadvantages of digital
signals
ADC
pf3
pf4
pf5

Partial preview of the text

Download Analog vs Digital Signals: Q&A for Electronics Engineering and more Exams Advanced Education in PDF only on Docsity!

analog - ANSWER speech and most music are ___ signals analog - ANSWER ____ signals are continuous in time no - ANSWER are analogue signals restricted in time? no - ANSWER are analogue signals restricted in amplitude infinite - ANSWER in analog signals there is a ____ number of values digital - ANSWER these signals are discrete or finite digital - ANSWER limited set of values these signals can have discrete, equally spaced - ANSWER audio signals are sampled at _____, _____ moments in time Higher Fidelity - ANSWER digital signals have the possibility of making _______ copies of the signal degraded, NEARLY perfect - ANSWER taped copies are always ____ where digital copies are ____ noise, degradation - ANSWER digital signals are more resistant to ____ and _____ for storage and transmission digital - ANSWER which system is very flexible?

  1. never perfect copies of analogue signal
  2. speed and cost can be factors - ANSWER name two disadvantages of digital signals ADC

A/D

A to D - ANSWER name the three ways to also represent analog to digital conversion discrete numbers - ANSWER ADC has a representation of continuous signal by... electronic integrated circuit - ANSWER ADC usually performed by an... analog, digital value - ANSWER an ADC samples the ____ signal at regular intervals of time, and converts it into a _____ cannot - ANSWER a practical ADC____ (can or cannot) make an instantaneous conversion held constant - ANSWER in ADC the input value must be _____ during conversation each sampling period - ANSWER in ADC one value is assigned to.... continuous- time, discrete-time - ANSWER Sampling converts a _____ signal into a ____ signal analog signal - ANSWER the sampling rate determines how often the ____ is sampled throws away - ANSWER sampling ____ the info between samples Nyquist Theorem - ANSWER in order to accurately reconstruct an analog signal, the sampling rate should be at least two times the highest frequency present in the analog signal. Nyquist frequency - ANSWER half the sampling rate is called... aliasing - ANSWER not following the nyquist theorem leads to...

quantization error - ANSWER the difference between the actual input value and its quantized value is referred to as... yes - ANSWER does the quantization process discard info? 2 - ANSWER the discrete values available is a power of... bits - ANSWER quantized values are expressed in... 2 - ANSWER how many values can a bit represent bit - ANSWER the smallest unit of info is... how many levels can be represented - ANSWER the amount of bits determines... 1,000 - ANSWER the storage capacity of a magnetic stripe on a credit cars is about.... 30,000,000 bits - ANSWER a 3 minute song is about.... its analog - ANSWER if we increase the resolution to 21 steps the signal looks more like ______ version but it still looks clipped no - ANSWER can analog signals be 100% represented quantization noise - ANSWER the digital signal must change in fixed steps, yielding... quantization noise - ANSWER the difference between actual input value and its quantized value

  • 1/2, 1/2 - ANSWER quantization range varies from _____ to ____ amplitude steps its analog - ANSWER if we increase the resolution to 21 steps the signal looks more like ______ version but it still looks clipped

+or-1/2 - ANSWER the continuous analog signal is always within ____ of its true value more - ANSWER to minimize error we use more or less steps digital-to-analog converter (DAC) - ANSWER the numeric amplitudes are converted back to voltages through a...

  • ANSWER if we increase the resolution to 21 steps the signal looks more like produce imperfect signal than filter it to make closer to OG signal - ANSWER how do we do DAC when we discarded info in the analog to digital conversion? easier - ANSWER when we use fast sampling rates is it easier or harder to go from digital to analog yes - ANSWER does a DAC signal still shoe digital steps the nyquist rate - ANSWER to get rid of the steps in a DAC we must filter again at _______ infinite - ANSWER can digital signals be processes in an infinite or finite number of ways?
  1. sampling rate
  2. Quantization level or bit rate - ANSWER what are the two factors that determine how accurately a digital signal represents the OG analog the nyquist theorem - ANSWER to avoid aliasing what should be followed twice - ANSWER sampling rate should be at least ____ the highest frequency component of the signal quantization - ANSWER conversion of continuous into discrete amplitudes low - ANSWER do we put the reconstructed DAC signal through a low or high pass filter
