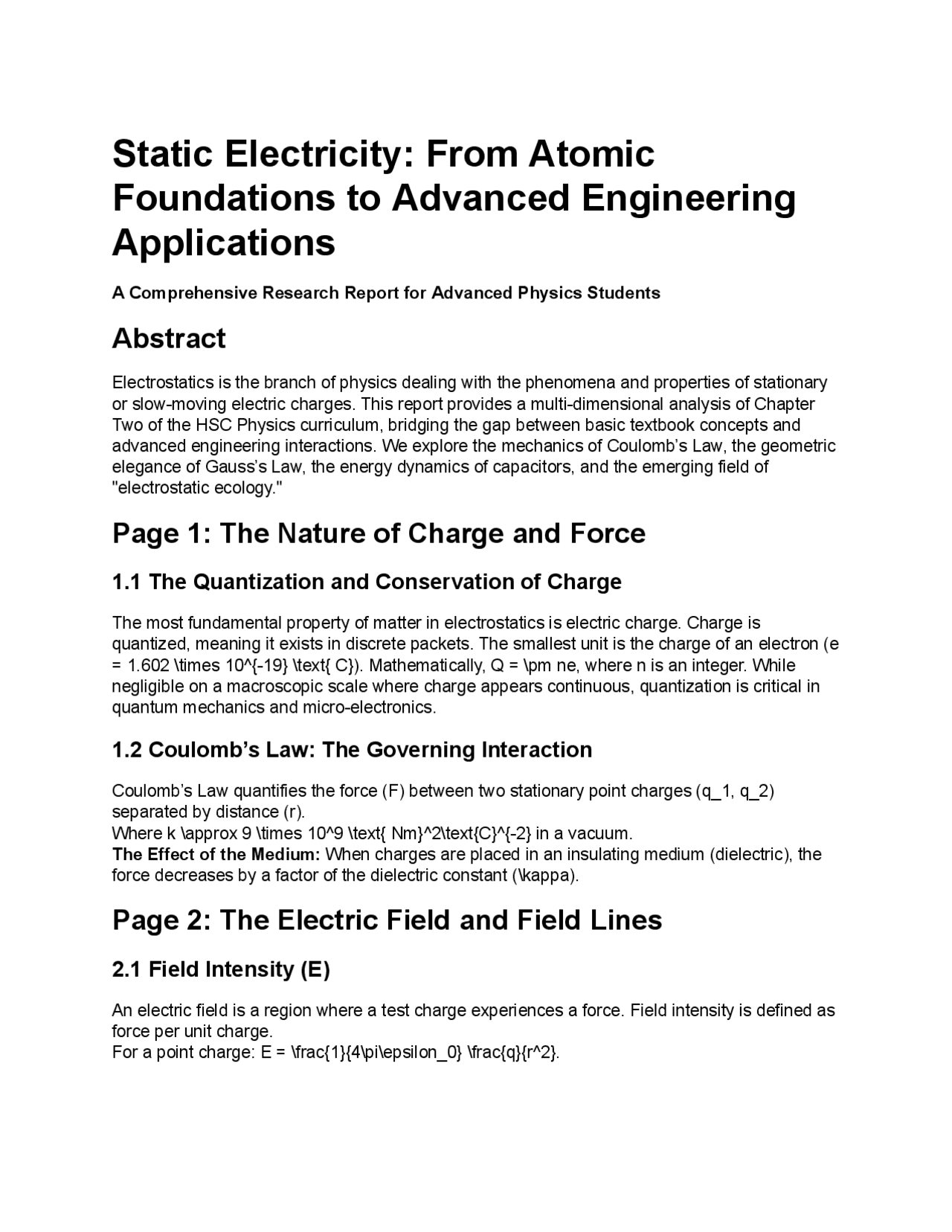

Static Electricity: From Atomic
Foundations to Advanced Engineering
Applications
A Comprehensive Research Report for Advanced Physics Students
Abstract
Electrostatics is the branch of physics dealing with the phenomena and properties of stationary or slow-moving electric charges. This report provides a multi-dimensional analysis of Chapter Two of the HSC Physics curriculum, bridging the gap between basic textbook concepts and advanced engineering interactions. We explore the mechanics of Coulomb’s Law, the geometric elegance of Gauss’s Law, the energy dynamics of capacitors, and the emerging field of "electrostatic ecology."
Page 1: The Nature of Charge and Force
1.1 The Quantization and Conservation of Charge
The most fundamental property of matter in electrostatics is electric charge. Charge is quantized, meaning it exists in discrete packets. The smallest unit is the charge of an electron (e = 1.602 \times 10^{-19} \text{ C}). Mathematically, Q = \pm ne, where n is an integer. While negligible on a macroscopic scale where charge appears continuous, quantization is critical in quantum mechanics and micro-electronics.
1.2 Coulomb’s Law: The Governing Interaction
Coulomb’s Law quantifies the force (F) between two stationary point charges (q_1, q_2) separated by distance (r). Where k \approx 9 \times 10^9 \text{ Nm}^2\text{C}^{-2} in a vacuum. The Effect of the Medium: When charges are placed in an insulating medium (dielectric), the force decreases by a factor of the dielectric constant (\kappa).
Page 2: The Electric Field and Field Lines
2.1 Field Intensity (E)
An electric field is a region where a test charge experiences a force. Field intensity is defined as force per unit charge. For a point charge: E = \frac{1}{4\pi\epsilon_0} \frac{q}{r^2}.
2.2 Visualizing Fields: Electric Lines of Force
Field lines provide a map of the force direction. ● Direction: They originate from positive charges and terminate on negative charges. ● Interaction: They never intersect because the field cannot have two directions at a single point. ● Conductors: They are always perpendicular to the surface of a conductor in equilibrium.
Page 3: Gauss’s Law and Symmetric Distributions
3.1 The Principle of Flux
Electric flux (\Phi) measures the number of field lines passing through a surface.
3.2 Statement of Gauss’s Law
The total flux through any closed surface is proportional to the total charge enclosed.
3.3 Advanced Applications
Gauss's law simplifies complex field calculations for symmetric objects:
- Infinite Line Charge: E = \frac{\lambda}{2\pi\epsilon_0 r}.
- Infinite Sheet: E = \frac{\sigma}{2\epsilon_0}.
- Charged Conducting Sphere: Inside the sphere, E = 0 because all charges reside on the outer surface.
Page 4: Electric Potential and Work
4.1 Defining Potential (V)
Electric potential is a scalar quantity representing the work done to bring a unit positive charge from infinity to a point.
4.2 The Conservative Nature of the Field
The work done in an electrostatic field is path-independent. For a closed loop, the net work done is zero. Potential Inside a Conductor: Since E = 0 inside a conductor, no work is required to move a charge within it. Thus, the potential is constant throughout the volume and equal to the surface potential.
Page 5: Electric Dipoles
5.1 Dipole Moment (p)
A dipole consists of two equal and opposite charges separated by distance 2l.
A cube is a uniform figure. Contrary to simple spheres, charge density on a cube is not perfectly uniform; it concentrates at the corners and edges where the radius of curvature is smallest. However, the potential ratio from the center to a corner is a constant 2:1 due to superposition.
Page 9: Real-World Static Interactions
9.1 Electrostatic Ecology
Insects like bees utilize static electricity for survival. Bees accumulate positive charge during flight through friction with the air. ● Pollination: When a bee approaches a flower (often negatively charged), the static attraction causes pollen grains to jump across the air gap onto the bee's body without direct contact.
9.2 The Lunar Dust Problem
Apollo astronauts found that lunar dust adheres stubbornly to visors and suits. Solar radiation strips electrons from the lunar surface, leaving dust grains positively charged on the dayside. ● Adhesion: While electrostatic forces initiate attraction, van der Waals forces dominate once the dust makes contact, making it nearly impossible to brush off.
Page 10: Engineering Safety and Q&A
10.1 Faraday Cages and Lightning Protection
A Faraday cage is a hollow conductor that blocks external electric fields. ● Airplane Safety: The aluminum hull of an aircraft acts as a Faraday cage. During a lightning strike, the charge flows over the exterior surface and dissipates into the air, leaving passengers and internal electronics unharmed.
10.2 Industrial Applications
- Electrostatic Precipitators: Used in factory chimneys to remove 99% of particulate pollutants by charging smoke particles and attracting them to grounded plates.
- Xerography (Photocopying): Uses a statically charged drum to attract toner particles to specific light-defined areas.
- Fuel Tanker Safety: Fuel trucks trail a metal chain or discharge strips to dissipate static buildup from air friction, preventing sparks that could ignite fuel vapors.
Conclusion
Static electricity is far more than a "zap" from a doorknob. It is a fundamental force that dictates the behavior of atoms, enables industrial innovation, and drives complex biological processes. Mastering these advanced equations and concepts allows us to manipulate the invisible fields that surround us.
