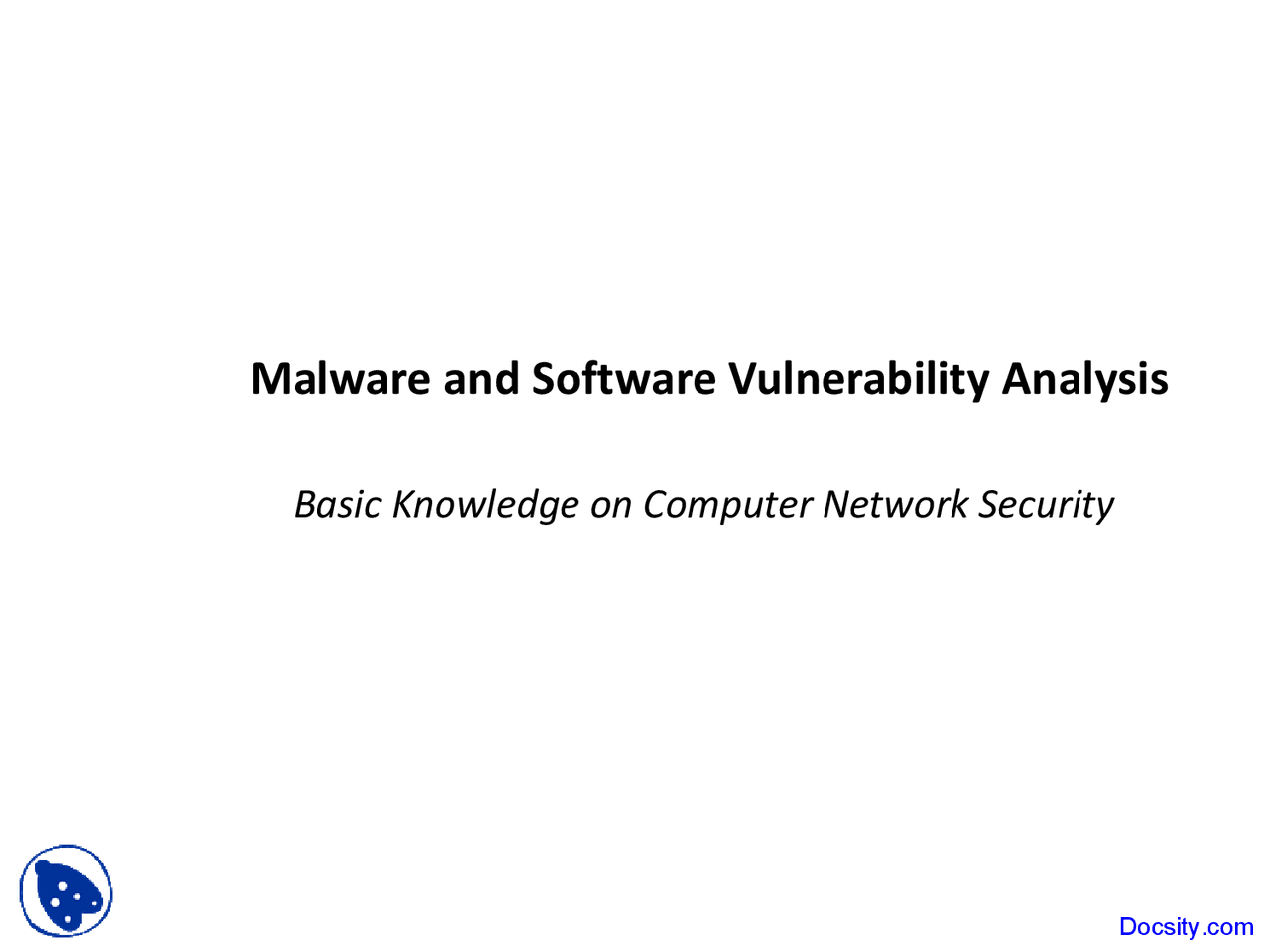

Malware and Software Vulnerability Analysis

Basic Knowledge on Computer Network Security

Why This Introduction?

• Some students may have no knowledge of

basic cryptography and basic network security

• Such knowledge is important
• Such knowledge is necessary for continuing

learning malware and software security

Who might Bob, Alice be?

• Web client/server (e.g., on-line purchases)

• DNS servers

• routers exchanging routing table updates

• Two computers in peer-to-peer networks

• Wireless laptop and wireless access point

• Cell phone and cell tower

• Cell phone and bluetooth earphone

• RFID tag and reader

There are bad guys (and girls) out there!

Q: What can a “bad guy” do?

A: a lot!

• eavesdrop: intercept messages
• actively insert messages into connection
• impersonation: can fake (spoof) source address

in packet (or any field in packet)

• hijacking: “take over” ongoing connection by

removing sender or receiver, inserting himself

in place

• denial of service : prevent service from being

used by others (e.g., by overloading resources)

Classical Cryptography

• Transposition Cipher

• Substitution Cipher

• Simple substitution cipher (Caesar cipher)
• Vigenere cipher
• One-time pad

Transposition Cipher: rail fence

• Write plaintext in two rows in column order

• Generate ciphertext in row order

• Example: “HELLOWORLD”

HLOOL

ELWRD

ciphertext: HLOOLELWRD

Problem: does not affect the frequency of individual

symbols

Problem of simple substitution cipher

• The key space for the English Alphabet is very

large: 26!≈ 4 x 10^26

• However:
  • Previous example has a key with only 26 possible

values

• English texts have statistical structure:
  • the letter “e” is the most used letter. Hence, if one performs a frequency count on the ciphers, then the most frequent letter can be assumed to be “e”

Distribution of Letters in English

Frequency analysis

Problem of Vigenere Cipher

• Vigenere is easy to break (Kasiski, 1863):
• Assume we know the length of the key. We can organize the ciphertext in rows with the same length of the key. Then, every column can be seen as encrypted using Caesar's cipher.
• The length of the key can be found using several methods:
  • 1. If short, try 1, 2, 3,....
  • 2. Find repeated strings in the ciphertext. Their distance is expected to be a multiple of the length. Compute the gcd of (most) distances.
  • 3. Use the index of coincidence.

One-time Pad

• Extended from Vigenere cipher

• Key is as long as the plaintext

• Key string is random chosen

• Pro: Proven to be “perfect secure”
• Cons:
  • How to generate Key?
  • How to let bob/alice share the same key pad?
• Code book

Symmetric key crypto: DES

DES: Data Encryption Standard

• US encryption standard [NIST 1993]
• 56-bit symmetric key, 64-bit plaintext input
• How secure is DES?
  • DES Challenge: 56-bit-key-encrypted phrase

(“Strong cryptography makes the world a safer

place”) decrypted (brute force) in 4 months

• no known “backdoor” decryption approach
• making DES more secure (3DES):
• use three keys sequentially on each datum
• use cipher-block chaining

Symmetric key crypto: DES

initial permutation

16 identical “rounds” of function application, each using different 48 bits of key

final permutation

DES operation

Block Cipher

• one pass through: one input bit affects eight output bits

64-bit input

T (^1)

8bits

8 bits

8bits

8 bits

8bits

8 bits

8bits

8 bits

8bits

8 bits

8bits

8 bits

8bits

8 bits

8bits

8 bits

64-bit scrambler

64-bit output

loop for n rounds (^) T 2

T 3 T 4

T T 5 6 T 7

T 8

 multiple passes: each input bit affects most output bits

 block ciphers: DES, 3DES, AES

Cipher Block Chaining

• cipher block: if input block repeated, will produce same cipher text:

t=1 m(1)^ = “HTTP/1.1”^ block cipher

c(1) = “k329aM02”

…

 cipher block chaining:

XOR ith input block, m(i), with previous block of cipher text, c(i-1)  c(0) transmitted to receiver in clear  what happens in “HTTP/1.1” scenario from above?

+

m(i)

c(i)

t=17 m(17)^ = “HTTP/1.1”^ block cipher

c(17) = “k329aM02”

block cipher

c(i-1)
