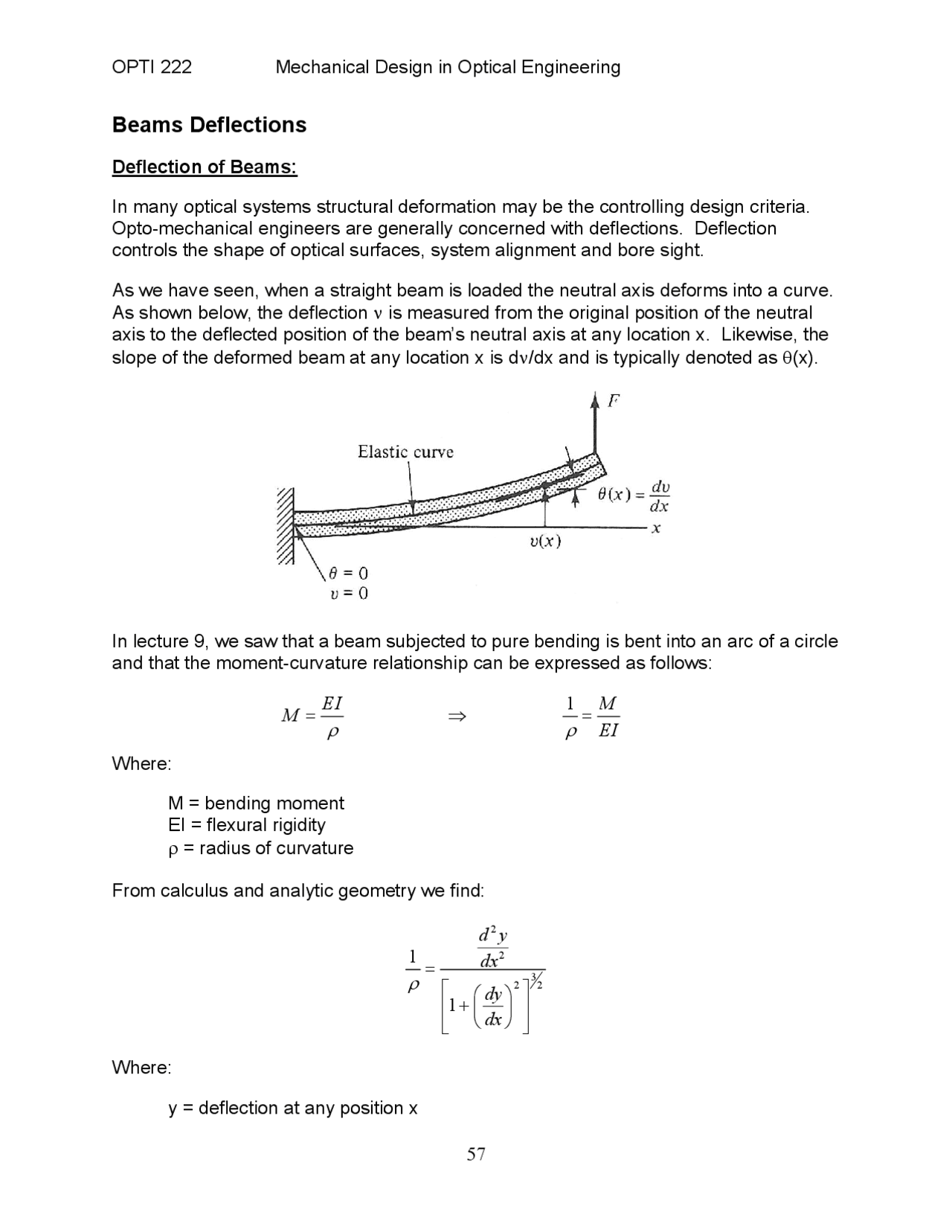

OPTI 222 Mechanical Design in Optical Engineering
57
Beams Deflections
Deflection of Beams:
In many optical systems structural deformation may be the controlling design criteria.
Opto-mechanical engineers are generally concerned with deflections. Deflection
controls the shape of optical surfaces, system alignment and bore sight.
As we have seen, when a straight beam is loaded the neutral axis deforms into a curve.
As shown below, the deflection ν is measured from the original position of the neutral
axis to the deflected position of the beam’s neutral axis at any location x. Likewise, the
slope of the deformed beam at any location x is dν/dx and is typically denoted as θ(x).
In lecture 9, we saw that a beam subjected to pure bending is bent into an arc of a circle
and that the moment-curvature relationship can be expressed as follows:
EI
M
ρ
= 1
M
EI
ρ
=
Where:
M = bending moment
EI = flexural rigidity
ρ = radius of curvature
From calculus and analytic geometry we find:
2
2
3
22
1
1
dy
dx
dy
dx
ρ
=

+


Where:
y = deflection at any position x
