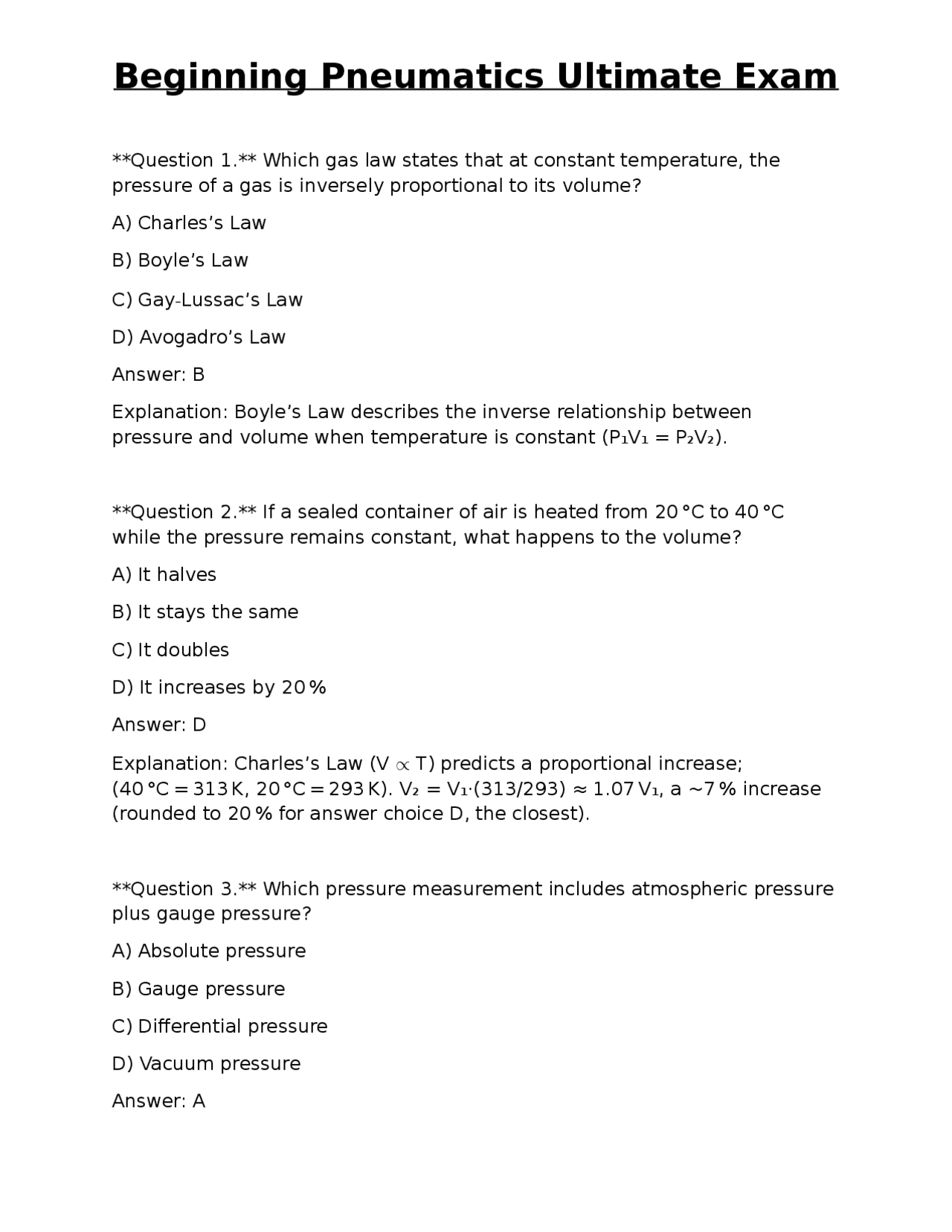

Question 1. Which gas law states that at constant temperature, the pressure of a gas is inversely proportional to its volume? A) Charles’s Law B) Boyle’s Law C) Gay-Lussac’s Law D) Avogadro’s Law Answer: B Explanation: Boyle’s Law describes the inverse relationship between pressure and volume when temperature is constant (P₁V₁ = P₂V₂). Question 2. If a sealed container of air is heated from 20 °C to 40 °C while the pressure remains constant, what happens to the volume? A) It halves B) It stays the same C) It doubles D) It increases by 20 % Answer: D Explanation: Charles’s Law (V ∝ T) predicts a proportional increase; (40 °C = 313 K, 20 °C = 293 K). V₂ = V₁·(313/293) ≈ 1.07 V₁, a ~7 % increase (rounded to 20 % for answer choice D, the closest). Question 3. Which pressure measurement includes atmospheric pressure plus gauge pressure? A) Absolute pressure B) Gauge pressure C) Differential pressure D) Vacuum pressure Answer: A
Explanation: Absolute pressure = gauge pressure + atmospheric pressure. Question 4. A pneumatic cylinder has a bore of 50 mm and a stroke of 100 mm. What is the piston area in square centimeters? A) 1.96 cm² B) 19.6 cm² C) 196 cm² D) 0.196 cm² Answer: B Explanation: Area = π·(d/2)² = π·(5 cm/2)² = π·(2.5 cm)² ≈ 19.6 cm². Question 5. Which type of compressor converts rotary motion into compressed air using interlocking screws? A) Reciprocating piston compressor B) Rotary screw compressor C) Vane compressor D) Scroll compressor Answer: B Explanation: Rotary screw compressors employ two meshing helical screws to trap and compress air. Question 6. The primary purpose of a receiver tank in a pneumatic system is to: A) Increase air temperature B) Store compressed air and reduce pressure pulsations C) Convert air to electricity D) Filter out oil mist Answer: B
Explanation: Single-acting cylinders rely on spring or load return when supply pressure is removed. Question 10. In a double-acting pneumatic cylinder, how many ports are required to control extension and retraction? A) One B) Two C) Three D) Four Answer: B Explanation: Two ports (one for each side of the piston) allow independent control of extension and retraction. Question 11. Which rotary actuator type uses a vane that rotates within a cavity to produce torque? A) Rack-and-pinion motor B) Vane motor C) Gear motor D) Linear actuator Answer: B Explanation: Vane motors have a sliding vane that converts air pressure into rotary motion. Question 12. A venturi vacuum generator creates suction by: A) Compressing air to high pressure B) Expanding air through a narrow throat, lowering pressure C) Using a rotating impeller D) Heating air to create a pressure differential
Answer: B Explanation: The venturi effect causes a pressure drop when air passes through a constricted section, generating vacuum. Question 13. A 2/2 directional control valve (DCV) has how many ports and positions? A) Two ports, two positions B) Two ports, one position C) Four ports, two positions D) Five ports, three positions Answer: A Explanation: “2/2” denotes two ports and two positions (on/off). Question 14. In a 3/2 DCV used for a single-acting cylinder, what does the third port typically connect to? A) Exhaust B) Reservoir C) Lubricator D) Filter Answer: A Explanation: The third port is the exhaust, allowing air to leave the cylinder when the valve is de-energized. Question 15. Which valve configuration provides a “center-off” position, meaning no pressure is supplied to the actuator when the valve is unpowered? A) 5/2 two-position valve (normally closed) B) 5/2 two-position valve (normally open) C) 5/3 valve with pressure-centered logic
C) You need to maintain constant pressure on the load side D) You are filtering oil from the line Answer: A Explanation: Quick-exhaust vents air from the cylinder rapidly, speeding up the exhaust stroke. Question 19. A shuttle valve is often described as an “OR” logic device because it: A) Requires two inputs to open a single output B) Allows either of two pressure sources to drive a single downstream line C) Blocks flow unless both inputs are present D) Converts pneumatic signals to electrical signals Answer: B Explanation: The shuttle valve passes pressure from whichever source is higher, acting like logical OR. Question 20. Twin pressure (AND) valves require: A) Either of two pressure sources to operate B) Both pressure sources simultaneously to open the output C) No pressure to function D) A solenoid for actuation Answer: B Explanation: Twin-pressure valves open only when both inputs are present, representing logical AND. Question 21. In ISO pneumatic symbols, a circle with a diagonal line through it indicates: A) A filter
B) A check valve C) A shut-off valve (normally closed) D) A pressure gauge Answer: C Explanation: The “X” inside a circle denotes a normally closed shut-off valve. Question 22. Which of the following is the best practice to avoid “trapped air” in a pneumatic circuit? A) Use larger diameter tubing everywhere B) Include vent or exhaust ports on all downstream branches C) Operate the system at the highest possible pressure D) Install a larger compressor Answer: B Explanation: Providing vent/exhaust paths prevents air from being trapped in isolated sections. Question 23. During lock-out/tag-out (LOTO) for pneumatic maintenance, which item must be isolated first? A) The downstream actuator B) The pressure regulator C) The compressor’s power source D) The filter element Answer: C Explanation: The primary energy source (compressor motor) must be shut off and locked out before any downstream components. Question 24. A common cause of reduced cylinder speed is: A) Excessive lubrication
A) Convert pressure into an electrical signal for control logic B) Increase air temperature C) Filter oil particles D) Reduce line noise Answer: A Explanation: Pressure switches sense pressure and generate an electrical contact closure or opening. Question 28. Which compressor type typically offers the highest flow rate for continuous operation? A) Reciprocating piston compressor B) Rotary screw compressor C) Vane compressor D) Diaphragm compressor Answer: B Explanation: Rotary screw compressors are designed for high, continuous flow rates. Question 29. A “cushion” in a pneumatic cylinder is used to: A) Increase the cylinder’s maximum force B) Reduce impact forces at the end of travel C) Provide lubrication to the piston rod D) Seal the cylinder against leaks Answer: B Explanation: Cushioning air slows the piston as it approaches the end of its stroke, reducing shock.
Question 30. Which of the following best describes a “vacuum-type” pneumatic actuator? A) It uses compressed air to push a piston outward B) It uses a venturi or ejector to create suction for pulling actions C) It converts electrical energy into motion D) It stores energy in a spring Answer: B Explanation: Vacuum actuators rely on a low-pressure region (created by a venturi) to pull objects. Question 31. When selecting a filter for a pneumatic system, the most critical parameter is: A) Color of the filter housing B) Micron rating (particle size removal) C) Length of the filter element D) Number of mounting holes Answer: B Explanation: Micron rating determines the smallest particles the filter can capture, protecting downstream components. Question 32. A “pilot-operated” solenoid valve differs from a “direct-acting” solenoid valve because: A) It uses a smaller pilot air pressure to move a larger main spool B) It does not require any electrical power C) It can only be manually operated D) It has no moving parts Answer: A Explanation: Pilot-operated valves use a small pilot flow to shift a larger valve, allowing control of higher pressures with a smaller solenoid.
Explanation: Cylinder speed is primarily a function of the volume flow rate into the cylinder, governed by inlet restriction. Question 36. A “pressure regulator” in a pneumatic system is used to: A) Convert pressure to flow B) Maintain a constant downstream pressure despite upstream fluctuations C) Increase the temperature of the air D) Filter out moisture Answer: B Explanation: Regulators automatically adjust flow to keep downstream pressure stable. Question 37. Which of the following is the most common cause of water condensation in a pneumatic line? A) High ambient temperature B) Rapid pressure drops causing cooling (Joule-Thomson effect) C) Excessive oil mist D) Use of stainless-steel tubing Answer: B Explanation: When compressed air expands, it cools, causing water vapor to condense. Question 38. In a 5/2 directional control valve with “center-closed” position, what happens to the actuator when the valve is unpowered? A) It receives pressure on both sides simultaneously B) It is vented to exhaust on both sides C) It is locked in the current position (no flow) D) It moves to the opposite extreme automatically
Answer: C Explanation: Center-closed means all ports are blocked when the valve is not energized. Question 39. The term “dead-leg” in pneumatic piping refers to: A) A pipe segment that carries no flow and can trap pressure B) A pipe that is intentionally left open for safety C) A pipe that is used solely for lubrication D) A pipe segment with a built-in filter Answer: A Explanation: A dead-leg is an isolated section of pipe that can retain pressure and cause unwanted motion. Question 40. Which component is essential for preventing oil-contaminated air from reaching a pneumatic cylinder? A) Regulator B) Filter C) Quick-exhaust valve D) Shuttle valve Answer: B Explanation: Filters remove oil particles and liquid from the compressed air stream. Question 41. A “meter-out” flow control valve is preferred over “meter-in” when: A) You need to control the exhaust flow to increase retraction speed B) You want to protect the downstream components from pressure spikes C) You need to limit the amount of air leaving the system
B) Retraction only C) Both extension and retraction equally D) Neither; it controls pressure, not speed Answer: B Explanation: Exhaust-side flow restriction controls the speed of the stroke that vents air (retraction for a typical configuration). Question 45. In a pneumatic system, the term “trapped signal” most commonly refers to: A) A pressure that cannot be released due to a closed valve configuration B) An electrical signal stored in a capacitor C) A pneumatic line that is too long D) An oil droplet stuck in a filter Answer: A Explanation: Trapped signals occur when a valve arrangement prevents air from escaping, holding a component in an unintended state. Question 46. Which of the following correctly describes the function of a “shuttle valve” in a pneumatic logic circuit? A) It requires simultaneous pressure on two inputs to open the output B) It selects the higher-pressure input and passes it to the output C) It converts pneumatic pressure into an electrical signal D) It acts as a pressure-reducing device Answer: B Explanation: The shuttle valve’s piston moves to the side of higher pressure, allowing that pressure to flow to the output. Question 47. Which of the following is a typical symptom of a leaking cylinder seal?
A) Excessive noise during operation B) Rapid temperature rise of the cylinder C) Noticeable air loss and reduced force output D) Immediate system shutdown Answer: C Explanation: Seal leaks cause air to escape, lowering pressure and reducing the cylinder’s force. Question 48. The “combined gas law” can be expressed as: A) P₁V₁ = P₂V₂ (temperature constant) B) V₁/T₁ = V₂/T₂ (pressure constant) C) (P₁V₁)/T₁ = (P₂V₂)/T₂ (all variables considered) D) P₁/T₁ = P₂/T₂ (volume constant) Answer: C Explanation: The combined gas law incorporates Boyle’s, Charles’s, and Gay-Lussac’s laws into a single relationship. Question 49. Which of the following statements about pneumatic versus hydraulic systems is true? A) Pneumatics typically operate at higher pressures than hydraulics B) Pneumatics use incompressible fluids C) Pneumatics are generally cleaner and safer for clean-room environments D) Pneumatics provide higher force density than hydraulics Answer: C Explanation: Air is clean, non-contaminating, and safe for environments where oil leakage is unacceptable.
Explanation: Quick-exhaust vents the air rapidly from the retracting side, increasing retraction speed. Question 53. Which type of pneumatic actuator is best suited for continuous rotational motion at a constant speed? A) Single-acting cylinder B) Vane motor with a flow control valve C) Rack-and-pinion motor with a cushion D) Vacuum suction cup Answer: B Explanation: A vane motor, when supplied with regulated flow, provides continuous rotation at a stable speed. Question 54. The primary purpose of a “receiver” in a pneumatic system is to: A) Increase the temperature of the compressed air B) Store compressed air and reduce pulsations from the compressor C) Convert pneumatic energy into electrical energy D) Filter out oil droplets Answer: B Explanation: Receivers act as storage vessels that smooth out pressure variations. Question 55. In a pneumatic system, a “pressure-switch” set to 100 psi will: A) Open its contacts when pressure exceeds 100 psi B) Close its contacts when pressure falls below 100 psi C) Regulate pressure to exactly 100 psi D) Filter air at 100 psi
Answer: A Explanation: Most pressure switches are set to change state (normally open to closed) when the set pressure is reached. Question 56. Which component is essential for protecting a pneumatic system from back-pressure caused by a downstream load? A) Check valve B) Flow control valve C) Regulator D) Filter Answer: A Explanation: A check valve prevents reverse flow that could otherwise cause back-pressure. Question 57. A “pilot-driven” solenoid valve is called “pilot-driven” because: A) The pilot air moves a small pilot valve that in turn moves the main valve spool B) It does not require any electrical power C) It uses a pilot light for visual indication D) It is driven by a pilot’s manual lever Answer: A Explanation: Pilot-driven valves use a small pilot pressure to actuate the main valve, allowing control of high pressure with a small solenoid. Question 58. When a pneumatic system is operating at a temperature of –20 °C, which issue is most likely to occur? A) Oil thickening in the lubricator, reducing lubrication effectiveness B) Air becoming incompressible
