Model Notation Exam

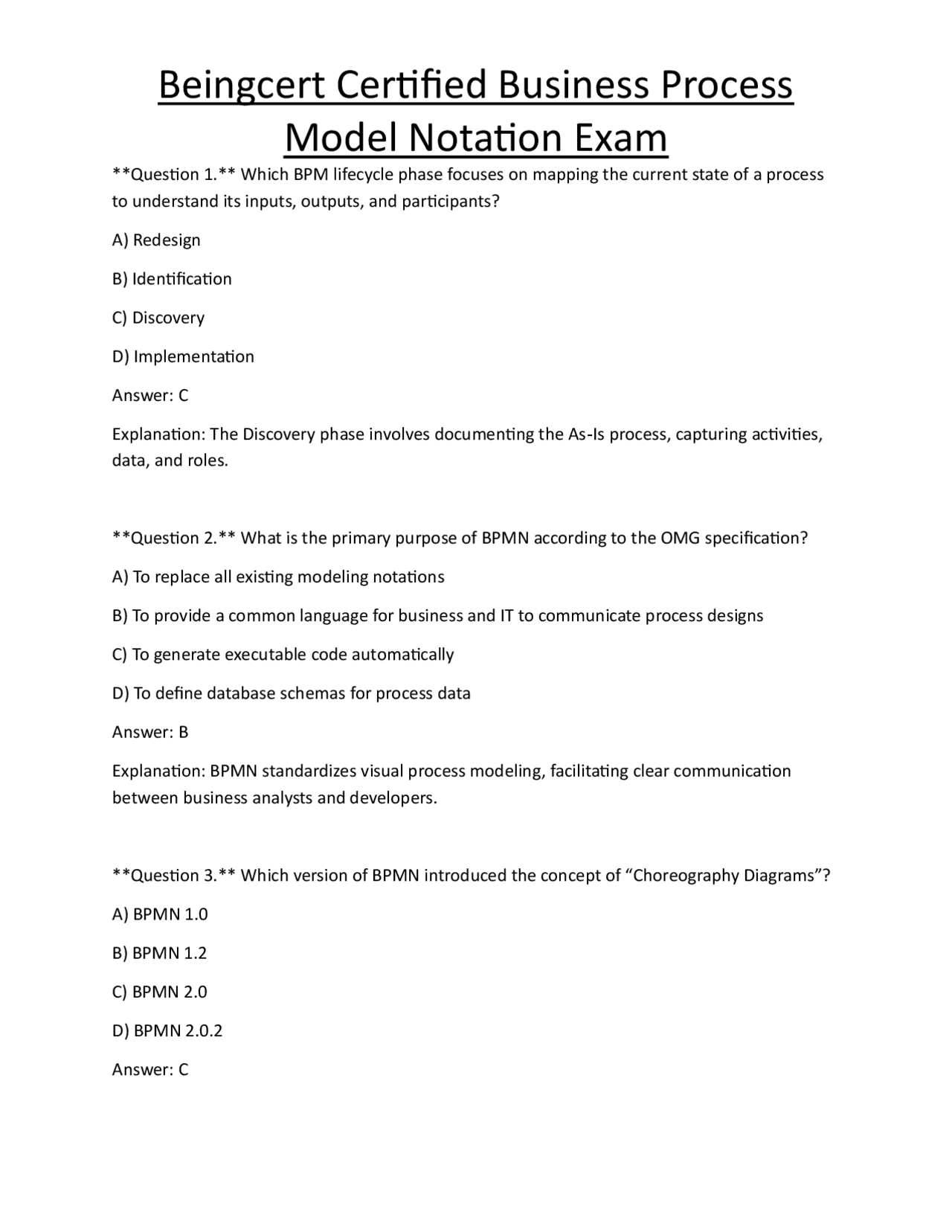

Question 1. Which BPM lifecycle phase focuses on mapping the current state of a process to understand its inputs, outputs, and participants? A) Redesign B) Identification C) Discovery D) Implementation Answer: C Explanation: The Discovery phase involves documenting the As‑Is process, capturing activities, data, and roles. Question 2. What is the primary purpose of BPMN according to the OMG specification? A) To replace all existing modeling notations B) To provide a common language for business and IT to communicate process designs C) To generate executable code automatically D) To define database schemas for process data Answer: B Explanation: BPMN standardizes visual process modeling, facilitating clear communication between business analysts and developers. Question 3. Which version of BPMN introduced the concept of “Choreography Diagrams”? A) BPMN 1. B) BPMN 1. C) BPMN 2. D) BPMN 2.0. Answer: C
Model Notation Exam
Explanation: BPMN 2.0 added choreography and conversation diagram types to model inter‑participant interactions. Question 4. In BPMN, a Pool is best described as: A) A visual container for a single activity B) A grouping of related data objects C) A representation of a participant, such as an organization or system D) A set of parallel gateways Answer: C Explanation: Pools depict separate participants (organizations, departments, or external entities) in a process. Question 5. Which artifact is used to show a document that is created, read, or updated during a process? A) Group B) Data Object C) Text Annotation D) Association Answer: B Explanation: Data Objects represent information artifacts like documents or records that flow through activities. Question 6. An Exclusive Gateway (XOR) in BPMN is used to: A) Split the flow into multiple parallel paths that all must be taken B) Merge several incoming flows without conditions C) Choose exactly one outgoing path based on a condition
Model Notation Exam
B) The communication between two separate pools or participants C) The flow of data objects within an activity D) The logical grouping of activities Answer: B Explanation: Message flows (dashed lines) show messages exchanged between different participants (pools). Question 10. In a Collaboration Diagram, which element indicates the sequence of messages exchanged between participants? A) Sequence Flow B) Message Flow C) Association D) Data Store Answer: B Explanation: Message flows illustrate the order and direction of communication between pools in a collaboration. Question 11. Which BPMN element is used to model a reusable process that can be called from multiple locations? A) Sub‑process B) Call Activity C) Ad‑hoc Sub‑process D) Event‑based Gateway Answer: B Explanation: Call Activities reference a globally defined process or task, enabling reuse across diagrams.
Model Notation Exam
Question 12. A Parallel Gateway (AND) is used to: A) Choose one path based on a condition B) Split the flow into multiple concurrent paths that must all be completed C) Merge multiple incoming flows without synchronization D) Loop back to a prior activity automatically Answer: B Explanation: Parallel gateways fork or join flows that run simultaneously, requiring all outgoing paths to be taken. Question 13. Which BPMN element can be used to model a task that repeats until a condition becomes false? A) Exclusive Gateway B) Loop Marker on a Task C) Event Sub‑process D) Data Object Answer: B Explanation: Adding a loop marker (circular arrow) to a task indicates it repeats based on a condition. Question 14. An Inclusive Gateway (OR) differs from an Exclusive Gateway because: A) It can activate one or more outgoing branches based on conditions B) It always activates all outgoing branches C) It merges incoming flows without conditions D) It is only used for error handling Answer: A
Model Notation Exam
Answer: C Explanation: Event sub‑processes are embedded within a parent process and start with a specific event, independent of the main flow. Question 18. In BPMN, a Data Store is used to represent: A) Temporary data that exists only during a single token’s traversal B) Persistent information that survives across process instances C) A visual grouping of activities D) A message exchanged between pools Answer: B Explanation: Data Stores model long‑term storage such as databases or file systems. Question 19. Which of the following is a correct naming convention for a BPMN task according to style guidelines? A) “Approve” B) “Approval” C) “Approve Request” D) “Request Approval” Answer: C Explanation: Tasks should be named with a verb‑noun pair; “Approve Request” follows this pattern. Question 20. What does a Message Flow Association (dotted line) connect? A) Two activities within the same lane B) A Data Object to a Message Flow C) A Message Flow to a Data Object or Text Annotation for clarification
Model Notation Exam
D) Two Pools directly Answer: C Explanation: Associations link artifacts (data objects, annotations) to flows for additional information. Question 21. Which BPMN element is used to model work that can be performed in any order, without a predefined sequence? A) Sequential Sub‑process B) Ad‑hoc Sub‑process C) Call Activity D) Event‑based Gateway Answer: B Explanation: An ad‑hoc sub‑process contains activities that can be executed in any order chosen at runtime. Question 22. A Timer Intermediate Event placed on a sequence flow indicates: A) The process must wait for a specific time before continuing B) An error has occurred C) A message must be received D) The activity will be repeated infinitely Answer: A Explanation: Timer events introduce a delay or deadline in the flow. Question 23. Which of the following best describes a Message Event attached to the boundary of a task? A) It signals an error condition inside the task
Model Notation Exam
A) The need to roll back a previously completed activity B; It triggers a timer delay C) It starts a new sub‑process automatically D) It merges multiple parallel flows Answer: A Explanation: Compensation events define actions to undo or mitigate the effects of a completed activity. Question 27. Which BPMN element is used to represent a decision that depends on which first event occurs? A) Exclusive Gateway B) Event‑Based Gateway C) Inclusive Gateway D) Parallel Gateway Answer: B Explanation: Event‑based gateways branch based on the first occurring event among multiple possibilities. Question 28. A Multi‑Instance Loop on a task is used to: A) Execute the task repeatedly until a condition is met B) Execute multiple instances of the same task either sequentially or in parallel C) Merge several incoming flows into one D) Handle error compensation automatically Answer: B Explanation: Multi‑instance loops create several parallel or sequential copies of a task.
Model Notation Exam
Question 29. Which of the following is a correct use of a Data Association? A) Connecting a Data Object to a Sequence Flow B) Linking a Data Store directly to a Gateway C) Associating a Data Object with an Activity to indicate input or output D) Connecting two Pools together Answer: C Explanation: Data associations show how data objects are read or written by activities. Question 30. In a Conversation Diagram, a Conversation is represented by: A) A thick rectangle B) A rounded rectangle with a double line C) A thin dashed line D) A circle with a “C” inside Answer: B Explanation: Conversations are drawn as rounded rectangles with a double line, indicating a set of message exchanges. Question 31. Which BPMN element would you use to model a catching event that waits for a signal from any part of the organization? A) Signal Start Event B) Message Intermediate Event C) Timer Intermediate Event D) Error End Event Answer: A Explanation: Signal start events listen for broadcast signals without a specific source.
Model Notation Exam
Answer: B Explanation: Groups are visual aids that do not influence the process semantics. Question 35. Which element would you use to indicate that a task must be performed by a human actor rather than a system? A) Service Task B) Manual Task C) Script Task D) Business Rule Task Answer: B Explanation: Manual tasks are performed by people without system assistance. Question 36. A Conditional Intermediate Event attached to a sequence flow is used to: A) Wait for a specific date and time B) Pause the flow until a Boolean condition becomes true C) Send a message to an external system D) Trigger error handling automatically Answer: B Explanation: Conditional events evaluate an expression and continue when it evaluates to true. Question 37. In a Choreography Diagram, the primary focus is on: A) The internal tasks performed by each participant B) The sequence of message exchanges between participants C) Data transformations within a single pool D) The layout of lanes and pools
Model Notation Exam
Answer: B Explanation: Choreography diagrams model the order of messages exchanged without showing internal work. Question 38. Which of the following is a correct way to model exception handling for a task that may fail? A) Attach a non‑interrupting error boundary event to the task B) Place an exclusive gateway after the task C) Add a timer intermediate event before the task D) Use a parallel gateway to split the flow Answer: A Explanation: An error boundary event catches exceptions from the attached activity; it can be interrupting (default) or non‑interrupting. Question 39. What does the Loop Marker (circular arrow) on a gateway indicate? A) The gateway will repeat its decision logic until a condition is satisfied B) The gateway creates a parallel split C) The gateway merges multiple flows into one D) The gateway is an event‑based gateway Answer: A Explanation: Loop markers on gateways denote that the gateway may be re‑evaluated iteratively. Question 40. Which BPMN element is used to model compensation for a previously completed activity? A) Compensation Start Event
Model Notation Exam
A) It sends a broadcast signal that any listening process may receive B) It terminates the process immediately without sending any information C) It can only be used inside a subprocess D) It must be attached to a gateway Answer: A Explanation: Signal end events broadcast a signal; message end events send a directed message to a specific receiver. Question 44. Which BPMN concept ensures that a model is syntactically correct according to the specification? A) Token flow analysis B) Style guidelines C) Conformance checking D) Data association mapping Answer: C Explanation: Conformance checking validates that the diagram obeys BPMN syntax rules. Question 45. In the BPMN Identification phase, which activity is typically performed? A) Modeling the To‑Be process B) Defining process objectives and boundaries C) Deploying the process to a workflow engine D) Monitoring process performance metrics Answer: B Explanation: Identification involves recognizing the process, its purpose, scope, and stakeholders.
Model Notation Exam
Question 46. Which of the following is NOT a valid use of a Text Annotation? A) Adding a comment to clarify a decision rule B) Defining the execution order of activities C) Providing additional documentation for a task D) Explaining the purpose of a gateway Answer: B Explanation: Text annotations are for documentation only; they do not affect execution order. Question 47. When modeling a call‑activity, what must be defined to ensure reusability? A) The name of the pool that will execute it B) A globally defined process or task referenced by the call‑activity C) A timer event attached to the activity D) A data store for temporary results Answer: B Explanation: Call activities reference a globally defined process, allowing reuse across diagrams. Question 48. Which BPMN element is best suited to model a decision that must be made after receiving one of several possible messages? A) Exclusive Gateway B) Event‑Based Gateway C) Parallel Gateway D) Inclusive Gateway Answer: B Explanation: Event‑based gateways wait for a message or other event and branch based on the first received.
Model Notation Exam
Explanation: Message start events wait for an incoming message before creating a new process instance. Question 52. Which BPMN element can be used to model a repeatable activity that is executed a fixed number of times? A) Loop Marker with a cardinality expression on the task B) Exclusive Gateway with multiple outgoing flows C) Parallel Gateway with a timer event D) Data Store with a counter Answer: A Explanation: Loop markers can include a cardinality (e.g., “3”) to indicate a fixed number of repetitions. Question 53. In BPMN, an Intermediate Throw Event placed on a sequence flow is used to: A) Receive a message from an external system B) Send a signal, message, or escalation while the process continues C) End the process immediately D) Create a new token for parallel execution Answer: B Explanation: Throw events emit events (message, signal, escalation) without halting the flow. Question 54. Which of the following is a best practice for keeping BPMN diagrams readable? A) Use as many colors as possible to differentiate elements B) Place all gateways at the top of the diagram
Model Notation Exam
C) Keep the diagram flat, avoid crossing lines, and use meaningful names D) Combine multiple processes into a single pool to reduce diagram count Answer: C Explanation: Readability is enhanced by clear naming, minimal crossing, and a flat layout. Question 55. What does a double‑bordered circle represent in BPMN? A) Start Event B) End Event C) Intermediate Event D) None; BPMN does not use double borders for circles Answer: B Explanation: End events are drawn as circles with a thick (double) border. Question 56. Which BPMN element is specifically designed to model business rules that are evaluated by a rule engine? A) Service Task B) Business Rule Task C) Script Task D) Manual Task Answer: B Explanation: Business rule tasks invoke external rule engines to evaluate decisions. Question 57. When a Non‑interrupting Boundary Event is triggered, what happens to the attached activity? A) The activity is terminated immediately
