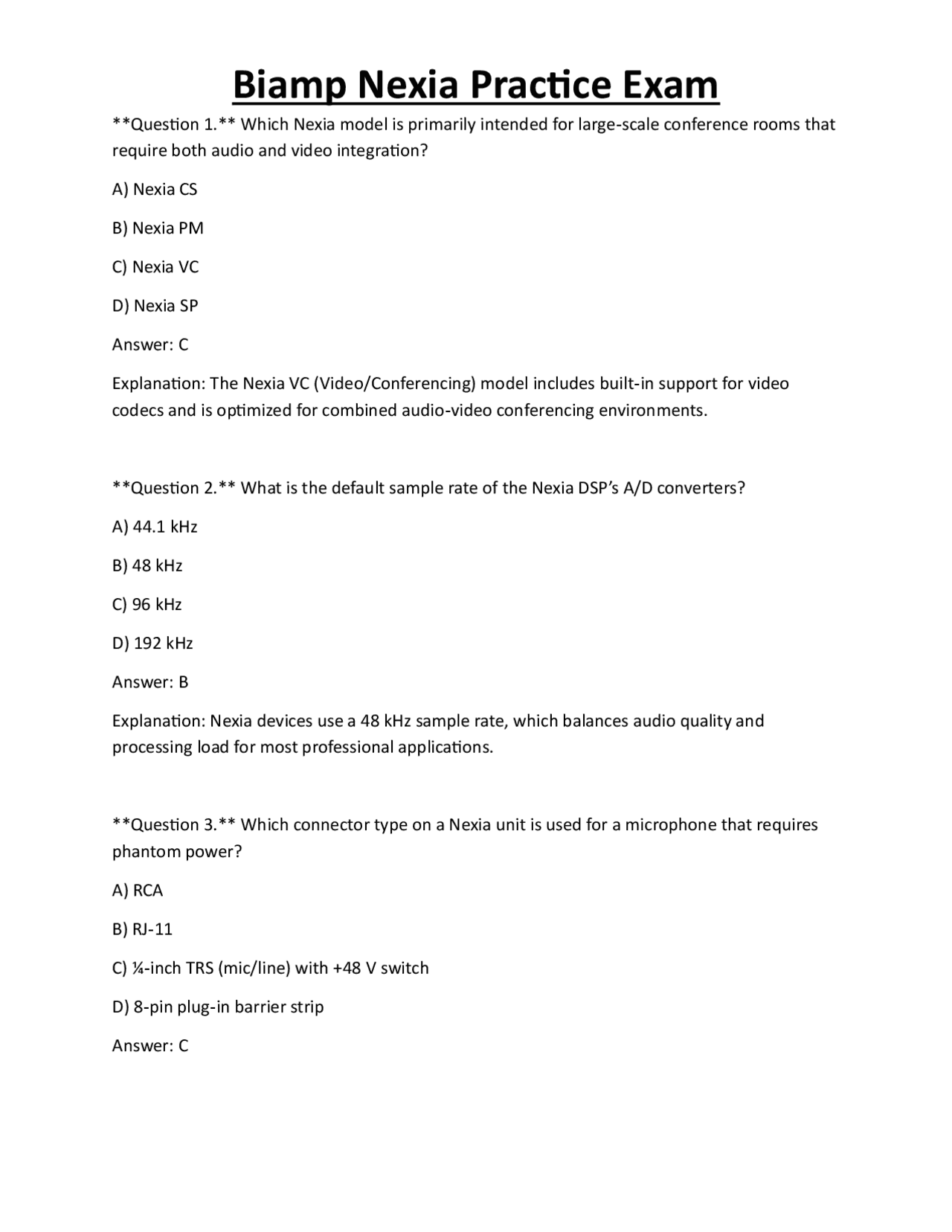

Question 1. Which Nexia model is primarily intended for large‑scale conference rooms that require both audio and video integration? A) Nexia CS B) Nexia PM C) Nexia VC D) Nexia SP Answer: C Explanation: The Nexia VC (Video/Conferencing) model includes built‑in support for video codecs and is optimized for combined audio‑video conferencing environments. Question 2. What is the default sample rate of the Nexia DSP’s A/D converters? A) 44.1 kHz B) 48 kHz C) 96 kHz D) 192 kHz Answer: B Explanation: Nexia devices use a 48 kHz sample rate, which balances audio quality and processing load for most professional applications. Question 3. Which connector type on a Nexia unit is used for a microphone that requires phantom power? A) RCA B) RJ‑ 11 C) ¼‑inch TRS (mic/line) with +48 V switch D) 8‑pin plug‑in barrier strip Answer: C
Explanation: The ¼‑inch TRS mic/line input can provide +48 V phantom power when the switch is enabled, allowing condenser microphones to operate. Question 4. In Nexia terminology, “Full Scale Output” (FSO) refers to: A) The maximum analog input level the front‑end can accept without distortion B) The digital headroom available before clipping occurs C) The highest voltage the analog output can produce when the digital signal is at 0 dBFS D) The nominal operating temperature of the DSP board Answer: C Explanation: FSO is the analog voltage level produced when the digital signal reaches 0 dBFS (full digital scale). Question 5. Which port is used for third‑party control system communication via RS‑232? A) Ethernet Port B) Serial Port C) Remote Control Bus D) NexLink Port Answer: B Explanation: The Serial (RS‑232) port allows external control consoles to send command strings directly to the Nexia. Question 6. When linking two Nexia units for a multi‑room system, which port carries digital audio between them? A) Ethernet Port B) Serial Port C) Remote Control Bus D) NexLink Port
C) USB‑type A to B cable D) RJ‑11 telephone cable Answer: B Explanation: A crossover Ethernet cable links two Ethernet ports without a switch, allowing direct PC‑to‑Nexia communication. Question 10. Which IP address class is typically used for a standalone Nexia system not connected to an external network? A) 10.x.x.x B) 172.16.x.x C) 192.168.x.x D) 169.254.x.x (APIPA) Answer: D Explanation: When a Nexia cannot obtain a DHCP lease, it defaults to an Automatic Private IP Addressing (APIPA) address in the 169.254.x.x range. Question 11. During compilation, the error “Invalid Parameter on Block XYZ” most likely indicates: A) A hardware fault on the DSP board B) A corrupted .nex file C) A parameter value outside the allowed range for that block D) Incompatible firmware version Answer: C Explanation: The compiler checks each block’s parameters; an out‑of‑range value triggers an “Invalid Parameter” error. Question 12. Which daVinci™ screen is used for performing room calibration after a configuration is loaded?
A) System Overview B) Signal Flow C) Calibration → SPL Meter D) Control → Presets Answer: C Explanation: The Calibration → SPL Meter screen provides tools for adjusting gain, EQ, and delays based on measured SPL values. Question 13. In a standard mixer block, the “Sum” output represents: A) The average of all input channels B) The highest level input only C) The algebraic sum of all enabled inputs, respecting gain settings D) A pre‑configured 2‑channel mix only Answer: C Explanation: The Sum output adds together all active inputs after applying each channel’s gain, creating a composite signal. Question 14. An Automatic Mixer (Automixer) is most appropriate for: A) Mixing music playback from a media server B) Managing many microphone inputs in a conference room, automatically lowering unused mics C) Routing video signals between codecs D) Providing a fixed‑gain stage for line‑level sources Answer: B Explanation: Automixers detect active microphones and apply gain reduction to inactive ones, reducing ambient noise.
Explanation: The crossover point is chosen where the two drivers’ frequency responses intersect, ensuring a smooth transition. Question 18. A parametric EQ block differs from a graphic EQ because it: A) Provides fixed 1 dB steps across the spectrum B) Allows adjustment of center frequency, bandwidth (Q), and gain for each band C) Can only boost frequencies, not cut them D) Is limited to 10 bands maximum Answer: B Explanation: Parametric EQ offers precise control over frequency, Q, and gain, unlike the fixed bands of a graphic EQ. Question 19. The purpose of a “Leveler” block in Nexia is to: A) Apply compression with a fixed ratio B) Automatically maintain a constant average output level without user‑set thresholds C) Limit peaks to prevent clipping D) Add reverb to the signal Answer: B Explanation: Levelers use adaptive gain control to keep the perceived loudness steady, without preset thresholds. Question 20. In a compressor/limiter block, the “Threshold” parameter defines: A) The maximum output level the block will allow B) The level at which gain reduction begins to be applied C) The attack time of the compression algorithm D) The ratio of input to output gain Answer: B
Explanation: The threshold sets the signal level that triggers the compressor; signals above it are reduced according to the ratio. Question 21. The Ducker block is most commonly used to: A) Reduce background music when a microphone becomes active B) Increase the level of a speech source over music C) Apply a high‑pass filter to a microphone signal D) Generate a test tone for calibration Answer: A Explanation: Duckers automatically lower the level of a “background” source (e.g., music) when a “foreground” source (e.g., mic) is detected. Question 22. Automatic Noise Compensation (ANC) in Nexia is designed to: A) Remove background noise from a microphone in real time B) Increase the gain of low‑level signals automatically C) Compensate for ambient noise in the room by adding a calibrated pink‑noise reference D) Replace the need for a physical equalizer Answer: C Explanation: ANC adds a calibrated noise reference to the system so that the DSP can account for room acoustics during calibration. Question 23. When setting input gain structure, the recommended peak level for a microphone input before the DSP is: A) – 60 dBFS B) – 30 dBFS C) – 12 dBFS D) 0 dBFS
D) Encode audio streams for video codecs Answer: B Explanation: Sona™ AEC removes the echo that occurs when far‑end audio is picked up by the near‑end microphone, improving call quality. Question 27. In an AEC configuration, the “Reference” signal should be taken from: A) The microphone input B) The far‑end speaker output before it reaches the room C) The line‑level input from the video codec D) The telephone line echo canceler Answer: B Explanation: The AEC reference must be the clean far‑end signal before it is played into the room, so the algorithm can model the echo path. Question 28. The “Tail Length” parameter in an AEC block defines: A) The maximum delay the algorithm can compensate for B) The duration of the echo that the processor will attempt to cancel after the far‑end signal stops C) The time it takes for the AEC to converge after a call starts D) The amount of gain reduction applied to the near‑end microphone Answer: B Explanation: Tail Length specifies how long the echo tail can be; longer tails require more processing and memory. Question 29. For a Nexia TC (Telephony) unit, which feature enables detection of DTMF tones from a caller? A) Line Echo Cancellation (LEC)
B) TouchTone™ Decoding C) Caller ID Reception D) Call Progress Detection Answer: B Explanation: TouchTone™ Decoding interprets DTMF (Dual‑Tone Multi‑Frequency) signals used for keypad input. Question 30. When configuring a Nexia VC codec interface, the “Video Sync” input is required for: A) Synchronizing audio sample rates with the video stream B) Providing a timing reference to the video decoder for proper frame alignment C) Supplying power to the external codec D) Carrying Ethernet data for control messages Answer: B Explanation: Video Sync carries the horizontal and vertical timing signals needed for the codec to lock to the video source. Question 31. Which meter in the Nexia software displays the instantaneous peak value of a signal? A) RMS Meter B) Peak Meter C) Signal Present Meter D) Transfer Function Meter Answer: B Explanation: The Peak Meter shows the highest instantaneous level, useful for detecting clipping.
Question 35. Which of the following is NOT a typical cause of “clipping” in a Nexia system? A) Input gain set too high B. Insufficient headroom in the digital domain (0 dBFS) C. Using a high‑pass filter with a very low cutoff frequency D. Output level set above the Full Scale Output rating Answer: C Explanation: A low‑cut HPF does not cause clipping; clipping results from excessive signal levels at any stage. Question 36. When troubleshooting a missing Ethernet connection to a Nexia unit, the first step should be: A) Replace the DSP board B) Verify that the device has a valid IP address and is on the same subnet as the PC C) Increase the input gain on all channels D) Reset all presets to factory defaults Answer: B Explanation: Network connectivity issues are most often due to IP addressing or subnet mismatches. Question 37. In a multi‑unit Nexia system using NexLink, the maximum number of units that can be daisy‑chained is: A) 2 B) 4 C) 8 D) 16 Answer: C Explanation: NexLink supports up to eight Nexia units in a single digital audio network.
Question 38. Balanced audio connections are preferred in Nexia installations because they: A) Require fewer cables than unbalanced connections B) Provide immunity to common‑mode noise over long runs C) Allow higher voltage levels than unbalanced lines D. Are compatible only with RJ‑45 connectors Answer: B Explanation: Balanced lines cancel out noise that appears equally on both conductors, making them ideal for professional audio. Question 39. The “Remote Control Bus” on a Nexia unit is intended for: A) Connecting a PC for software configuration B) Linking multiple Nexia units for audio sharing C) Direct interfacing with Biamp control panels such as the ControlPad D. Providing power over Ethernet (PoE) to the device Answer: C Explanation: The Remote Control Bus carries simple control signals between Biamp control hardware and the Nexia DSP. Question 40. Which block would you use to create a simple “mute‑all” function for every input channel? A) Combiner B) Matrix Mixer C) Logic → Mute D) Automatic Mixer Answer: C
Answer: C Explanation: The Peak meter displays instantaneous levels; when it reaches 0 dBFS, clipping is imminent. Question 44. When configuring a Nexia VC system, the “Video Sync” line must be connected to: A) The Ethernet port of the codec B) The 5‑V power supply of the Nexia C) The sync output of the external video source (e.g., camera) D. The telephone line RJ‑11 jack Answer: C Explanation: Video Sync carries timing information from the video source needed for proper frame alignment. Question 45. A “combiner” block in Nexia is used to: A) Split a single input into multiple outputs B) Sum multiple inputs into a single output without individual level control C) Apply a high‑pass filter to a signal D. Provide a dynamic range compressor for a channel Answer: B Explanation: A Combiner adds several signals together, creating a single summed output; individual gains are set upstream. Question 46. In a Nexia system, the “Remote Control Bus” uses which type of connector? A) RJ‑45 (Ethernet) B) 8‑pin D‑sub C) 4‑pin mini‑DIN
D. 2‑pin barrel jack Answer: B Explanation: The Remote Control Bus is implemented via an 8‑pin D‑sub connector for Biamp control panels. Question 47. Which of the following is a recommended practice when using the “Auto‑Mixer” with a large number of microphones? A) Set the “Maximum Gain” to 0 dB to avoid boosting any mic B) Enable “Noise Gate” on each channel to prevent background pickup C) Use “Hold” time to keep a mic active for a short period after speech stops D. Disable “Automatic Gain Control” because it conflicts with the automixer Answer: C Explanation: The Hold time prevents rapid toggling of mics, improving stability during natural speech pauses. Question 48. When a Nexia unit reports a “NexLink Sync Error,” the most likely cause is: A) Incorrect Ethernet IP configuration B) Mismatched sample rates between linked units C) A broken RJ‑45 cable in the Ethernet port D. Overloaded CPU due to too many DSP blocks Answer: B Explanation: NexLink requires identical sample rates; a mismatch leads to synchronization errors. Question 49. The “Caller ID Reception” feature in Nexia TC provides: A) Automatic dialing of the last called number B) Display of the incoming phone number to the control system via RS‑ 232
B) A Logic block, a control panel button, or a schedule in the software C) Changing the Ethernet cable length D. Adjusting the input gain manually Answer: B Explanation: Presets may be called via Logic, external control interfaces, or timed events. Question 53. When using a “High Shelf” filter to boost frequencies above 8 kHz, the correct parameter to adjust is: A) Cutoff frequency only B) Q factor only C) Gain (boost) amount D. All of the above must be set to zero Answer: C Explanation: A high shelf filter’s primary control is the gain applied to frequencies above the set shelf point. Question 54. The “All‑Pass” filter in Nexia is primarily used to: A) Change the amplitude of a specific frequency band B) Adjust the phase response without affecting amplitude C) Remove DC offset from a signal D. Convert a stereo signal to mono Answer: B Explanation: All‑Pass filters alter phase while keeping magnitude flat across the spectrum. Question 55. Which block would you use to create a “fade‑in” effect for a background music source? A) Compressor
B) Leveler C) Logic → Ramp D. Delay Answer: C Explanation: The Ramp (or Fade) logic block can gradually increase level over a defined time, creating a fade‑in. Question 56. In a Nexia system, the “Gain Structure” hierarchy from lowest to highest level is: A) Output → Input → DSP processing → Analog front‑end B) Analog front‑end → Input → DSP processing → Output C) DSP processing → Analog front‑end → Input → Output D. Input → Output → DSP processing → Analog front‑end Answer: B Explanation: The signal path starts at the analog front‑end (pre‑amp), then input gain, DSP processing, and finally output level. Question 57. The “Remote Control Bus” operates at which voltage level? A) 5 V DC B) 12 V DC C) 24 V DC D. 48 V DC Answer: A Explanation: The Remote Control Bus uses 5 V logic levels compatible with Biamp control panels.
