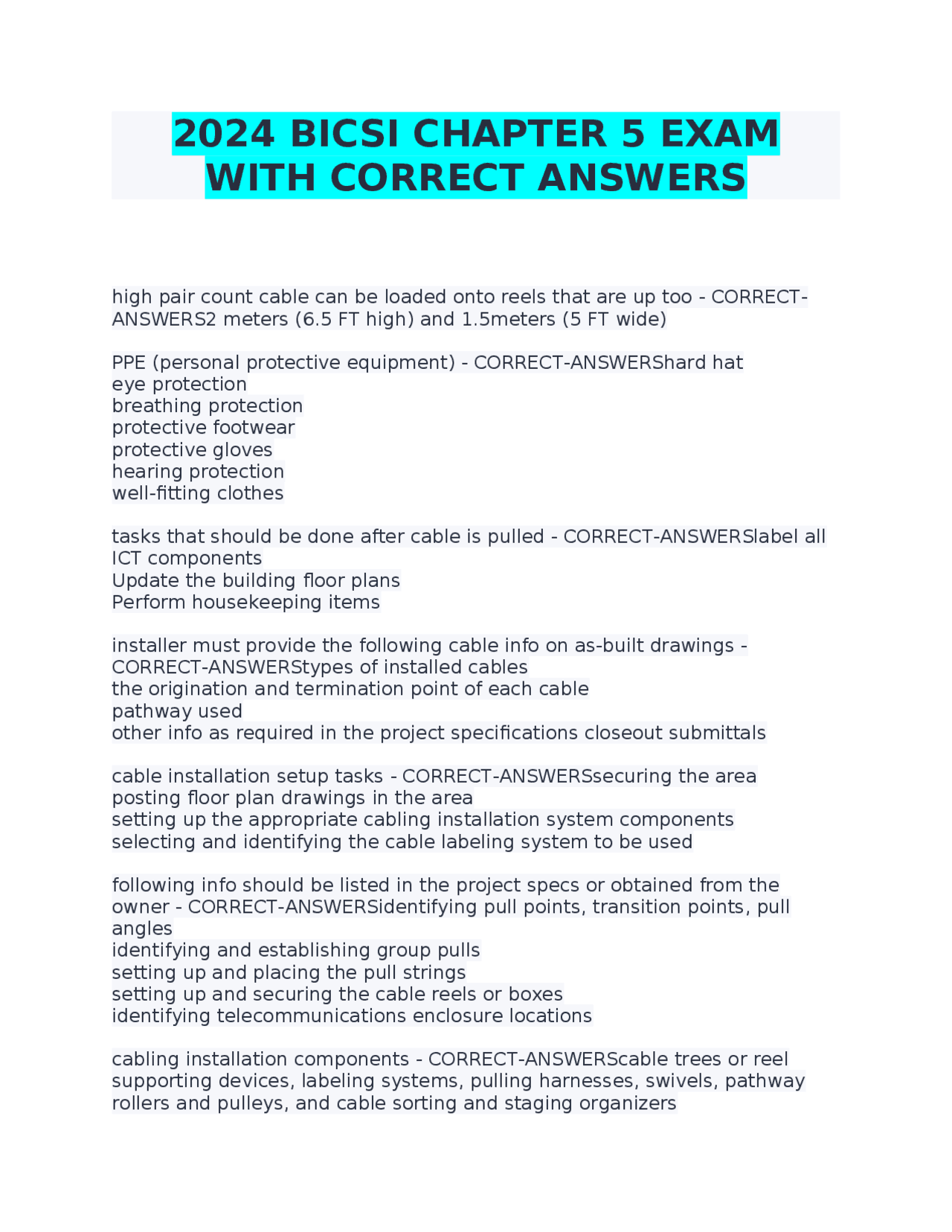

2024 BICSI CHAPTER 5 EXAM
WITH CORRECT ANSWERS
high pair count cable can be loaded onto reels that are up too - CORRECT-
ANSWERS2 meters (6.5 FT high) and 1.5meters (5 FT wide)
PPE (personal protective equipment) - CORRECT-ANSWERShard hat
eye protection
breathing protection
protective footwear
protective gloves
hearing protection
well-fitting clothes
tasks that should be done after cable is pulled - CORRECT-ANSWERSlabel all
ICT components
Update the building floor plans
Perform housekeeping items
installer must provide the following cable info on as-built drawings -
CORRECT-ANSWERStypes of installed cables
the origination and termination point of each cable
pathway used
other info as required in the project specifications closeout submittals
cable installation setup tasks - CORRECT-ANSWERSsecuring the area
posting floor plan drawings in the area
setting up the appropriate cabling installation system components
selecting and identifying the cable labeling system to be used
following info should be listed in the project specs or obtained from the
owner - CORRECT-ANSWERSidentifying pull points, transition points, pull
angles
identifying and establishing group pulls
setting up and placing the pull strings
setting up and securing the cable reels or boxes
identifying telecommunications enclosure locations
cabling installation components - CORRECT-ANSWERScable trees or reel
supporting devices, labeling systems, pulling harnesses, swivels, pathway
rollers and pulleys, and cable sorting and staging organizers
