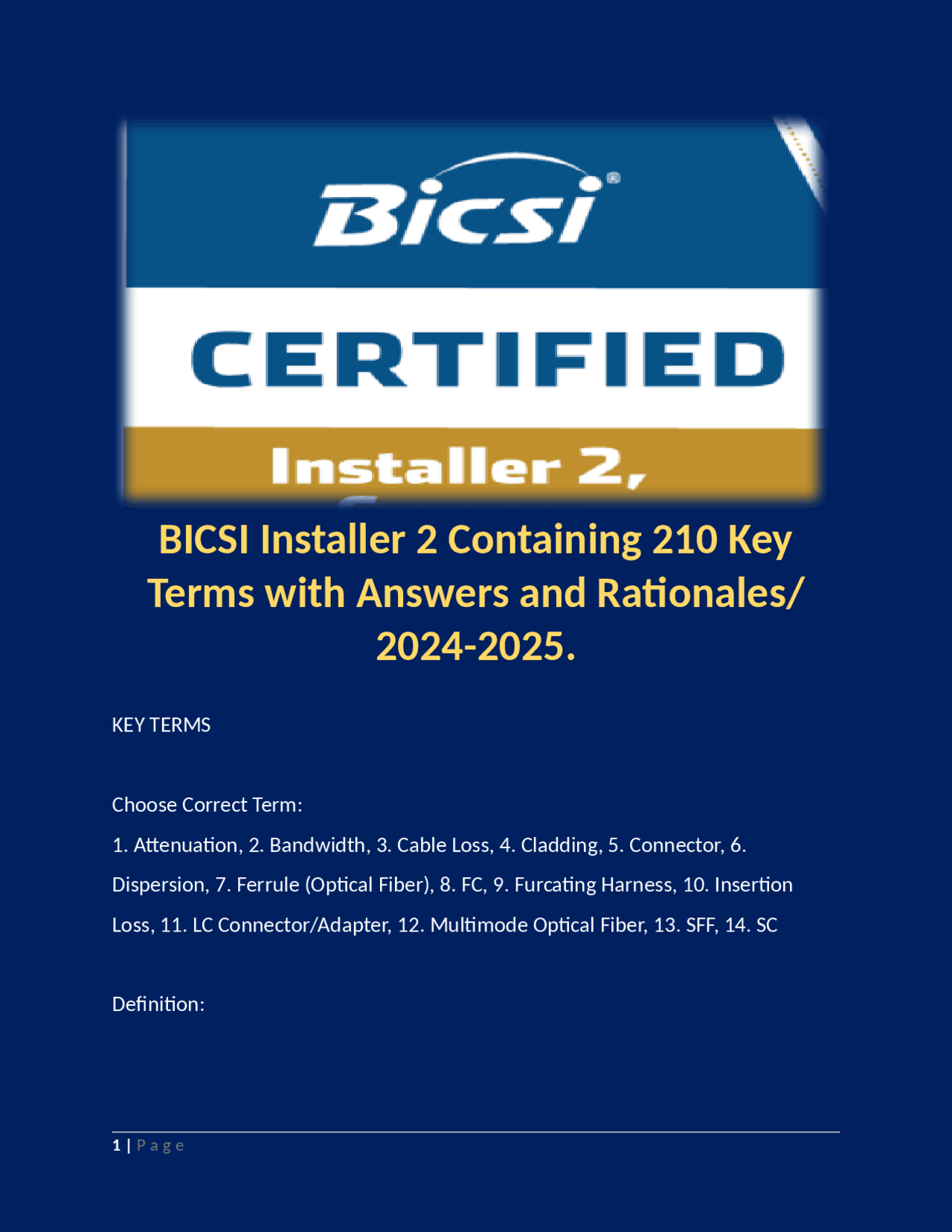

BICSI Installer 2 Containing 210 Key Terms with Answers and Rationales/ 2024-2025. KEY TERMS Choose Correct Term: 1. Attenuation, 2. Bandwidth, 3. Cable Loss, 4. Cladding, 5. Connector, 6. Dispersion, 7. Ferrule (Optical Fiber), 8. FC, 9. Furcating Harness, 10. Insertion Loss, 11. LC Connector/Adapter, 12. Multimode Optical Fiber, 13. SFF, 14. SC Definition: The decrease in magnitude or the power loss of a signal that propagates between points, expressed in decibels (dB) as the ratio of received signal to transmitted signal level. - Answer: 1
Typology: Exams
1 / 86
This page cannot be seen from the preview
Don't miss anything!
Choose Correct Term:
The decrease in magnitude or the power loss of a signal that propagates between points, expressed in decibels (dB) as the ratio of received signal to transmitted signal level. - Answer: 1 KEY TERMS Choose Correct Term:
Choose Correct Term:
Choose Correct Term:
Choose Correct Term:
Choose Correct Term:
The number of cycles that a periodic signal completes in a given time. If the unit of time is one second, the frequency is stated in hertz (Hz). One Hz is equal to one cycle per second. - Answer: 5 Optical Fiber Terminology Choose Correct Term:
Optical Fiber Terminology Choose Correct Term:
Interpret Cable Markings Choose from the correct marking: OF, N, C, P, R, G, LSZH, LSF Description: Riser - Answer: R Interpret Cable Markings Choose from the correct marking: OF, N, C, P, R, G, LSZH, LSF Description: General Purpose - Answer: G Interpret Cable Markings Choose from the correct marking: OF, N, C, P, R, G, LSZH, LSF Description: Low Smoke Zero Halogen - Answer: LSZH Interpret Cable Markings Choose from the correct marking: OF, N, C, P, R, G, LSZH, LSF
Description: Low Smoke and Fumes - Answer: LSF Codes, Standards, and Regulations Choose from the correct Key: AHJ, ANSI, Code, ICT, IEC, IEEE, ISO, NEC, NFPA, Regulation, Standard, TIA Definition: Authority Having Jurisdiction. The building official, electrical inspector, fire marshal, or other individuals or entities responsible for interpretation and enforcement of local building and electrical codes. - Answer: AHJ Codes, Standards, and Regulations Choose from the correct Key: AHJ, ANSI, Code, ICT, IEC, IEEE, ISO, NEC, NFPA, Regulation, Standard, TIA Definition: A private, nonprofit membership organization focused on meeting the standards and conformity assessment requirements of its diverse constituency. It provides a neutral forum for the development of consensus agreements on issues relevant to voluntary standardization. The U.S. representative to the International
Definition: A commission responsible for international electronics standards. - Answer: IEC Codes, Standards, and Regulations Choose from the correct Key: AHJ, ANSI, Code, ICT, IEC, IEEE, ISO, NEC, NFPA, Regulation, Standard, TIA Definition: A nonprofit, technical professional association with more than 400,000 individual members in 150 countries. An authority in technical areas, ranging from computer engineering and telecommunications to consumer electronics. Has a portfolio of nearly 1300 active standards and projects under development. - Answer: IEEE Codes, Standards, and Regulations Choose from the correct Key: AHJ, ANSI, Code, ICT, IEC, IEEE, ISO, NEC, NFPA, Regulation, Standard, TIA Definition: An organization responsible for defining international cabling and other standards. International Organization for Standardization. - Answer: ISO Codes, Standards, and Regulations
Choose from the correct Key: AHJ, ANSI, Code, ICT, IEC, IEEE, ISO, NEC, NFPA, Regulation, Standard, TIA Definition: A safety code written and administered by the National Fire and Protection Association (NFPA). - Answer: NEC Codes, Standards, and Regulations Choose from the correct Key: AHJ, ANSI, Code, ICT, IEC, IEEE, ISO, NEC, NFPA, Regulation, Standard, TIA Definition: Abbreviation of the National Fire Protection Association - Answer: NFPA Codes, Standards, and Regulations Choose from the correct Key: AHJ, ANSI, Code, ICT, IEC, IEEE, ISO, NEC, NFPA, Regulation, Standard, TIA Definition: A authoritative rule that controls or governs behavior leading to uniformity. - Answer: Regulation
Choose Required or Recommended. Where practicable, the outside plant optical fiber cables shall be located below the electric light or power conductors. - Answer: Required Shall vs Should Choose Required or Recommended. Optical fiber cords used in the context of MUTOAs and open space areas shall meet the requirements of ANSI.TIA-563.3. - Answer: Required Shall vs Should Choose Required or Recommended. The conductor plug body should be generically identified by the following colors, where possible: a) multimode - beige, black, or aqua, b) single mode - blue, and c) angled contact ferrule single-mode connectors - green. - Answer: Recommended Shall vs Should Choose Required or Recommended.
All TS identifiers in a single infrastructure should have the same format where possible. - Answer: Recommended Shall vs Should Choose Required or Recommended. Optical fiber cabling should be installed in a star topology. - Answer: Recommended ANSI/TIA Standards: Optical Fiber Cabling Choose the correct ANSI/TIA #: 526.7, 526.14, 568.0, 568.1, 568.3, 569, 570, 606, 607 Title / Description: Measurement of optical power loss of installed Singlemode Fiber Cable Plant. Specifies the methods for measuring single mode optical loss. - Answer: 526. ANSI/TIA Standards: Optical Fiber Cabling Choose the correct ANSI/TIA #: 526.7, 526.14, 568.0, 568.1, 568.3, 569, 570, 606, 607 Title / Description:
