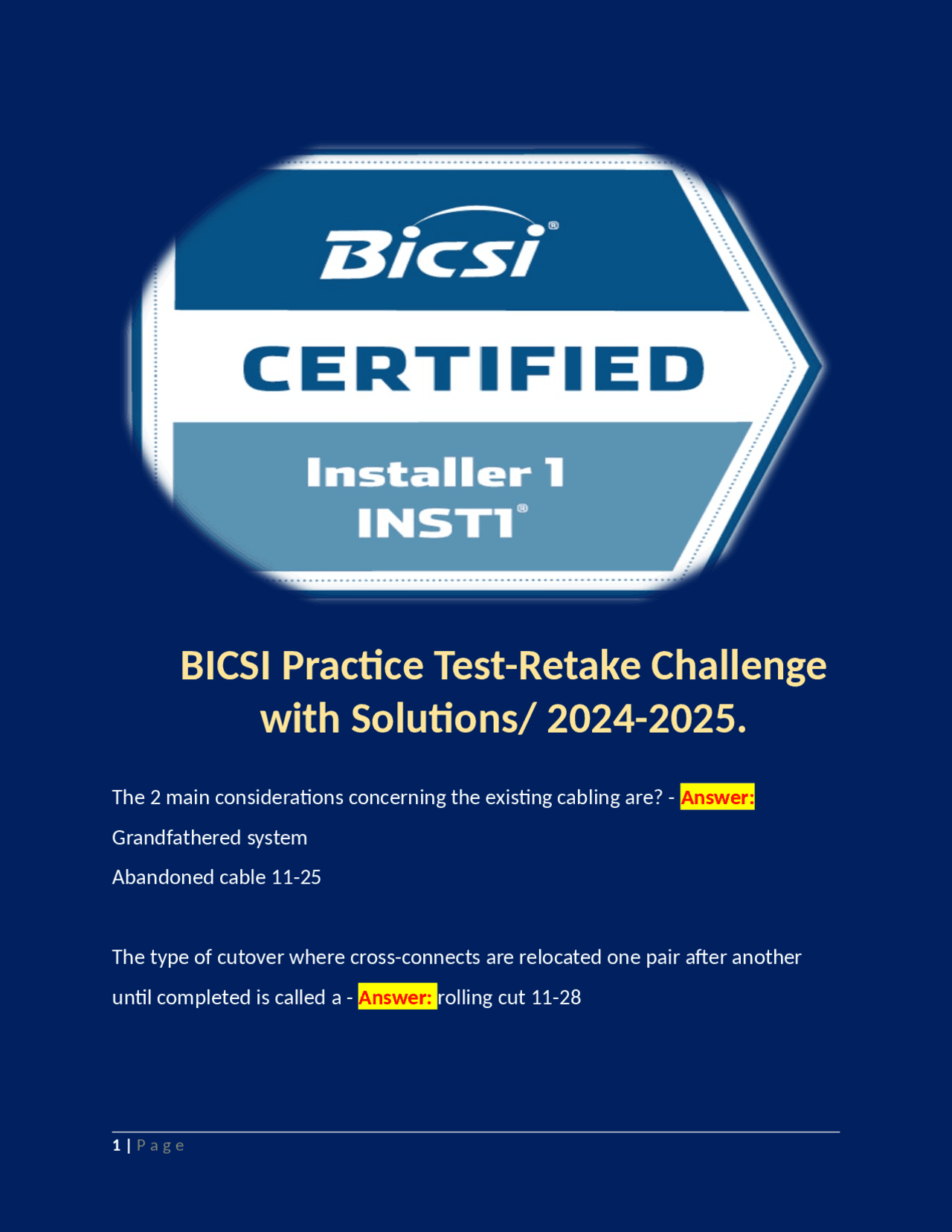

The 2 main considerations concerning the existing cabling are? - Answer: Grandfathered system Abandoned cable 11- The type of cutover where cross-connects are relocated one pair after another until completed is called a - Answer: rolling cut 11-
Which practice involves moving the customer to a temporary office space until their section of the retrofit is completed and then moving them back to their recabled office space? - Answer: Swing space phasing Which of these testers would you clamp around a strand of fiber to check for the presence of light? - Answer: Fiber strand identifier 11- A ______ provides a quick graphical representation of how the circuit is layed out?
The way in which others perceive an employee can be divided into 3 distinct areas: body language, Tone of voice and choice of words. Which of the 3 makes the biggest impression? - Answer: Body language - 55% The range of human hearing is from _________ - Answer: 20 Hz- 20,000 Hz An increase of _______ will result in a doubling or halving of the power. - Answer: 3 dB Increases or decreases of ________ for voltage will cause an increase or decrease of 10 times the original value. - Answer: 6 dB The code stands for "flush-or surface-mounted jack" - Answer: C A "push to talk" intercom system would be an example of a ______ transmission method. - Answer: half-duplex 1- __________ quantifies the bandwidth of a cabling system in a frequency range of interest. - Answer: Megahertz _________ refers to the amount of information that can be transported over the media. - Answer: Megabit A gauge change of ____ numbers approximately doubles or halves the conductors resistance - Answer: 3
A gauge change of _______numbers approximately doubles or halves the conductors diameter - Answer: 6 ______ is not recommended for new installations (what type of fiber) - Answer: OM What type of fibers typically support wavelengths of 850 nm and 1300nm - Answer: OM OM OM Which fiber is typically loose tube construction and is used outdoors - Answer: OS2 (outside plant fiber) Which fiber/s could I use for a LAN application where the distance between telecommunication spaces is 8,000' - Answer: OS Modal bandwidth is described in terms of ________ - Answer: Megahertz per kilometer Through the use of _______ optical fiber, the effects of modal dispersion are reduced but not eliminated. - Answer: Graded index The core diameter of OS2 fiber is ______ microns - Answer: 9
The consolidation point (CP) should be at least ______ feet from the TR - Answer: 50 You should look in ANSI/TIA - ______ if you needed information on the labeling standard. - Answer: 606 A-38, ANSI/TIA - ______ says that structural metal should be tested to verify its conductivity to earth. - Answer: 607 A-38, NEC ______ says that communication wires and cables shall be listed. - Answer: 800 A-38, Generic Telecommunications Cabling for Customer Premises (where to find) - Answer: 568.0 A-38, Broadband coaxial cabling and components standards (where to find) - Answer: 568.4 A-38, ______ is a private, not-for-profit organization that serves as the administrator and coordinator of the United States' private sector voluntary standardization system - Answer: ANSI The telecommunications service entrance to the building is called the ________ - Answer: Entrance Facility (EF)
The color field for the "Network" termination field is _______ - Answer: Green The color field for the "interbuilding backbone cable" termination field is _________ - Answer: brown (over white) The connection between the Horizontal cable and the backbone cable is called the ______ - Answer: HC (FD) A TE can serve a maximum of ________ - Answer: 3600 feet squared The 2 different "types of backbone cabling are _______ and ______ - Answer: Intrabuilding Interbuilding A _______ connects a cable field to an active component. - Answer: Interconnection The maximum equipment cord length in the work area is _______ - Answer: 16.5' The _______ topology is a linear configurations that places all of the network devices on one length of cable. - Answer: Bus In the ______ topology, the network switch is placed in the physical as well as logical center of the network - Answer: Star
Stay at least _______ feet away from exposed energized electrical conductors, such as wires or crane bus bars, operating at 300 - 50,000 volts - Answer: 10 ________ milliamperes trigger ventricular fibrillation, which cause the heart to repeatedly relax and violently clamp shut - Answer: 100 (3-22) What does the "C" in "RACE" stand for? - Answer: Confine Personnel should not lift a load in excess of ________ pounds per person - Answer: 55 The horizontal distance from the base of the ladder to the supporting wall should be ________ the working length of the ladder - Answer: 1/ Fall protection is required whenever a person is exposed to a fall hazard to another level of more than ________ - Answer: 6 feet A PFAS includes a full-body harness, a shock-absorbing lanyard and a secure anchorage point capable of supporting __________ pounds - Answer: 5000 Use a minimum _________ AWG green insulated ground wire telecommunications equipment-bonding conductor to bond cabinets and racks. - Answer: 6
Clearance from the bottom of the access floor tile to the top of the cable tray or other raceway shall be at least ______ inches to permit cable bundles and innerduct to exit out the top of the tray without incurring damage - Answer: 2 Allow no more than_____ of conduit and bushing to extend into the room - Answer: 3" Light, as measured within the TE, should be a minimum of _________ lux. - Answer: 538 lux (or 50 foot candles) If FMC must be used, limit the length to ________ - Answer: 20 feet Toggle bolts should be installed __________ inches from the edges of the sheet of plywood - Answer: 2 When securing equipment to a cabinet or rack, there are 4 popular thread sizes for mounting screws, what ate they? - Answer: M M 12- 10-32 (4-10) The minimum recommended separation distance that telecommunications cabling should be kept from High-intensity discharge lamps is ________ - Answer: 6" The "B" in "ABC" stands for - Answer: Breathing
The ________ bonds the electrical systems grounding electrode system to the PBB. - Answer: TBC (8-11, 8-16) The ________ is the conductor used to connect the busbar to the ac electrical panelboards - Answer: ACEG (8-11, 8-16) The recommended maximum value for the bonding resistance between the grounding electrode and the busbar in the EF or TR is _______ milliohms - Answer: 100 Cabinets and racks should be set in place and leveled throughout the lineup. Leveling foot adjustments or shimming of any anchoring point should not exceed _______ inch(es) unless specified by the project engineer. - Answer: 0. The recommended minimum separation distance from electric motors and transformers is ______ inches - Answer: 48 Where optical fibers will be used, consider placing three innerducts ( two _____ and one ____) inside each 4" conduit designated for this purpose to ensure physical cable protection - Answer: 1.5" 1" The minimum bend radius for coaxial cable (semi-rigid) is _________ time the cable diameter - Answer: 20
The minimum bend radius for intra-building optical fiber cable during installation is _______ times the cable diameter. - Answer: 15 The maximum pull force for two- to- four strand optical fiber is ______lbf - Answer: 50 Multipair copper cables require a minimum bend radius of _______ times their diameter - Answer: 10 *________ is a property of an electromagnetic field built around a conductor that opposes any changes in current flow in a circuit. - Answer: Inductance _______ is a property of conductors that allows storage of electrical charges when potential differences ( voltages) exist between the conductors. - Answer: Capacitance The frequency of Category 8 cable is ______ - Answer: 2000 MHz Series _____ is the preferred choice for longer coaxial runs - Answer: 11 You would look in ANSI/TIA - _______ if you needed information on the labeling standard - Answer: 606
A ______ is a device that manages one or more resources shared by workstation users and administrators on a network - Answer: Server
