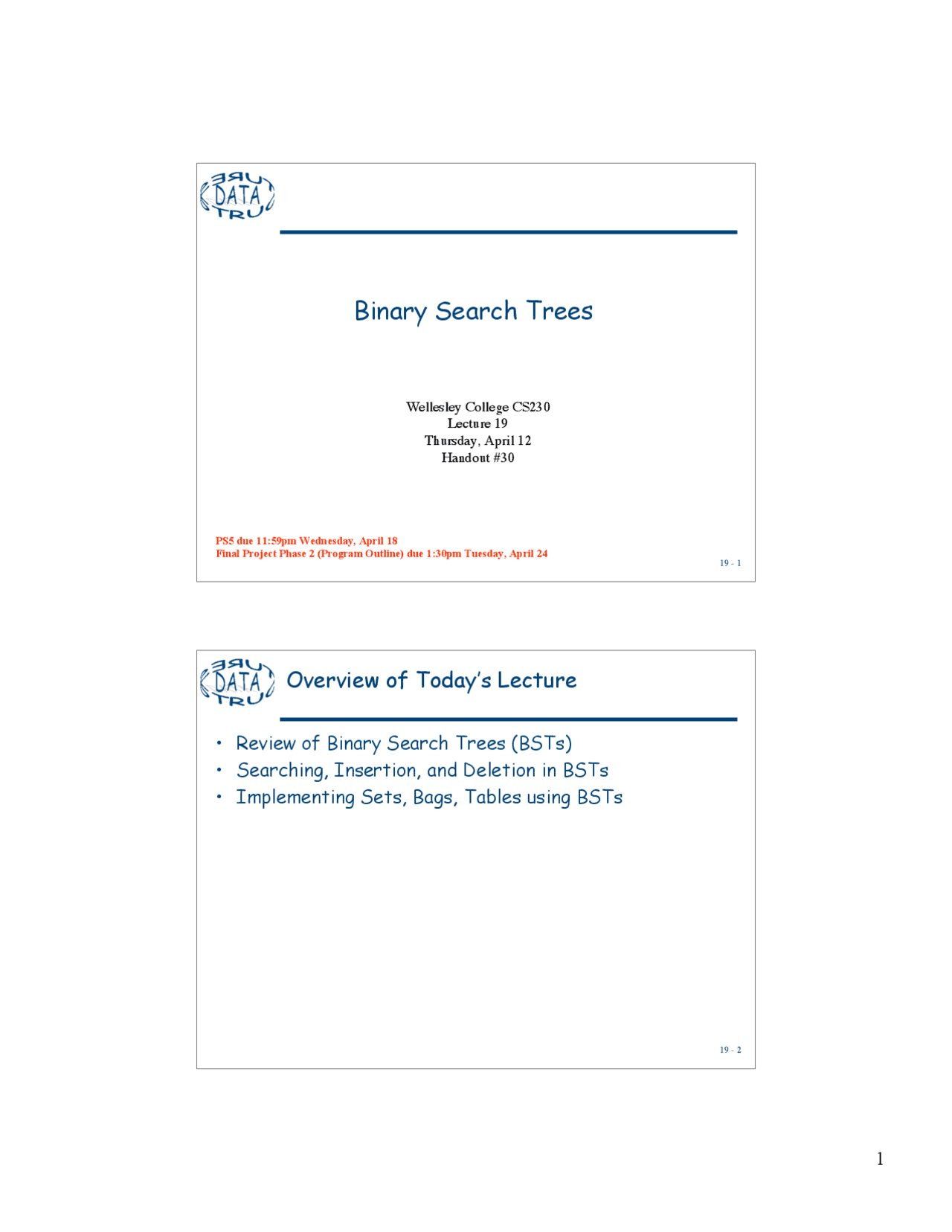

19 - 1
Binary Search Trees
PS5 due 11:59pm Wednesday, April 18 Final Project Phase 2 (Program Outline) due 1:30pm Tuesday, April 24
Wellesley College CS
Lecture 19
Thursday, April 12
Handout
19 - 2
Overview of Today’s Lecture
• Review of Binary Search Trees (BSTs)
• Searching, Insertion, and Deletion in BSTs
• Implementing Sets, Bags, Tables using BSTs
19 - 3 To get full advantage of binary trees for data structures, need the values to be ordered. A binary search tree (BST) is a binary tree in which the following BST properties hold at every node: (1) All elements in the left subtree are ≤ the value; (2) All elements in the right subtree are ≥ the value. Here is a sample BST: Binary Search Trees
P
S
V
F
C M
F J
Notes:
- A BST may contain duplicates
- The in-order traversal of BST elements
yields them in sorted order. E.g.:
C F F J M P S V
- For n > 1, there is more than one BST with
n elements.
19 - 4
The predecessor of a node N is the node that immediately precedes N in an
in-order traversal of the tree (or null if no such node exists). E.g., the
predecessor of node P is node M, of node M is node J, and of node J is node
F.
The successor of a node is the node N that immediately follows N in an in-
order traversal of the tree (or null if no such node exists). E.g., the
successor of node F is node J, of node J is node M, and of node M is node P.
Predecessors and Succesors
P
S
V
F
C M
F J
19 - 7
/** Return true if x is in the tree and false otherwise */
public boolean search (T x) {
MBinTree here = elts;
while (! MBT.isLeaf(here)) {
int c = compare(x, MBT.value(here));
if (c == 0) {
return true;
} else if (c < 0) {
here = MBT.left(here);
} else {
here = MBT.right(here);
// Only reach here if got to leaf without finding element:
return false;
Searching in MBST 19 - 8 public void insert (T x) { MBinTree child = elts; MBinTree parent = null; // parent of child boolean isChildToLeft = true; // is child the left of parent? (initialized arbitrarily) while (! MBT.isLeaf(child)) { // search for insertion point int c = compare(x, MBT.value(child)); if (c == 0) throw new MBSTInsertionException(child); // element is already in tree else if (c < 0) { parent = child; child = MBT.left(child); isChildToLeft = true; } else { parent = child; child = MBT.right(child); isChildToLeft = false; } } // Only reach here if got to leaf without finding element: // Replace the leaf in parent by a new node: MBinTree newNode = MBT.node(MBT.leaf(), x, MBT.leaf()); setChild(parent, isChildToLeft, newNode); } Insertion in MBST
19 - 9 private void setChild (MBinTree parent, boolean isChildToLeft, MBinTree newChild) { if (parent == null) { // special case when no parent elts = newChild; } else if (isChildToLeft) { MBT.setLeft(parent, newChild); } else { MBT.setRight(parent, newChild); } } Setting the Child 19 - 10 public boolean delete (T x) { MBinTree child = elts; MBinTree parent = null; // parent of child boolean isChildToLeft = true; // is child the left of parent? (initialized arbitrarily) while (! MBT.isLeaf(child)) { // search for insertion point int c = compare(x, MBT.value(child)); if (c == 0) { deleteNode(parent, child, isChildToLeft); // See next slide return true; // element is in tree. } else if (c < 0) { parent = child; child = MBT.left(child); isChildToLeft = true; } else { parent = child; child = MBT.right(child); isChildToLeft = false; } } // Only reach here if got to leaf without finding element. return false; // element not in tree. } Deletion In MBST
19 - 13 public class FindInfo { public MBinTree parent, child; public boolean isChildToLeft; public FindInfo (MBinTree parent, MBinTree child, boolean isChildToLeft) { this.parent = parent; this.child = child; this.isChildToLeft = isChildToLeft; } } Abstracting over BST search: FindInfo 19 - 14 /** If x exists in tree returns a FindInfo fi where:
- fi.child is the node containing x;
- fi.parent is the parent of child (or null if there is no parent);
- fi.isChildToLeft is true if child is to the left of parent (or there is none); else false If x does not exist in the tree, returns a FindInfo fi where:
- fi.child is the leaf where x would be inserted into the tree.
- fi.parent is the node below which x would be inserted into the tree.
- fi.isChildToLeft is true if x would be inserted to the left of fei.parent; else false */ public FindInfo find (T x) { MBinTree child = elts; MBinTree parent = null; // parent of child boolean isChildToLeft = true; // is child the left of parent? (initialized arbitrarily) int c = 0; // result of comparison (initialized arbitrarily) while (!MBT.isLeaf(child) && // stuff result of comparison in variable c !((c = compare(x, MBT.value(child))) == 0)) { if (c < 0) {parent = child; child = MBT.left(child); isChildToLeft = true;} else {parent = child; child = MBT.right(child); isChildToLeft = false;} } return new FindInfo(parent, child, isChildToLeft); } Abstracting over BST search: find()
19 - 15 public boolean search (T x) { return (!MBT.isLeaf(find(x).child)); } public void insert (T x) { FindInfo fi = find(x); if (MBT.isLeaf(fi.child)) { MBinTree newNode = MBT.node(MBT.leaf(), x, MBT.leaf()); setChild(fi.parent, fi.isChildToLeft, newNode); } else { throw new MBSTInsertionException(fi.child); // element is already in tree } } public boolean delete (T x) { FindInfo fi = find(x); if (!MBT.isLeaf(fi.child)) { deleteNode(fi.parent, fi.child, fi.isChildToLeft); return true; // element is in tree } else { return false; // element not in tree. } } Abstracted search(), insert(), delete()
