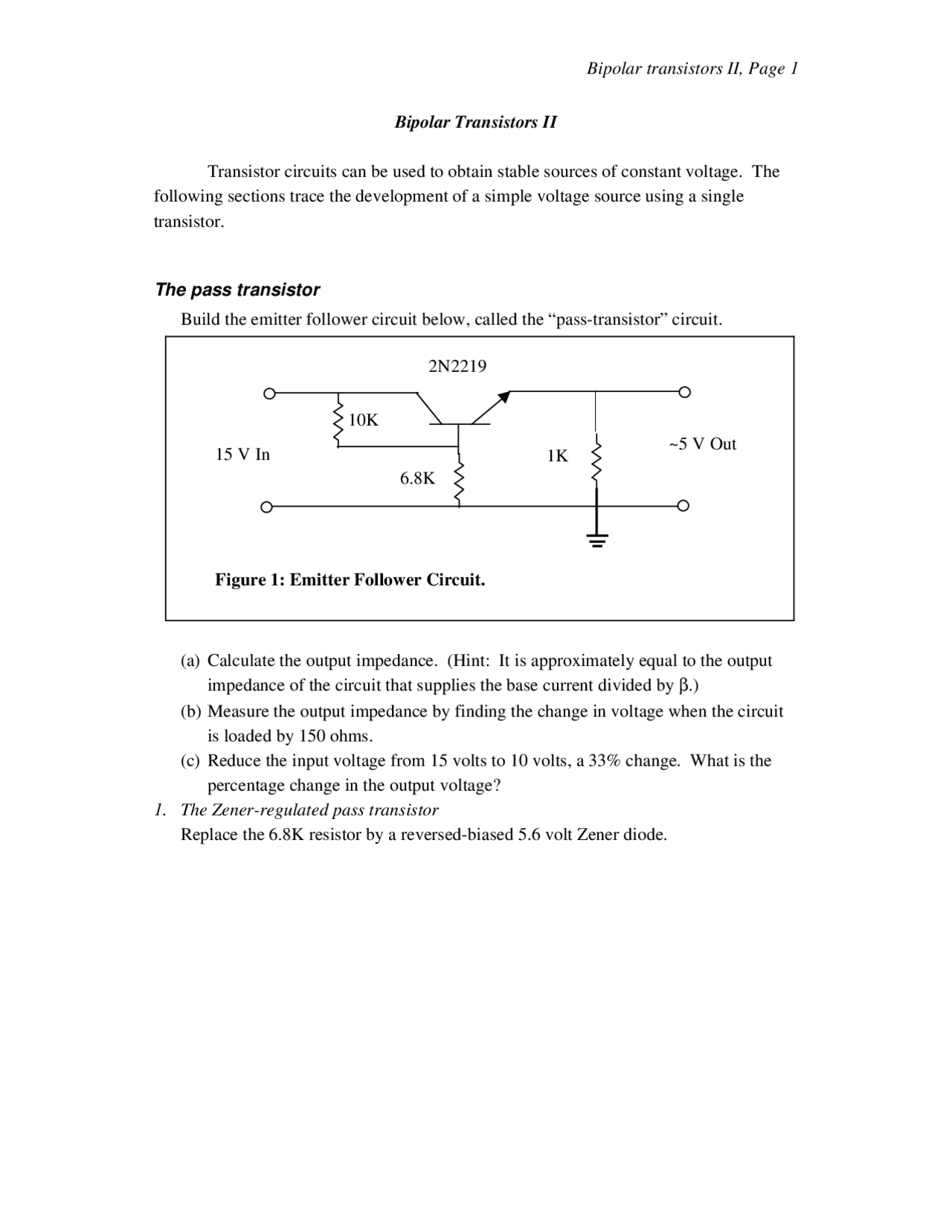

Bipolar transistors II, Page 1
Bipolar Transistors II
Transistor circuits can be used to obtain stable sources of constant voltage. The
following sections trace the development of a simple voltage source using a single
transistor.
The pass transistor
Build the emitter follower circuit below, called the “pass-transistor” circuit.
(a) Calculate the output impedance. (Hint: It is approximately equal to the output
impedance of the circuit that supplies the base current divided by β.)
(b) Measure the output impedance by finding the change in voltage when the circuit
is loaded by 150 ohms.
(c) Reduce the input voltage from 15 volts to 10 volts, a 33% change. What is the
percentage change in the output voltage?
1. The Zener-regulated pass transistor
Replace the 6.8K resistor by a reversed-biased 5.6 volt Zener diode.
1K
6.8K
10K
2N2219
15 V In ~5 V Out
Figure 1: Emitter Follower Circuit.
pf3

Partial preview of the text

Download Bipolar Transistors II: Building a Voltage Source with a Pass Transistor and a Zener Diode and more Lab Reports Basic Electronics in PDF only on Docsity!

Bipolar Transistors II

Transistor circuits can be used to obtain stable sources of constant voltage. The following sections trace the development of a simple voltage source using a single transistor.

The pass transistor

Build the emitter follower circuit below, called the “pass-transistor” circuit.

(a) Calculate the output impedance. (Hint: It is approximately equal to the output impedance of the circuit that supplies the base current divided by β.) (b) Measure the output impedance by finding the change in voltage when the circuit is loaded by 150 ohms. (c) Reduce the input voltage from 15 volts to 10 volts, a 33% change. What is the percentage change in the output voltage?

1. The Zener-regulated pass transistor Replace the 6.8K resistor by a reversed-biased 5.6 volt Zener diode.

1K

6.8K

10K

2N

15 V In ~5 V Out

Figure 1: Emitter Follower Circuit.

(a) Measure the output impedance as above. (b) Find the change in output voltage when the input voltage changes from 15 to 10 volts. (c) Calculate the current in the 10K resistor and zener diode. Is this enough current to drive the zener beyond the knee in the V-I characteristic? Can you improve the circuit by reducing the 10K resistor?

Construction of a power supply

On a piece of perforated board solder together the following circuit:

The output should be about 5 volts.

e b c

2N

1K

5.6V

10K

2N

15 V In

Figure 2: Zener regulated pass transistor.

6.3V RMS NC

Bridge Rectifier

  • (^1000) μF

V Out 10K 5.6V

1K

2N

Figure 3: Power Supply.
