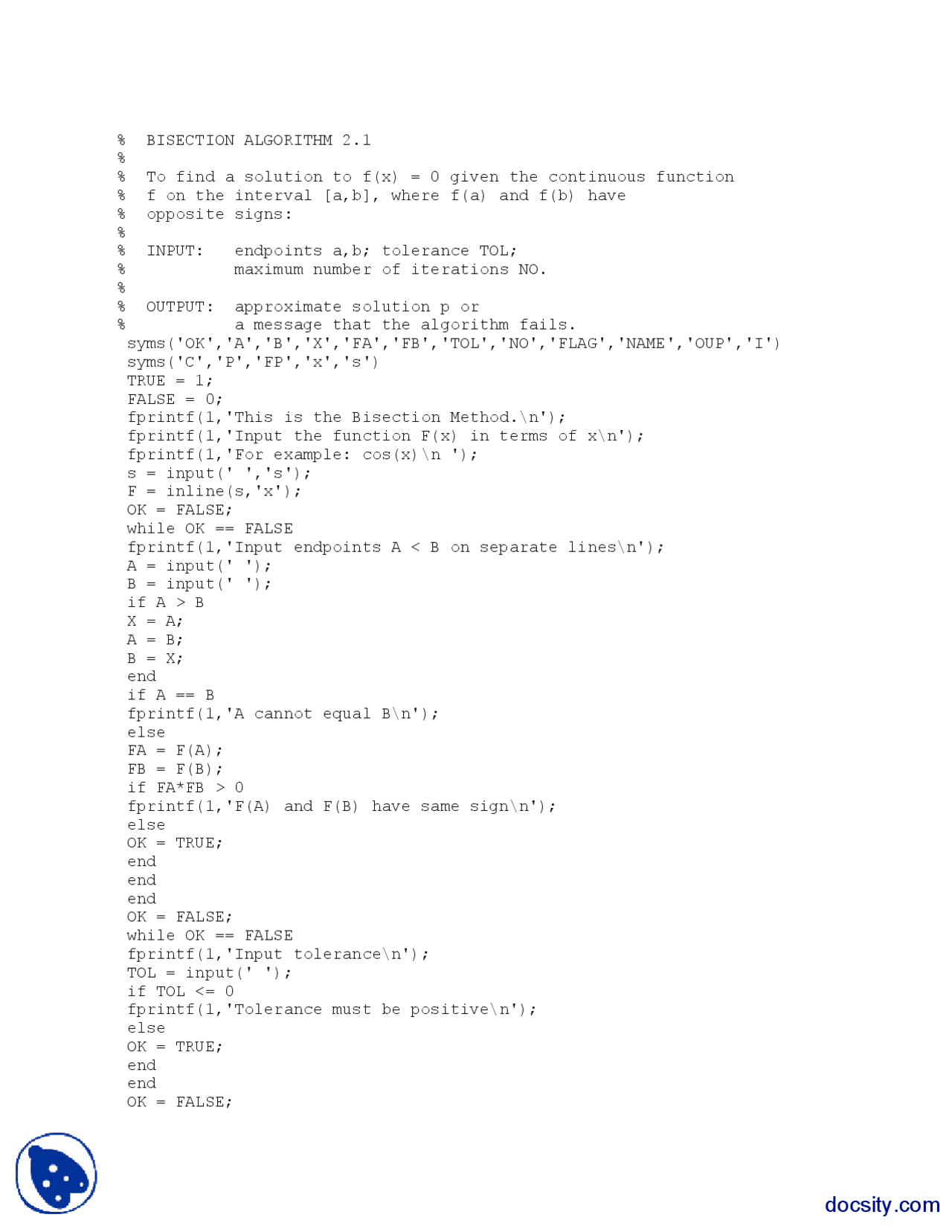

% BISECTION ALGORITHM 2.1
%
% To find a solution to f(x) = 0 given the continuous function
% f on the interval [a,b], where f(a) and f(b) have
% opposite signs:
%
% INPUT: endpoints a,b; tolerance TOL;
% maximum number of iterations NO.
%
% OUTPUT: approximate solution p or
% a message that the algorithm fails.
syms('OK','A','B','X','FA','FB','TOL','NO','FLAG','NAME','OUP','I')
syms('C','P','FP','x','s')
TRUE = 1;
FALSE = 0;
fprintf(1,'This is the Bisection Method.\n');
fprintf(1,'Input the function F(x) in terms of x\n');
fprintf(1,'For example: cos(x)\n ');
s = input(' ','s');
F = inline(s,'x');
OK = FALSE;
while OK == FALSE
fprintf(1,'Input endpoints A < B on separate lines\n');
A = input(' ');
B = input(' ');
if A > B
X = A;
A = B;
B = X;
end
if A == B
fprintf(1,'A cannot equal B\n');
else
FA = F(A);
FB = F(B);
if FA*FB > 0
fprintf(1,'F(A) and F(B) have same sign\n');
else
OK = TRUE;
end
end
end
OK = FALSE;
while OK == FALSE
fprintf(1,'Input tolerance\n');
TOL = input(' ');
if TOL <= 0
fprintf(1,'Tolerance must be positive\n');
else
OK = TRUE;
end
end
OK = FALSE;
docsity.com
pf3

Partial preview of the text

Download Bisection Algorithm Continuous Function-Numerical Analysis-MATLAB Code and more Exercises Mathematical Methods for Numerical Analysis and Optimization in PDF only on Docsity!

% BISECTION ALGORITHM 2.

% To find a solution to f(x) = 0 given the continuous function % f on the interval [a,b], where f(a) and f(b) have % opposite signs: % % INPUT: endpoints a,b; tolerance TOL; % maximum number of iterations NO. % % OUTPUT: approximate solution p or % a message that the algorithm fails. syms('OK','A','B','X','FA','FB','TOL','NO','FLAG','NAME','OUP','I') syms('C','P','FP','x','s') TRUE = 1; FALSE = 0; fprintf(1,'This is the Bisection Method.\n'); fprintf(1,'Input the function F(x) in terms of x\n'); fprintf(1,'For example: cos(x)\n '); s = input(' ','s'); F = inline(s,'x'); OK = FALSE; while OK == FALSE fprintf(1,'Input endpoints A < B on separate lines\n'); A = input(' '); B = input(' '); if A > B X = A; A = B; B = X; end if A == B fprintf(1,'A cannot equal B\n'); else FA = F(A); FB = F(B); if FA*FB > 0 fprintf(1,'F(A) and F(B) have same sign\n'); else OK = TRUE; end end end OK = FALSE; while OK == FALSE fprintf(1,'Input tolerance\n'); TOL = input(' '); if TOL <= 0 fprintf(1,'Tolerance must be positive\n'); else OK = TRUE; end end OK = FALSE;

while OK == FALSE fprintf(1,'Input maximum number of iterations - no decimal point\n'); NO = input(' '); if NO <= 0 fprintf(1,'Must be positive integer\n'); else OK = TRUE; end end if OK == TRUE fprintf(1,'Select output destination\n'); fprintf(1,'1. Screen\n'); fprintf(1,'2. Text file\n'); fprintf(1,'Enter 1 or 2\n'); FLAG = input(' '); if FLAG == 2 fprintf(1,'Input the file name in the form - drive:\name.ext\n'); fprintf(1,'For example: A:\OUTPUT.DTA\n'); NAME = input(' ','s'); OUP = fopen(NAME,'wt'); else OUP = 1; end fprintf(1,'Select amount of output\n'); fprintf(1,'1. Answer only\n'); fprintf(1,'2. All intermediate approximations\n'); fprintf(1,'Enter 1 or 2\n'); FLAG = input(' '); fprintf(OUP,'Bisection Method\n'); if FLAG == 2 fprintf(OUP, ' I P F(P)\n'); end % STEP 1 I = 1; % STEP 2 OK = TRUE; while I <= NO & OK == TRUE % STEP 3 % Compute P(I) C = (B - A) / 2.0; P = A + C; % STEP 4 FP = F(P); if FLAG == 2 fprintf(OUP,'%3d %15.8e %15.7e \n',I,P,FP); end if abs(FP) < 1.0e-20 | C < TOL % procedure completed successfully fprintf(OUP,'\nApproximate solution P = %11.8f \n',P); fprintf(OUP,'with F(P) = %12.8f\n',FP); fprintf(OUP,'Number of iterations = %3d',I); fprintf(OUP,' Tolerance = %15.8e\n',TOL); OK = FALSE; else
