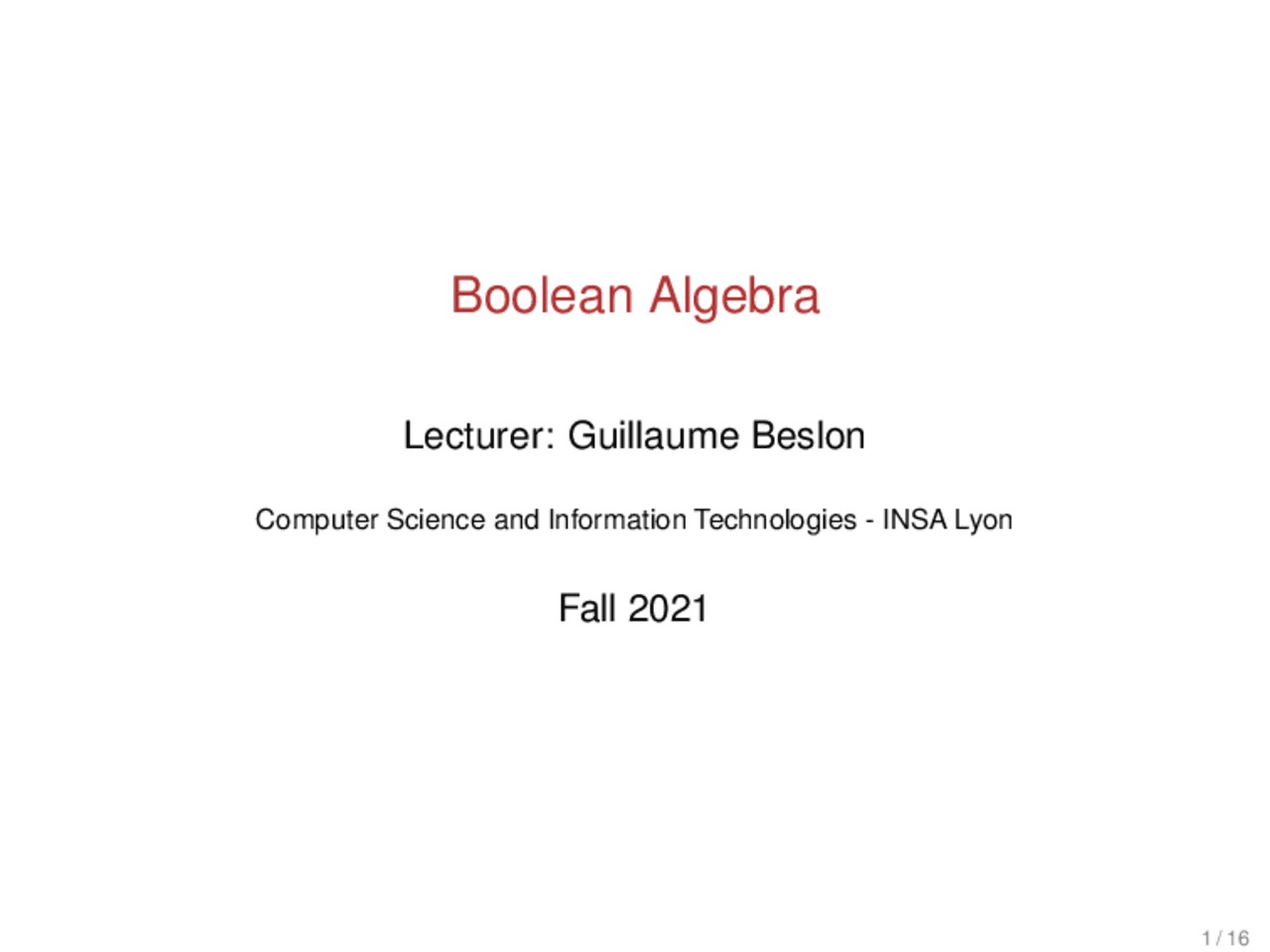

Boolean Algebra

Lecturer: Guillaume Beslon

Computer Science and Information Technologies - INSA Lyon

Fall 2021

Interpretation of bits as Boolean values

Two elementary values: I (^0) ⇒ “false” I (^1) ⇒ “true” From these values, we will (1) use Boolean algebra to build expressions that transform bit vectors into other bit vectors (i.e. an information into another information) and (2) implement them as logical circuits. → Two types of expressions/circuits: I (^) Combinatorial expressions/circuits : output bits only depend on values currently available on input bits. I (^) Sequential expressions/circuits : The circuit is considered to have a state (i.e., a memory of its past activity/inputs). Output bits depend both on values currently available on input bits + circuit state.

Boolean Cheat Sheet^1

• absorbing elements: a + 1 = 1, a· 0 = 0
• neutral elements: a + 0 = a, a· 1 = a
• idempotence: a + a = a, a·a = a
• tautology/antilogy: a + a = 1, a·a = 0
• commutativity: a + b = b + a, ab = ba
• distributivity: a + (bc) = (a + b)(a + c), a(b + c) = ab + ac
• associativity: a + (b + c) = (a + b) + c = a + b + c, a(bc) = (ab)c = abc
• De Morgan’s law: ab = a + b, a + b = a·b
• others: a + (ab) = a, a + (ab) = a + b, a(a + b) = a, (a + b)(a + b) = a
• Always keep in mind: ab 6 = ab, a + b 6 = a + b (^1) Probably one of the rare things to be known by heart

Boolean expressions

Using the basic operations, we can form Boolean expressions.

A literal is a Boolean (potentially negated) variable in an expression (e.g.,: if a, b, c are 3 boolean variables, we can write the Boolean expression ab + cb, which has 4 literals).

→ Any function from Bn^ to B can be described with a Boolean expression.

→ Any function from Bn^ to Bm^ can be described with m Boolean expressions.

→ Any boolean expression with n variables represents a function from Bn^ to B.

Blackboard Examples

Normal forms

A Boolean function can be expressed with many different Boolean expressions: e.g., if f (a, b) = ab, then we also have f (a, b) = a + b or f (a, b) = (a + (ab)) + (b(a + b)) (cf Boolean Cheat Sheet) We thus are interested in two normal forms (forme canonique):

I (^) Disjunctive normal form (DNF) : a disjunction of conjunctions of literals (sum of products → sop):

abc + ab + ab

I (^) Conjunctive normal form (CNF) : a conjunction of disjunctions of literals (product of sums → pos):

(a + b + c)·(a + b + c)·(a + b + c)

From Boolean functions to CNF

1. write f (a, b, c) in DNF

a b c f (a, b, c) f (a, b, c) 0 0 0 1 0 0 0 1 0 1 → abc 0 1 0 1 0 0 1 1 0 1 → abc 1 0 0 1 0 1 0 1 1 0 1 1 0 0 1 → abc 1 1 1 0 1 → abc

f (a, b, c) = abc + abc + abc + abc.

2. Use De Morgan’s law to build the CNF^2 f (a, b, c) = (a + b + c)·(a + b + c)·(a + b + c)·(a + b + c). (^2) May seems difficult but CNF are useful – and actually simple – when the truth table mainly contains false values...

Blackboard Examples
