Exam

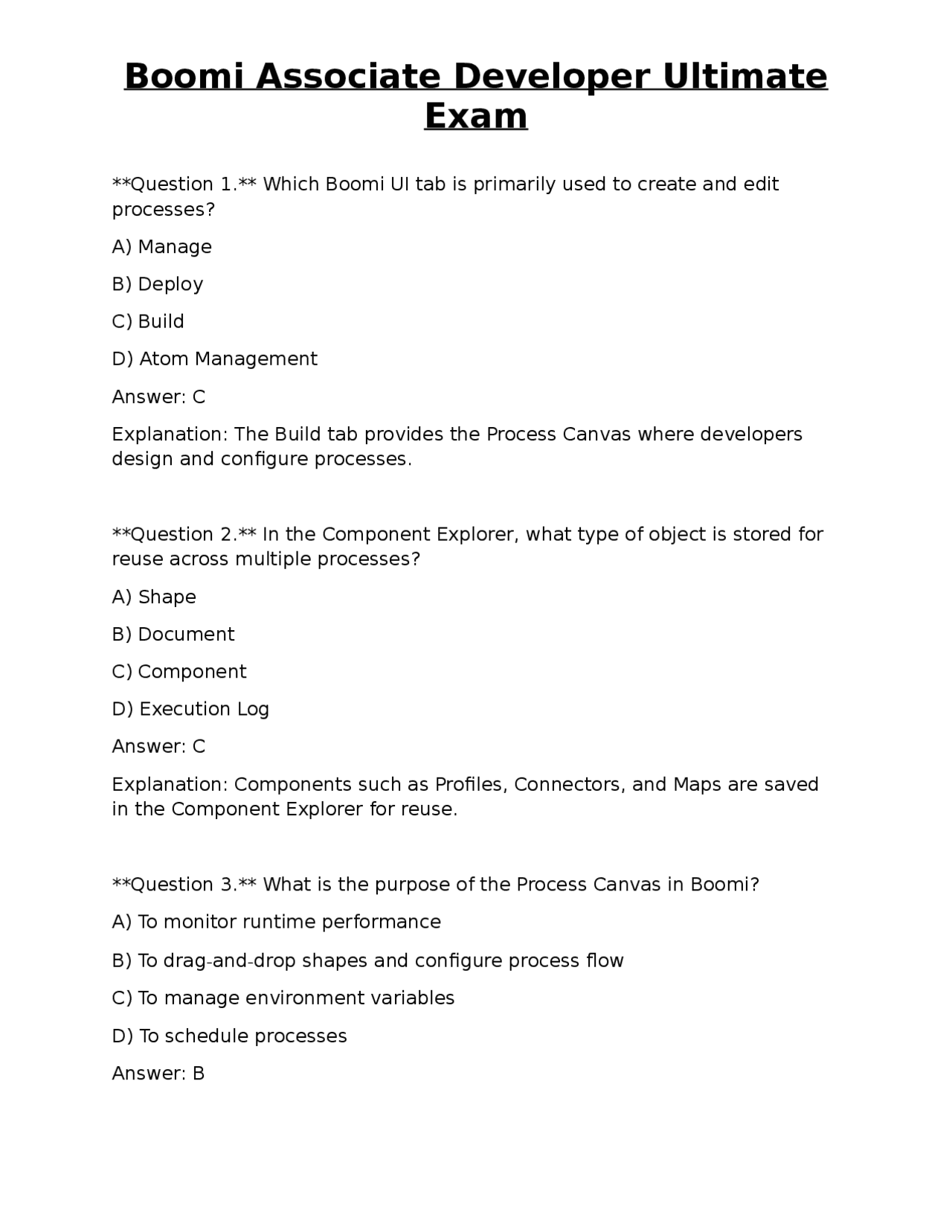

Question 1. Which Boomi UI tab is primarily used to create and edit processes? A) Manage B) Deploy C) Build D) Atom Management Answer: C Explanation: The Build tab provides the Process Canvas where developers design and configure processes. Question 2. In the Component Explorer, what type of object is stored for reuse across multiple processes? A) Shape B) Document C) Component D) Execution Log Answer: C Explanation: Components such as Profiles, Connectors, and Maps are saved in the Component Explorer for reuse. Question 3. What is the purpose of the Process Canvas in Boomi? A) To monitor runtime performance B) To drag-and-drop shapes and configure process flow C) To manage environment variables D) To schedule processes Answer: B
Exam
Explanation: The Process Canvas is the visual designer where shapes are placed and linked. Question 4. Which dashboard view shows real-time execution statistics for an Atom? A) Process Reporting B) Atom Management → Dashboard C) Component Explorer → Usage D) Integration Dashboard Answer: B Explanation: The Atom Management Dashboard displays CPU, memory, and process execution metrics. Question 5. What distinguishes a “component” from a “shape” in Boomi? A) Components are runtime objects, shapes are design-time objects B) Components are stored in the Component Explorer, shapes exist only on the canvas C) Shapes can be reused, components cannot D) There is no distinction; the terms are interchangeable Answer: B Explanation: Components are reusable assets, while shapes are instances placed on a specific process canvas. Question 6. In connector architecture, which element defines the endpoint URL and credentials? A) Operation B) Connection C) Profile
Exam
C) Only database rows D) Only a process definition Answer: A Explanation: A Document is the runtime unit of data, which may be a single record, a batch, or an entire file. Question 10. Which profile type would you select to parse a fixed-width flat file? A) XML Profile B) JSON Profile C) Flat File Profile – Fixed Width D) EDI Profile Answer: C Explanation: Flat File profiles can be configured for delimited or fixed-width structures. Question 11. What is a Dynamic Document Property used for? A) Storing static configuration values only B) Holding values that can change per document at runtime C) Defining the schema of a profile D) Setting environment-level passwords Answer: B Explanation: Dynamic Document Properties are assigned per document during execution and can be referenced later. Question 12. Which map function would you use to combine first and last name fields into a single string? A) Split
Exam
B) Concatenate C) Substring D) ToUpperCase Answer: B Explanation: Concatenate joins multiple strings into one, ideal for building a full name. Question 13. How does Boomi Suggest assist a developer? A) Generates full process code automatically B) Recommends shape placement based on best practices C) Provides AI-driven mapping suggestions for source-to-target fields D) Auto-creates environment variables Answer: C Explanation: Boomi Suggest analyzes source and target profiles and suggests field mappings. Question 14. Which map function converts a date string “2023- 04 - 01 ” to “April 1, 2023”? A) DateFormat B) ToDate C) ParseDate D) FormatDate Answer: D Explanation: FormatDate reformats a date string according to a specified pattern. Question 15. What is the purpose of a User-Defined Function (UDF) in a map?
Exam
Question 18. Which shape is used to set a value that can be referenced later in the same process execution? A) Set Properties B) Message C) Notify D) Data Process Answer: A Explanation: Set Properties assigns values to process properties for later use. Question 19. How does the Message shape differ from the Set Properties shape? A) Message creates or modifies document content, Set Properties only sets property values B) Message sends an email, Set Properties updates a database C) Message schedules a process, Set Properties logs a message D) There is no functional difference Answer: A Explanation: Message can construct or transform document payloads using variables, while Set Properties only handles property values. Question 20. Which shape would you use to send an email notification when a process fails? A) Notify B) Message C) Exception D) Data Process Answer: A
Exam
Explanation: The Notify shape can be configured to send email, Slack, or other alerts. Question 21. What does the Data Process shape “Split Documents” accomplish? A) Divides a single document into multiple documents based on a delimiter or record count B) Merges several documents into one C) Encrypts a document D) Compresses a document into a zip file Answer: A Explanation: Split Documents creates separate documents from a batch, allowing individual processing. Question 22. Which logic shape evaluates a condition and routes the document to either a True or False path? A) Branch B) Decision C) Route D) Business Rules Answer: B Explanation: Decision shapes perform binary evaluations and direct flow accordingly. Question 23. In a Branch shape, what determines the order of execution of its outbound paths? A) Alphabetical order of path names B) The sequence defined in the shape’s configuration panel C) Random selection at runtime
Exam
C) Production D) Archive Answer: B Explanation: After building, processes are typically tested in a sandbox before deployment. Question 27. What is a Cloud Atom? A) A local runtime installed on a server B) A Docker container for Boomi processes C) A managed Boomi runtime hosted in the cloud D. A data transformation engine Answer: C Explanation: Cloud Atoms are Boomi-managed runtime environments running in Boomi’s cloud infrastructure. Question 28. Which Boomi object groups Atoms for logical segregation such as Dev, QA, or Prod? A) Molecule B) Environment C) Package D) Extension Answer: B Explanation: Environments contain Atoms and define which runtime will execute a given process version. Question 29. When creating a deployment package, which component must be attached to an environment? A) Process Property
Exam
B) Process Extension C) Process Version D) Execution Log Answer: C Explanation: A specific process version is packaged and then deployed to an environment. Question 30. What is the purpose of a Process Extension? A) To add new shapes to a running process B) To override environment-specific values like passwords without changing the process definition C) To create a backup of a process D) To schedule a process automatically Answer: B Explanation: Extensions allow environment-level overrides for sensitive or variable data. Question 31. Which Boomi feature automates the execution of a process at a defined time or interval? A) Scheduler (Atom Management) B) Test Mode C) Exception Shape D) Notify Shape Answer: A Explanation: The Scheduler lets you set cron-style or interval-based execution of processes.
Exam
Explanation: Try/Catch captures exceptions for individual documents, preventing a single failure from aborting the entire process. Question 35. Where can you view historical execution details and download logs for a process? A) Build tab → Process Canvas B) Manage tab → Process Reporting C) Atom Management → Dashboard D) Component Explorer → Profiles Answer: B Explanation: Process Reporting under the Manage tab provides execution history and log access. Question 36. Which HTTP status code indicates an authentication failure when using a HTTP Client connector? A) 200 B) 301 C) 401 D) 404 Answer: C Explanation: 401 Unauthorized signals that credentials were missing or invalid. Question 37. When a mapping error occurs because a required source field is missing, what type of error is typically raised? A) Connection error B) Validation error C) Scheduler error
Exam
D) License error Answer: B Explanation: Missing required fields trigger validation errors during the Map shape execution. Question 38. Which of the following is NOT a valid Boomi document type? A) XML B) CSV (treated as Flat File) C) PDF D) JSON Answer: C Explanation: Boomi handles structured data types like XML, JSON, and Flat Files; PDF is considered binary and not a native document type. Question 39. What does the “Batch Size” setting control in a connector operation? A) Number of parallel threads for the process B) Number of documents fetched or sent in a single API call C) Maximum file size allowed D) Timeout duration for the connection Answer: B Explanation: Batch Size determines how many records are processed per connector request. Question 40. In a Flat File profile, which delimiter would you select to parse a pipe-separated values file? A) Comma (, ) B) Tab (\t)
Exam
A) Disk B) Database – MySQL C) SFTP D) Salesforce Answer: B Explanation: The Database connector supports MySQL, Oracle, SQL Server, etc., for CRUD operations. Question 44. What is the effect of enabling “Auto-Retry” on a connector shape? A) The process will automatically restart from the beginning if any shape fails B) The connector will attempt the operation again a configurable number of times before throwing an error C) The connector will ignore all errors and continue D) The connector will send an email notification on failure Answer: B Explanation: Auto-Retry retries the specific connector operation, not the whole process. Question 45. When using a Decision shape, which expression language is used to evaluate conditions? A) JavaScript B) Groovy C) Boomi Expression Language (BEL) D) SQL Answer: C Explanation: Boomi Expression Language provides functions and operators for condition evaluation.
Exam
Question 46. Which shape can be used to invoke an external REST API and capture the response as a document? A) HTTP Client B) Database C) Disk D) FTP Answer: A Explanation: The HTTP Client connector calls REST or SOAP services and returns the response as a document. Question 47. What does the “Dynamic Process Property” type allow you to do? A) Store values that can be changed at runtime and accessed by any shape in the process B) Define static constants at design time only C) Override environment variables permanently D) Encrypt property values automatically Answer: A Explanation: Dynamic Process Properties are set during execution and can be read later in the same process. Question 48. Which shape would you use to concatenate a list of strings stored in a document property into a single comma-separated string? A) Set Properties with a Concatenate function B) Message shape with a custom script C) Data Process – Combine Documents D) Notify shape
Exam
C) Reduces the number of shapes needed in a process D) Enables real-time data streaming Answer: B Explanation: Extensions provide environment-specific overrides, allowing the same process to run in Dev, QA, Prod with different credentials or URLs. Question 52. Which schedule type would you select to run a process every weekday at 2:00 AM? A) Cron expression “0 2 * * 1- 5 ” B) Interval of 24 hours starting now C) One-time schedule for tomorrow D) Event-based trigger Answer: A Explanation: The cron expression schedules the process at 02:00 on Monday through Friday. Question 53. When a process fails due to a “404 Not Found” response from an HTTP connector, which troubleshooting step is most appropriate? A) Increase the batch size B) Verify the endpoint URL and resource path C) Change the connector to FTP D) Add a Try/Catch shape Answer: B Explanation: A 404 indicates the requested resource does not exist; checking the URL resolves the issue. Question 54. Which shape allows you to perform a “Group By” operation on a set of documents?
Exam
A) Data Process – Group Documents B) Map C) Decision D) Route Answer: A Explanation: The Group Documents function aggregates documents based on a key field. Question 55. What does the “Validate XML” option do in an XML profile? A) It automatically corrects malformed XML B) It checks the incoming document against the defined XSD or schema during runtime C) It converts XML to JSON D) It encrypts the XML payload Answer: B Explanation: Validation ensures the XML conforms to its schema, catching structural errors early. Question 56. Which of the following is a valid way to pass a password securely to a connector without storing it in plain text? A) Hard-code it in the connection configuration B) Use a Process Extension with “Secure” flag enabled C) Store it in a document property named “password” D) Include it in the URL query string Answer: B Explanation: Extensions marked as “Secure” encrypt the value and hide it from the UI.
