Program Certification Exam Preparation

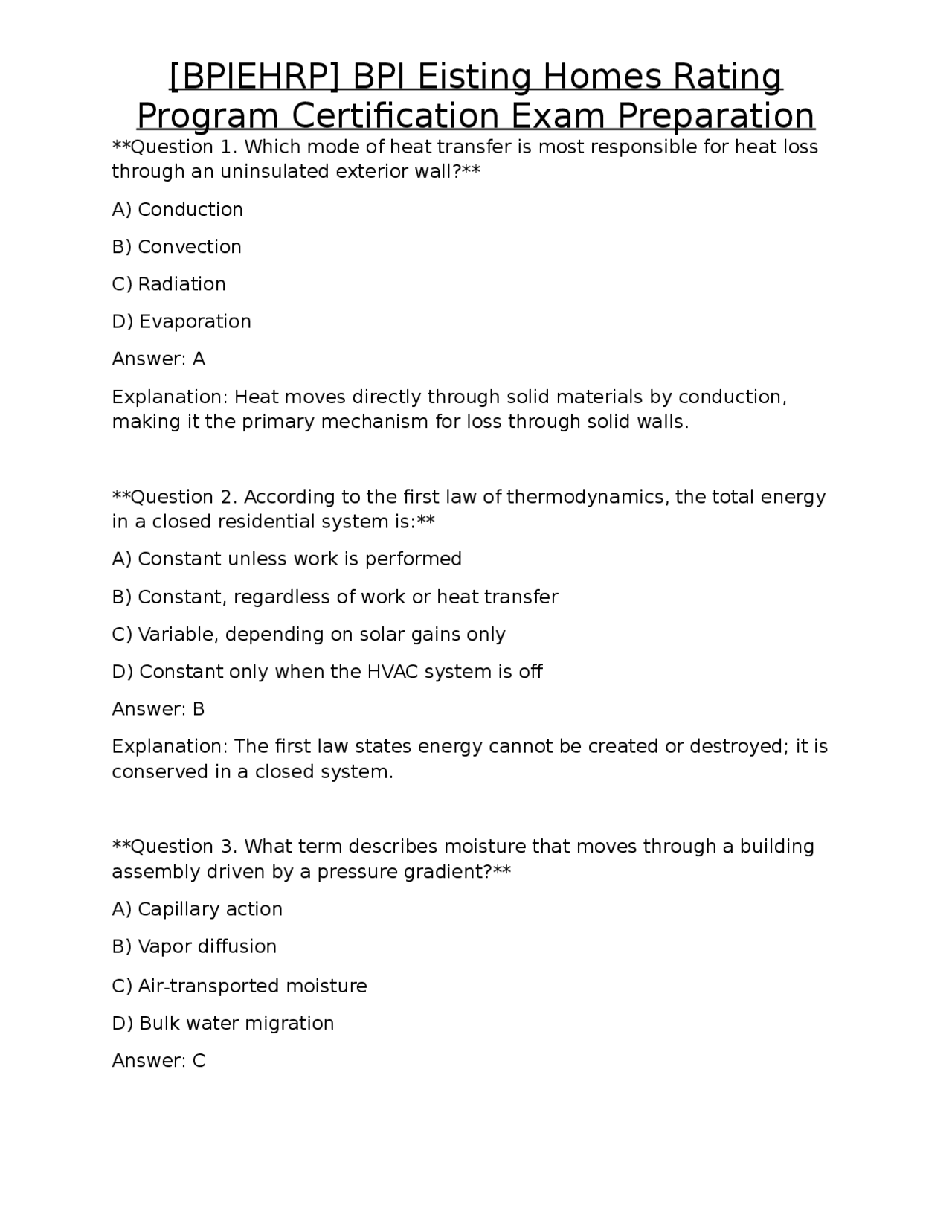

Question 1. Which mode of heat transfer is most responsible for heat loss through an uninsulated exterior wall? A) Conduction B) Convection C) Radiation D) Evaporation Answer: A Explanation: Heat moves directly through solid materials by conduction, making it the primary mechanism for loss through solid walls. Question 2. According to the first law of thermodynamics, the total energy in a closed residential system is: A) Constant unless work is performed B) Constant, regardless of work or heat transfer C) Variable, depending on solar gains only D) Constant only when the HVAC system is off Answer: B Explanation: The first law states energy cannot be created or destroyed; it is conserved in a closed system. Question 3. What term describes moisture that moves through a building assembly driven by a pressure gradient? A) Capillary action B) Vapor diffusion C) Air-transported moisture D) Bulk water migration Answer: C
Program Certification Exam Preparation
Explanation: Air-transported moisture is carried by moving air due to pressure differences. Question 4. In the “House-as-a-System” concept, the thermal boundary is typically located at the: A) Interior drywall surface B) Exterior sheathing surface C) Roof deck surface D) Interior plaster surface Answer: B Explanation: The thermal boundary is the outermost surface that separates conditioned space from the outdoors, usually the exterior sheathing. Question 5. A thermal bridge is best defined as: A) An area of high R-value in an assembly B) A discontinuity that allows heat flow bypassing insulation C) A vapor barrier that stops moisture diffusion D) A duct that runs through conditioned space Answer: B Explanation: Thermal bridges are points where heat bypasses insulation, reducing overall thermal performance. Question 6. Which calculation determines the overall heat loss coefficient of a wall assembly? A) R-value = 1/U-factor B) U-factor = 1/R-value C) Both A and B are correct D) Neither A nor B
Program Certification Exam Preparation
D) Insulation not present at all Answer: C Explanation: Grade III denotes poor installation quality with notable deficiencies. Question 10. Low-E glazing primarily improves window performance by: A) Reducing solar heat gain while allowing visible light B) Increasing U-factor to improve heat loss C) Adding a second pane of glass D) Providing a reflective coating on the interior surface only Answer: A Explanation: Low-E coatings reflect infrared radiation, reducing heat gain/loss while preserving visible light transmission. Question 11. Which window orientation typically receives the greatest solar gain in the Northern Hemisphere? A) North B) South C) East D) West Answer: B Explanation: South-facing windows capture the most solar radiation throughout the day. Question 12. An attic bypass occurs when: A) Insulation is missing at the knee wall B) Ducts are installed in unconditioned space
Program Certification Exam Preparation
C) The HVAC system is oversized D) The thermostat is set too high Answer: A Explanation: Bypasses are gaps that allow conditioned air to escape, often found at knee walls or attic floor penetrations. Question 13. During a blower-door test, the metric ACH₅₀ represents: A) Air changes per hour at 50 Pa pressure differential B) Air changes per hour at 0 Pa pressure differential C) Cubic feet per minute at 50 Pa D) The blower-door fan speed setting Answer: A Explanation: ACH₅₀ quantifies leakage rate normalized to a 50 Pa pressure difference. Question 14. A furnace with an AFUE of 92 % means: A) 92 % of the fuel’s energy is converted to usable heat B) 92 % of the house’s heat loss is eliminated C) The furnace operates at 92 % of its rated capacity D) 92 % of the combustion gases are vented outdoors Answer: A Explanation: AFUE (Annual Fuel Utilization Efficiency) measures the proportion of fuel energy turned into heat for the home. Question 15. Which cooling system rating reflects seasonal efficiency? A) AFUE B) SEER
Program Certification Exam Preparation
B) Draft pressure and spillage of combustion gases C) Duct leakage rates D) Refrigerant charge in AC units Answer: B Explanation: CAZ testing evaluates pressure differentials that could cause exhaust gases to spill into occupied spaces. Question 19. The Home Energy Score (HES) scale ranges from: A) 0– B) 1– C) A-F D) 1–5 stars Answer: B Explanation: DOE’s HES assigns a score from 1 (poor) to 10 (excellent). Question 20. When entering field data into BPI-approved software, which step ensures data integrity? A) Skipping weather file selection B) Using default values for all measurements C) Validating measurements against regional climate data D) Entering data in alphabetical order Answer: C Explanation: Cross-checking field data with regional weather ensures realistic modeling outputs. Question 21. A Quality Assurance Provider (QAP) is required to: A) Perform all field inspections themselves
Program Certification Exam Preparation
B) Review a random sample of completed files for compliance C) Issue the final Home Energy Score without reviewer input D) Set the homeowner’s utility rates Answer: B Explanation: QAPs audit a subset of reports to verify adherence to BPI standards. Question 22. Radon is classified as which type of indoor pollutant? A) VOC B) Particulate matter C) Radioactive gas D) Biological contaminant Answer: C Explanation: Radon is a naturally occurring radioactive gas that can accumulate indoors. Question 23. ASHRAE 62.2 primarily addresses: A) Thermal insulation values B) Mechanical ventilation requirements for residential buildings C) Fire safety codes D) Structural load calculations Answer: B Explanation: ASHRAE 62.2 sets minimum ventilation rates to ensure acceptable indoor air quality. Question 24. Which immediate hazard must a rater report to the homeowner before completing the rating? A) Low SEER rating on the AC unit
Program Certification Exam Preparation
A) Installing a programmable thermostat B) Replacing an unvented combustion appliance with a vented model C) Adding attic insulation to R- 30 D) Upgrading to LED lighting Answer: B Explanation: Unvented combustion devices can release dangerous gases; replacing them is a safety priority. Question 28. When preparing a homeowner report, the rater should prioritize: A) Technical jargon to demonstrate expertise B) Clear, actionable recommendations with cost estimates C) Lengthy background on building science theory D) Only the final Home Energy Score without explanation Answer: B Explanation: Homeowners need understandable actions and associated costs to make informed decisions. Question 29. In moisture dynamics, capillary action is most significant in which building component? A) Exterior sheathing B) Basement walls C) Roof decking D) Interior drywall Answer: B Explanation: Moisture can rise through the pores of masonry or concrete in basements via capillary action.
Program Certification Exam Preparation
**Question 30. Which of the following best describes a “thermal envelope”? ** A) The combination of HVAC equipment and ductwork B) All components that separate conditioned from unconditioned space C) The roof and foundation only D) The interior finishes of the house Answer: B Explanation: The thermal envelope includes walls, roof, floor, windows, and doors that form the barrier to heat flow. Question 31. The U-factor of a window is measured in: A) Btu/(h·ft²·°F) B) W/(m²·K) C) R-value per inch D) BTU/hr per square foot Answer: B Explanation: U-factor is expressed in watts per square meter per kelvin (W/(m²·K)) in metric; in imperial it is Btu/(h·ft²·°F). Question 32. Which insulation material has the highest typical R-value per inch? A) Fiberglass batts B) Cellulose blown-in C) Closed-cell spray foam D) Rock wool board Answer: C Explanation: Closed-cell spray foam provides roughly R-6 to R-7 per inch, higher than the others.
Program Certification Exam Preparation
Explanation: COP = heating output (kW) ÷ electrical input (kW); a COP of 3. indicates three times more heat than electricity used. Question 36. Which of the following best describes “air-infiltration”? A) Intentional ventilation through mechanical fans only B) Uncontrolled leakage of outdoor air through the building envelope C) Moisture movement through porous materials D) Heat transfer through radiation from windows Answer: B Explanation: Air infiltration is the uncontrolled movement of outdoor air into the conditioned space. Question 37. In the context of the EHRP, “graded insulation inspection” refers to: A) Measuring R-value with a thermocouple B) Classifying installation quality into Grades I-III C) Determining the thickness of insulation with a ruler D) Assessing the color of insulation material Answer: B Explanation: Graded inspection assigns a quality grade based on observed installation conditions. Question 38. Which of the following is a sign of inadequate ventilation according to ASHRAE 62.2? A) High indoor CO₂ concentrations (> 1000 ppm) B) Low thermostat setpoint C) Excessive solar gain on south windows D) Presence of a heat recovery ventilator
Program Certification Exam Preparation
Answer: A Explanation: Elevated CO₂ indicates insufficient fresh air exchange. Question 39. The primary purpose of a vapor retarder on the interior side of a wall assembly in a cold climate is to: A) Prevent condensation within the wall cavity B) Stop all moisture movement in any direction C) Increase the wall’s R-value D) Allow the wall to “breathe” outward Answer: A Explanation: In cold climates, interior vapor retarders reduce the risk of interior moisture condensing within the wall. Question 40. Which of the following heating equipment types typically has the highest AFUE? A) Natural-gas forced-air furnace B) Oil boiler with convective baseboard C) Electric resistance heater D) Propane wall furnace Answer: C Explanation: Electric resistance heating converts nearly 100 % of electricity to heat, resulting in an AFUE of ~100 %. Question 41. When evaluating a home’s roof assembly, the rater should first check for: A) Presence of solar panels B) Proper attic ventilation and insulation continuity C) Color of roofing material
Program Certification Exam Preparation
B) The recovery efficiency of the heater C) The maximum temperature the tank can reach D) The annual energy consumption of the heater Answer: A Explanation: FHR quantifies the volume of hot water available in the first hour, combining stored and recovered water. Question 45. Which of the following is a recommended practice for sealing rim joist gaps? A) Installing a vapor barrier only B) Using spray-foam insulation to fill gaps and seal air leaks C) Leaving gaps to allow moisture drainage D) Adding extra insulation on top of the floor joists only Answer: B Explanation: Spray foam both insulates and air-seals rim joist cavities, reducing leakage. Question 46. A home with a measured ACH₅₀ of 2.5 would be classified as: A) Extremely airtight B) Moderately leaky C) Very leaky D) Compliant with Passive House standards Answer: C Explanation: ACH₅₀ values above 2.0 are considered leaky; Passive House requires ≤ 0.6 ACH₅₀.
Program Certification Exam Preparation
Question 47. Which of the following best describes “heat recovery ventilation” (HRV)? A) A system that adds fresh air without any heat exchange B) A mechanical ventilator that transfers heat from exhaust to incoming air C) A passive vent installed in the attic D) A type of dehumidifier Answer: B Explanation: HRVs capture heat from stale exhaust air and transfer it to incoming fresh air, improving efficiency. Question 48. When using BPI’s modeling software, the “baseline” model represents: A) The home after all recommended upgrades are installed B) The home as it exists at the time of the rating (pre-retrofit) C) A generic house of average construction D) The most energy-efficient version of the home Answer: B Explanation: The baseline reflects the current condition before any improvements. Question 49. In the context of combustion safety, “spillage” refers to: A) Excess water entering the furnace vent B) Leakage of flue gases into the occupied space C) Over-pressurization of the gas line D) Draft reversal in the HVAC system Answer: B Explanation: Spillage is the unintended escape of combustion gases (CO, CO₂) into indoor air.
Program Certification Exam Preparation
Explanation: Interior vapor barriers on slabs prevent moisture from migrating upward into the living space. Question 53. In a home with a forced-air furnace, the most common location for duct leakage is: A) At the furnace heat exchanger B) At the supply registers in conditioned rooms C) Within the attic at the duct connections to the plenum D) Inside the water heater closet Answer: C Explanation: Attic duct connections are often poorly sealed, leading to significant leakage. Question 54. Which of the following best describes “air-tightness testing” according to the BPI protocol? A) Measuring the temperature differential across the envelope B) Using a calibrated fan to pressurize the home to 50 Pa and measuring airflow C) Conducting a visual inspection of all seams and joints D) Calculating ACH based on utility bills Answer: B Explanation: The protocol uses a blower door set to 50 Pa to quantify leakage in CFM₅₀. Question 55. A “heat pump water heater” primarily gains heat from: A) Direct combustion of natural gas B) Electrical resistance elements only C) Ambient air or ground source via a heat pump cycle
Program Certification Exam Preparation
D) Solar thermal panels Answer: C Explanation: Heat pump water heaters extract heat from surrounding air (or ground) and transfer it to the water. Question 56. Which of the following window frame materials typically provides the lowest overall U-factor when combined with low-E glass? A) Aluminum with thermal break B) Vinyl C) Wood D) Fiberglass Answer: D Explanation: Fiberglass frames have low thermal conductivity and, when paired with low-E glazing, achieve low U-factors. Question 57. The purpose of a “thermal break” in an aluminum window frame is to: A) Increase structural strength B) Reduce heat flow through the metal components C) Provide a mounting surface for the glass D) Improve water resistance Answer: B Explanation: A thermal break inserts a low-conductivity material to interrupt heat flow through the metal. Question 58. In the EHRP rating methodology, a “score-adjusted” Home Energy Score accounts for: A) Only the baseline energy use
