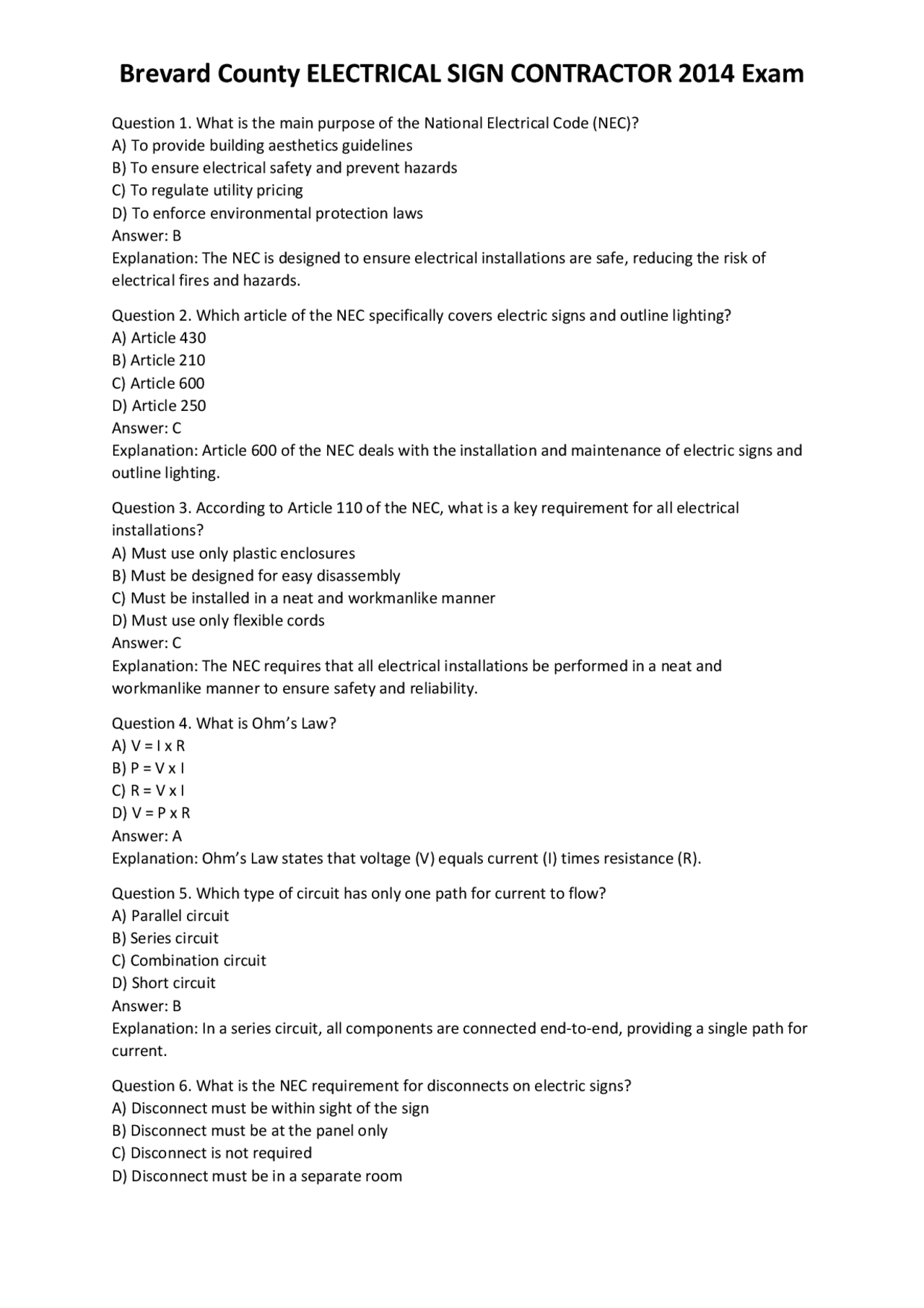

Question 1. What is the main purpose of the National Electrical Code (NEC)? A) To provide building aesthetics guidelines B) To ensure electrical safety and prevent hazards C) To regulate utility pricing D) To enforce environmental protection laws Answer: B Explanation: The NEC is designed to ensure electrical installations are safe, reducing the risk of electrical fires and hazards. Question 2. Which article of the NEC specifically covers electric signs and outline lighting? A) Article 430 B) Article 210 C) Article 600 D) Article 250 Answer: C Explanation: Article 600 of the NEC deals with the installation and maintenance of electric signs and outline lighting. Question 3. According to Article 110 of the NEC, what is a key requirement for all electrical installations? A) Must use only plastic enclosures B) Must be designed for easy disassembly C) Must be installed in a neat and workmanlike manner D) Must use only flexible cords Answer: C Explanation: The NEC requires that all electrical installations be performed in a neat and workmanlike manner to ensure safety and reliability. Question 4. What is Ohm’s Law? A) V = I x R B) P = V x I C) R = V x I D) V = P x R Answer: A Explanation: Ohm’s Law states that voltage (V) equals current (I) times resistance (R). Question 5. Which type of circuit has only one path for current to flow? A) Parallel circuit B) Series circuit C) Combination circuit D) Short circuit Answer: B Explanation: In a series circuit, all components are connected end-to-end, providing a single path for current. Question 6. What is the NEC requirement for disconnects on electric signs? A) Disconnect must be within sight of the sign B) Disconnect must be at the panel only C) Disconnect is not required D) Disconnect must be in a separate room
Answer: A Explanation: NEC Article 600 requires a disconnect switch within sight of the sign for safety during maintenance. Question 7. For branch circuits serving signs, which article addresses their requirements? A) Article 210 B) Article 430 C) Article 404 D) Article 300 Answer: A Explanation: Article 210 of the NEC covers branch circuit requirements, including those serving electric signs. Question 8. What is the function of a transformer in a neon sign? A) Reduces voltage for safety B) Increases voltage to operate the neon tubes C) Converts DC to AC D) Measures resistance Answer: B Explanation: Neon signs require high voltage, so transformers step up the voltage to operate the tubes. Question 9. Which NEC article governs the use of flexible cords and cables? A) Article 404 B) Article 400 C) Article 210 D) Article 250 Answer: B Explanation: Article 400 of the NEC details requirements for flexible cords and cables. Question 10. What is the minimum working space required in front of electrical equipment rated 600 volts or less, as per NEC 110.26? A) 18 inches B) 24 inches C) 36 inches D) 72 inches Answer: C Explanation: NEC 110.26 requires at least 36 inches of clear working space in front of such equipment. Question 11. What is the effect of an open circuit in a series electrical sign circuit? A) All signs continue to operate B) Only one sign fails C) The entire circuit will not operate D) Increased current flow Answer: C Explanation: In a series circuit, an open anywhere interrupts current flow to all components. Question 12. Which PPE is recommended when working with live sign circuits? A) Safety glasses only
C) Grounding and bonding D) Switches Answer: A Explanation: Article 300 addresses wiring methods and materials for all wiring installations. Question 19. What is the maximum allowed voltage drop on a branch circuit supplying a sign, to ensure proper operation? A) 1% B) 3% C) 5% D) 10% Answer: B Explanation: NEC recommends a maximum of 3% voltage drop on branch circuits for efficient operation. Question 20. Which device is used to manually control the power to a sign? A) Receptacle B) Switch C) Transformer D) Ballast Answer: B Explanation: Switches are used to manually open or close circuits supplying power to a sign. Question 21. If a sign load is 5 amps and the circuit is 120 volts, what is the wattage? A) 60W B) 240W C) 600W D) 12W Answer: C Explanation: Wattage = Volts × Amps; 120 × 5 = 600W. Question 22. Which NEC article covers the installation of receptacles near signs? A) Article 406 B) Article 404 C) Article 430 D) Article 210 Answer: A Explanation: Article 406 covers installation of receptacles. Question 23. What is the primary safety concern with improper grounding of electrical signs? A) Poor illumination B) Electromagnetic interference C) Shock hazard D) Premature lamp failure Answer: C Explanation: Improper grounding can lead to dangerous shock hazards. Question 24. What is the minimum AWG size for branch circuit conductors supplying signs, per NEC? A) 18 AWG B) 14 AWG
C) 12 AWG
D) 10 AWG
Answer: B Explanation: NEC generally requires a minimum of 14 AWG for branch circuits. Question 25. What does a GFCI protect against in sign circuits? A) High voltage B) Short circuits only C) Ground faults D) Overheating Answer: C Explanation: GFCIs detect ground faults and protect against electrical shock. Question 26. What is a combination circuit? A) Only series components B) Only parallel components C) Series and parallel components D) Only one load Answer: C Explanation: Combination circuits have both series and parallel elements. Question 27. Why must junction boxes for electric signs be listed for wet locations if installed outdoors? A) For aesthetic reasons B) To prevent corrosion C) To protect against moisture intrusion D) To allow for easy painting Answer: C Explanation: Wet location boxes prevent water entry, which could cause short circuits or corrosion. Question 28. A sign transformer is rated at 7500V output. What special NEC consideration applies? A) Must be installed horizontally B) Must be installed in a plenum C) Requires high voltage warning labels D) Requires color-coded wiring Answer: C Explanation: High voltage equipment must be labeled for safety and awareness. Question 29. For an LED sign with a manufacturer’s rating of 20A at 24V, what is the required circuit wattage? A) 48W B) 240W C) 480W D) 120W Answer: C Explanation: 24V × 20A = 480W. Question 30. When is lockout/tagout required in sign maintenance? A) Only if working alone B) Only for new installations
D) 20 amps Answer: C Explanation: The conductor must be rated at least equal to or greater than the branch circuit overcurrent protection, commonly 15A for a 12A load. Question 37. Which NEC article addresses the use of switches for sign lighting? A) Article 404 B) Article 600 C) Article 250 D) Article 300 Answer: A Explanation: Article 404 covers switches. Question 38. What is a common cause of voltage drop in long sign runs? A) High ambient temperature B) Small conductor size C) Overcurrent protection D) High humidity Answer: B Explanation: Small conductors have higher resistance, causing more voltage drop over distance. Question 39. When calculating box fill for a sign junction box, what must be included? A) Only the conductors B) Devices and all conductors C) Only the largest conductor D) Only the ground wire Answer: B Explanation: Box fill calculations include all conductors and devices within the box. Question 40. What is the required overcurrent protection device for a fluorescent sign circuit? A) GFCI B) AFCI C) Circuit breaker or fuse D) Relay Answer: C Explanation: Signs require circuit breakers or fuses for overcurrent protection. Question 41. What is the minimum required clearance between a sign and overhead power lines (0- 750V)? A) 1 foot B) 3 feet C) 10 feet D) 20 feet Answer: C Explanation: NEC requires a minimum clearance of 10 feet for safety. Question 42. What is the primary function of a ballast in fluorescent signs? A) Step up voltage B) Regulate current C) Act as a switch
D) Provide a ground Answer: B Explanation: Ballasts limit and regulate current to fluorescent lamps. Question 43. What is the maximum allowable fill for a conduit per NEC? A) 20% B) 40% C) 60% D) 80% Answer: B Explanation: NEC allows a maximum of 40% conduit fill for a single conductor size. Question 44. Which of the following is an OSHA requirement for ladder safety? A) Ladders must be painted B) Ladders must be metal only C) Ladders must be inspected before use D) Ladders must be over 20 feet Answer: C Explanation: OSHA requires ladders to be inspected for defects before use. Question 45. When is a permit required for an electric sign installation in Brevard County? A) For any new or replacement installation B) Only for neon signs C) Only for signs over 20 feet tall D) Only for temporary signs Answer: A Explanation: Local codes require permits for all new or replacement electric sign installations. Question 46. What is the recommended conductor insulation type for wet locations? A) TW B) THHN C) THWN D) XHHW Answer: C Explanation: THWN is rated for wet locations. Question 47. What is the effect of an overloaded transformer in a sign circuit? A) Brighter sign B) No effect C) Overheating and possible failure D) Reduced voltage drop Answer: C Explanation: Overloaded transformers overheat and may fail or cause hazards. Question 48. Which type of circuit allows for independent operation of multiple signs? A) Series B) Parallel C) Combination D) Open
Question 55. What is the minimum AWG size allowed for grounding conductors in signs? A) 18 AWG B) 16 AWG C) 14 AWG D) 12 AWG Answer: C Explanation: NEC allows a minimum of 14 AWG for grounding sign equipment. Question 56. What is the required marking on a sign transformer? A) Voltage only B) Manufacturer only C) Voltage, current, and manufacturer D) Wattage only Answer: C Explanation: Transformers must be marked with voltage, current, and manufacturer info. Question 57. Which of the following is NOT a permitted wiring method for signs in wet locations? A) Rigid metal conduit B) Flexible cord C) Nonmetallic liquidtight conduit D) PVC conduit Answer: B Explanation: Flexible cords are generally not permitted for permanent wiring in wet locations. Question 58. What is the main factor in selecting an overcurrent protection device for a sign circuit? A) Color B) Amperage rating C) Length D) Manufacturer Answer: B Explanation: The device must match or exceed the expected current load. Question 59. What must be done if a sign branch circuit supplies more than one sign? A) Label each sign B) Each sign must have a disconnect C) Use only parallel wiring D) Use only one type of lamp Answer: B Explanation: Each sign must have a disconnect for servicing. Question 60. Which of the following best describes a GFCI? A) Detects arc faults B) Detects ground faults and interrupts the circuit C) Measures voltage D) Increases current Answer: B Explanation: GFCIs interrupt the circuit when a ground fault is detected to prevent shock. Question 61. What is the minimum insulation temperature rating for conductors in a sign exposed to outdoor sunlight?
A) 60°C
B) 75°C
C) 90°C
D) 105°C
Answer: C Explanation: Outdoor exposure requires 90°C insulation rating for sunlight resistance. Question 62. For an EMC (Electronic Message Center) sign, what is a special consideration? A) No special requirements B) Must be on a timer C) Data wiring and surge protection D) Only neon allowed Answer: C Explanation: EMCs require data wiring and surge protection due to sensitive electronics. Question 63. Where must the sign disconnecting means be located, according to NEC 600.6? A) Inside the sign B) Inside the building only C) Within sight of the sign D) At the service entrance Answer: C Explanation: Disconnects must be within sight of the sign for safety. Question 64. What is the function of a fuse in a sign circuit? A) Increase voltage B) Open the circuit under overcurrent C) Decrease resistance D) Act as a switch Answer: B Explanation: Fuses protect by breaking the circuit during overcurrent conditions. Question 65. Which of the following is not allowed as a branch circuit conductor in a wet location sign installation? A) THWN B) XHHW C) NM cable D) RHW Answer: C Explanation: NM cable is not rated for wet locations. Question 66. What must be done if a sign is mounted on a combustible surface? A) Nothing B) Use a noncombustible barrier C) Use only flexible cords D) Use only low voltage Answer: B Explanation: NEC requires a noncombustible barrier between the sign and the combustible surface. Question 67. What is the NEC requirement for the color of the equipment grounding conductor? A) Black
D) 10x10x4 inches Answer: B Explanation: 4x4x1½ inch boxes are commonly used and adequate for a small number of 12 AWG wires. Question 74. What is the NEC requirement for sign wiring in patient care areas? A) No special requirements B) Must be hospital grade C) Must have redundant wiring D) Must be GFCI protected Answer: D Explanation: Patient care areas require GFCI protection for all accessible outlets. Question 75. What is the minimum clearance from the edge of a sign box to a knockout for wiring? A) ¼ inch B) ½ inch C) 1 inch D) 2 inches Answer: B Explanation: NEC requires at least ½ inch clearance for knockouts. Question 76. What is the common voltage for branch circuits supplying commercial signs? A) 12V B) 24V C) 120V D) 480V Answer: C Explanation: 120V is standard for most commercial sign circuits. Question 77. What is the purpose of a weatherproof cover for an outdoor sign disconnect? A) Appearance B) Safety from rain and moisture C) To make it lockable D) To prevent vandalism Answer: B Explanation: Weatherproof covers prevent water intrusion and hazards. Question 78. For a sign with a load of 8A and a circuit length of 100 feet, what is a key code consideration? A) Conductor color B) Voltage drop C) Ballast type D) Disconnect location Answer: B Explanation: Voltage drop must be checked to ensure proper operation. Question 79. What is the minimum required distance between a sign's electrical wiring and gas piping? A) 1 inch B) 3 inches
C) 6 inches D) 12 inches Answer: C Explanation: NEC requires at least 6 inches clearance from gas piping. Question 80. What is the requirement for field-installed conductors entering a sign enclosure? A) Install with no strain relief B) Use only bare wire C) Must use a strain relief or fitting D) Enter only from the back Answer: C Explanation: Strain reliefs protect wiring from being pulled loose. Question 81. What is the typical function of a photoelectric switch in sign lighting? A) Turns sign on at dusk and off at dawn B) Increases brightness C) Provides overcurrent protection D) Regulates voltage Answer: A Explanation: Photoelectric switches automate sign lighting based on ambient light. Question 82. What is the maximum number of 12 AWG conductors allowed in a 4x4x2-1/8" box? A) 6 B) 8 C) 10 D) 12 Answer: C Explanation: Box fill calculations allow up to 10 12 AWG wires in this box size. Question 83. What is required for all sign circuit conductors entering a metal enclosure? A) Use of bushings or grommets B) No special requirements C) Use only flexible cords D) Marking with tape Answer: A Explanation: Bushings or grommets prevent abrasion. Question 84. What is the advantage of LED over fluorescent signs? A) Lower voltage B) Lower current draw and greater efficiency C) Higher heat output D) Need for ballasts Answer: B Explanation: LEDs are more energy efficient and have lower current requirements. Question 85. What is the minimum insulation rating for field-installed sign wiring? A) 300V B) 600V C) 1000V D) 1200V
Question 92. What is the minimum clearance from a sign to a pool or spa? A) 5 feet B) 8 feet C) 10 feet D) 12 feet Answer: C Explanation: NEC requires at least 10 feet clearance from pools/spas. Question 93. What is the effect of using aluminum wire in sign circuits? A) No effect B) Requires antioxidant compound and proper terminations C) Increased current capacity D) Must use smaller size Answer: B Explanation: Aluminum wire requires special treatment to prevent corrosion and loose connections. Question 94. What is the maximum allowed length for flexible cords on portable signs? A) 3 feet B) 6 feet C) 15 feet D) 25 feet Answer: D Explanation: NEC allows up to 25 feet for portable sign cords. Question 95. Which of the following is NOT allowed as a flexible cord type for signs? A) SJT B) SVT C) NM D) SO Answer: C Explanation: NM is not a flexible cord and is not allowed for this use. Question 96. What is required for a sign transformer supplying over 1000V? A) No special requirement B) Marked with “Caution – High Voltage” C) Installed outdoors only D) Use only aluminum wire Answer: B Explanation: High voltage transformers must be labeled for hazard awareness. Question 97. What is the minimum required support for horizontal runs of conduit in a sign installation? A) Every 2 feet B) Every 3 feet C) Every 10 feet D) Every 100 feet Answer: C Explanation: NEC requires conduit support within 3 feet of a box and every 10 feet thereafter.
Question 98. What is the purpose of bonding sign enclosures? A) Color coding B) Preventing stray voltage and shock hazards C) Increasing voltage D) Reducing current Answer: B Explanation: Bonding ensures all metal parts are at the same potential. Question 99. What is the main hazard of not securing sign wiring? A) Reduced current B) Flickering C) Physical damage and short circuits D) Increased brightness Answer: C Explanation: Loose wires are prone to damage and may cause shorts or fire. Question 100. What is the main regulatory agency for electrical safety in the workplace? A) EPA B) OSHA C) DOT D) FCC Answer: B Explanation: OSHA regulates workplace safety, including electrical hazards. Question 101. What is the purpose of a sign permit in Brevard County? A) Revenue generation B) Ensure compliance with codes and safety C) Increase property value D) Color coordination Answer: B Explanation: Permits ensure installations meet local codes for safety and aesthetics. Question 102. Which type of sign requires the highest starting voltage? A) LED B) Neon C) Fluorescent D) Incandescent Answer: B Explanation: Neon signs require a very high starting voltage. Question 103. What is the effect of excessive voltage drop on an LED sign? A) Increased brightness B) Sign may fail to operate or dim C) Reduced current D) No effect Answer: B Explanation: Excessive voltage drop can cause malfunction or dimming in LEDs. Question 104. What must be provided for all portable electric signs? A) Cord less than 6 feet
