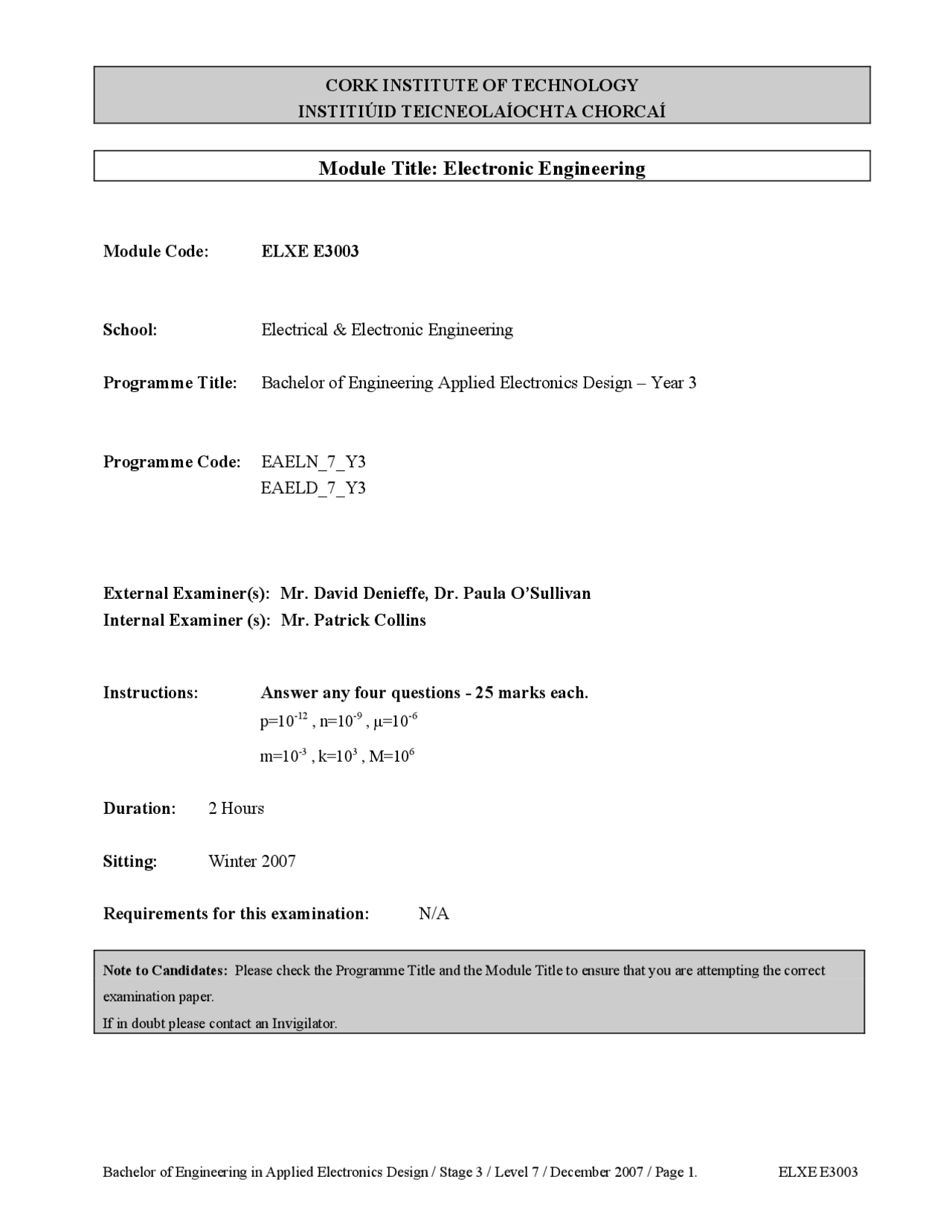

CORK INSTITUTE OF TECHNOLOGY
INSTITIÚID TEICNEOLAÍOCHTA CHORCAÍ
Module Title: Electronic Engineering
Module Code: ELXE E
School: Electrical & Electronic Engineering
Programme Title: Bachelor of Engineering Applied Electronics Design – Year 3
Programme Code: EAELN_7_Y EAELD_7_Y
External Examiner(s): Mr. David Denieffe, Dr. Paula O’Sullivan Internal Examiner (s): Mr. Patrick Collins
Instructions: Answer any four questions - 25 marks each. p=10-12^ , n=10-9^ , μ=10- m=10-3^ , k=10 3 , M=10 6
Duration: 2 Hours
Sitting: Winter 2007
Requirements for this examination: N/A
Note to Candidates: Please check the Programme Title and the Module Title to ensure that you are attempting the correct examination paper. If in doubt please contact an Invigilator.
Q1. An op-amp has the following specifications:
At 25°C the input offset voltage is V (^) IO = 5mV, the input bias current is I (^) B = 100nA and the input offset current is I (^) IO = 9nA. ∆VIO /∆T = 15μV/°C, ∆I (^) B /∆T = 700pA/°C. A (^) OL=103.5dB. Unity Gain Bandwidth = 1.5MHz.
(a) Draw the frequency response of the magnitude of the open loop gain. Clearly identify the break frequency, the unity gain bandwidth and the slope of the roll-off. [ 4 marks ]
(b) The op-amp is configured as an inverting amplifier. The amplifier is required to have a closed loop bandwidth ( fCL ) of at least 40kHz. If the feedback resistor ( Rf ) = 56kΩ then work out the range of the other resistor ( R1 ). [ 7 marks ]
(c) If R1 = 5.6kΩ then what is the maximum possible output error voltage due to input offset voltage and input bias current effects at 25°C? If a balance resistor is used to reduce the output error voltage then what should this resistor value be and what will be the percentage reduction in the original error voltage? [ 7 marks ]
(d) If the temperature rises to 70°C then what is the new maximum possible output error voltage (with no balance resistor )? [ 7 marks ]
