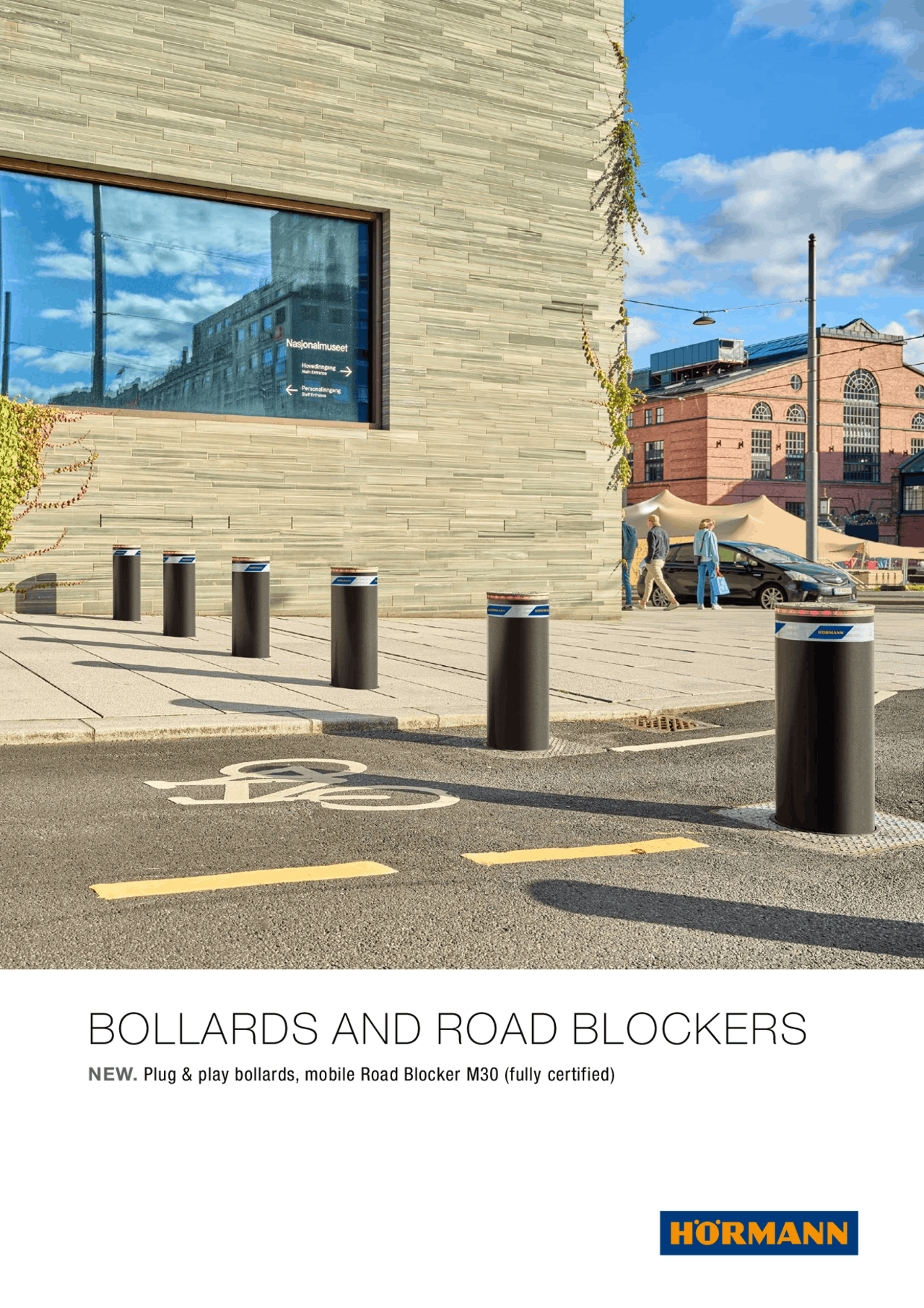

BOLLARDS AND ROAD BLOCKERS

NEW. Plug & play bollards, mobile Road Blocker M30 (fully certified)

2 CONTENTS

Brand quality

The family-owned company Hörmann offers all important construction components for building and renovating projects from a single source. We manufacture in highly specialised factories using state-of-the-art production technologies. Our employees work intensively on new products, continual further developments and improvements to details. The results are patents and unique products on the market.

4 GOOD REASONS TO TRY HÖRMANN PERIMETER PROTECTION SYSTEMS

reduceoffset

neutral

WE THINK AND ACT GREEN. As a family business, we are very conscious of our responsibility to future generations and will offer all products for construction projects as CO 2 -neutral versions upon customer request. In this way, customers have the option to offset remaining emissions and make a contribution to climate protection when purchasing our products. The Hörmann sustainability strategy aims to reduce and avoid emissions. We cover 100% of our electrical power needs at all European production sites with genuine green electricity from renewable sources. We also apply many other measures to reduce our consumption and save more than 75000 tonnes of CO 2 each year. We work with ClimatePartner to offset the remaining emissions by supporting certified climate protection projects.

You can find further information at www.hoermann.com/sustainability









HÖRMANN 5

A STRONG PARTNER FOR PERIMETER PROTECTION

SYSTEMS. At Hörmann, innovation is produced in-house – highly qualified employees of the development departments are in charge of product optimisation and new developments. This results in market-ready, high-quality products that are very popular around the globe. All major system components are developed and manufactured by Hörmann, guaranteeing high compatibility, full functionality and optimal safety. Our wide range of bollards for different applications, road blockers, tyre killers and complete control concepts makes us a strong partner for security solutions.

PRODUCT PORTAL FOR ARCHITECTS AND PLANNERS. Clearly structured navigation and a search function provide faster access to texts for invitations to tender, technical data, certificates, CAD drawings and much more. In addition, BIM data can be provided for many products for the Building Information Modelling process, enabling efficient planning, drafting, construction and management of buildings. Photos and photo-realistic presentations We are a member of the provide additional information on many products. professional association for digital building products in the Federal Association of Building Systems e.V.

COVER PAGE. Automatic Security Line bollards H with hydraulic operator and fixed Security Line bollards PAGE 2. Automatic High Security Line bollards with electromechanical operator

HÖRMANN 7

Easy to fit and service

All functional components of our bollards are fitted in an assembly-friendly way and enable a very quick and easy initial start-up. In addition, the new generation of perimeter protection systems can also be integrated into digital service and remote maintenance concepts. This lowers the maintenance and service costs, making Hörmann perimeter protection systems economical and sustainable.

8 GOOD REASONS TO TRY HÖRMANN PERIMETER PROTECTION SYSTEMS

Secure technology

and attractive design

Our extensive range of bollards includes automatic, semi-automatic, fixed and removable versions (see pages 21 and 22) for security and traffic control in inner-city areas, public spaces and company premises. The intelligent designs combine an attractive appearance with secure technology.

10 GOOD REASONS TO TRY HÖRMANN PERIMETER PROTECTION SYSTEMS

Automatic bollard A 220-600 H

Semi-automatic bollard S 220-600 G

Fixed bollard F 220-600 CF

Matching appearance

MATCHING BOLLARD APPEARANCES. The cylinders of all bollards in the individual systems have a matching appearance, allowing for a customised combination of Security and High Security Line bollards. In addition, fixed, semi-automatic and automatic bollards can be combined perfectly thanks to the matching bottom plate. The result is a harmonious overall look.

SECURITY FAST IN CASE OF EMERGENCY. An open driveway does not have to pose a security threat. Thanks to the EFO emergency function (Emergency Fast Operation), the lowered bollards and road blockers as well as tyre killers are extended very quickly, in only about 1.5 seconds. Wherever the EFO emergency function has to be integrated into a security concept on site, e.g. in high-security facilities such as prisons or military installations, our High Security bollards meet these requirements. They offer fast security in emergency situations.

1.5 s

LEFT. Hydraulic Security Line bollard with pavement frame

HÖRMANN 11

SIMPLE FITTING AND MAINTENANCE. The control is connected via service-friendly quick-connect terminals. These simplify fitting and make subsequent maintenance easier. The control can also be extended with control elements (such as code switches) and / or other activating kits, e.g. for induction loops.

MAXIMUM SECURITY THANKS TO BISECUR. The perimeter protection systems can also be conveniently operated using the BiSecur radio system. The extremely secure encryption protocol, as developed by Hörmann, ensures that no one can copy your radio signal.

HÖRMANN ACCESS CONTROL (HAC). Using Hörmann Access Control (HAC), our proprietary online management system developed in-house, bollards can be conveniently and safely operated and managed remotely to control entry and exit. The flexible solution allows individual access authorisation and optional assignment of up to 2000 ID card media.

➔ Further information can be found starting on page 70.

Only from Hörmann BiSecur radio system

LEFT. Hydraulic Security Line bollard with post

HÖRMANN 13

Maximum security

and function

The security provided by a bollard is measured based on different impact energies. The energy caused by a colliding vehicle depends on the vehicle type, weight and speed. The impact energy is crucial when it comes to damage and the function of the bollards.

14 GOOD REASONS TO TRY HÖRMANN PERIMETER PROTECTION SYSTEMS

Quality and

security testing

New and further developments in the Security Line and High Security Line are tested in both internal and external tests, examining their resistance to collisions with different loads, as well as their function depending on temperature and weather.

16

CLIMATIC TEST. Functional safety is ensured in various climatic conditions through special climatic tests. Different temperatures (from –40°C to +70°C), weather conditions and humidities are simulated in climatic test chambers. These tests have high demands and guarantee the reliable function and long service life of our perimeter protection systems.

PENDULUM IMPACT TEST. The impact resistance without destruction of the Security Line bollards is examined in special pendulum impact tests. A steel ball on a pendulum simulates the loads resulting during an impact with different speeds and vehicle types. The impact height is also tested individually. This allows us to ensure and even improve upon the high security of our bollards.

UNCOMPROMISING FUNCTIONAL SAFETY. All perimeter protection systems are tested to ensure full functionality before delivery. All fine mechanical and hydraulic adjustments and the electric and control settings of each individual system component are tested. For systems with multiple components, the compatibility of all interfaces and functions is ensured. With this process, we can guarantee the fastest possible fitting as well as the reliable operation of our perimeter protection systems.

150 135 120 105 90 75 60 45 30 15 0 300 600 900 1200 1500 1800 2100 2400 2700 3000

44 km/h

70 km/h 57 km/h 31 km/h 25 km/h 20 km/h

Weight (kg)

Impact energy with destruction^1 150000 joules (J) Impact energy without destruction^1 40000 joules (J) (^1) using the example of bollard F 220-600 / 800 CF

Speed (km/h)

The values in the diagram below indicate at which speed and which vehicle weight a certain impact energy is generated.

Impact energy with destruction The passage of the vehicle is prevented, but the crash causes permanent damage to the mechanics and construction of the bollard. The bollard must be replaced.

Impact energy without destruction The passage of the vehicle is prevented and the function and safety of the bollard are still guaranteed.

Vehicle types

• Small vehicles with a total weight of up to 800 kg
• Passenger cars with a weight of up to 1200 kg
• Vans with a weight of up to 1900 kg
• Lorries with a weight over 1900 kg

Only from Hörmann Impact energy without destruction forSecurity Line bollard 275 approved by TÜV Rheinland

HÖRMANN 17

Application

areas

20 Security bollards 24 Security Design bollards 26 High Security bollards 28 High Security road blockers and tyre killers 28 High Security mobile vehicle barriers

HÖRMANN 19

Automatic bollards

Automatic bollards are available in two versions: one version with an integrated electromechanical operator for average use frequencies and a variant with an integrated hydraulic operator for very frequent use. The RI-H automatic bollard offers a particularly high level of protection with reinforced cylinder material.

➔ For further information on the Security Line automatic bollards, see from page 34 ➔ For further information on the equipment options for bollards, see from page 58.

20 APPLICATION AREAS | SECURITY BOLLARDS
