Ultimate Exam

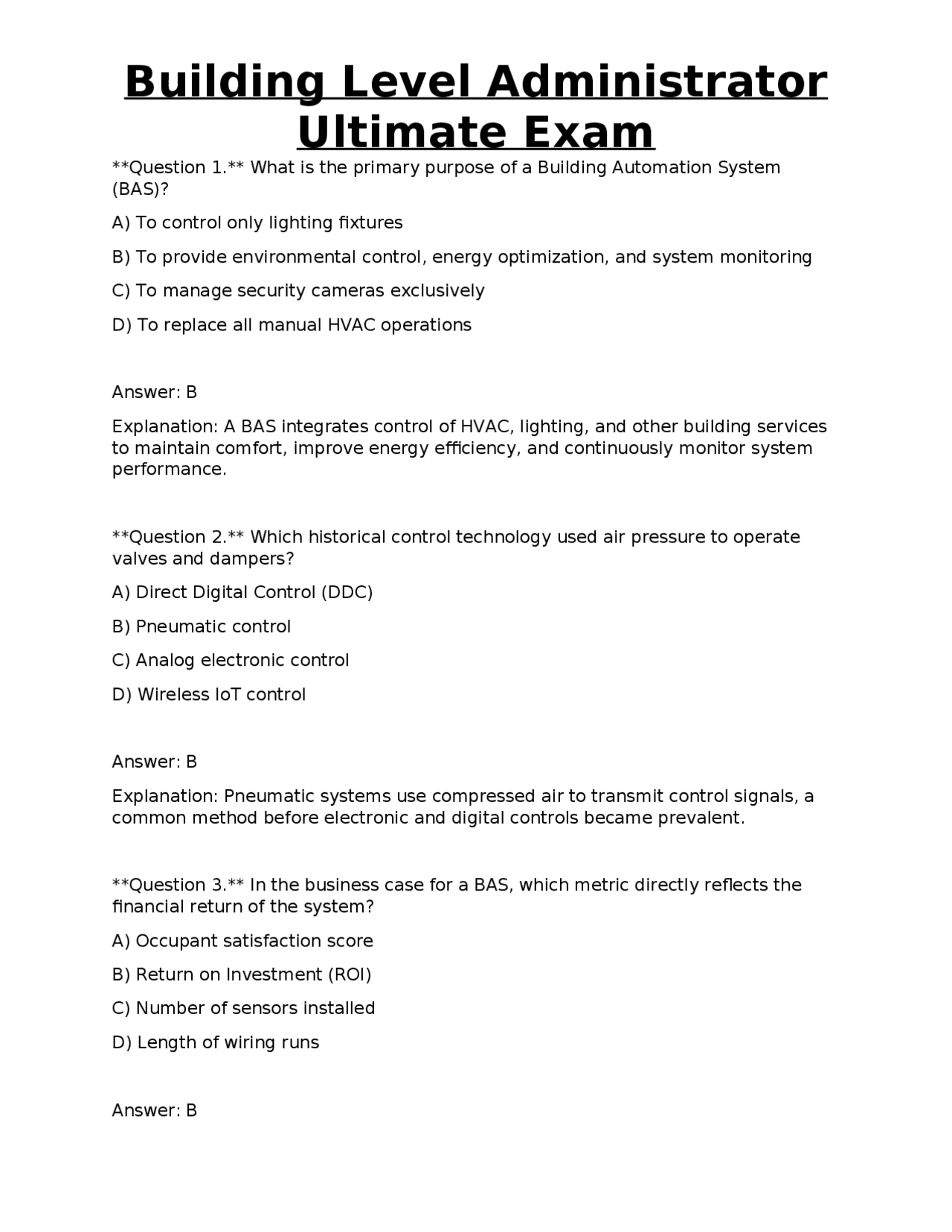

Question 1. What is the primary purpose of a Building Automation System (BAS)? A) To control only lighting fixtures B) To provide environmental control, energy optimization, and system monitoring C) To manage security cameras exclusively D) To replace all manual HVAC operations Answer: B Explanation: A BAS integrates control of HVAC, lighting, and other building services to maintain comfort, improve energy efficiency, and continuously monitor system performance. Question 2. Which historical control technology used air pressure to operate valves and dampers? A) Direct Digital Control (DDC) B) Pneumatic control C) Analog electronic control D) Wireless IoT control Answer: B Explanation: Pneumatic systems use compressed air to transmit control signals, a common method before electronic and digital controls became prevalent. Question 3. In the business case for a BAS, which metric directly reflects the financial return of the system? A) Occupant satisfaction score B) Return on Investment (ROI) C) Number of sensors installed D) Length of wiring runs Answer: B
Ultimate Exam
Explanation: ROI quantifies the monetary benefit relative to the cost of implementing a BAS, making it a key financial metric. Question 4. Which acronym stands for the system that focuses on overall building energy performance? A) BMS B) DDC C) EMS D) HVAC Answer: C Explanation: EMS (Energy Management System) is dedicated to monitoring and optimizing a building’s energy consumption. Question 5. In a typical BAS hierarchy, which level directly interfaces with field devices such as sensors and actuators? A) Management Level B) Control Level C) Field Level D) Cloud Level Answer: C Explanation: The Field Level contains the physical devices that gather data and execute control actions. Question 6. Which architecture centralizes all control logic in a single controller? A) Distributed control architecture B) Peer-to-peer architecture C) Centralized control architecture D) Mesh network architecture
Ultimate Exam
B) CO₂ sensor C) PIR motion sensor D) Differential pressure sensor Answer: C Explanation: Passive Infrared (PIR) motion sensors detect movement and are commonly used for occupancy detection. Question 10. When scaling a 4–20 mA input to represent 0–100 °C, what is the temperature represented by a measured 12 mA current? A) 25 °C B) 40 °C C) 50 °C D) 60 °C Answer: C Explanation: 4 mA = 0 °C, 20 mA = 100 °C. Each 1 mA equals 5 °C. 12 mA – 4 mA = 8 mA → 8 × 5 = 40 °C above 0 °C, so 40 °C. However, the correct calculation yields 12 mA corresponds to (12-4)/(20-4) × 100 = 8/16 × 100 = 50 °C. Question 11. Which actuator type provides variable airflow by adjusting a damper proportionally? A) On/off relay B) Modulating valve C) Variable Frequency Drive (VFD) D) Solenoid valve Answer: B Explanation: A modulating damper adjusts its position continuously to control airflow based on an analog command.
Ultimate Exam
Question 12. In a fail-safe configuration, which contact type will open the circuit when power is lost? A) Normally Open (NO) B) Normally Closed (NC) C) Double-Throw D) Single-Pole Answer: B Explanation: Normally Closed contacts maintain the circuit when powered; loss of power causes them to open, providing a safe state. Question 13. What is the typical voltage supplied to field devices in a BAS that uses 24 VAC power? A) 12 VDC B) 24 VDC C) 120 VAC D) 24 VAC Answer: D Explanation: Many BAS field devices are powered by a 24 VAC transformer, which is standard for low-voltage control circuits. Question 14. Which protocol uses the concept of “objects” that have properties and services? A) Modbus TCP B) BACnet C) LonWorks D) DNP
Ultimate Exam
Answer: C Explanation: In LonWorks, a neuron is the processing element within a device that runs the control logic. Question 18. Which IP addressing method dynamically assigns addresses from a pool? A) Static IP B) DHCP C) APIPA D) NAT Answer: B Explanation: DHCP (Dynamic Host Configuration Protocol) automatically allocates IP addresses to devices as they join the network. Question 19. Which physical medium provides the highest immunity to electromagnetic interference for BAS communication? A) Unshielded Twisted Pair (UTP) B) Shielded Twisted Pair (STP) C) Ethernet over Cat5e D) Fiber Optic cable Answer: D Explanation: Fiber optics transmit light rather than electrical signals, making them highly resistant to EMI. Question 20. When troubleshooting a BACnet network, which tool captures and decodes protocol traffic? A) Ping B) Traceroute
Ultimate Exam
C) Wireshark D) Netcat Answer: C Explanation: Wireshark can capture BACnet packets and display their contents for analysis. Question 21. In a two-position (on/off) control strategy, what is the purpose of a deadband? A) To speed up actuator response B) To prevent frequent cycling around the setpoint C) To enable proportional control D) To increase system gain Answer: B Explanation: A deadband creates a range around the setpoint where no action is taken, reducing short-cycle wear. Question 22. Which component of a PID controller is responsible for eliminating steady-state error? A) Proportional term B) Integral term C) Derivative term D) Feed-forward term Answer: B Explanation: The integral term accumulates error over time, driving the output to remove any persistent offset.
Ultimate Exam
Explanation: Lead/lag operation rotates chillers on and off, optimizing efficiency while providing backup capacity. Question 26. Which psychrometric property represents the total heat content of moist air? A) Relative humidity B) Dew point C) Enthalpy D) Saturation temperature Answer: C Explanation: Enthalpy combines sensible and latent heat, describing the energy carried by moist air. Question 27. In graphical block programming, which symbol typically represents a “timer” function block? A) Square B) Circle C) Triangle D) Hourglass Answer: D Explanation: Many BAS development environments use an hourglass or similar icon to denote a timer block. Question 28. Which scripting language is commonly used for advanced control strategies in modern BAS platforms? A) BASIC B) Structured Text (ST) C) Python D) JavaScript
Ultimate Exam
Answer: B Explanation: Structured Text, part of IEC 61131-3, is a high-level textual language widely used for complex BAS logic. Question 29. What does a “Haystack tag” provide for a BAS point? A) Physical location on a floor plan B) A standardized metadata label for interoperability C) A unique IP address D) A firmware version number Answer: B Explanation: Project Haystack tags add semantic meaning (e.g., “temperature”, “zone”) to points, facilitating data exchange. Question 30. In an HMI, which alarm priority is typically reserved for life-safety events? A) Low B) Medium C) High D) Critical Answer: D Explanation: Critical priority alarms demand immediate attention and often trigger automatic shutdowns or evacuations. Question 31. Which trending interval is most appropriate for capturing rapid temperature fluctuations in a data center? A) 1 hour B) 15 minutes
Ultimate Exam
A) Oscilloscope B) Clamp meter C) Multimeter set to current mode D) Thermometer Answer: C Explanation: A multimeter configured to measure DC current can directly read the 4–20 mA loop. Question 35. What is the purpose of an End-of-Line (EOL) termination resistor in an RS-485 network? A) To increase signal voltage B) To prevent signal reflections and maintain line integrity C) To provide power to field devices D) To convert differential to single-ended signals Answer: B Explanation: EOL termination matches the characteristic impedance, reducing reflections and ensuring reliable communication. Question 36. Which backup strategy provides the quickest recovery time for a BAS server? A) Full backup weekly B) Incremental backup daily C) Continuous data protection (CDP) with real-time replication D) Tape archive Answer: C Explanation: CDP continuously mirrors data, allowing near-instantaneous restoration after a failure.
Ultimate Exam
Question 37. Demand Response (DR) programs primarily aim to: A) Increase indoor air quality B) Reduce building energy consumption during peak grid periods C) Automate lighting schedules D) Replace HVAC equipment Answer: B Explanation: DR encourages buildings to curtail or shift load when the utility grid experiences high demand. Question 38. Which control strategy is known as “Optimal Start” for a building’s HVAC system? A) Starting all equipment simultaneously at midnight B) Pre-conditioning the space so temperature setpoints are met at occupancy time while minimizing energy use C) Running equipment at maximum capacity at all times D) Using only natural ventilation Answer: B Explanation: Optimal Start calculates the best time to start heating or cooling so that comfort is achieved exactly when needed, reducing waste. Question 39. In a building’s energy management system, which meter type measures the amount of water used for cooling towers? A) Electric kWh meter B) Gas cubic meter meter C) Flow water meter (GPM) D) Thermal energy meter
Ultimate Exam
D. Disabling all logging Answer: C Explanation: Segmentation isolates the BAS network, while firewalls and strong credentials prevent intrusion. Question 43. In a BACnet MS/TP network, what does the “MS” stand for? A. Multi-Speed B. Master-Slave C. Media-Specific D. Managed-Service Answer: B Explanation: MS/TP (Master-Slave/Token-Passing) is a serial communication protocol for BACnet devices. Question 44. Which Modbus register type is read-only and typically holds sensor measurements? A. Holding Register B. Input Register C. Coil D. Discrete Input Answer: B Explanation: Input Registers are read-only 16-bit registers used for analog input values. Question 45. A VFD receives a 0–10 V analog command to control motor speed. What is the typical speed range represented by this signal? A. 0 % to 100 % of rated speed
Ultimate Exam
B. 10 % to 90 % of rated speed C. 20 % to 80 % of rated speed D. Fixed speed only Answer: A Explanation: 0 V corresponds to 0 % speed, 10 V to 100 % speed, allowing full range control. Question 46. Which type of sensor would you select to detect CO₂ concentration for indoor air quality monitoring? A. Thermistor B. Photoelectric sensor C. NDIR (Non-Dispersive Infrared) sensor D. Capacitive humidity sensor Answer: C Explanation: NDIR sensors are the standard technology for accurate CO₂ measurement. Question 47. In a PID loop, increasing the proportional gain (Kp) will generally: A. Decrease the speed of response but improve stability B. Increase the speed of response but may cause overshoot C. Eliminate steady-state error without affecting response time D. Have no effect on the loop Answer: B Explanation: Higher Kp makes the controller react more aggressively, which can speed up response but may lead to overshoot.
Ultimate Exam
Explanation: Local controllers can execute control loops independently, minimizing latency and network load. Question 51. Which of the following is a typical function of a “schedule” object in a BAS? A. Storing firmware versions B. Defining time-based setpoints for equipment C. Managing IP address allocation D. Logging diagnostic errors Answer: B Explanation: Schedule objects specify when certain setpoints or actions should be applied. Question 52. Which type of Ethernet cable is recommended for a 100-meter backbone run in a BAS? A. Cat B. Cat5e C. Cat6a D. Coaxial Answer: C Explanation: Cat6a supports higher frequencies and better shielding, ensuring reliable performance over longer distances. Question 53. When performing a point-to-point checkout, which document is most essential? A. Architectural floor plan B. Wiring diagram or I/O list C. Employee handbook
Ultimate Exam
D. Energy bill Answer: B Explanation: The wiring diagram or I/O list shows the intended connections, allowing verification of each point. Question 54. Which sensor placement practice helps avoid temperature stratification errors in a room? A. Mounting the sensor near the ceiling B. Placing the sensor in direct sunlight C. Installing the sensor at mid-room height, away from supply diffusers and heat sources D. Embedding the sensor in a wall cavity Answer: C Explanation: Mid-room, unobstructed placement provides a representative temperature reading. Question 55. A building’s BAS uses a “night purge” strategy. What does this strategy do? A. Increases heating setpoint at night B. Uses outdoor air to cool the space during unoccupied periods, reducing chiller load C. Shuts down all ventilation fans D. Activates humidifiers Answer: B Explanation: Night purge brings in cooler outdoor air to lower interior temperature, allowing the chiller to start at a lower load in the morning.
