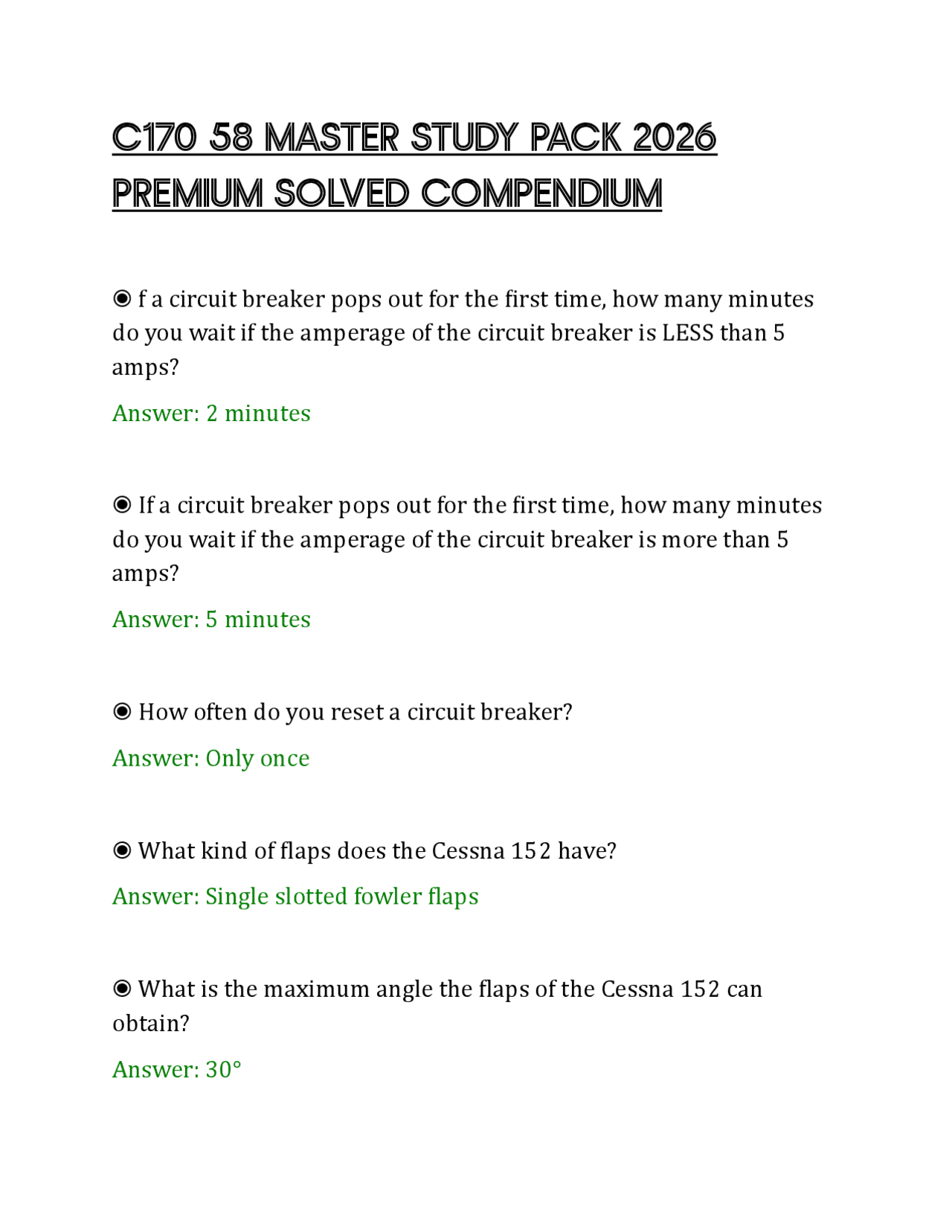

C170 58 MASTER STUDY PACK 2026
PREMIUM SOLVED COMPENDIUM
◉ f a circuit breaker pops out for the first time, how many minutes do you wait if the amperage of the circuit breaker is LESS than 5 amps? Answer: 2 minutes ◉ If a circuit breaker pops out for the first time, how many minutes do you wait if the amperage of the circuit breaker is more than 5 amps? Answer: 5 minutes ◉ How often do you reset a circuit breaker? Answer: Only once ◉ What kind of flaps does the Cessna 152 have? Answer: Single slotted fowler flaps ◉ What is the maximum angle the flaps of the Cessna 152 can obtain? Answer: 30°
◉ What is the angle your nosewheel makes during normal nosewheel steering actions? Answer: 8° ◉ What angle does your nosewheel make when steering it with differential brakes applied? Answer: 30° ◉ What does a primer do? Answer: It injects fuel in the inlet manifold to make starting of the engine easier ◉ When does the Hobbs timer activate itself? Answer: When the Hobbs indicator senses oil pressure ◉ What places on the propeller may not have any form of damage (i.e. cracks) to fly with? Answer: Trailing edge & tips ◉ What is the maximum speed for steep turns? Answer: 95 KIAS
Answer: 110 BHP ◉ What is the maximum RPM of the Cessna 152's engine? Answer: 2550 RPM ◉ What is the total fuel capacity of the Cessna 152 long range tanks? Answer: 39 gallons ◉ What is the amount of usable fuel in the long range tanks of the Cessna 152? Answer: 37.5 gallons ◉ What is the forward center of gravity for the Cessna 152? Answer: 31" aft of datum @ 1350 lbs 32.65" aft of datum @ 1670 lbs ◉ What is the aft center of gravity for the Cessna 152? Answer: 36.5" for all weights ◉ In what category is the Cessna 152 categorized and designed for? Answer: Utility
◉ Is flight into known icing conditions allowed? Answer: No ◉ What is the minimum amount of fuel that should be present in the fuel tanks of the Cessna 152? Answer: 2 gallons (1 gallon per tank) ◉ What is the maximum range & flight time with 75% power @ 8,000 ft? Answer: 350 NM & 3.4 hours ◉ What is the maximum range & flight time @ 10,000 ft? Answer: 415 NM & 5.2 hours ◉ What is the Rate of Climb at sea level? Answer: 715 fpm ◉ According to the performance specifications, what is the ground roll at take-off? Answer: 725 ft ◉ According to the performance specifications, what is the total take-off distance over the 50 ft obstacle?
◉ What is the maximum speed at sea level with fairings, and without fairings equipped? Answer: 110 kts with fairings 108 kts without fairings ◉ What is the power loading of the Cessna 152? (pounds/HP) Answer: 15.2 pounds/HP ◉ What is the wing loading of the Cessna 152? (pounds/ft²) Answer: 10.5 pounds/ft² ◉ List the Lycoming O- 235 - N2C engine characteristics. Answer: Normally-aspirated, direct-drive, air-cooled, horizontally- opposed, carburetor equipped, four-cylinder engine with 233. cubic inches of displacement ◉ What type of oil is used when the airplane is first delivered and up until 50 hours of engine use? Answer: Aviation Grade Straight Mineral Oil ◉ What type of oil is used once oil consumption has stabilized after the first 50 hours of engine use?
Answer: Aviation Grade Ashless Dispersant Oil ◉ What's the recommended oil viscosity when OAT is above 16°C (60°F)? Answer: SAE 50 ◉ What's the recommended oil viscosity when OAT is - 1°C (30°F) to 32°C (90°F)? Answer: SAE 40 ◉ What's the recommended oil viscosity when OAT is - 18°C (0°F) to 21°C (70°F)? Answer: SAE 30 ◉ What are the flight load factors with flaps up? Answer: +4.4g, - 1.76g ◉ What are the flight load factors with flaps down? Answer: +3.5g ◉ What are the maximum approved flap settings for takeoff? Answer: 0° - 10°
