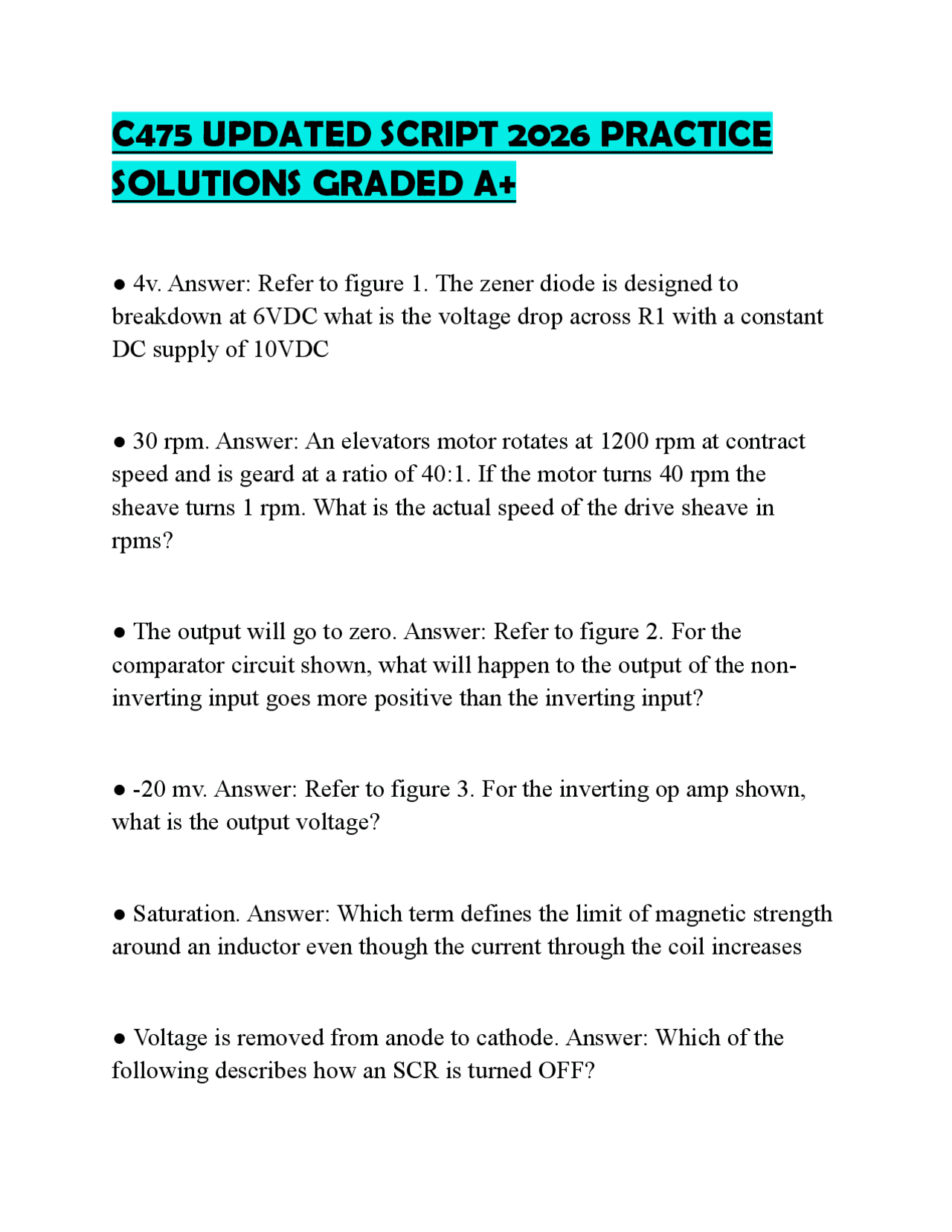

C475 UPDATED SCRIPT 2026 PRACTICE
SOLUTIONS GRADED A+
โ— 4v. Answer: Refer to figure 1. The zener diode is designed to
breakdown at 6VDC what is the voltage drop across R1 with a constant
DC supply of 10VDC
โ— 30 rpm. Answer: An elevators motor rotates at 1200 rpm at contract
speed and is geard at a ratio of 40:1. If the motor turns 40 rpm the
sheave turns 1 rpm. What is the actual speed of the drive sheave in
rpms?
โ— The output will go to zero. Answer: Refer to figure 2. For the
comparator circuit shown, what will happen to the output of the non-
inverting input goes more positive than the inverting input?
โ— -20 mv. Answer: Refer to figure 3. For the inverting op amp shown,
what is the output voltage?
โ— Saturation. Answer: Which term defines the limit of magnetic strength
around an inductor even though the current through the coil increases
โ— Voltage is removed from anode to cathode. Answer: Which of the
following describes how an SCR is turned OFF?
