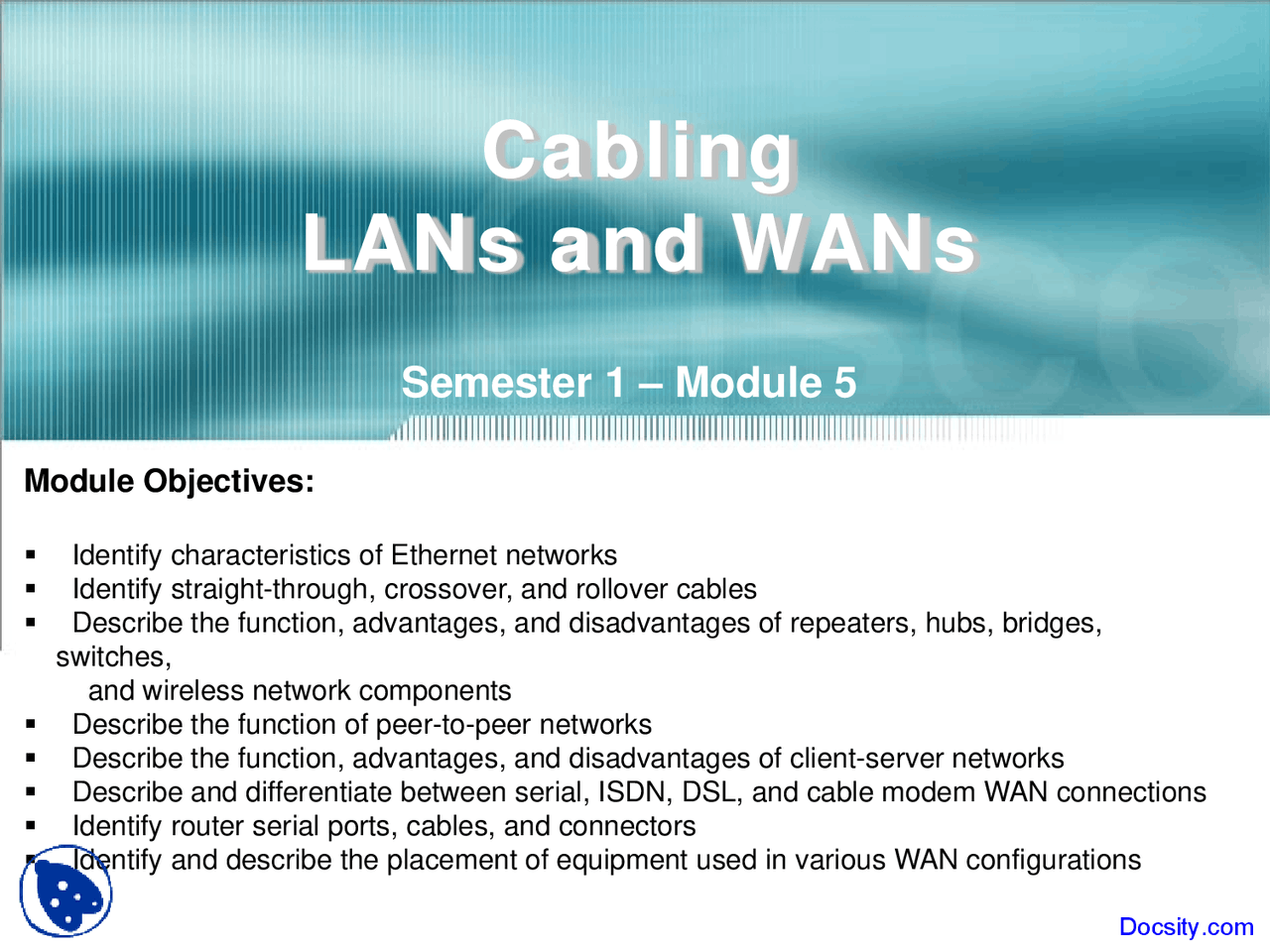

Cabling
LANs and WANs
Semester 1 – Module 5
Module Objectives:
Identify characteristics of Ethernet networks
Identify straight-through, crossover, and rollover cables
Describe the function, advantages, and disadvantages of repeaters, hubs, bridges,
switches,
and wireless network components
Describe the function of peer-to-peer networks
Describe the function, advantages, and disadvantages of client-server networks
Describe and differentiate between serial, ISDN, DSL, and cable modem WAN connections
Identify router serial ports, cables, and connectors
Identify and describe the placement of equipment used in various WAN configurations
Docsity.com
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14

Partial preview of the text

Download Cabling LANs and WANs - Computer Network - Lecture Slides and more Slides Computer Networks in PDF only on Docsity!

Cabling

LANs and WANs

Semester 1 – Module 5

Module Objectives:

 Identify characteristics of Ethernet networks  Identify straight-through, crossover, and rollover cables  Describe the function, advantages, and disadvantages of repeaters, hubs, bridges, switches, and wireless network components  Describe the function of peer-to-peer networks  Describe the function, advantages, and disadvantages of client-server networks  Describe and differentiate between serial, ISDN, DSL, and cable modem WAN connections  Identify router serial ports, cables, and connectors  Identify and describe the placement of equipment used in various WAN configurations

LAN Physical Layer Symbols

Ethernet Connector Requirements

Connection Media

UTP Implementation

Note: Only 4 wires being used to T and R

Patch Panels are used for Organization in Wiring Closets. Sometimes referred to as punch downs.

Hubs (multi-port repeaters or concentrators)

  • Passive
    • serves as a physical connection point only
    • does not manipulate or view the traffic
    • does not boost or clean the signal
    • does not need electrical power
  • Active
    • must be plugged into an electrical outlet
    • Amplifies the signal before it is sent to the other ports
  • Intelligent
    • sometimes called smart hubs
    • function like active hubs with microprocessor chips and diagnostic capabilities making them more useful for troubleshooting situations.
    • more expensive than active hubs

Bridges

  • Break up LAN

Segments

  • Limit Traffic
  • Filter based on the

Destination MAC

Switches

  • switches are popular connectivity solutions because they improve network speed, bandwidth, and performance.
  • All switching equipment perform two basic operations: - switch data frames - maintenance of switching operations where switches build and maintain switching tables and search for loops
  • operate at much higher speeds than bridges
  • support new functionality, such as virtual LANs

Peer-to-Peer Networks

  • All Peers are equal
  • 10 Host max (recommended)
  • Advantages
    • Easy to create
    • Each user can manage their own resources
    • No need for anything to be centralized
    • No need to for centralized management

Client/Server Environment

  • network services are located on a

dedicated computer called a server

WAN Serial Connections

  • Signal Clocking (Clockrate) determined by:
    • Data Communications Equipment (DCE)
    • Channel/Data Service Unit (CSU/DSU)

Routers and Serial Connectors

DSL and Cable

  • DSL
    • Standard telephone lines
    • RJ-
  • Cable
    • Coax
    • F connector

Console Connections

  • Used to manage a device, such as switch

or router, locally

  • Uses a DB-9 to RJ45 adapter
  • Uses Rollover cable
