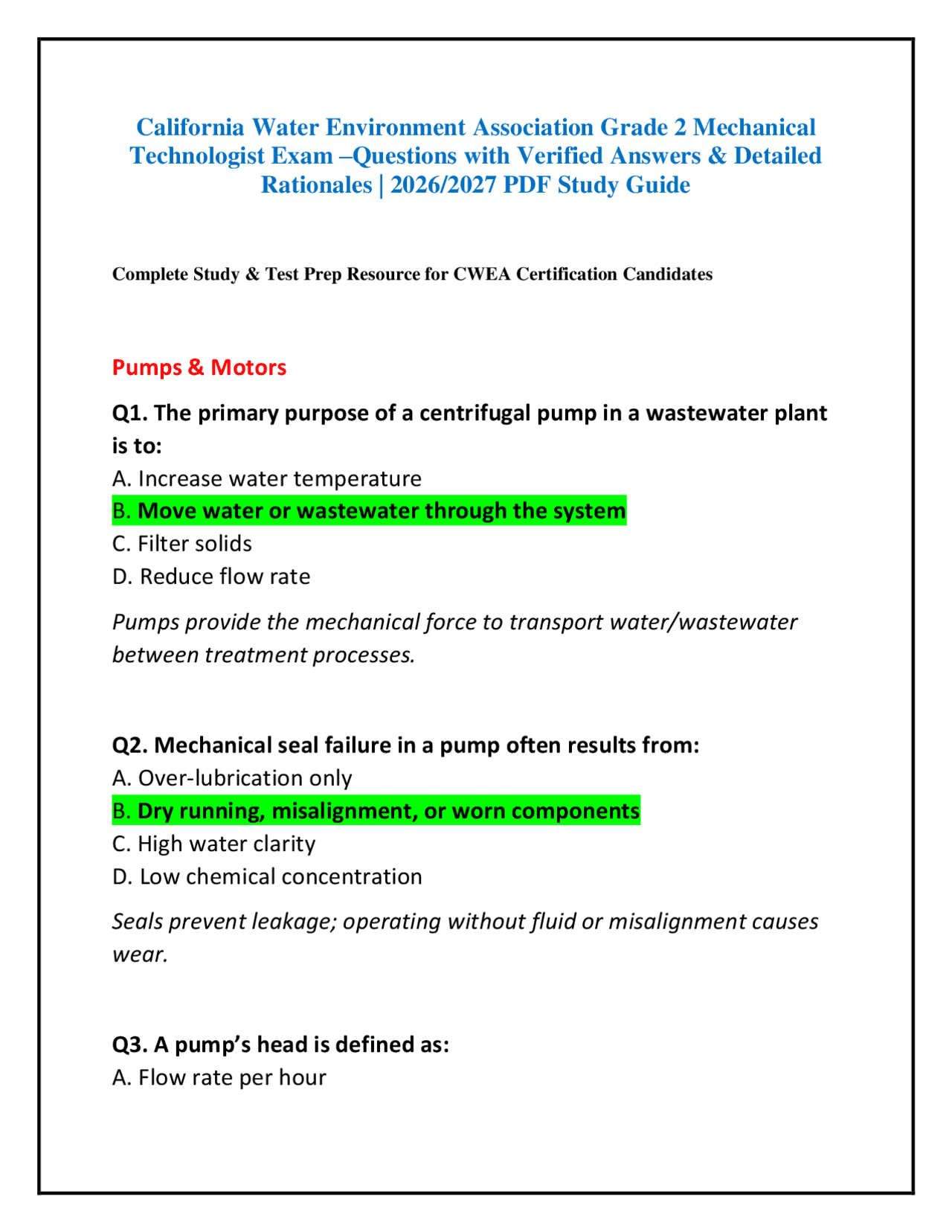

California Water Environment Association Grade 2 Mechanical Technologist Exam – Questions with Verified Answers & Detailed Rationales | 2026/2027 PDF Study Guide Complete Study & Test Prep Resource for CWEA Certification Candidates Pumps & Motors Q1. The primary purpose of a centrifugal pump in a wastewater plant is to: A. Increase water temperature B. Move water or wastewater through the system C. Filter solids D. Reduce flow rate Pumps provide the mechanical force to transport water/wastewater between treatment processes. Q2. Mechanical seal failure in a pump often results from: A. Over-lubrication only B. Dry running, misalignment, or worn components C. High water clarity D. Low chemical concentration Seals prevent leakage; operating without fluid or misalignment causes wear. Q3. A pump’s head is defined as: A. Flow rate per hour
B. The pressure or height the pump can lift fluid C. Motor power D. Temperature rise Head measures the energy imparted to the fluid, usually in feet or meters of water. Q4. When a pump cavitates, it: A. Produces vapor bubbles that can damage impellers B. Increases efficiency C. Reduces flow D. Stops immediately Cavitation occurs when local pressure drops below vapor pressure, forming destructive bubbles. Q5. A V-belt slipping on a motor pulley can cause: A. Proper operation B. Reduced power transmission and increased wear C. Increased efficiency D. No effect Slipping decreases transmitted torque and can damage belt and pulleys. Valves & Piping Q6. The main function of a gate valve is to: A. Regulate flow continuously B. Start or stop flow completely C. Measure pressure D. Filter solids
Q10. Piping stress and vibration can be reduced by: A. Using smaller pumps B. Installing expansion joints and proper supports C. Painting the pipes D. Reducing water quality Supports and expansion joints prevent stress and fatigue in mechanical systems. Motors & Electrical Systems Q11. An electric motor rated at 460V and 60Hz must be connected to: A. 230V single-phase B. 460V three-phase supply C. Any voltage D. Solar panel only Matching voltage and phase ensures proper motor operation. Q12. Overcurrent protection is required to: A. Increase efficiency B. Prevent motor overheating and fire hazards C. Reduce head D. Monitor flow Circuit breakers and fuses protect motors from damage due to excess current. Q13. The purpose of a motor starter is to: A. Increase flow B. Reduce water temperature
C. Safely start and stop motors while providing overload protection D. Filter solids Starters prevent high inrush current and protect equipment. Q14. Bearings in motors must be lubricated: A. Only once in the motor’s life B. According to manufacturer’s schedule to prevent wear C. Daily, regardless of type D. Only if overheating occurs Proper lubrication extends bearing life and prevents mechanical failure. Q15. A three-phase motor running on single-phase supply will: A. Operate normally B. Overheat and fail quickly C. Run at half speed D. Save energy Single-phase operation on a three-phase motor can damage windings. Mechanical Maintenance & Troubleshooting Q16. Vibration in rotating equipment may indicate: A. Normal operation B. Imbalance, misalignment, or worn bearings C. Increased efficiency D. Proper lubrication Monitoring vibration helps prevent catastrophic equipment failure.
Hydraulic & Fluid Systems Q21. NPSH (Net Positive Suction Head) is important because it: A. Measures pump size B. Prevents cavitation in pumps C. Determines motor voltage D. Controls flow speed NPSH ensures sufficient pressure at the pump inlet to avoid vapor bubble formation. Q22. Flow meters in mechanical systems are used to: A. Start motors B. Measure water or wastewater flow rate C. Filter debris D. Control chemical feed automatically Accurate flow measurement is essential for process control. Q23. Throttling a centrifugal pump with a valve can: A. Increase efficiency B. Cause recirculation and damage C. Reduce head naturally D. Always improve performance Excessive throttling can create low-pressure zones, leading to cavitation.
Q24. Specific gravity affects: A. Motor speed B. Pump performance and selection C. Pipe length D. Only valve type Heavier fluids require more energy to move, impacting pump sizing. Q25. A common cause of bearing failure in mechanical equipment is: A. Correct lubrication B. Contamination, misalignment, or overloading C. Proper installation D. Routine inspection Foreign particles and improper load shorten bearing life. Q26. Mechanical equipment lubrication type is chosen based on: A. Color of equipment B. Load, speed, and operating environment C. Availability only D. Cost alone Correct lubrication reduces wear and heat generation. Q27. Suction pipe air leaks can cause: A. Reduced temperature B. Pump cavitation and loss of prime C. Increased flow D. Motor cooling Air entering suction piping disrupts pump operation.
C. Increase flow D. Lubricate immediately without inspection Stopping equipment prevents further damage and ensures safety. Q32. Temperature monitoring on pump bearings helps: A. Reduce flow B. Detect overheating and potential failure C. Increase motor speed D. Only during startup Monitoring ensures maintenance before catastrophic failure. Q33. A relief valve in a hydraulic system is used to: A. Increase pressure B. Limit system pressure to safe levels C. Measure flow D. Cool fluid Relief valves protect equipment from overpressure. Q34. Cavitation is most likely to occur: A. High NPSH and low suction lift B. Low NPSH and high suction lift C. During idle only D. When viscosity is low Insufficient suction pressure leads to vapor bubble formation.
Q35. Which is critical when installing mechanical equipment outdoors? A. Paint color B. Proper foundation, alignment, and weather protection C. Only bolt size D. Location near vents only Foundation and alignment prevent vibration and structural damage. Q36. Noise from a misaligned shaft can cause: A. Better performance B. Bearing and coupling damage C. Reduced flow D. Motor efficiency improvement Vibration and noise are early indicators of mechanical issues. Q37. A discharge check valve must: A. Be partially open B. Prevent reverse flow and water hammer C. Only be lubricated D. Be removed periodically Check valves protect pumps and piping systems. Q38. Lubrication intervals are based on: A. Equipment color B. Manufacturer recommendations and operating hours C. Only ambient temperature D. Random schedule
C. Low viscosity fluid only D. Gravity flow is sufficient Positive displacement pumps deliver a fixed volume per revolution. Q43. Bearings should be inspected for: A. Color only B. Noise, temperature, lubrication, and wear C. Only vibration D. Visual cracks only Multiple checks ensure operational reliability. Q44. A coupling misalignment may result in: A. Better flow B. Excessive vibration, noise, and premature wear C. Reduced motor current D. Increased bearing life Correct alignment reduces mechanical stress and maintenance costs. Q45. Pump efficiency is affected by: A. Temperature only B. Flow rate, head, impeller wear, and suction conditions C. Color of motor D. Pipe material only Efficiency depends on proper operating conditions and maintenance.
Q46. Air entrainment in pumps can cause: A. Reduced efficiency and cavitation B. Noise, vibration, and flow instability C. Overheating only D. Increased pressure Air bubbles disrupt pump operation and can damage components. Q47. A centrifugal pump shutoff head is: A. Flow at zero pressure B. Maximum head the pump can produce at zero flow C. Lowest operating pressure D. Not important Shutoff head defines pump performance limits. Q48. The primary maintenance task for a belt-driven pump is: A. Painting B. Checking belt tension, alignment, and wear C. Only lubrication D. Only temperature monitoring Proper belt maintenance ensures efficient power transmission. Q49. A technician observes vibration at a pump coupling. Likely cause: A. Motor brand B. Misalignment or worn coupling C. Correct installation D. Normal operation Vibration at couplings usually indicates mechanical issues.
C. Reduce water temperature D. Filter water Air pockets reduce flow and can damage pumps and piping. Q54. Pump impeller wear reduces: A. Motor life B. Pump flow and head C. Pipe diameter D. Bearing size Worn impellers reduce hydraulic performance and efficiency. Q55. In a parallel pump configuration: A. Flow divides among pumps B. Head remains constant C. Flow capacity increases while head remains the same D. Pumps interfere Parallel operation increases total flow without increasing head. Valves & Piping Q56. A pressure relief valve should be set: A. Below operating pressure B. Above maximum normal operating pressure to prevent overpressure C. At zero pressure D. Randomly Relief valves protect piping and equipment from pressure surges.
Q57. When replacing a valve, it is critical to: A. Only paint it B. Ensure alignment, proper gaskets, and torque specifications C. Ignore manufacturer instructions D. Install backwards Proper installation ensures leak-free operation. Q58. Throttling a gate valve can cause: A. Smooth flow B. Vibration, noise, and erosion of the gate C. Reduced wear D. No effect Gate valves are not designed for flow regulation; throttling damages them. Q59. Air binding in a pipeline can be caused by: A. Proper venting B. Trapped air pockets preventing flow C. Fully open valves D. Correct pump sizing Air in suction or discharge can stop pump operation. Q60. Expansion loops in piping are used to: A. Increase flow B. Absorb thermal expansion and contraction
Q64. A variable frequency drive (VFD) is used to: A. Increase voltage B. Control motor speed and flow rate efficiently C. Replace pump D. Lubricate bearings VFDs allow energy savings and process control flexibility. Q65. Lockout/tagout procedures are critical for: A. Speed control B. Ensuring worker safety during maintenance C. Flow measurement D. Only for electrical panels Proper LOTO procedures prevent accidental startup and injury. Maintenance & Troubleshooting Q66. Pump suction strainer clogging can cause: A. Increased flow B. Pump cavitation, loss of prime, and motor overload C. Reduced head only D. No effect Strainers remove debris but must be checked regularly. Q67. Bearing overheating is commonly caused by: A. Lubrication B. Insufficient lubrication, misalignment, or overload C. Proper alignment D. Flow rate adjustment
Overheated bearings fail quickly and can seize. Q68. A worn pump coupling can result in: A. Smooth operation B. Vibration, misalignment, and energy loss C. Increased flow D. Reduced motor temperature Coupling integrity is critical for safe pump operation. Q69. Seal flush water is used to: A. Cool the motor B. Lubricate and cool mechanical seals C. Increase head D. Only clean pump Proper seal flush prevents leakage and overheating. Q70. Routine inspection of equipment should include: A. Visual inspection only B. Vibration, temperature, lubrication, and alignment checks C. Ignore minor noises D. Paint inspection Regular monitoring identifies early signs of failure. Hydraulics & System Operations Q71. Cavitation can be minimized by: A. Reducing pump NPSH
