Capacitive Reactance
March 25, 2020
Go back to
http://phet.colorado.edu/sims/html/circuit-construction-kit-ac/latest/circuit-construction-kit-
ac_en.html
and click twice on the Lab icon to return to the empty lab screen.

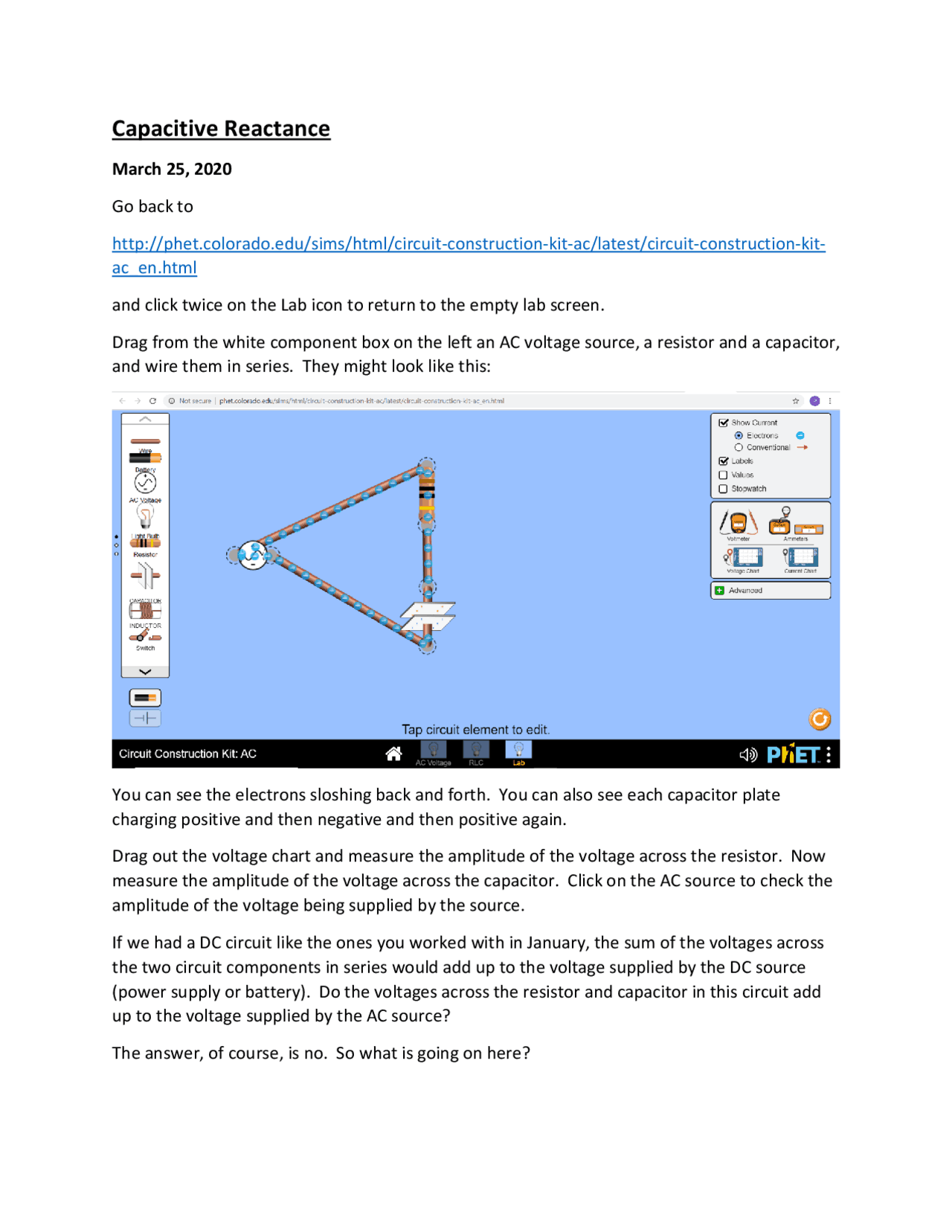

Drag from the white component box on the left an AC voltage source, a resistor and a capacitor,
and wire them in series. They might look like this:
You can see the electrons sloshing back and forth. You can also see each capacitor plate
charging positive and then negative and then positive again.
Drag out the voltage chart and measure the amplitude of the voltage across the resistor. Now
measure the amplitude of the voltage across the capacitor. Click on the AC source to check the
amplitude of the voltage being supplied by the source.
If we had a DC circuit like the ones you worked with in January, the sum of the voltages across
the two circuit components in series would add up to the voltage supplied by the DC source
(power supply or battery). Do the voltages across the resistor and capacitor in this circuit add
up to the voltage supplied by the AC source?
The answer, of course, is no. So what is going on here?
