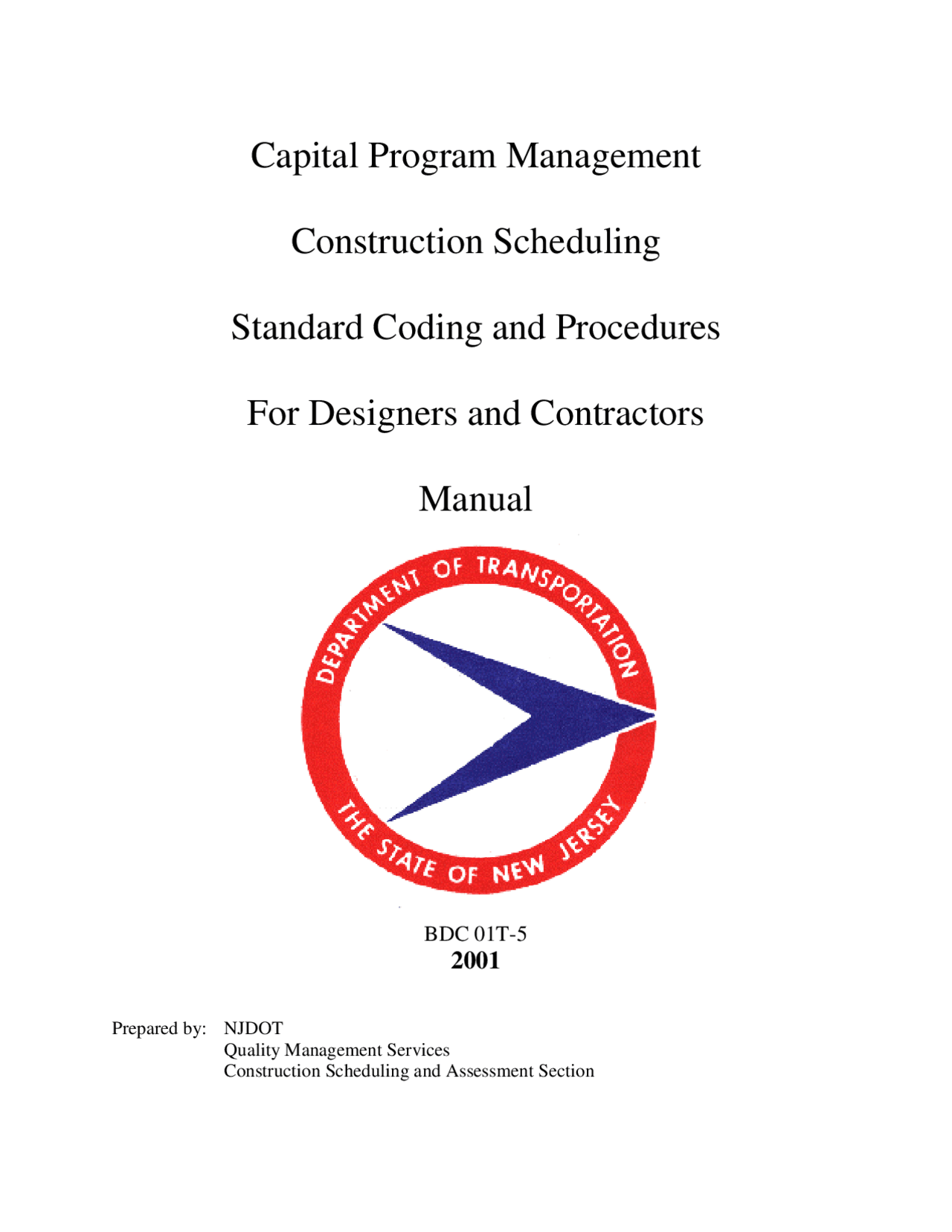

Capital Program Management
Construction Scheduling
Standard Coding and Procedures
For Designers and Contractors
Manual
BDC 01T-5
2001
Prepared by: NJDOT
Quality Management Services
Construction Scheduling and Assessment Section
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Guidelines and tips
Prepare for your exams
Study with the several resources on Docsity
Earn points to download
Earn points by helping other students or get them with a premium plan
Capital Program Management Construction Scheduling ..., Study notes of Construction
This database will contain both a) Capital Program. Management's schedule and budget for the entire design process for each project and b) The. Designer's and ...
Typology: Study notes
2021/2022
1 / 60
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Capital Program Management Construction Scheduling ... and more Study notes Construction in PDF only on Docsity!
Capital Program Management
Construction Scheduling
Standard Coding and Procedures
For Designers and Contractors
Manual
BDC 01T-
Prepared by: NJDOT Quality Management Services Construction Scheduling and Assessment Section
Table of Contents
- A. Introduction
- B. Scheduling Software
- I. Construction Schedules
- II. Equivalent Software
- C. Best Practices
- D. Standard Coding
- I. Development of Progress Schedules
- II. Design/Construction Template (WBS)
- III. Work Breakdown Structure (WBS)
- IV. Standard Activity Codes
- E. Standard Factors
- F. Level of Detail Required on a Progress Schedule
- G. Designer Contract Time Determination
- I. Design Submission
- II. Final Design Submission
- III. Designer Standard Naming of Projects
- IV. Multi-Year Funding
- V. Determine Start of Construction
- VI. Production Rates - a. Table A Roadway Items (English) - b. Table B Bridge Items (English) - c. Table C Bridge Items One Span (English) - d. Table D Bridge Items Two Span (English) - e. Table A.1 Roadway Items (Metric) - f. Table B.1 Bridge Items (Metric) - g. Table C.1 Bridge Items One Span (Metric) - h. Table D.1 Bridge Items Two Span (Metric)
- VII. Acceleration of Contract Schedules
- a. Increased Production Rates
- b. Incentive/Disincentive
- c. A + B Bidding
- d. Lane Rental
- VIII. Designer Narrative
- VII. Acceleration of Contract Schedules
- H. Contractor Procedure
- I. Contractor Standard Naming of Projects
- A. Definitions Appendix
- B. Time Impact Evaluation Form
- C. Utility Companies by Area
- D. NJDOT Request for Trainees Memo
- E. General Workday Chart (Contract Time Determination only)
- F. Procedure for utilizing the Construction Scheduling Template
Submission. The Contractor will begin development of a construction schedule at the Award of Contract starting with the preliminary schedule and continue throughout the construction contract with the submission of a baseline schedule and monthly updates. This manual covers the construction scheduling portion from the initial design until the completion of construction.
B.I Construction Schedules
Generally, on projects with an estimated construction cost of less than $5 million, a computer generated Critical Path Method (CPM) Progress Schedule shall be submitted on Primavera SureTrak software or other approved software that is compatible with Primavera P3e software. However, Primavera Project Planner P3 3.0 or approved equivalent software shall be utilized on projects that meet one of the following criteria:
- New Construction or Reconstruction/Rehabilitation projects that require staging plans or a specific sequence of construction
- Major utility relocations.
- Significant right-of-way impacts.
- Estimated duration of longer than one construction season.
- All projects over $5 million construction cost
The specific software to be utilized on a particular project will be determined by Construction as part of the Final Scope Development process.
B.II Equivalent Software
Reference is made to Primavera products throughout this manual and also in the Specifications. It is understood that computer software technology is constantly changing and improving and as per Subsection 106.12 that Substitutes or "Or Equal" products are or may become available. To be approved as a Substitute or "Or Equal" the software must be completely compatible with the database that contains the Capital Program Management's design process schedule and budget as well as the construction scheduling from initial design through construction. The software shall be compatible with the hierarchy of the coding and able to import and export data within the NJDOT Capital Program Management's database without distortion of any coding or relationships contained in the database.
The Designer shall only utilize equivalent or compatible software, which has received written approval from the Department prior to their submittal of their technical proposal. The software utilized for the initial schedule shall not vary throughout the remainder of the design process.
The Contractor shall only utilize equivalent or compatible software for a project, which has received written approval from the Department. Forty State Business Days will be required for review and approval or rejection of the software. In order to obtain approval of a Substitutes or "Or Equal" product, the manufacturer of the software must demonstrate its compatibility by submitting all required documentation, demonstration disks, or other necessary information to the Bureau of Quality Management Services. The approved software utilized will not vary throughout the construction phase.
C. Best Practices
In developing a schedule, three basic items make CPM scheduling work:
- Clearly defined activities.
- Realistic duration’s.
- Good logic.
Other Practices Include:
- Negative lags will not be permitted.
- Do not use a Finish to Start relationship with a lag. An activity must be added to represent the lag time.
- A project shall have one beginning and one end. All activities shall have a predecessor and successor except the project’s start and finish milestones. No "Open Ends" will be permitted.
- Durations of work activities shall not exceed the update cycle. The Department requires the update cycle to be prepared monthly.
- "Suspension of Dates" will not be permitted. An activity must be added.
- If an activity has a Start-to-Start relationship - it shall be closed with a Finish-to- Finish or Finish-to-Start relationship. (No open ends)
- The completion date of the CPM schedule shall be the completion date in Subsection 108.10 of the project's Special Provisions, which shall be input as a Finish Milestone with a Late Finish Constraint. All intermediate milestones (Interim Completion Dates) required in the Contract shall be shown in proper logical sequence and input as either the “Start-no-Earlier-Than” or “Finish-no-Later-Than” date. Mandatory Finish and Mandatory Starts shall not be used.
- When updating, all "Out of Sequence" activities shall be corrected to reflect the current construction operations.
- Original durations shall not be changed from the approved Baseline Schedule.
D. Standard Coding
As a means of monitoring progress schedules, the Department has developed with the Consultant and Construction industries common coding structure and procedures to be utilized from design through construction. A Designer or Contractor shall utilize the Primavera template project containing the latest standard coding provided from the Department’s web site or will be sent upon request.
6
D. II Design/Construction Template (WBS)
Project
Milestones
Procurement
Construction
Permits
ContractorSubmittals
MaterialSubmittals
Stage 2
Stage 1
Area 1*
Area 2*
*^
User defined by Area Codes
WorkingDrawings
D. III. Work Breakdown Structure (WBS)
Milestones
ACTIVITY ACTIVITY DESCRIPTION
ID
M100 Advertise Date (Start Milestone) M200 Bid Date (Start Milestone) M300 Award Date (Start Milestone) M400 Start Design Work (Design/Build only) (Start Milestone) M480 Complete Design Work (Design/Build only) (Finish Milestone) M500 Construction Start Date (Start Milestone) M600 Stage_ Complete (increase by 5) (Finish Milestone) M700 Interim Completion Date(s) (Increase by 10) (Finish Milestone) M800 ROW Availability Date(s) (Increase by 5) (Finish Milestone) M900 Substantial Completion (Finish Milestone) M950 Completion (Finish Milestone)
PRIMAVERA PROJECT PLANNER
WORK BREAKDOWN STRUCTURE
WBS Code Title
0 Milestones
C Construction
C.00 Administrative
C.01 Stage 1 C.01.1A Stage 1 A C.01.1B Stage 1 B C.01.1C Stage 1 C C.01.1D Stage 1 D C.01.1E Stage 1 E
C.02 Stage 2 C.02.2A Stage 2 A C.02.2B Stage 2 B C.02.2C Stage 2 C C.02.2D Stage 2 D C.02.2E Stage 2 E
P.PP Permits
P.PP.01 Environmental P.PP.02 Dewatering
P.MS Material Submittals (Long Lead Items) P.MS .01 Concrete P.MS .02 Structural Steel P.MS .03 Asphalt P.MS .04 Electrical P.MS .05 Sheeting/Cofferdam
P.WD Working Drawings
P.WD .01 Bridge Working Drawings P.WD.01.01 Bridge Working Drawings Requiring Design P.WD.01.01.01 Structural Steel Working Drawings P.WD.01.01.02 Structural Bearings P.WD.01.01.03 Prestressed Concrete Beams P.WD.01.01.04 Prestressed Concrete Piles P.WD.01.01.05 Expansion Dams P.WD.01.01.06 Cofferdams P.WD.01.01.07 Sheeting P.WD.01.01.08 Machinery for Movable Bridges P.WD.01.01.09 Electrical Items for Movable Bridges P.WD.01.01.10 Precast Concrete Culverts P.WD.01.01.11 Steel Bridge Deck Forms P.WD.01.01.12 Prefabricated Modular Walls P.WD.01.01.13 Mechanical Stabilized Earth (MSE) Walls P.WD.01.01.14 Concrete Crib Walls P.WD.01.01.15 Alternate Retaining Wall Design P.WD.01.01.16 Temporary Structures P.WD.01.01.17 Temporary Shielding P.WD.01.01.18 Electrical Items not pre-approved P.WD.01.02 Bridge Working Drawings Not Requiring Design P.WD.01.02.01 Structural Steel Working Drawings P.WD.01.02.02 Structural Bearings P.WD.01.02.03 Prestressed Concrete Beams P.WD.01.02.04 Prestressed Concrete Piles P.WD.01.02.05 Expansion Dams P.WD.01.02.06 Cofferdams P.WD.01.02.07 Machinery for Movable Bridges P.WD.01.02.08 Electrical Items for Movable Bridges P.WD.01.02.09 Strip Seals P.WD.01.02.10 Armored Deck Joints P.WD.01.02.11 Bridge Storm Drains P.WD.01.02.12 Sign Support Structures P.WD.01.02.13 GA Sign Support Posts P.WD.01.02.14 Noise Barriers P.WD.01.02.15 Bridge Railings and Fencing Anchorages P.WD.01.02.16 Sign Legends
P.WD .02 Road Working Drawings
P.WD.02.01 Road requiring design
P.WD.02.01.01 Impact attenuators P.WD.02.01.02 Sheeting P.WD.02.01.03 Electrical items not pre-approved
P.WD.02.02 Road not requiring design
P.WD.02.02.01 Impact attenuators P.WD.02.02.02 Sign legends P.WD.02.02.03 Recycled/synthetic routed spacers
URCR Consolidated Rail Corporation URNS Norfolk and Southern Railroad URCS CSX Transportation Inc. URNY New York Susquehanna & Western Railway Corporation USCC Sprint Communications Company L.P. USJG South Jersey Gas USPT Sprint DBA United Telephone Co of NJ UVER Verizon Communications
0100 Atlantic County 0101 Absecon City 0102 Atlantic City 0103 Brigantine City 0104 Buena Borough 0105 Buena Vista Township 0106 Corbin City 0107 Egg Harbor City 0108 Egg Harbor Township 0109 Estell Manor City 0110 Folsom Borough 0111 Galloway Township 0112 Hamilton Township 0113 Hammonton Town 0114 Lindwood City 0115 Longport Borough 0116 Margate City 0117 Mullica Township 0118 Northfield City 0119 Pleasantville City 0120 Port Republic City 0121 Somers Point City 0122 Ventnor City 0123 Weymouth Township 0200 Bergen County 0201 Allendale Borough 0202 Alpine Borough 0203 Bergenfield Borough 0204 Bogota Borough 0205 Carlstadt Borough 0206 Cliffside Park Borough 0207 Closter Borough 0208 Cresskill Borough 0209 Demarest Borough 0210 Dumont Borough 0212 East Rutherford Borough 0213 Edgewater Borough 0211 Elmwood Park Borough 0214 Emerson Borough 0215 Englewood City 0216 Englewood Cliff Borough 0217 Fair Lawn Borough 0218 Fairview Borough 0219 Fort Lee Borough 0220 Franklin Lakes Borough 0221 Garfield City 0222 Glen Rock Borough 0223 Hackensack City 0224 Harrington Park Borough
0305 Burlington City 0306 Burlington Township 0307 Chesterfield Township 0308 Cinnaminson Township 0309 Delanco Township 0310 Delran Township 0311 Eastampton Township 0312 Edgewater Park Township 0313 Evesham Township 0314 Fieldsboro Borough 0315 Florence Township 0316 Hainesport Township 0317 Lumberton Township 0318 Mansfield Township 0319 Maple Shade Township 0320 Medford Township 0321 Medford Lakes Borough 0322 Moorestown Township 0323 Mount Holly Township 0324 Mount Laurel Township 0325 New Hanover Township 0326 North Hanover Township 0327 Palmyra Borough 0328 Pemberton Borough 0329 Pemberton Township 0330 Riverside Township 0331 Riverton Borough 0332 Shamong Township 0333 Southampton Township 0334 Springfield Township 0335 Tabernacle Township 0336 Washington Township 0337 Westampton Township 0338 Willingboro Township 0339 Woodland Township 0340 Wrightstown Borough 0400 Camden County 0401 Audubon Borough 0402 Audubon Park Borough 0403 Barrington Borough 0404 Bellmawr Borough 0405 Berlin Borough 0406 Berlin Township 0407 Brooklawn Borough 0408 Camden City 0409 Cherry Hill Township 0410 Chesilhurst Borough 0411 Clementon Borough 0412 Collingswood Borough 0413 Gibbsboro Borough 0414 Gloucester City
0415 Gloucester Township 0416 Haddon Township 0417 Haddonfield Borough 0418 Haddon Heights Borough 0419 Hi Nella Borough 0420 Laurel Springs Borough 0421 Lawnside Borough 0422 Lindenwold Borough 0423 Magnolia Borough 0424 Merchantville Borough 0425 Mount Ephraim Borough 0426 Oaklyn Borough 0427 Pennsauken Township 0428 Pine Hill Borough 0429 Pine Valley Borough 0430 Runnemede Borough 0431 Somerdale Borough 0432 Stratford Borough 0433 Tavistock Borough 0434 Voorhees Township 0435 Waterford Township 0436 Winslow Township 0437 Woodlynne Borough 0500 Cape May County 0501 Avalon Borough 0502 Cape May City 0503 Cape May Point Borough 0504 Dennis Township 0505 Lower Township 0506 Middle Township 0507 North Wildwood City 0508 Ocean City 0509 Sea Isle City 0510 Stone Harbor Borough 0511 Upper Township 0512 West Cape May Borough 0513 West Wildwood Borough 0514 Wildwood City 0515 Wildwood Crest Borough 0516 Woodbine Borough 0600 Cumberland County 0601 Bridgeton City 0602 Commercial Township 0603 Deerfield Township 0604 Downe Township 0605 Fairfield Township 0606 Greenwich Township 0607 Hopewell Township 0608 Lawrence Township 0609 Maurice River Township 0610 Millville City
0824 Woolwich Township 0900 Hudson County 0901 Bayonne City 0902 East Newark Borough 0903 Guttenberg Town 0904 Harrison Town 0905 Hoboken City 0906 Jersey City 0907 Kearny Town 0908 North Bergen Township 0909 Secaucus Town 0910 Union City 0911 Weehawken Township 0912 West New York Town 1000 Hunderton County 1001 Alexandria Township 1002 Bethlehem Township 1003 Bloomsbury Borough 1004 Califon Borough 1005 Clinton Town 1006 Clinton Township 1007 Delaware Township 1008 East Amwell Township 1009 Flemington Borough 1010 Franklin Township 1011 Frenchtown Borough 1012 Glen Gardner Borough 1013 Hampton Borough 1014 High Bridge Borough 1015 Holland Township 1016 Kingwood Township 1017 Lambertville City 1018 Lebanon Borough 1019 Lebanon Township 1020 Milford Borough 1021 Raritan Township 1022 Readington Township 1023 Stockton Borough 1024 Tewksbury Township 1025 Union Township 1026 West Amwell Township 1100 Mercer County 1101 East Windsor Township 1102 Ewing Township 1103 Hamilton Township 1104 Hightstown Borough 1105 Hopewell Borough 1106 Hopewell Township 1107 Lawrence Township 1108 Pennington Borough 1109 Princeton Borough
1110 Princeton Township 1111 Trenton City 1112 Washington Township 1113 West Windsor Township 1200 Middlesex County 1201 Carteret Borough 1202 Cranbury Township 1203 Dunellen Borough 1204 East Brunswick Township 1205 Edison Township 1206 Helmetta Borough 1207 Highland Park Borough 1208 Jamesburg Borough 1209 Metuchen Borough 1210 Middlesex Borough 1211 Milltown Borough 1212 Monroe Township 1213 New Brunswick City 1214 North Brunswick Township 1215 Old Bridge Township 1216 Perth Amboy City 1217 Piscataway Township 1218 Plainsboro Township 1219 Sayreville Borough 1220 South Amboy City 1221 South Brunswick Township 1222 South Plainfield Borough 1223 South River Borough 1224 Spotswood Borough 1225 Woodbridge Township 1300 Monmouth County 1301 Aberdeen Township 1302 Allenhurst Borough 1303 Allentown Borough 1304 Asbury Park City 1305 Atlantic Highlands Borough 1306 Avon By The Sea Borough 1307 Belmar Borough 1308 Bradley Beach Borough 1309 Brielle Borough 1310 Colts Neck Township 1311 Deal Borough 1312 Eatontown Borough 1313 Englishtown Borough 1314 Fair Haven Borough 1315 Farmingdale Borough 1316 Freehold Borough 1317 Freehold Township 1318 Hazlet Township 1319 Highlands Borough 1320 Holmdel Township
