Carbonation Release, Study notes of Law

Law

Experimental Overview. This experiment has 2 parts. In Part I, you will react sodium bicarbonate with acetic acid and monitor the pressure change.

Typology: Study notes

2021/2022

Uploaded on 09/12/2022

fazal
fazal 🇺🇸

4.6

(12)

230 documents

1 / 5

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1
1

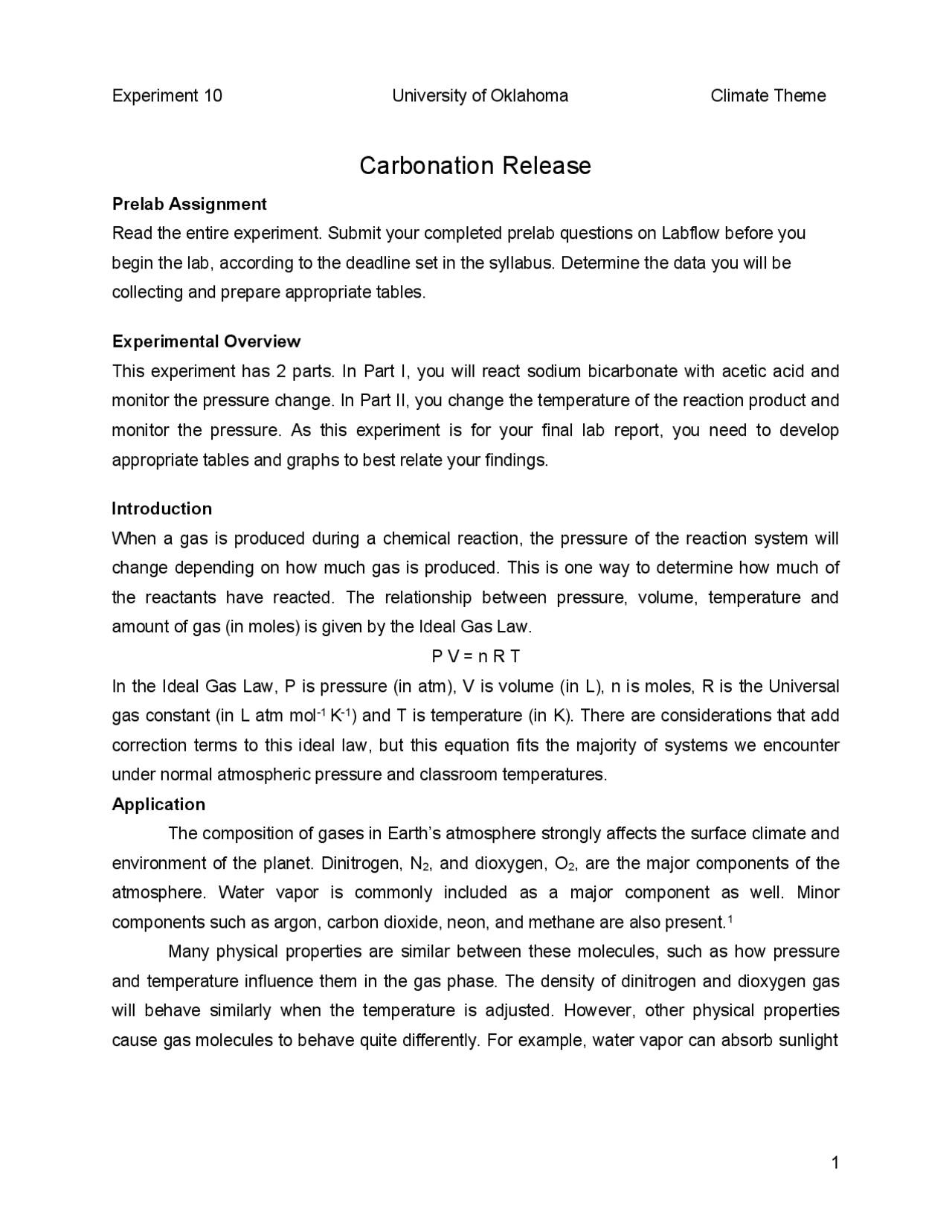

Experiment 10 University of Oklahoma Climate Theme
Carbonation Release
Prelab Assignment
Read the entire experiment. Submit your completed prelab questions on Labflow before you
begin the lab, according to the deadline set in the syllabus. Determine the data you will be
collecting and prepare appropriate tables.
Experimental Overview
This experiment has 2 parts. In Part I, you will react sodium bicarbonate with acetic acid and
monitor the pressure change. In Part II, you change the temperature of the reaction product and
monitor the pressure. As this experiment is for your final lab report, you need to develop
appropriate tables and graphs to best relate your findings.
Introduction
When a gas is produced during a chemical reaction, the pressure of the reaction system will
change depending on how much gas is produced. This is one way to determine how much of
the reactants have reacted. The relationship between pressure, volume, temperature and
amount of gas (in moles) is given by the Ideal Gas Law.
P V = n R T
In the Ideal Gas Law, P is pressure (in atm), V is volume (in L), n is moles, R is the Universal
gas constant (in L atm mol-1 K-1) and T is temperature (in K). There are considerations that add
correction terms to this ideal law, but this equation fits the majority of systems we encounter
under normal atmospheric pressure and classroom temperatures.
Application
The composition of gases in Earth’s atmosphere strongly affects the surface climate and
environment of the planet. Dinitrogen, N2, and dioxygen, O2, are the major components of the
atmosphere. Water vapor is commonly included as a major component as well. Minor
components such as argon, carbon dioxide, neon, and methane are also present.1
Many physical properties are similar between these molecules, such as how pressure
and temperature influence them in the gas phase. The density of dinitrogen and dioxygen gas
will behave similarly when the temperature is adjusted. However, other physical properties
cause gas molecules to behave quite differently. For example, water vapor can absorb sunlight
pf3
pf4
pf5

Partial preview of the text

Download Carbonation Release and more Study notes Law in PDF only on Docsity!

Experiment 10 University of Oklahoma Climate Theme

Carbonation Release

Prelab Assignment Read the entire experiment. Submit your completed prelab questions on Labflow before you begin the lab, according to the deadline set in the syllabus. Determine the data you will be collecting and prepare appropriate tables.

Experimental Overview This experiment has 2 parts. In Part I, you will react sodium bicarbonate with acetic acid and monitor the pressure change. In Part II, you change the temperature of the reaction product and monitor the pressure. As this experiment is for your final lab report, you need to develop appropriate tables and graphs to best relate your findings.

Introduction When a gas is produced during a chemical reaction, the pressure of the reaction system will change depending on how much gas is produced. This is one way to determine how much of the reactants have reacted. The relationship between pressure, volume, temperature and amount of gas (in moles) is given by the Ideal Gas Law. P V = n R T In the Ideal Gas Law, P is pressure (in atm), V is volume (in L), n is moles, R is the Universal gas constant (in L atm mol -1^ K-1) and T is temperature (in K). There are considerations that add correction terms to this ideal law, but this equation fits the majority of systems we encounter under normal atmospheric pressure and classroom temperatures. Application The composition of gases in Earth’s atmosphere strongly affects the surface climate and environment of the planet. Dinitrogen, N 2 , and dioxygen, O 2 , are the major components of the atmosphere. Water vapor is commonly included as a major component as well. Minor components such as argon, carbon dioxide, neon, and methane are also present. 1 Many physical properties are similar between these molecules, such as how pressure and temperature influence them in the gas phase. The density of dinitrogen and dioxygen gas will behave similarly when the temperature is adjusted. However, other physical properties cause gas molecules to behave quite differently. For example, water vapor can absorb sunlight

more effectively than dioxygen and dinitrogen, which causes water vapor to increase in temperature more readily when exposed to sunlight. 2 Concentration is also a key consideration for atmospheric components. If the effect of a minor component in the atmosphere is significant, a small modification to the concentration can result in a large impact on the atmospheric environment. Gaseous concentrations usually change due to chemical reactions that consume or produce a particular gas molecule. For example, carbon dioxide is generated by many chemical reactions. One of the most significant sources is through the combustion of organic molecules. Once produced, carbon dioxide often becomes a component of Earth’s atmosphere, although under the right conditions CO 2 can dissolve slightly in seawater. 3 Depending on the chemistry in the seawater, dissolved carbon dioxide can react to become carbonate ions (Figure 1) or be removed as an atmospheric component. 3 *

Figure 1 - Carbon Dioxide Equilibrium Reactions with Seawater

Understanding the similarities and differences of gases, as well as how changes can occur is important to evaluating how Earth’s atmosphere can impact the surface environment. Some of the physical properties of gases and the production of gas molecules from a reaction will be studied during this experiment.

  • These conversions are equilibria and can proceed in the reverse directions as well.

References

  1. Hart, M. H. The Evolution of the Atmosphere of the Earth. Icarus. 1978 , 33, 23-39.
  2. Horvath, H. Atmospheric Light Absorption–A Review. Atmos Environ. 1993 , 27, 3, 293-317.
  3. Millero, F. J. Thermodynamics of the carbon dioxide system in the oceans. Geochim. Cosmochim. Acta. 1995 , 59, 4, 661-677.
  1. Monitor the pressure change during the reaction. a. Set up the LabQuest to collect 10 samples per second, for 200 seconds. b. Begin recording pressure data on the LabQuest. c. Add the acetic acid solution to the Erlenmeyer flask. d. If necessary, swirl the flask slightly to make sure all of the sodium bicarbonate reacts. e. The data collection can be stopped after the pressure levels off for multiple seconds. f. Record the peak pressure measured for the trial and any other observations. Save your data by exporting the data to a flash drive as a .txt file.
  2. Repeat the experiment for Trial 2. a. Dispose of the waste in the flask properly and rinse out the inside with deionized water. b. Repeat steps 2 and 3 for Trial 2 in Table 1.
  3. Repeat the experiment for Trial 3. a. Dispose of the waste in the flask properly and rinse out the inside with deionized water. b. Repeat steps 2 and 3 for Trial 3 in Table 1. c. Do not break the seal on the flask when finished, proceed to Part II. PART II
  4. Monitor temperature effects on captured gas. a. Prepare an ambient temperature water bath in a 1 L beaker, and connect a temperature probe to the LabQuest for monitoring the water bath temperature. b. If the water is below 25 °C, place the flask filled with gas from step 5 in the water bath. Submerge the flask so the exterior surface is surrounded with water. c. Record the pressure and temperature from the LabQuest for the current conditions of the system. d. Cool the water bath slowly by adding small amounts of ice and stirring. Record 4 additional sets of conditions between 0 and 25 °C (approximately 5 °C intervals). e. Also record the current atmospheric pressure in the laboratory.
  5. Clean all glassware and equipment. Dispose of all waste properly. Refer to the Chemicals Utilized table to determine the correct quantities of disposed materials and record these values on the waste sheets. Be sure to clean up any materials spilled during the experiment. Please leave the laboratory in better condition than at the start of the experiment.

Chemicals Utilized Table

Chemical Name Amount Waste Type

Make sure to record your observations and label all recorded values! Reminders: Make sure to discuss the table and figure you present. Tell what is important about the data presented. Relate the data you collected to molecular-level events. Assignment This lab will be used to write a full lab report. Instructions for the full lab report are posted. You are expected to complete all sections according to the posted report guide.

For help with this report, you can use your previous experiments to aide you in developing your lab report. The writing development pages are intended to provide guidance to this process. The following sections have been fully-developed during one of your lab reports this semester. Look to these experiments for the guides to developing your report: 2: References 6: Data Tables 7: Figures (Graphs) 9: Analysis/ Conclusions All full reports must include correctly formatted references. The OU Writing Center is an excellent source of assistance. Feel free to get help from these experts.

Submission Details: Submit your complete report to Canvas in the “Lab Report 10 for Peer Review” assignment by 8:00 am, on the date of your Peer Review. Your Lab Instructor will assign you 2 other papers within your section to Peer Review during your lab meeting. You will have your normal Lab meeting time to complete the Peer Review Activity. Final reports are due in the “Lab 1315-10 Final Report” assignment by the syllabus date.
