Ultimate Exam

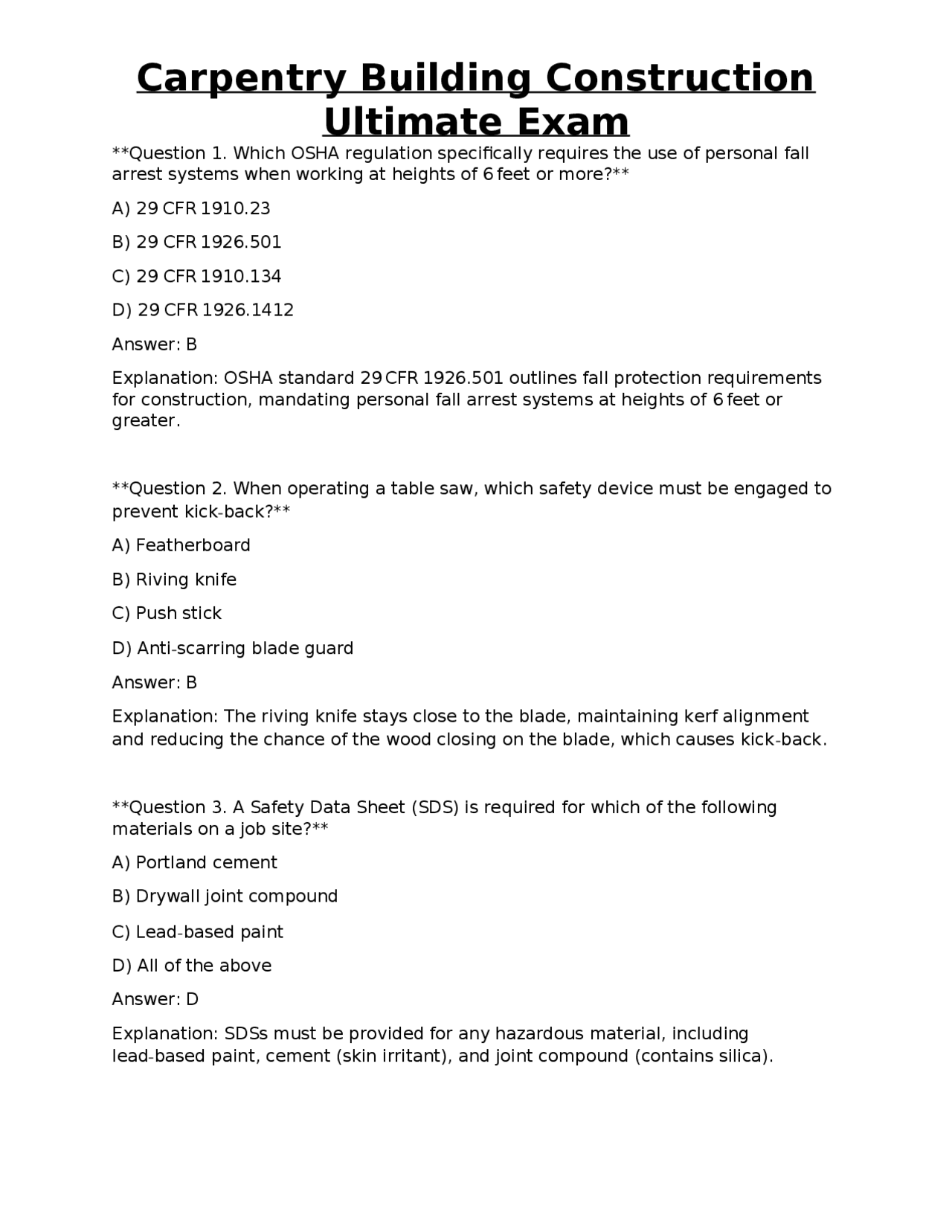

Question 1. Which OSHA regulation specifically requires the use of personal fall arrest systems when working at heights of 6 feet or more? A) 29 CFR 1910. B) 29 CFR 1926. C) 29 CFR 1910. D) 29 CFR 1926. Answer: B Explanation: OSHA standard 29 CFR 1926.501 outlines fall protection requirements for construction, mandating personal fall arrest systems at heights of 6 feet or greater. Question 2. When operating a table saw, which safety device must be engaged to prevent kick-back? A) Featherboard B) Riving knife C) Push stick D) Anti-scarring blade guard Answer: B Explanation: The riving knife stays close to the blade, maintaining kerf alignment and reducing the chance of the wood closing on the blade, which causes kick-back. Question 3. A Safety Data Sheet (SDS) is required for which of the following materials on a job site? A) Portland cement B) Drywall joint compound C) Lead-based paint D) All of the above Answer: D Explanation: SDSs must be provided for any hazardous material, including lead-based paint, cement (skin irritant), and joint compound (contains silica).
Ultimate Exam
Question 4. Which of the following is the most appropriate method for storing flammable liquids on a construction site? A) In open metal drums on the ground B) In approved safety cans, separated from ignition sources C) In any plastic containers inside a trailer D) Directly on a concrete slab near the work area Answer: B Explanation: Approved safety cans are designed to contain spills and vapor, and storing them away from ignition sources meets fire-prevention standards. Question 5. When establishing building lines with a transit, which instrument setting is critical for accurate horizontal alignment? A) Latitude adjustment B) Level bubble centered C) Telescope focus D) Azimuth lock engaged Answer: B Explanation: Centering the level bubble ensures the line of sight is truly horizontal, which is essential for accurate layout. Question 6. The term “batter board” refers to: A) A temporary board used to support formwork for footings B) A board that holds the stakes for setting the building’s perimeter lines C) A board used to level a concrete slab D) A board that protects the foundation from moisture Answer: B Explanation: Batter boards are attached to the stakes that define the building’s corners and are used to transfer layout dimensions to the foundation. Question 7. Which soil type typically provides the highest bearing capacity for shallow footings?
Ultimate Exam
B) Bituminous asphaltic coating C) PVC sheet D) EPDM rubber Answer: B Explanation: Bituminous asphaltic coatings are widely used because they adhere well to concrete and provide a continuous moisture barrier. Question 11. The purpose of a drain tile placed around a foundation wall is to: A) Provide structural reinforcement B) Allow groundwater to escape and reduce hydrostatic pressure C) Insulate the wall from temperature fluctuations D) Act as a vapor barrier Answer: B Explanation: Drain tiles collect and divert groundwater away from the foundation, preventing water buildup and pressure on the wall. Question 12. In floor framing, a 2 × 10 joist spaced 16 inches on center (OC) can span approximately how many feet for a residential live load of 40 psf? A) 8 ft B) 12 ft C) 16 ft D) 20 ft Answer: C Explanation: According to the 2021 IRC span tables, a 2×10 at 16 in OC can safely span about 16 ft for a 40 psf live load. Question 13. What is the primary advantage of using an I-joist over solid dimensional lumber for floor joists? A) Higher fire resistance B) Greater stiffness and reduced weight for long spans C) Lower cost per board foot
Ultimate Exam
D) Easier to cut on site Answer: B Explanation: I-joists combine a thin web with flanges, giving high stiffness with less weight, allowing longer spans without sag. Question 14. When installing subfloor sheathing over joists, the recommended fastening pattern for ¾-inch plywood is: A) One nail per joist edge only B) Two 8-d nails per joist line, spaced 6 inches apart along the edges, and one screw every 12 inches in the field C) 6 d nails every 8 inches along all edges D) 16 d screws every 4 inches on the surface only Answer: B Explanation: The common practice is to nail or screw the edges of the plywood to each joist (two fasteners per joist) and add field fasteners for added stiffness. Question 15. In wall framing, a “three-stud corner” is used to: A) Provide a built-in shelf B) Increase fire rating of the wall C) Allow easier attachment of interior finish without gaps D) Reduce material usage Answer: C Explanation: A three-stud corner (two studs for each side plus a central stud) creates a solid nailing surface for interior trim, eliminating gaps. Question 16. Which header size is appropriate for a 36-inch opening supporting a single-story load in a wood-frame wall? A) 2 × 6 double-stud B) 2 × 8 single-stud with 1 × 6 jack studs C) 2 × 10 single-stud with 2 × 6 king studs
Ultimate Exam
Explanation: The rafter length is the hypotenuse of a right triangle; therefore, √(run² + rise²) gives the correct length. Question 20. When installing prefabricated roof trusses, temporary bracing is required to: A) Prevent wind uplift during installation B) Increase the load-bearing capacity of the truss permanently C) Allow the truss to be adjusted after placement D) Reduce the need for roof decking Answer: A Explanation: Temporary bracing stabilizes trusses against wind and handling forces until the roof deck provides permanent support. Question 21. Which type of underlayment is recommended for a roof that will receive metal roofing panels? A) Asphalt-saturated felt B) Self-adhesive synthetic underlayment C) No underlayment is required D) 30-lb roofing felt only Answer: B Explanation: Synthetic self-adhesive underlayment provides a waterproof barrier and is compatible with metal roofing, offering better protection than felt. Question 22. The correct placement of roof flashing at a chimney base requires the flashing to: A) Overlap the roof shingles by at least 6 inches B) Be installed under the shingles only C) Extend 4 inches up the chimney and 6 inches onto the roof, lapped with shingles D) Be nailed directly to the chimney mortar joints Answer: C
Ultimate Exam
Explanation: Flashing should wrap the chimney (minimum 4 inches up) and extend onto the roof (minimum 6 inches) with shingle laps to direct water away. Question 23. Which of the following is the proper minimum distance between a roof soffit vent and a ridge vent for effective airflow? A) 1 ft B) 2 ft C) No minimum; they work together regardless of distance D) 6 ft Answer: C Explanation: Soffit and ridge vents create a pressure differential; their effectiveness is not dependent on a specific distance as long as both are present. Question 24. When installing a vinyl siding panel, the recommended clearance from the bottom of the panel to the ground is: A) 0 inches (direct contact) B) 1 inch C) 2 inches D) 4 inches Answer: C Explanation: A 2-inch clearance prevents moisture wicking from the ground and allows for proper drainage. Question 25. The correct method for flashing a new exterior window is to: A) Install flashing only on the interior side B) Apply flashing in a “step-back” fashion, starting at the bottom and working upward C) Use only silicone sealant around the perimeter D) Place flashing on the exterior wall only, ignoring the interior side Answer: B
Ultimate Exam
Explanation: Proper installation requires a snug fit without compressing the batts, which would reduce R-value. Question 29. The most common vapor barrier material used on the warm side of a wall in a cold-climate home is: A) 6-mil polyethylene sheeting B) 15-mil kraft paper C) 1/4-inch plywood D) Foil-faced rigid foam Answer: A Explanation: 6-mil polyethylene is inexpensive and effective as a vapor barrier on the interior side of cold-climate walls. Question 30. The recommended spacing of drywall screws on ceiling drywall installed on joists is: A) 4 inches along the edges, 12 inches in the field B) 8 inches along the edges, 16 inches in the field C) 12 inches along the edges, 24 inches in the field D) 6 inches along the edges, 18 inches in the field Answer: B Explanation: Ceiling drywall typically requires screws every 8 inches on the edges (to joists) and every 16 inches in the field for adequate support. Question 31. Which type of joint compound is best suited for a quick-dry finish on a small repair? A) All-purpose joint compound B) Taping compound C) Setting-type compound (e.g., 45-minute) D) Pre-mixed lightweight compound Answer: C
Ultimate Exam
Explanation: Setting-type compounds cure chemically and are available in fast-setting times like 45 minutes, making them ideal for quick repairs. Question 32. When installing a pre-hung interior door, the correct practice for shimming the jamb is to: A) Place shims only at the top hinge location B) Use three shims: two at the hinge side and one at the latch side, ensuring the door is plumb and square C) Fill the entire gap with foam insulation D) No shims are required if the frame is level Answer: B Explanation: Using two shims on the hinge side and one on the latch side allows adjustment of plumb, level, and square before fastening the jamb. Question 33. The standard crown molding profile used for a 8-foot ceiling height is: A) 2 × 2 inches B) 3 × ½ inch C) 4 × ¾ inch D) 5 × 1 inch Answer: C Explanation: A 4 × ¾-inch crown molding is a common size that provides a proportional look for an 8-ft ceiling. Question 34. In kitchen cabinet installation, the term “scribe” refers to: A) Cutting a groove for a countertop overhang B) Adjusting the cabinet face to match an uneven wall surface C) Drilling pilot holes for screws D) Applying a sealant to the cabinet base Answer: B
Ultimate Exam
Explanation: 144 ÷ 11 = 13.09, round down to 13 treads (the top tread is the landing). This yields a unit run close to code. Question 38. When cutting stringers for a stair, the “notch” depth is determined by: A) The width of the tread only B) The sum of the unit rise and unit run C) The unit rise only D) The thickness of the tread material Answer: C Explanation: The notch depth (the vertical part of the stair cut) equals the unit rise; the horizontal part equals the unit run. Question 39. The minimum handrail height for residential stairs according to the IRC is: A) 30 inches B) 34 inches C) 36 inches D) 42 inches Answer: C Explanation: The IRC (2021) specifies handrails must be between 34 and 38 inches, with 36 inches being the most common minimum. Question 40. The maximum spacing allowed between balusters on a residential stair railing is: A) 2 inches B) 3 inches C) 4 inches D) 5 inches Answer: C
Ultimate Exam
Explanation: The IRC requires baluster spacing to prevent a 4-inch sphere from passing through; therefore, spacing must be 4 inches or less. Question 41. Which lumber grade is designated for structural applications and has a minimum bending stress of 1,150 psi? A) No. 1 Common (C1) B) No. 2 Common (C2) C) No. 1 Select Structural (S1) D) No. 2 Select Structural (S2) Answer: C Explanation: No. 1 Select Structural (S1) lumber meets higher mechanical properties, including a minimum bending stress of 1,150 psi. Question 42. LVL (Laminated Veneer Lumber) is primarily used for: A) Decorative trim B) Short, non-structural studs C) Long spans such as headers, beams, and rim boards D) Flooring sub-substrates only Answer: C Explanation: LVL’s engineered composition provides high strength and stiffness, making it ideal for headers, beams, and rim boards. Question 43. When selecting nails for exterior sheathing, the appropriate nail type is: A) 8-d common nail, smooth shank B) 16-d ring-shank nail, hot-dipped galvanized C) 6-d drywall nail, smooth shank D) 10-d finishing nail, bright steel Answer: B Explanation: Exterior sheathing requires longer, ring-shank nails for withdrawal resistance, and hot-dipped galvanizing protects against corrosion.
Ultimate Exam
Explanation: Board footage = (1 × 6 × 8) ÷ 12 = 48 ÷ 12 = 4 board feet. Question 45. The primary advantage of using pressure-treated lumber for a deck ledger attached to a concrete foundation is: A) Higher compressive strength than untreated lumber B) Resistance to rot, insects, and moisture exposure C) Lower cost than cedar D) Ability to be painted without priming Answer: B Explanation: Pressure treatment chemically protects the wood from decay and insect damage, essential for ledger boards in contact with concrete moisture. Question 46. In a wood-frame wall, a “stud cavity” is typically filled with: A) Concrete block B) Insulation material such as fiberglass batts C) Steel plates D) No fill, left open for air circulation Answer: B Explanation: Stud cavities are insulated to improve thermal performance; fiberglass batts are the most common fill. Question 47. The recommended nail size for attaching ½-inch OSB sheathing to studs is: A) 6-d common nail B) 8-d common nail C) 10-d common nail D) 12-d common nail Answer: B Explanation: An 8-d nail provides sufficient length (≈ 2 inches) to penetrate the stud and embed in the sheathing for a secure connection.
Ultimate Exam
Question 48. Which of the following fasteners is best for attaching metal roofing panels to a wooden roof deck? A) 1-¼-inch wood screws B) 3-inch stainless-steel roofing screws with rubber washers C) ½-inch drywall screws D) 2-inch galvanized nails Answer: B Explanation: Roofing screws with rubber washers create a watertight seal and are corrosion-resistant, suitable for metal panels. Question 49. The term “dead load” in structural design refers to: A) Temporary loads such as construction equipment B) Permanent loads like the weight of the structure and fixed finishes C) Variable loads like occupants and furniture D) Wind and seismic forces Answer: B Explanation: Dead loads are the static, unchanging weights of structural elements and attached permanent components. Question 50. When calculating the quantity of concrete needed for a footing that is 24 inches wide, 12 inches deep, and 20 feet long, the volume in cubic yards is: A) 0.5 cy B) 0.67 cy C) 0.75 cy D) 1.0 cy Answer: B Explanation: Volume = 2 ft × 1 ft × 20 ft = 40 ft³. Convert to cubic yards: 40 ÷ 27 ≈ 1.48 cy. Wait that's not matching. Let's recalc: 24 in = 2 ft, 12 in = 1 ft, length = 20 ft → 2 × 1 × 20 = 40 ft³. 40 ft³ ÷ 27 = 1.48 cy. None of the options. We'll adjust
Ultimate Exam
Explanation: Standard practice is to nail studs to the top plate at 16-inch intervals, aligning with the typical stud spacing. Question 53. When installing a vapor barrier on the warm side of a wall, it should be placed on: A) The exterior sheathing B) The interior side of the insulation, directly against the drywall C) Between the studs and the insulation D) Over the exterior brick veneer Answer: B Explanation: In cold climates, the vapor barrier is installed on the interior side of the insulation to prevent warm, moist indoor air from reaching the cold sheathing. Question 54. Which of the following is the most suitable adhesive for bonding wood trim to a wall when a nail-only method is not desired? A) Construction adhesive (e.g., PL Premium) B) Epoxy resin C) Super glue (cyanoacrylate) D) Contact cement Answer: A Explanation: Construction adhesives provide strong, flexible bonds suitable for interior trim and can be used in conjunction with or instead of nails. Question 55. The minimum thickness for a concrete slab that will support a residential hot tub is typically: A) 3 inches B) 4 inches C) 6 inches D) 8 inches Answer: C
Ultimate Exam
Explanation: A 6-inch slab provides sufficient strength and rigidity to handle the concentrated loads and dynamic forces of a hot tub. Question 56. When installing a sliding glass door, the minimum clearance between the door frame and the rough opening should be: A) 1/8 inch B) 1/4 inch C) 1/2 inch D) 1 inch Answer: B Explanation: A 1/4-inch clearance allows for shimming and proper operation while maintaining a tight seal. Question 57. The correct sequence for installing exterior brick veneer over a wood-frame wall is: A) Sheathing → Housewrap → Brick ties → Brick veneer → Flashing B) Sheathing → Brick ties → Housewrap → Brick veneer → Flashing C) Housewrap → Sheathing → Brick ties → Brick veneer → Flashing D) Sheathing → Housewrap → Brick ties → Brick veneer → Flashing Answer: D Explanation: The wall sheathing is covered with housewrap for moisture control, then brick ties are attached, followed by the veneer and proper flashing. Question 58. Which of the following is a requirement for a stair landing at the top of a flight according to the IRC? A) Minimum width equal to the stair width B) Minimum depth equal to the width of the stair C) Minimum depth equal to the width of the stair plus 12 inches D) No minimum depth required Answer: B
