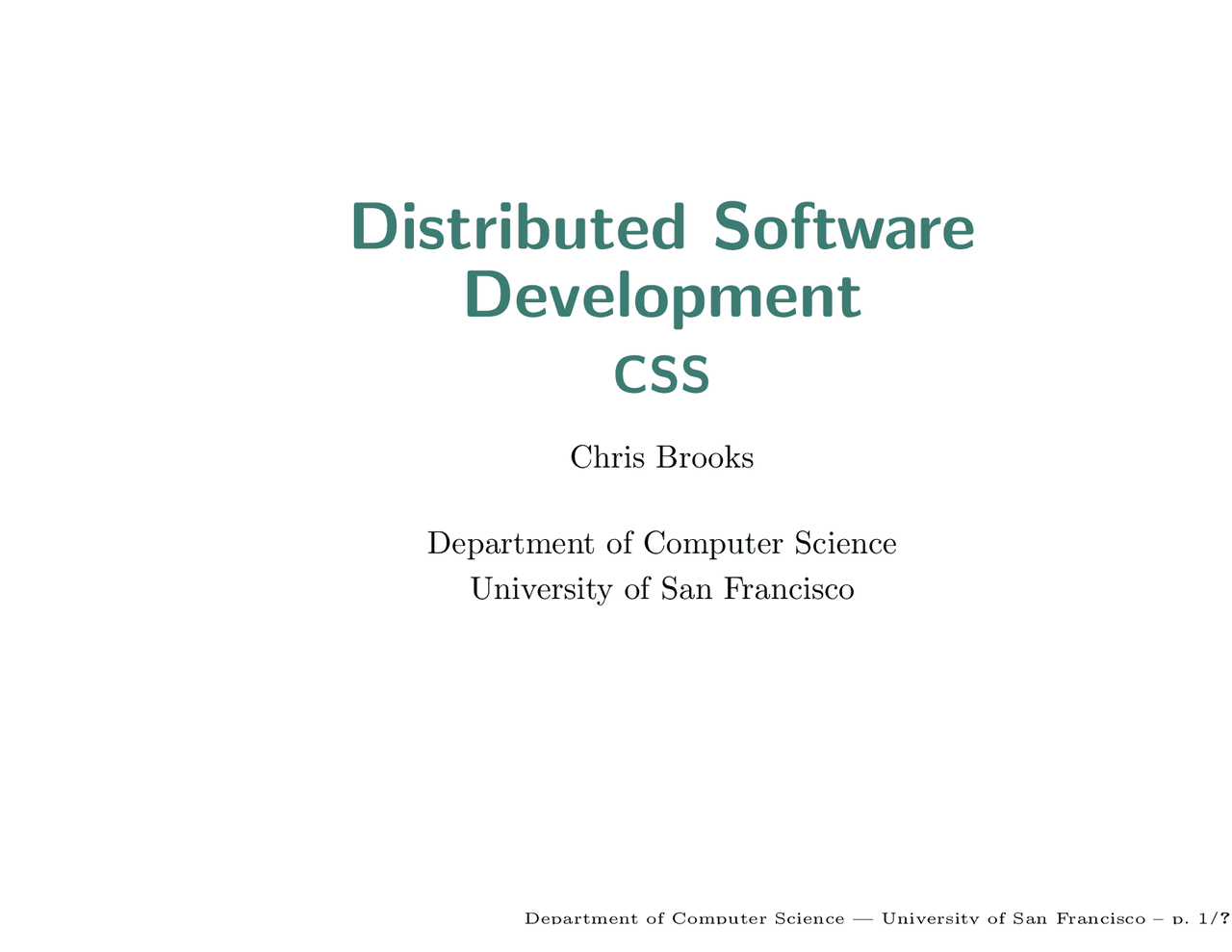

Distributed Software

Development

CSS Chris Brooks

Department of Computer ScienceUniversity of San Francisco

Department of Computer Science — University of San Francisco – p. 1/

CSS

-^ CSS stands for Cascading Style Sheets •^ Provides a way to specify how related document elementsshould be displayed. •^ Makes design and maintenance easier •^ Also gives us an opportunity to introduce some topics we’llrevisit in other forms:^ •^

Documents as trees • Specifying paths to nodes in trees • Separating out the meaning of a tag from how it isdisplayed.

Department of Computer Science — University of San Francisco – p. 2/

Invasion of the Web Designers • Early versions of Yahoo! look very different from today. •^ Single font, no table layout, background colors, menus,dynamic behavior, etc. • Later versions of HTML added presentational elements. •^ Ability to specify fonts within paragraph elements,control color more easily, use tables for layout, etc. • Problem: these new elements don’t convey structuralinformation about a document.

Department of Computer Science — University of San Francisco – p. 4/

Invasion of the Web Designers • Previously:

Here’s a heading of a section • Replacing this with

Here’s the heading

gives the

designer more control. • But: the markup information is lost. • Indexing is more difficult. • No information for devices that can’t render Times, ormultiple-sized fonts. • Also, difficult to maintain.

Department of Computer Science — University of San Francisco – p. 5/

CSS rules

-^ CSS is essentially a set of if-then rules that tell:^ •^

What parts of a document to match • How to format elements that match a rule.

-^ The cascade details how to deal with conflicts between rules.

Department of Computer Science — University of San Francisco – p. 7/

A Simple rule

-^ A simple rule to force all H1 elements to be large, red,sans-serif font would be:^ •^

h1 {font-size:

large; font-color:

red;

font-family:

sans-serif;}

-^ h1 is a selector •^ The portion inside brackets is a declaration block.^ •^

Consists of a set of key-value pairs.

-^ You can also specify a set of elements to be matched:^ •^

h2, h3 {color:

blue}^ Department of Computer Science — University of San Francisco – p. 8/

Matching on class

-^ You can also assign class attribute/value pairs to elementsand match on that. •^ Period separates element type from class. •^ ^ and

^ are useful for this.

-^ div.cb {font-size:

110%;}

-^ HTML:

30% labs

-^ span.quote {font-style:

italic}

-^ HTML:

Bart said:

Don’t have a cow, man!

-^ You can also specify a class without an element type:^ •^

.urgent { color:

red; }

-^ This will be applied to any element with the‘urgent’ class

Department of Computer Science — University of San Francisco – p. 10/

Multiple classes

-^ An element can have multiple classes:^ •^

content here

-^ We can write CSS rules that match either or both of these^ •^

div.stuff { font-size:

-^ div.things { font-size:

-^ div.stuff.things { font-size:

Department of Computer Science — University of San Francisco – p. 11/

Matching on Attribute

-^ You can also use the [ ] characters to match on attributes. •^ For example, let’s suppose you want to give all images thathave an “alt” attrribute a red border:^ •^

img[alt] {border:

3px solid red;}

-^ You can also test attribute values:^ •^

img[alt="foo"] {border:

3px solid red;}

-^ a[href="http://www.usfca.edu"][title="USF"]{color:

green }

Department of Computer Science — University of San Francisco – p. 13/

Matching on Pseudo-classes

-^ CSS also lets you match on pseudo-classes (more accuratelycalled state) •^ This includes things like whether the mouse is hovering overan element, or whether a link has been visited. •^ Colon is used as the element/pseudo-class separator^ •^

a {color:

#663366} a:visited {color: #333366} • p:hover {background-color:

#CCCCCC}

Department of Computer Science — University of San Francisco – p. 14/

Conflict resolution

-^ The

cascade

refers to the rules that are used to determine which rule should apply to an element. • For example:^ •^ h3 { color:

blue }

-^ h3.class1 {color:

green }

-^ How does the browser know which color to use for thefollowing elements? •^ hello •^ there

Department of Computer Science — University of San Francisco – p. 16/

Conflict resolution

-^ The most specific rule wins.^ •^

!important can be used to override this. • p.special {color:

#333 !important;

background-color:

white}

-^ Child elements inherit their parents’ properties •^ Except for box-model properties: borders, margins,padding,etc.

Department of Computer Science — University of San Francisco – p. 17/

Page layout

-^ One of CSS’s niftiest features is the ability to specify whereelements should be placed relative to each other. •^ The idea was to give designers something more flexible andappropriate than tables for arranging elements. •^ There are two choices for layout:^ •^

Floating • Positioning

Department of Computer Science — University of San Francisco – p. 19/

Floating

-^ Elements can be floated to the left or right. •^ div.labs {float:

right; }

-^ Other elements “wrap around” them. • The browser will avoid overlapping elements. • This is nice for things like inset images, or drop-in textboxes.

Department of Computer Science — University of San Francisco – p. 20/
