CCNA Lab: Configuring Frame Relay and Subinterfaces (Instructor Guide), Exams of Nursing

Download CCNA Lab: Configuring Frame Relay and Subinterfaces (Instructor Guide) and more Exams Nursing in PDF only on Docsity!

Lab – Configuring Frame Relay and Subinterfaces (Instructor

Version)

Instructor Note : Red font color or Gray highlights indicate text that appears in the instructor copy only.

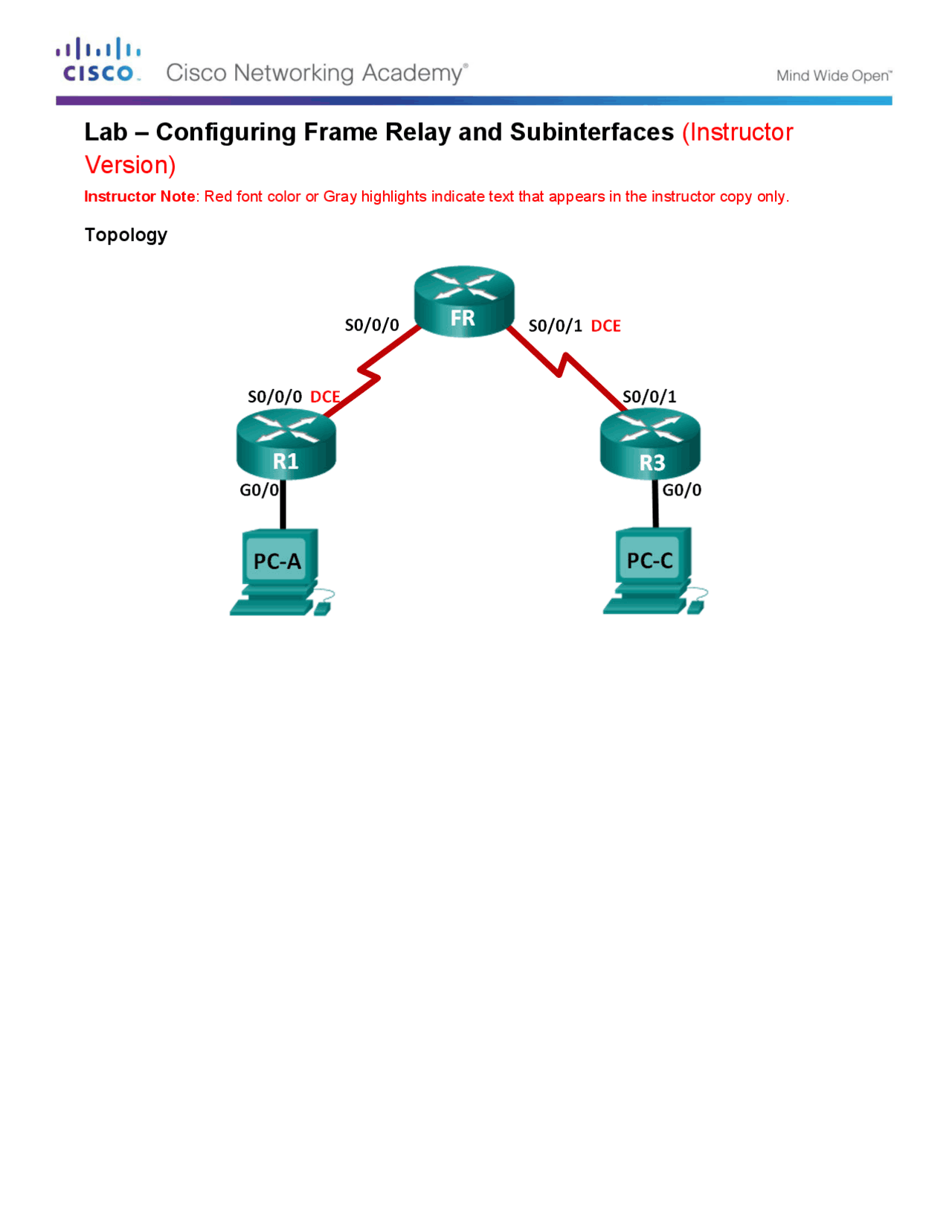

Topology

Addressing Table

Device Interface IPv4 and IPv6 Address Default Gateway

R1 G0/

2001:DB8:ACAD:A::1/

FE80::1 link-local N/A

S0/0/0 (DCE)

2001:DB8:ACAD:B::1/

FE80::1 link-local N/A

FR S0/0/0 N/A N/A

S0/0/1 (DCE) N/A N/A

R3 G0/

2001:DB8:ACAD:C::3/

FE80::3 link-local N/A

S0/0/

2001:DB8:ACAD:B::3/

FE80::3 link-local N/A

PC-A NIC

2001:DB8:ACAD:A::A/

FE80::

PC-C NIC

2001:DB8:ACAD:C::C/

FE80::

Objectives

Part 1: Build the Network and Configure Basic Device Settings

Part 2: Configure a Frame Relay Switch

Part 3: Configure Basic Frame Relay

Part 4: Troubleshoot Frame Relay

Part 5: Configure a Frame Relay Subinterface

Background / Scenario

Frame Relay is a high-performance WAN protocol that operates at the physical and data link layers of the OSI

reference model. Unlike leased lines, Frame Relay requires only a single access circuit to the Frame Relay

provider to communicate with multiple sites that are connected to the same provider.

Frame Relay was one of the most extensively used WAN protocols, primarily because it was relatively

inexpensive compared to dedicated lines. In addition, configuring user equipment in a Frame Relay network is

fairly simple. With the advent of broadband services such as DSL and cable modem, GigaMAN (point-to-point

Ethernet service over fiber-optic cable), VPN, and Multiprotocol Label Switching (MPLS), Frame Relay has

become a less desirable solution for accessing the WAN. However, some rural areas do not have access to

these alternative solutions and still rely on Frame Relay for connectivity to the WAN.

In this lab, you will configure Frame Relay encapsulation on serial links. You will also configure a router to

simulate a Frame Relay switch. You will review Cisco standards and open standards that apply to Frame

Relay. You will also configure Frame Relay point-to-point subinterfaces.

Part 2: Configure a Frame Relay Switch

In Part 2, you will configure a Frame Relay switch. You will create permanent virtual circuits (PVCs) and

assign Data Link Connection Identifiers (DLCIs). This configuration creates two PVCs: one from R1 to R

(DLCI 103), and one from R3 to R1 (DLCI 301).

Step 1: Configure the FR router as a Frame Relay switch.

The frame-relay switching command enables Frame Relay switching globally on a router, allowing it to

forward frames based on the incoming DLCI rather than an IP address.

FR(config)# frame-relay switching

Step 2: Change the interface encapsulation on S0/0/0.

Change the interface encapsulation type to Frame Relay. Like HDLC or PPP, Frame Relay is a data-link layer

protocol that specifies the framing of Layer 2 traffic.

FR(config)# interface s0/0/

FR(config-if)# encapsulation frame-relay

Step 3: Change the interface type to DCE.

Changing the interface type to DCE tells the router to send Local Management Interface (LMI) keepalives and

allows Frame Relay route statements to be applied.

Note : Frame Relay interface types do not need to match the underlying physical interface type. A physical

DTE serial interface can act as a Frame Relay DCE interface, and a physical DCE interface can act as a

logical Frame Relay DTE interface.

FR(config)# interface s0/0/

FR(config-if)# frame-relay intf-type dce

Step 4: Configure DLCI.

Configure the router to forward incoming traffic on interface S0/0/0 with DLCI 103 to S0/0/1 with an output of

DLCI of 301.

FR(config-if)# frame-relay route 103 interface s0/0/1 301

FR(config-if)# no shutdown

Step 5: Configure Frame Relay on S0/0/1.

FR(config)# interface s0/0/

FR(config-if)# encapsulation frame-relay

FR(config-if)# frame-relay intf-type dce

FR(config-if)# frame-relay route 301 interface s0/0/0 103

FR(config-if)# no shutdown

Step 6: Verify Frame Relay configuration.

a. Use the show frame-relay pvc command to verify that Frame Relay is configured correctly.

FR# show frame-relay pvc

PVC Statistics for interface Serial0/0/0 (Frame Relay DCE)

Active Inactive Deleted Static Local 0 0 0 0 Switched 0 1 0 0 Unused 0 0 0 0

DLCI = 103 , DLCI USAGE = SWITCHED, PVC STATUS = INACTIVE, INTERFACE = Serial0/0/

input pkts 0 output pkts 0 in bytes 0 out bytes 0 dropped pkts 0 in pkts dropped 0 out pkts dropped 0 out bytes dropped 0 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out DE pkts 0 out bcast pkts 0 out bcast bytes 0 30 second input rate 0 bits/sec, 0 packets/sec 30 second output rate 0 bits/sec, 0 packets/sec switched pkts 0 Detailed packet drop counters: no out intf 0 out intf down 0 no out PVC 0 in PVC down 0 out PVC down 0 pkt too big 0 shaping Q full 0 pkt above DE 0 policing drop 0 connected to interface Serial0/0/1 301 pvc create time 00:00:53, last time pvc status changed 00:00:

PVC Statistics for interface Serial0/0/1 (Frame Relay DCE)

Active Inactive Deleted Static Local 0 0 0 0 Switched 0 1 0 0 Unused 0 0 0 0

DLCI = 301, DLCI USAGE = SWITCHED, PVC STATUS = INACTIVE, INTERFACE = Serial0/0/

input pkts 0 output pkts 0 in bytes 0 out bytes 0 dropped pkts 0 in pkts dropped 0 out pkts dropped 0 out bytes dropped 0 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out DE pkts 0 out bcast pkts 0 out bcast bytes 0 30 second input rate 0 bits/sec, 0 packets/sec 30 second output rate 0 bits/sec, 0 packets/sec switched pkts 0 Detailed packet drop counters: no out intf 0 out intf down 0 no out PVC 0 in PVC down 0 out PVC down 0 pkt too big 0 shaping Q full 0 pkt above DE 0 policing drop 0 connected to interface Serial0/0/0 103 pvc create time 00:00:16, last time pvc status changed 00:00:

b. Issue the show frame-relay route command. This is the Layer 2 route that Frame Relay traffic takes

through the network. (Do not confuse this with Layer 3 IP routing.)

R3(config-if)# frame-relay map ip 10.1.1.1 301 broadcast

R3(config-if)# frame-relay map ipv6 2001:db8:acad:b::1 301

R3(config-if)# frame-relay map ipv6 fe80::1 301 broadcast

R3(config-if)# frame-relay map ip 10.1.1.2 301

R3(config-if)# frame-relay map ipv6 2001:db8:acad:b::3 301

R3(config-if)# no shutdown

Why is the no shutdown command used after the no frame-relay inverse-arp command?

_______________________________________________________________________________________

_______________________________________________________________________________________

_______________________________________________________________________________________

If you type the no shutdown command first, Inverse ARP may cause Frame Relay to learn Layer 2 to Layer 3

mappings that you may not want. By turning off the Frame Relay Inverse ARP before issuing the no

shutdown command, you ensure that only the statically mapped connections that you want are part of the

Frame Relay maps.

Step 3: Verify that Frame Relay is active.

a. You should now be able to ping R3 from R1. It may take several seconds after bringing up the interfaces

for the PVCs to become active.

R1# ping 10.1.1.

Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.2, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/30/40 ms

R1# ping 2001:db8:acad:b::

Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 2001:DB8:ACAD:B::3, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/28/28 ms

b. Ping R1 from R3.

R3# ping 10.1.1.

Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/28/28 ms

R3# ping 2001:db8:acad:b::

Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 2001:DB8:ACAD:B::1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 24/26/28 ms

c. Issue the show frame-relay pvc command to display PVC status information on R1 and R3.

R1# show frame-relay pvc

PVC Statistics for interface Serial0/0/0 (Frame Relay DTE)

Active Inactive Deleted Static

Local 1 0 0 0 Switched 0 0 0 0 Unused 0 0 0 0

DLCI = 103, DLCI USAGE = LOCAL, PVC STATUS = ACTIVE, INTERFACE = Serial0/0/

input pkts 22 output pkts 154 in bytes 2240 out bytes 10860 dropped pkts 0 in pkts dropped 0 out pkts dropped 0 out bytes dropped 0 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out DE pkts 0 out bcast pkts 134 out bcast bytes 8780 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec pvc create time 01:59:40, last time pvc status changed 01:55:

R3# show frame-relay pvc

PVC Statistics for interface Serial0/0/1 (Frame Relay DTE)

Active Inactive Deleted Static Local 1 0 0 0 Switched 0 0 0 0 Unused 0 0 0 0

DLCI = 301, DLCI USAGE = LOCAL, PVC STATUS = ACTIVE , INTERFACE = Serial0/0/

input pkts 158 output pkts 22 in bytes 11156 out bytes 2240 dropped pkts 0 in pkts dropped 0 out pkts dropped 0 out bytes dropped 0 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out DE pkts 0 out bcast pkts 2 out bcast bytes 160 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec pvc create time 01:57:20, last time pvc status changed 01:56:

d. Issue the show frame-relay route command on FR to verify that status of the Frame Relay map

statements.

FR# show frame-relay route

Input Intf Input Dlci Output Intf Output Dlci Status Serial0/0/0 103 Serial0/0/1 301 active Serial0/0/1 301 Serial0/0/0 103 active

e. Issue the show frame-relay map command on R1 and R3 to display a summary of the static and

dynamic mappings of Layer 3 addresses to DLCIs. Because Inverse ARP has been turned off, there are

only static maps.

R1# show frame-relay map

Serial0/0/0 (up): ipv6 FE80::3 dlci 103(0x67,0x1870), static, broadcast,

R1(config-if)# ipv6 eigrp 1

R3(config)# router eigrp 1

R3(config-router)# no auto-summary

R3(config-router)# eigrp router-id 3.3.3.

R3(config-router)# network 10.1.1.0 0.0.0.

R3(config-router)# network 192.168.3.

R3(config-router)# ipv6 router eigrp 1

R3(config-rtr)# router-id 3.3.3.

R3(config-rtr)# no shutdown

R3(config-rtr)# interface g0/

R3(config-if)# ipv6 eigrp 1

R3(config-if)# interface s0/0/

R3(config-if)# ipv6 eigrp 1

Step 5: Verify end-to-end connectivity.

Ping PC-C from PC-A. If your pings were unsuccessful, troubleshoot until you have end-to-end connectivity.

Note : It may be necessary to disable the PC firewall for pings to be successful.

Part 4: Troubleshoot Frame Relay

In Part 4, you will break the Frame Relay connection established earlier and use some tools to troubleshoot

Frame Relay. A variety of tools are available for troubleshooting Frame Relay connectivity issues.

Step 1: Debug Local Management Interface (LMI).

a. Issue the debug frame-relay lmi command on R1. The output gives detailed information on all LMI data.

Keepalives are sent every 10 seconds by default, so you may have to wait until you see any output. The

output shows an outgoing LMI packet with a sequence number of 50. The last LMI message received

from FR had a sequence number of 49. The output is also showing an incoming LMI message from FR to

R1 with a sequence number of 50. DLCI 103 is the only DLCI on this link, and it is currently active.

R1# debug frame-relay lmi

Frame Relay LMI debugging is on Displaying all Frame Relay LMI data R1# *Jun 26 18:28:45.922: Serial0/0/0(out): StEnq, myseq 50, yourseen 49, DTE up *Jun 26 18:28:45.922: datagramstart = 0xC318D54, datagramsize = 13 *Jun 26 18:28:45.922: FR encap = 0xFCF *Jun 26 18:28:45.922: 00 75 01 01 01 03 02 32 31 *Jun 26 18:28:45.922: *Jun 26 18:28:45.922: Serial0/0/0(in): Status, myseq 50, pak size 13 *Jun 26 18:28:45.922: RT IE 1, length 1, type 1 *Jun 26 18:28:45.922: KA IE 3, length 2, yourseq 50, myseq 50 *Jun 26 18:28:45.922: PVC IE 0x7 , length 0x6 , dlci 103 , status 0x2 , bw 0

b. Issue the undebug all command to turn off debugging.

Note : This command can be abbreviated to u all. This is useful to know when debug information is

flooding the screen.

R1# undebug all

All possible debugging has been turned off

Step 2: Remove the IPv4 frame map from R1.

a. Issue the no frame-relay map command to remove the IPv4 frame map on R1.

R1(config)# interface s0/0/

R1(config-if)# no frame-relay map ip 10.1.1.2 103 broadcast

b. Issue the debug ip icmp command on R1.

R1# debug ip icmp

ICMP packet debugging is on

c. Ping R1 from R3. Pings should not be successful. However, debug messages on R1 show that the ICMP

packets from R3 are reaching R1.

Note : You should see console messages reporting the EIGRP adjacency going up and down. This is

sometimes called flapping.

R3# ping 10.1.1.

Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds: ..... Success rate is 0 percent (0/5)

R1# *Jun 26 20:12:35.693: ICMP: echo reply sent, src 10.1.1.1, dst 10.1.1.2, topology BASE, dscp 0 topoid 0 R1# *Jun 26 20:12:37.689: ICMP: echo reply sent, src 10.1.1.1, dst 10.1.1.2, topology BASE, dscp 0 topoid 0 R1# *Jun 26 20:12:39.689: ICMP: echo reply sent, src 10.1.1.1, dst 10.1.1.2, topology BASE, dscp 0 topoid 0 R1# *Jun 26 20:12:41.689: ICMP: echo reply sent, src 10.1.1.1, dst 10.1.1.2, topology BASE, dscp 0 topoid 0 R1# *Jun 26 20:12:43.689: ICMP: echo reply sent, src 10.1.1.1, dst 10.1.1.2, topology BASE, dscp 0 topoid 0

Why does the ping fail?

____________________________________________________________________________________

____________________________________________________________________________________

The ping fails because R1 has no way to reply. With no way to map the IP address of R3 to a Layer 2

DLCI, it cannot route the response and drops the packet.

d. Issue the show frame-relay map command on R1. The IPv4 map for R3 is missing from the list.

R1# show frame-relay map

Serial0/0/0 (up): ipv6 FE80::3 dlci 103(0x67,0x1870), static, broadcast, CISCO, status defined, active Serial0/0/0 (up): ipv6 2001:DB8:ACAD:B::1 dlci 103(0x67,0x1870), static,

ia - IS-IS inter area, * - candidate default, U - per-user static route o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP

• • replicated route, % - next hop override

Gateway of last resort is not set

10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks C 10.1.1.0/30 is directly connected, Serial0/0/ L 10.1.1.1/32 is directly connected, Serial0/0/ 192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks C 192.168.1.0/24 is directly connected, GigabitEthernet0/ L 192.168.1.1/32 is directly connected, GigabitEthernet0/ D 192.168.3.0/24 [90/2172416] via 10.1.1.2, 00:01:54, Serial0/0/

Step 3: Change the Frame Relay encapsulation type.

Cisco IOS software supports two types of Frame Relay encapsulation: the default Cisco encapsulation and

the standards-based IETF encapsulation.

a. Change the Frame Relay encapsulation on S0/0/1 on R3 to IETF.

R3(config)# interface s0/0/

R3(config-if)# encapsulation frame-relay ietf

b. Issue the show interfaces s0/0/1 command on R3 and FR. Even though the encapsulation is different on

each interface, the link is still active. This is because Cisco routers understand both types of incoming

frames. However, if you have routers from different vendors and you are using Frame Relay, then the

IETF standard must be used.

R3# show interfaces s0/0/

Serial0/0/1 is up, line protocol is up Hardware is WIC MBRD Serial Internet address is 10.1.1.2/ MTU 1500 bytes, BW 1544 Kbit/sec, DLY 20000 usec, reliability 255/255, txload 1/255, rxload 1/ Encapsulation FRAME-RELAY IETF, loopback not set Keepalive set (10 sec) LMI enq sent 1898, LMI stat recvd 1900, LMI upd recvd 0, DTE LMI up

FR# show interfaces s0/0/

Serial0/0/1 is up, line protocol is up Hardware is WIC MBRD Serial MTU 1500 bytes, BW 1544 Kbit/sec, DLY 20000 usec, reliability 255/255, txload 1/255, rxload 1/ Encapsulation FRAME-RELAY, loopback not set Keepalive set (10 sec) LMI enq sent 0, LMI stat recvd 0, LMI upd recvd 0

c. Reset the R3 Frame Relay encapsulation back to Cisco (the default).

R3(config)# interface s0/0/

R3(config-if)# encapsulation frame-relay

Step 4: Change the LMI type.

a. Issue the frame-relay lmi-type ansi command on interface S0/0/1 on R3.

R3(config-if)# frame-relay lmi-type ansi

b. After at least 60 seconds, issue the show interfaces s0/0/1 command on R3. When 60 seconds have

passed, the interface changes its state to up, then down, because R3 is expecting ANSI LMI, and FR is

sending Cisco LMI.

R3# show interfaces s0/0/

Serial0/0/1 is up, line protocol is down Hardware is WIC MBRD Serial Internet address is 10.1.1.2/ MTU 1500 bytes, BW 1544 Kbit/sec, DLY 20000 usec, reliability 255/255, txload 1/255, rxload 1/ Encapsulation FRAME-RELAY, loopback not set Keepalive set (10 sec) LMI enq sent 2157, LMI stat recvd 2136, LMI upd recvd 0, DTE LMI down LMI enq recvd 0, LMI stat sent 0, LMI upd sent 0 LMI DLCI 0 LMI type is ANSI Annex D frame relay DTE segmentation inactive FR SVC disabled, LAPF state down Broadcast queue 0/64, broadcasts sent/dropped 733/0, interface broadcast

c. On R3, issue the show frame-relay lmi command to display LMI information, including LMI type, number

of timeouts, and the amount of time since the last full update.

R3# show frame-relay lmi

LMI Statistics for interface Serial0/0/1 (Frame Relay DTE) LMI TYPE = ANSI Invalid Unnumbered info 0 Invalid Prot Disc 0 Invalid dummy Call Ref 0 Invalid Msg Type 0 Invalid Status Message 0 Invalid Lock Shift 0 Invalid Information ID 0 Invalid Report IE Len 0 Invalid Report Request 0 Invalid Keep IE Len 0 Num Status Enq. Sent 2158 Num Status msgs Rcvd 2136 Num Update Status Rcvd 0 Num Status Timeouts 23 Last Full Status Req 00:00:05 Last Full Status Rcvd 00:04:

d. On R3, issue the debug frame-relay lmi command. The LMI packets no longer display in pairs. While all

outgoing LMI messages are logged, no incoming messages display because R3 is expecting ANSI LMI,

and FR is sending Cisco LMI.

R3# debug frame-relay lmi

Frame Relay LMI debugging is on Displaying all Frame Relay LMI data R3# *Jun 26 21:49:10.829: Serial0/0/1(out): StEnq, myseq 104, yourseen 0, DTE down *Jun 26 21:49:10.829: datagramstart = 0xC313554, datagramsize = 14 *Jun 26 21:49:10.829: FR encap = 0x *Jun 26 21:49:10.829: 00 75 95 01 01 00 03 02 68 00 *Jun 26 21:49:10.829: R3# *Jun 26 21:49:20.829: Serial0/0/1(out): StEnq, myseq 105, yourseen 0, DTE down

Part 5: Configure a Frame Relay Subinterface

Frame Relay supports two types of subinterfaces: point-to-point and point-to-multipoint. Point-to-multipoint

subinterfaces support non-broadcast multiaccess topologies. For example, a hub and spoke topology would

use a point-to-multipoint subinterface. In Part 5, you will create a point-to-point subinterface.

Step 1: On the FR router, create new PVCs between R1 and R3.

FR(config)# interface s0/0/

FR(config-if)# frame-relay route 113 interface s0/0/1 311

FR(config-if)# interface s0/0/

FR(config-if)# frame-relay route 311 interface s0/0/0 113

Step 2: Create and configure a point-to-point subinterface on R1 and R3.

Note : Frame Relay encapsulation must be specified on the physical interface before subinterfaces can be

created.

a. Create subinterface 113 as a point-to-point interface on R1.

R1(config)# interface s0/0/0.113 point-to-point

R1(config-subif)# ip address 10.1.1.5 255.255.255.

R1(config-subif)# ipv6 address 2001:db8:acad:d::1/

R1(config-subif)# ipv6 address fe80::1 link-local

R1(config-subif)# frame-relay interface-dlci 113

R1(config-fr-dlci)#

b. Create subinterface 311 as a point-to-point subinterface on R3.

R3(config)# interface s0/0/1.311 point-to-point

R3(config-subif)# ip address 10.1.1.6 255.255.255.

R3(config-subif)# ipv6 address 2001:db8:acad:d::3/

R3(config-subif)# ipv6 address fe80::3 link-local

R3(config-subif)# frame-relay interface-dlci 311

R3(config-fr-dlci)#

c. Verify connectivity.

R1# ping 10.1.1.

Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.6, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/28/28 ms

R1# ping 2001:db8:acad:d::

Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 2001:DB8:ACAD:D::3, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/28/28 ms

R3# ping 10.1.1.

Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 10.1.1.5, timeout is 2 seconds: !!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 28/28/28 ms

R3# ping 2001:db8:acad:d::

Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 2001:DB8:ACAD:D::1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 28/28/28 ms

d. Issue the show frame-relay pvc command on R1 and R3 to display the PVC status.

R1# show frame-relay pvc

PVC Statistics for interface Serial0/0/0 (Frame Relay DTE)

Active Inactive Deleted Static Local 2 0 0 0 Switched 0 0 0 0 Unused 0 0 0 0

DLCI = 103, DLCI USAGE = LOCAL, PVC STATUS = ACTIVE, INTERFACE = Serial0/0/

input pkts 1170 output pkts 1408 in bytes 92566 out bytes 105327 dropped pkts 0 in pkts dropped 0 out pkts dropped 0 out bytes dropped 0 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out DE pkts 0 out bcast pkts 1160 out bcast bytes 89034 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec pvc create time 07:53:13, last time pvc status changed 00:35:

DLCI = 113, DLCI USAGE = LOCAL, PVC STATUS = ACTIVE, INTERFACE = Serial0/0/0.

input pkts 86 output pkts 494 in bytes 20916 out bytes 45208 dropped pkts 0 in pkts dropped 0 out pkts dropped 0 out bytes dropped 0 in FECN pkts 0 in BECN pkts 0 out FECN pkts 0 out BECN pkts 0 in DE pkts 0 out DE pkts 0 out bcast pkts 464 out bcast bytes 42088 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 0 bits/sec, 0 packets/sec pvc create time 00:35:58, last time pvc status changed 00:35:

R3# show frame-relay pvc

PVC Statistics for interface Serial0/0/1 (Frame Relay DTE)

Active Inactive Deleted Static Local 2 0 0 0 Switched 0 0 0 0 Unused 0 0 0 0

status defined, active

R3# show frame-relay map

Serial0/0/1 (up): ipv6 FE80::1 dlci 301(0x12D,0x48D0), static, broadcast, CISCO, status defined, active Serial0/0/1 (up): ipv6 2001:DB8:ACAD:B::3 dlci 301(0x12D,0x48D0), static, CISCO, status defined, active Serial0/0/1 (up): ip 10.1.1.2 dlci 301(0x12D,0x48D0), static, CISCO, status defined, active Serial0/0/1 (up): ipv6 2001:DB8:ACAD:B::1 dlci 301(0x12D,0x48D0), static, CISCO, status defined, active Serial0/0/1 (up): ip 10.1.1.1 dlci 301(0x12D,0x48D0), static, broadcast, CISCO, status defined, active Serial0/0/1.311 (up): point-to-point dlci, dlci 311(0x137,0x4C70), broadcast status defined, active

Reflection

1. What is a PVC and how is it used?

_______________________________________________________________________________________

_______________________________________________________________________________________

_______________________________________________________________________________________

A PVC is a permanent virtual circuit. This is a Layer 2 connection created between endpoints through a

Frame Relay cloud. There can be multiple PVCs per physical interface, allowing multiple point-to-point

connections or point-to-multipoint connections.

2. What is the purpose of a DLCI?

_______________________________________________________________________________________

A DLCI is a Layer 2 Frame Relay address that Inverse ARP uses to obtain an associated Layer 3 IP address.

3. What purpose does the Local Management Interface (LMI) serve in a Frame Relay network?

_______________________________________________________________________________________

_______________________________________________________________________________________

_______________________________________________________________________________________

_______________________________________________________________________________________

The LMI is a signaling protocol that exchanges information between a router and a Frame Relay switch. The

LMI exchanges information on keepalives, PVC status (active, inactive, deleted, unused), and IP addresses

(when Inverse ARP is enabled). This information is used as a status mechanism between the router (DTE)

and the Frame Relay switch (DCE).

4. Why would you use subinterfaces with Frame Relay?

_______________________________________________________________________________________

_______________________________________________________________________________________

_______________________________________________________________________________________

_______________________________________________________________________________________

Subinterfaces address the limitations of Frame Relay networks by providing a way to subdivide a partially

meshed Frame Relay network into a number of smaller, fully meshed, or point-to-point subnetworks. Each

subnetwork is assigned its own network number and appears to the protocols as if it were reachable through

a separate interface.

Router Interface Summary Table

Router Interface Summary

Router Model Ethernet Interface #1 Ethernet Interface #2 Serial Interface #1 Serial Interface

1800 Fast Ethernet 0/

(F0/0)

Fast Ethernet 0/

(F0/1)

Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1)

1900 Gigabit Ethernet 0/

(G0/0)

Gigabit Ethernet 0/

(G0/1)

Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1)

2801 Fast Ethernet 0/

(F0/0)

Fast Ethernet 0/

(F0/1)

Serial 0/1/0 (S0/1/0) Serial 0/1/1 (S0/1/1)

2811 Fast Ethernet 0/

(F0/0)

Fast Ethernet 0/

(F0/1)

Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1)

2900 Gigabit Ethernet 0/

(G0/0)

Gigabit Ethernet 0/

(G0/1)

Serial 0/0/0 (S0/0/0) Serial 0/0/1 (S0/0/1)

Note : To find out how the router is configured, look at the interfaces to identify the type of router and how many

interfaces the router has. There is no way to effectively list all the combinations of configurations for each router

class. This table includes identifiers for the possible combinations of Ethernet and Serial interfaces in the device.

The table does not include any other type of interface, even though a specific router may contain one. An

example of this might be an ISDN BRI interface. The string in parenthesis is the legal abbreviation that can be

used in Cisco IOS commands to represent the interface.

Device Configs

Router R1 (After Parts 1 and 2 of this lab)

R1# show run

Building configuration...

Current configuration : 1606 bytes

version 15.

service timestamps debug datetime msec

service timestamps log datetime msec

service password-encryption

hostname R

boot-start-marker

boot-end-marker

enable secret 4 06YFDUHH61wAE/kLkDq9BGho1QM5EnRtoyr8cHAUg.
