ExamSprint Handbook

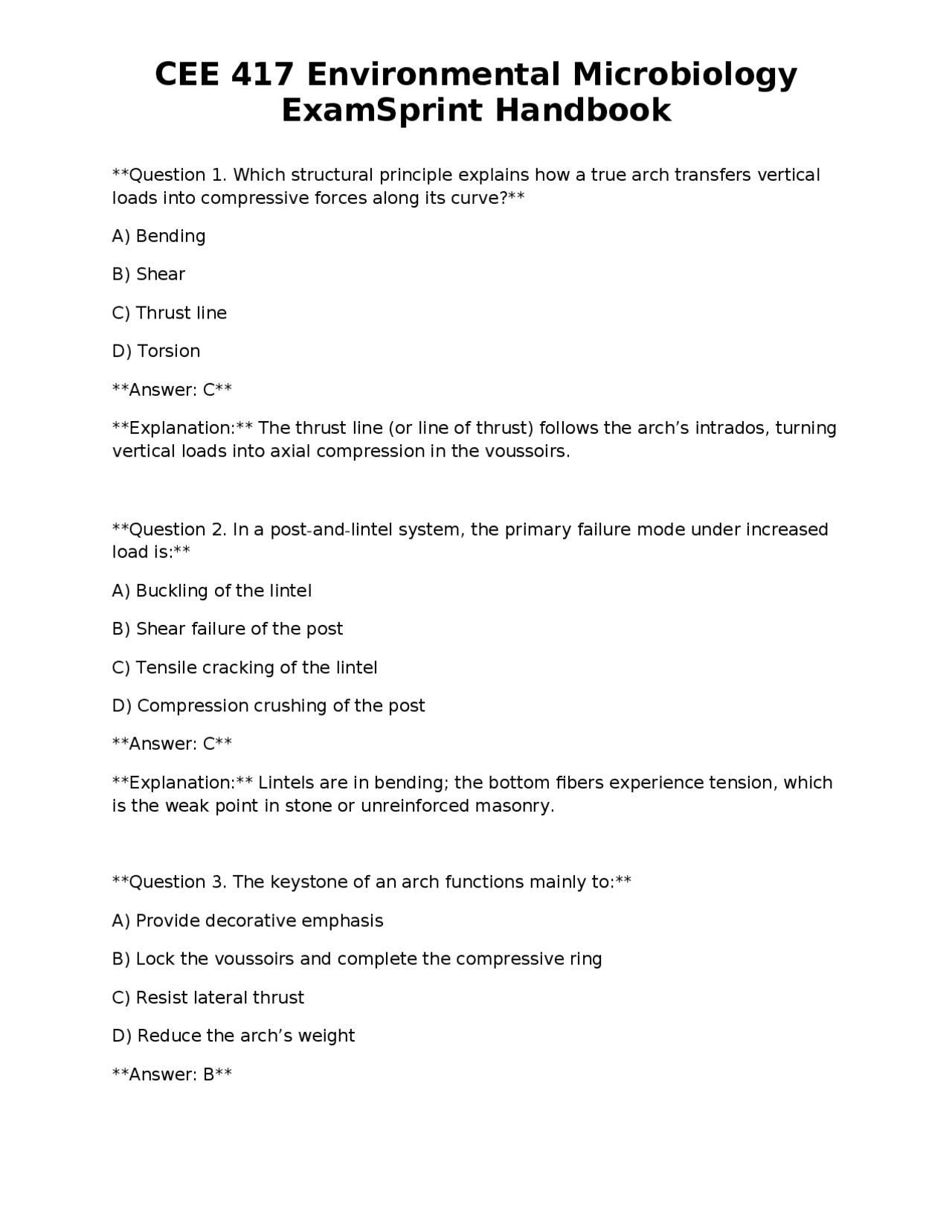

Question 1. Which structural principle explains how a true arch transfers vertical loads into compressive forces along its curve? A) Bending B) Shear C) Thrust line D) Torsion Answer: C Explanation: The thrust line (or line of thrust) follows the arch’s intrados, turning vertical loads into axial compression in the voussoirs. Question 2. In a post-and-lintel system, the primary failure mode under increased load is: A) Buckling of the lintel B) Shear failure of the post C) Tensile cracking of the lintel D) Compression crushing of the post Answer: C Explanation: Lintels are in bending; the bottom fibers experience tension, which is the weak point in stone or unreinforced masonry. Question 3. The keystone of an arch functions mainly to: A) Provide decorative emphasis B) Lock the voussoirs and complete the compressive ring C) Resist lateral thrust D) Reduce the arch’s weight Answer: B
ExamSprint Handbook
Explanation: Inserting the keystone completes the arch, allowing all voussoirs to press against each other in compression. Question 4. Which vault form results from intersecting two barrel vaults at right angles? A) Ribbed vault B) Groin vault C) Cloister vault D) Fan vault Answer: B Explanation: A groin vault is created where two barrel vaults intersect, forming a pointed “groin” that efficiently transfers loads to the four corners. Question 5. Ancient builders relied on geometry rather than material tensile strength because: A) They used steel reinforcement B) Their materials were highly ductile C) Stone and mud-brick have high compressive but low tensile capacity D) They employed modern concrete mixes Answer: C Explanation: Stone and mud-brick resist compression well but fail in tension; geometry (arches, domes) puts material in compression. Question 6. The primary load-path in a monolithic dome is: A) Axial tension in the dome skin B) Shear along the base C) Radial compression toward the center
ExamSprint Handbook
B) The wedge-shaped stones that form an arch C) The mortar used in ancient masonry D) The wooden centering used during construction Answer: B Explanation: Voussoirs are the individual wedge-shaped blocks that compose an arch, transmitting compressive forces. Question 10. Lateral thrust generated by an arch is typically resisted by: A) Reinforced steel bars B) Flying buttresses or massive abutments C) Tension cables only D) Concrete slabs Answer: B Explanation: In historic masonry, massive abutments or buttresses absorb the outward thrust of arches. Question 11. The primary reason barrel vaults can span large spaces without intermediate supports is: A) Use of steel reinforcement B) The compressive arch action along the entire curvature C) High tensile strength of stone D) Incorporation of timber ribs Answer: B Explanation: A barrel vault acts as a continuous arch, keeping all masonry in compression.
ExamSprint Handbook
Question 12. Which ancient structural system is most effective for resisting seismic forces due to its flexibility? A) Massive stone domes B) Wood-frame post-and-lintel C) Mud-brick thick walls D) Roman concrete arches Answer: B Explanation: Wood frames have inherent ductility, allowing them to absorb and dissipate seismic energy better than brittle stone. Question 13. In the physics of the arch, the “catenary” shape is ideal because: A) It maximizes tensile forces B) It follows the line of pure compression under uniform load C) It reduces material cost D) It creates a decorative curve Answer: B Explanation: A catenary curve aligns with the line of thrust for a uniformly distributed load, keeping the arch in pure compression. Question 14. The term “monolithic” in ancient construction most accurately describes: A) A structure built from a single piece of stone B) A masonry wall with multiple bricks C) A concrete slab poured in place D) A timber frame with infill panels Answer: A
ExamSprint Handbook
D) The lateral buttress Answer: B Explanation: Intrados refers to the interior surface of the arch, opposite the extrados. Question 18. Which statement best describes why ancient domes often employ a “drum” base? A) To increase tensile capacity B) To provide a transition from circular base to square plan and reduce thrust C) To house decorative frescoes D) To allow for water drainage Answer: B Explanation: A drum raises the dome, reducing thrust at the base and facilitating the transition from a square or octagonal support. Question 19. The term “load path” in structural analysis refers to: A) The sequence of construction steps B) The route through which forces travel from applied loads to the foundation C) The aesthetic flow of a building’s design D) The hydraulic gradient in aqueducts Answer: B Explanation: Load path traces how loads are transferred through structural elements to the ground. Question 20. In a true arch, the compressive forces are primarily directed along: A) The mortar joints
ExamSprint Handbook
B) The vertical axis of the supports C) The line of thrust, which follows the arch curve D) The horizontal plane of the floor Answer: C Explanation: The line of thrust aligns with the arch’s geometry, keeping forces in compression within the voussoirs. Question 21. Which ancient construction technique allowed builders to move multi-ton megaliths over long distances? A) Hydraulic lifts B) Rolling on logs and sledges with lubricated pathways C) Modern cranes D) Air-bag flotation Answer: B Explanation: Ancient engineers used log rollers, sledges, and water or oil lubricants to reduce friction. Question 22. The primary weathering process that causes “spalling” on stone surfaces is: A) Frost heave B) Salt crystallization C) Biological growth D) Thermal expansion Answer: D Explanation: Repeated heating and cooling cause surface layers to detach, leading to spalling.
ExamSprint Handbook
Explanation: Limestone is calcined to quicklime, slaked with water to form lime putty, then carbonates from atmospheric CO₂ to harden. Question 26. Adobe bricks gain additional strength primarily from: A) Reinforcing steel bars B) Organic fibers such as straw or dung C) High-temperature firing D) Adding Portland cement Answer: B Explanation: Fibers distribute tensile stresses and reduce cracking in sun-dried earth bricks. Question 27. The main chemical process responsible for the deterioration of marble in polluted urban environments is: A) Oxidation of iron impurities B) Sulfation leading to gypsum formation C) Carbonation of calcium carbonate D) Freeze-thaw cycles Answer: B Explanation: Sulfur dioxide reacts with calcium carbonate to form gypsum, which flakes off the marble surface. Question 28. In ancient quarrying, the “plug and feather” technique was used to: A) Shape stone with fire B) Split stone blocks along a predetermined line C) Polish surfaces with sand
ExamSprint Handbook
D) Transport blocks on sleds Answer: B Explanation: Plug and feather wedges are driven into a drilled line to create controlled splits. Question 29. Which of the following is a major cause of salt crystallization damage in historic masonry? A) Excessive moisture evaporation leading to supersaturated solutions in pores B) High wind pressure C) Direct sunlight heating D) Seismic shaking Answer: A Explanation: When water evaporates, salts precipitate as crystals that exert pressure, causing spalling. Question 30. The term “opacification” in the context of Roman concrete refers to: A) The addition of pigments for color B) The inclusion of lightweight volcanic aggregates that reduce density C) The process of making concrete opaque to UV light D) The carbonation of surface layers Answer: B Explanation: Lightweight volcanic pumice and tuff reduce density and improve buoyancy of Roman marine concrete. Question 31. Which ancient building material exhibits the highest resistance to chemical erosion in seawater?
ExamSprint Handbook
Question 34. In the Parthenon, the slight curvature of the stylobate was introduced to: A) Accommodate seismic movement B) Counteract the optical illusion of sagging C) Facilitate drainage of rainwater D) Reduce material usage Answer: B Explanation: The upward curvature (up-bow) makes the platform appear level to the human eye. Question 35. Which structural feature of the Pantheon’s dome reduces its overall weight? A) Use of solid granite throughout B) Incorporation of a central oculus only C) Use of lightweight volcanic pumice aggregate in the concrete D) Thickening of the dome base Answer: C Explanation: The Romans mixed pumice and tuff, lowering the density of the concrete in the upper dome. Question 36. The Colosseell’s “vomitoria” were designed to: A) Provide ventilation for the arena B) Allow rapid ingress and egress of spectators C) Serve as underground water channels D) Store animal carcasses Answer: B
ExamSprint Handbook
Explanation: Vomitoria are passageways that enable efficient crowd movement. Question 37. In Mayan architecture, corbelled arches are primarily distinguished from true arches because they: A) Rely on true compression rings B) Use a series of overlapping stones that do not produce a continuous compressive ring C) Require steel reinforcement D) Are built with concrete Answer: B Explanation: Corbelled arches step inward with each course, leaving a gap at the top, unlike true arches. Question 38. Ziggurats were primarily constructed using: A) Fired bricks with mortar B) Massive stone blocks without mortar C) Sun-dried mud bricks with bitumen as binder D) Timber frames with thatch infill Answer: C Explanation: Mud bricks bound with bitumen or gypsum were typical for Mesopotamian ziggurats. Question 39. The “hypostyle hall” in Egyptian temples is characterized by: A) A single large column supporting a dome B) A roof supported by a forest of columns C) An open courtyard without columns
ExamSprint Handbook
B) The speed of sound through the material, indicating density and integrity C) Magnetic permeability D) Moisture content only Answer: B Explanation: Faster pulse velocities generally indicate denser, less damaged stone or mortar. Question 43. Thermography applied to historic walls can reveal: A) Structural reinforcement locations B) Hidden cracks, moisture ingress, and delamination due to temperature differentials C) Exact chemical composition of the stone D) The original construction date Answer: B Explanation: Infrared imaging detects temperature variations caused by defects like cracks or damp areas. Question 44. Heyman’s Safe Theorem for masonry structures states that a wall is safe if: A) Tensile stress is less than the material’s tensile strength B) The sum of axial compressive stress and half the shear stress does not exceed the compressive strength C) The wall’s weight is less than the foundation capacity D) The wall deflection is below a preset limit Answer: B Explanation: Heyman’s theorem provides a limit-state criterion combining axial and shear stresses for masonry.
ExamSprint Handbook
Question 45. In seismic retrofitting of historic stone arches, the insertion of “base isolators” aims to: A) Increase the arch’s compressive strength B) Decouple the arch from ground motion, reducing transmitted forces C) Add decorative lighting D) Replace the keystone with steel Answer: B Explanation: Base isolators absorb and dissipate seismic energy, protecting the superstructure. Question 46. The primary cause of “leaning” in ancient towers such as the Leaning Tower of Pisa is: A) Uneven settlement of foundations due to variable soil compressibility B) Wind loading alone C) Intentional design for aesthetic effect D) Overloading from added floors Answer: A Explanation: Differential soil compression causes one side of the foundation to settle more, producing a lean. Question 47. Deformation monitoring of historic masonry often employs which technology for precise movement detection? A) Laser scanning (LiDAR) B) Hand-held tape measures only C) Visual inspection without tools D) Acoustic emission sensors only
ExamSprint Handbook
B) Its low permeability, which traps moisture and accelerates decay of the original masonry C) Its similar color to lime mortar D) Its ability to set underwater Answer: B Explanation: Portland cement creates a rigid, impermeable layer that prevents vapor diffusion, leading to moisture buildup and damage in lime mortars. Question 51. Which mineral component in limestone is most susceptible to dissolution in acidic rain? A. Quartz B. Calcite C. Feldspar D. Gypsum Answer: B Explanation: Calcite reacts readily with carbonic acid, causing limestone to dissolve. Question 52. In Roman concrete, the pozzolanic reaction primarily produces which binding phase? A. Calcium silicate hydrate (C-S-H) B. Calcium aluminate hydrate C. Calcium carbonate D. Magnesium oxychloride Answer: A Explanation: The pozzolanic reaction between silica in ash and calcium hydroxide forms C-S-H, giving strength.
ExamSprint Handbook
Question 53. The term “tuff” refers to: A. A fine-grained volcanic ash rock used as a lightweight aggregate in ancient concrete B. A type of limestone rich in fossils C. A metamorphic marble variant D. A synthetic polymer binder Answer: A Explanation: Tuff is a consolidated volcanic ash, valued for its low density. Question 54. Which of the following is a primary advantage of using hydraulic lime over non-hydraulic lime in marine environments? A. Faster drying time in air B. Ability to set under water due to reaction with water, not just CO₂ C. Higher tensile strength D. Resistance to freeze-thaw cycles Answer: B Explanation: Hydraulic lime contains silicates that react with water, allowing it to harden in wet conditions. Question 55. The presence of “pitting” on a marble surface is most often caused by: A. Mechanical abrasion only B. Acidic pollutants reacting with calcium carbonate C. Thermal expansion D. Biological colonization
