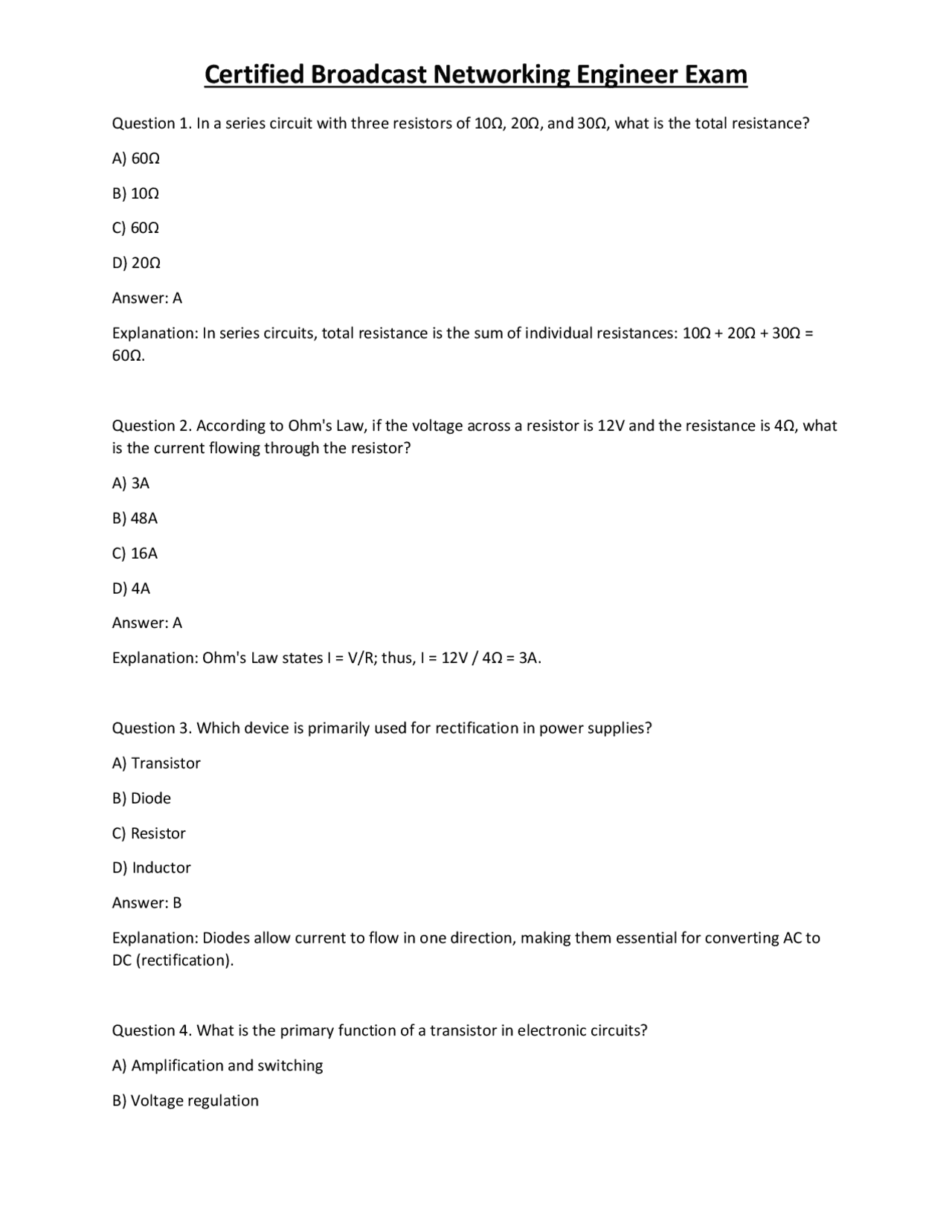

Question 1. In a series circuit with three resistors of 10Ω, 20Ω, and 30Ω, what is the total resistance? A) 60Ω B) 10Ω C) 60Ω D) 20Ω Answer: A Explanation: In series circuits, total resistance is the sum of individual resistances: 10Ω + 20Ω + 30Ω = 60Ω. Question 2. According to Ohm's Law, if the voltage across a resistor is 12V and the resistance is 4Ω, what is the current flowing through the resistor? A) 3A B) 48A C) 16A D) 4A Answer: A Explanation: Ohm's Law states I = V/R; thus, I = 12V / 4Ω = 3A. Question 3. Which device is primarily used for rectification in power supplies? A) Transistor B) Diode C) Resistor D) Inductor Answer: B Explanation: Diodes allow current to flow in one direction, making them essential for converting AC to DC (rectification). Question 4. What is the primary function of a transistor in electronic circuits? A) Amplification and switching B) Voltage regulation
C) Power storage D) Signal filtering Answer: A Explanation: Transistors are used mainly for amplifying signals and switching operations in electronic systems. Question 5. In an AC waveform, the RMS value of a 120V peak voltage is approximately: A) 120V B) 85V C) 169V D) 60V Answer: B Explanation: RMS value = Peak / √2; thus, 120V / 1.414 ≈ 85V. Question 6. Which of the following best describes the concept of impedance in AC circuits? A) Pure resistance only B) Total opposition to current, including resistance and reactance C) Capacitance in a circuit D) The physical length of a wire Answer: B Explanation: Impedance combines resistance and reactance (capacitive and inductive), representing the total opposition to AC current. Question 7. In microwave waveguides, TE modes refer to: A) Transverse Electric modes where electric field is transverse to the direction of propagation B) Transverse Magnetic modes with magnetic field transverse C) Longitudinal modes D) Modes with no cutoff frequency Answer: A
Question 11. Which component is essential for preventing static buildup and lightning strikes in microwave radio installations? A) Fuse B) Lightning arrestor (surge protector) C) Transformer D) Voltage regulator Answer: B Explanation: Lightning arrestors dissipate high-voltage surges, protecting equipment from lightning- induced damage. Question 12. The primary function of a spectrum analyzer is to measure: A) Power, frequency, and spectral content of signals B) Resistance and impedance C) Voltage and current D) Digital logic states Answer: A Explanation: Spectrum analyzers visualize the spectral composition of signals, measuring power levels across frequencies. Question 13. In digital electronics, the hexadecimal number 0x1A is equivalent to which decimal number? A) 26 B) 16 C) 10 D) 42 Answer: A Explanation: Hex 0x1A = (1×16) + (10) = 26 in decimal. Question 14. Which logic gate outputs true only when all inputs are true?
A) AND gate B) OR gate C) NOT gate D) XOR gate Answer: A Explanation: The AND gate outputs true only when all inputs are true. Question 15. What is the main purpose of a TDM (Time-Division Multiplexing) system in microwave communications? A) To transmit multiple signals over a single channel by dividing time B) To combine multiple signals into a single frequency C) To amplify signals D) To convert digital signals into analog Answer: A Explanation: TDM divides the channel into time slots, allowing multiple signals to share the same medium sequentially. Question 16. The Maxwell's equations primarily describe: A) The behavior of electromagnetic waves B) The flow of current in resistors C) Quantum mechanics D) The operation of digital logic gates Answer: A Explanation: Maxwell's equations form the foundation of electromagnetic wave theory, describing how electric and magnetic fields propagate. Question 17. Free space path loss (FSPL) increases with: A) Higher frequency and longer distance B) Lower frequency and shorter distance C) Higher power output
Explanation: Parabolic dish antennas provide high gain and narrow beamwidth, ideal for satellite links. Question 21. The purpose of a circulator in microwave systems is to: A) Direct signals sequentially between ports without interference B) Amplify signals C) Filter specific frequencies D) Convert digital signals to analog Answer: A Explanation: Circulators route signals directionally between ports, preventing reflections and enabling isolation. Question 22. In a point-to-point microwave link, the primary advantage of using a line-of-sight path is: A) Minimal signal loss and high data rate B) Resistance to weather conditions C) Unlimited transmission distance D) No need for alignment Answer: A Explanation: LOS paths reduce obstacles and reflections, enabling high-quality, high-capacity links. Question 23. The primary function of a Low Noise Amplifier (LNA) is to: A) Amplify weak signals with minimal added noise B) Convert digital signals to analog C) Provide power amplification D) Filter out unwanted frequencies Answer: A Explanation: LNAs boost weak incoming signals while preserving signal integrity by adding minimal noise. Question 24. Which transmission line type is most commonly used at microwave frequencies due to its low loss and high isolation?
A) Coaxial cable B) Twisted pair C) Open wire line D) Fiber optic cable Answer: A Explanation: Coaxial cables are favored at microwave frequencies for their low loss and shielding effectiveness. Question 25. In digital communication, the process of converting an analog signal into a digital bit stream is called: A) Sampling and quantization B) Modulation C) Coding D) Demodulation Answer: A Explanation: Sampling captures the continuous signal at discrete intervals; quantization assigns amplitude levels, forming the digital bit stream. Question 26. The primary purpose of a power divider in microwave systems is to: A) Split power equally among outputs B) Combine multiple signals C) Amplify signals D) Filter specific frequencies Answer: A Explanation: Power dividers distribute input power to multiple outputs with minimal loss, used in measurement and antenna arrays. Question 27. Which property of electromagnetic waves determines their ability to diffract around obstacles? A) Wavelength
Answer: A Explanation: The 3 dB beamwidth indicates the angular width where the antenna gain is at least half of its maximum. Question 31. Which test equipment is most suitable for measuring the complex S-parameters of a microwave device? A) Network analyzer B) Spectrum analyzer C) Oscilloscope D) Power meter Answer: A Explanation: Network analyzers measure S-parameters, providing detailed reflection and transmission characteristics. Question 32. Which of the following best describes the role of a BJT in microwave systems? A) Amplification and switching B) Frequency filtering C) Power conversion D) Voltage regulation Answer: A Explanation: Bipolar Junction Transistors (BJTs) are used for high-frequency amplification and switching tasks. Question 33. The primary reason for using a waveguide instead of coaxial cable at microwave frequencies is: A) Lower loss and higher power handling B) Simpler installation C) Cost-effectiveness D) Better flexibility Answer: A
Explanation: Waveguides offer lower attenuation and can handle higher power levels, suitable for microwave frequencies. Question 34. Which is the main function of a band-pass filter in microwave communication systems? A) To pass signals within a specific frequency range while attenuating others B) To block all signals C) To convert analog signals to digital D) To amplify signals Answer: A Explanation: Band-pass filters allow signals within a certain bandwidth to pass while suppressing others outside it. Question 35. When troubleshooting a microwave link, a high SWR (Standing Wave Ratio) indicates: A) Mismatch between antenna and transmission line B) Perfect impedance matching C) Low signal attenuation D) High power output Answer: A Explanation: High SWR signifies impedance mismatch, leading to reflections and potential signal loss. Question 36. Which type of modulation encodes information by varying the phase of the carrier wave? A) PSK (Phase Shift Keying) B) FSK (Frequency Shift Keying) C) ASK (Amplitude Shift Keying) D) AM (Amplitude Modulation) Answer: A Explanation: PSK modulates data by shifting the phase of the carrier signal, common in microwave communications. Question 37. The main purpose of a multiplexer in microwave systems is to:
Answer: A Explanation: Fall protection is essential for preventing injuries during tower climbing and maintenance. Question 41. The purpose of grounding in microwave radio installations is to: A) Protect personnel and equipment from electrical faults B) Improve signal quality C) Increase antenna gain D) Reduce power consumption Answer: A Explanation: Proper grounding provides safety by directing fault currents safely to earth, reducing shock hazards. Question 42. In the context of network management, SNMP is used to: A) Monitor and manage network devices remotely B) Encrypt data transmissions C) Provide high-speed data transfer D) Synchronize clocks Answer: A Explanation: Simple Network Management Protocol (SNMP) enables remote monitoring and management of network devices. Question 43. Which type of digital logic circuit is used to store binary data? A) Flip-Flop B) Encoder C) Multiplexer D) Adder Answer: A Explanation: Flip-flops store one bit of binary data and are fundamental in memory and sequential logic circuits.
Question 44. In a microwave link, the use of diversity schemes helps to: A) Reduce multipath fading effects B) Increase bandwidth C) Decrease transmit power D) Simplify installation Answer: A Explanation: Diversity techniques, such as space diversity, mitigate fading by combining signals received via multiple paths. Question 45. When performing a site survey for microwave installations, what is a critical factor to consider? A) Obstruction-free line-of-sight path B) Proximity to retail stores C) Availability of fiber optic cable D) Building height Answer: A Explanation: A clear LOS path is essential for reliable microwave communication, minimizing signal attenuation and blockage. Question 46. In a typical microwave system's architecture, the function of a demodulator is to: A) Extract digital data from modulated RF signals B) Convert DC to AC power C) Amplify the RF signal D) Filter out unwanted frequencies Answer: A Explanation: Demodulators decode the modulated RF signals, retrieving the original digital data. Question 47. Which component is used at microwave frequencies to control the phase of a signal for phase shifters? A) Varactor diode
C) To provide power regulation D) To convert analog signals to digital Answer: A Explanation: Microcontrollers automate system operations, including modulation, control, and communication tasks. Question 51. When performing a site grounding, the grounding conductor should be connected: A) To a dedicated grounding rod or plate B) To the building’s electrical panel C) To the antenna feed line D) To the power supply line Answer: A Explanation: A dedicated grounding rod or plate ensures effective grounding and safety for microwave equipment. Question 52. The purpose of an RF power meter is to measure: A) The average or peak power of RF signals B) The impedance of the transmission line C) The bandwidth of the signal D) The quality of the digital signal Answer: A Explanation: RF power meters quantify the power level of RF signals, essential for system calibration and troubleshooting. Question 53. Which of the following is a common cause of high VSWR in microwave links? A) Impedance mismatch B) Proper antenna alignment C) Excessive bandwidth D) Low power output Answer: A
Explanation: Impedance mismatch causes reflections, leading to high VSWR, which can damage equipment and degrade performance. Question 54. The main advantage of using fiber optic cables in microwave backhaul links is: A) Very low loss and high bandwidth capacity B) Cost savings C) Ease of installation D) Flexibility Answer: A Explanation: Fiber optics offer minimal signal attenuation and can support high data rates over long distances. Question 55. The primary function of a band-reject (notch) filter is to: A) Attenuate signals within a specific frequency band B) Pass signals within a specific frequency band C) Amplify signals D) Convert analog to digital Answer: A Explanation: A notch filter suppresses signals within a narrow frequency range, reducing interference. Question 56. In microwave engineering, a 'cut-off frequency' defines: A) The minimum frequency at which a waveguide mode propagates B) The maximum frequency of a filter C) The frequency where impedance is matched D) The resonant frequency of an antenna Answer: A Explanation: The cutoff frequency determines whether a particular waveguide mode can propagate; below it, the mode is attenuated. Question 57. Which of the following best describes the effect of rain attenuation on microwave signals?
Answer: A Explanation: TDR sends a pulse down a cable and measures reflections to locate faults or impedance discontinuities. Question 61. The main purpose of a power amplifier in a microwave radio system is to: A) Increase the signal power for transmission over long distances B) Generate the carrier frequency C) Perform frequency conversion D) Reduce signal noise Answer: A Explanation: Power amplifiers boost transmitted signal strength to overcome path losses and reach the receiver. Question 62. Which type of waveguide mode has electric fields transverse to the direction of propagation and no longitudinal component? A) TE mode B) TM mode C) TEM mode D) EH mode Answer: A Explanation: TE (Transverse Electric) modes have electric fields entirely transverse to propagation, with no longitudinal electric field component. Question 63. In digital systems, the 'bit rate' refers to: A) The number of bits transmitted per second B) The number of symbols transmitted per second C) The number of channels D) The data storage capacity Answer: A Explanation: Bit rate is the speed at which bits are transmitted, measured in bits per second (bps).
Question 64. Which regulation body allocates spectrum frequencies for microwave radio systems in most countries? A) FCC (Federal Communications Commission) B) NASA C) WHO D) IEEE Answer: A Explanation: The FCC manages spectrum allocation and regulations for wireless communication in the United States. Question 65. The primary role of a circulator in microwave systems is to: A) Direct signals sequentially among three or more ports without interference B) Amplify signals C) Filter specific frequencies D) Convert analog to digital signals Answer: A Explanation: Circulators route signals directionally between ports, enabling isolation and non-reciprocal flow. Question 66. Which of the following is true about a high-Q (quality factor) resonant circuit? A) Sharp resonance with narrow bandwidth B) Broad bandwidth with low selectivity C) Zero reactance at all frequencies D) No energy stored Answer: A Explanation: High-Q circuits have sharp resonance peaks, indicating high energy storage and narrow bandwidth. Question 67. In microwave systems, 'Ducting' refers to:
