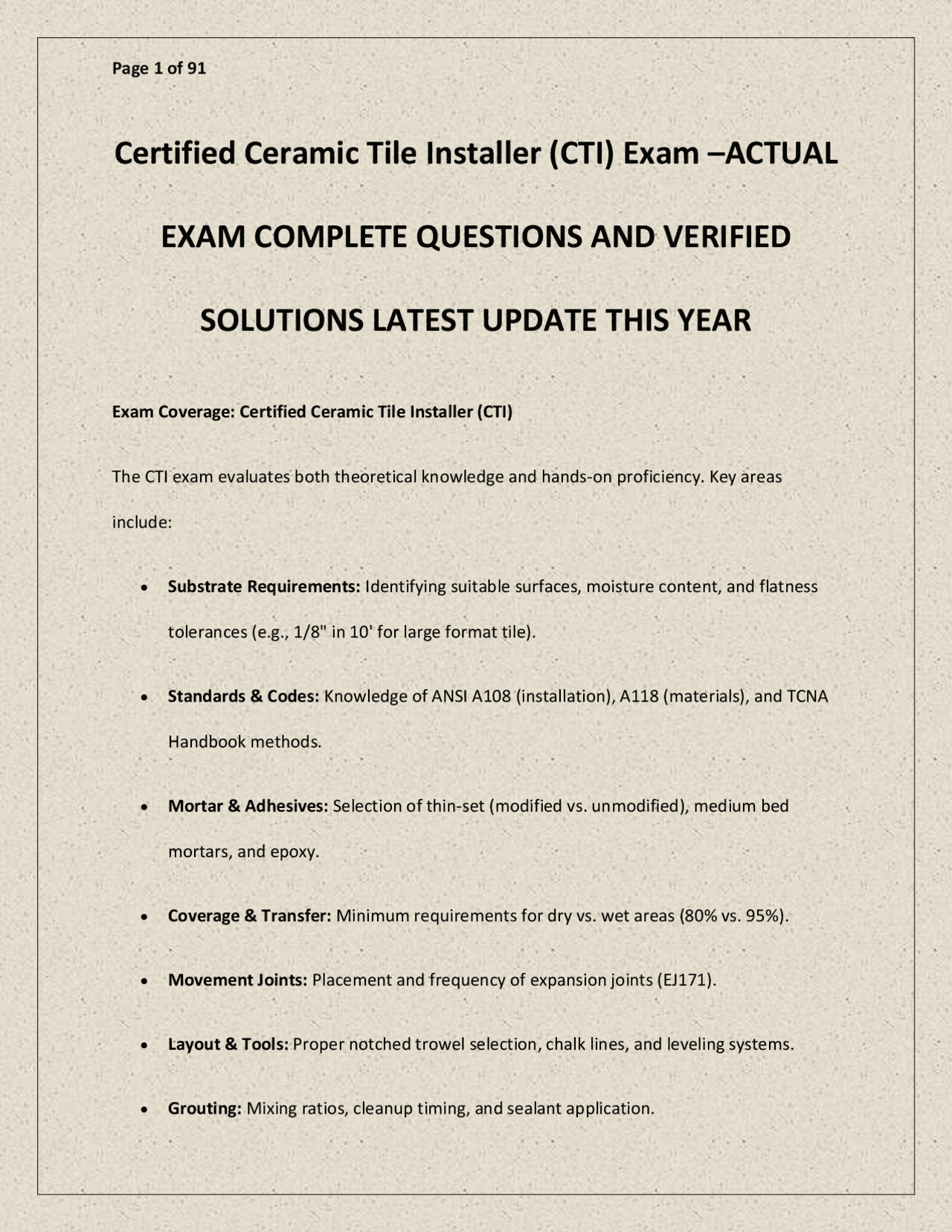

Certified Ceramic Tile Installer (CTI) Exam – ACTUAL
EXAM COMPLETE QUESTIONS AND VERIFIED
SOLUTIONS LATEST UPDATE THIS YEAR
Exam Coverage: Certified Ceramic Tile Installer (CTI) The CTI exam evaluates both theoretical knowledge and hands-on proficiency. Key areas include:
- Substrate Requirements: Identifying suitable surfaces, moisture content, and flatness tolerances (e.g., 1/8" in 10' for large format tile).
- Standards & Codes: Knowledge of ANSI A108 (installation), A118 (materials), and TCNA Handbook methods.
- Mortar & Adhesives: Selection of thin-set (modified vs. unmodified), medium bed mortars, and epoxy.
- Coverage & Transfer: Minimum requirements for dry vs. wet areas (80% vs. 95%).
- Movement Joints: Placement and frequency of expansion joints (EJ171).
- Layout & Tools: Proper notched trowel selection, chalk lines, and leveling systems.
- Grouting: Mixing ratios, cleanup timing, and sealant application.
CTI Practice Batch: Part 1
- When installing ceramic tile in a shower or a wet area, what is the minimum required mortar coverage according to ANSI A108 standards? A. 65% B. 80% C. 95% D. 100% Correct Answer: C. 95% Rationale: While dry areas require 80% coverage, wet areas (showers, pools, exteriors) require 95% coverage to prevent water from pooling behind tiles and causing bond failure.
- According to TCNA guidelines, what is the maximum allowable variation for a substrate floor intended to receive large format tile (any side longer than 15 inches)? A. 1/4" in 10 feet B. 1/8" in 10 feet C. 1/16" in 2 feet D. 3/16" in 10 feet Correct Answer: B. 1/8" in 10 feet Rationale: Large format tiles (LFT) are prone to lippage; therefore, the substrate must be flatter than the standard 1/4" in 10' requirement to ensure a professional finish.
B. To let the air bubbles escape so the mortar becomes more dense C. To cool the temperature of the mortar for a longer pot life D. To ensure the color pigments are evenly distributed throughout the batch Correct Answer: A. To allow the chemical additives and polymers to fully hydrate and activate Rationale: Slaking allows the water to penetrate the dry chemicals and polymers. After slaking, the mortar should be remixed without adding more water.
- When installing tile over a plywood subfloor, what is the industry-standard "deflection" limit that the floor must meet to prevent the grout from cracking? A. L/ B. L/ C. L/ D. L/ Correct Answer: C. L/ Rationale: The L/360 standard means the floor should not bend more than the span divided by 360 under a concentrated load; this rigidity is essential to keep ceramic and porcelain tile from cracking.
- Which of the following materials is specifically prohibited by the TCNA for use as a direct- bond substrate in a tiled shower or wet area? A. Cement backer board B. Fiber-cement underlayment
C. Water-resistant gypsum board (Greenboard) D. Extruded polystyrene foam board Correct Answer: C. Water-resistant gypsum board (Greenboard) Rationale: While once common, "greenboard" is no longer approved as a backing for tile in wet areas because the core can soften and fail if moisture bypasses the tile layer.
- What is the primary function of a "liquid-applied crack isolation membrane" when used over a concrete slab that has existing hairline cracks? A. To make the entire floor slab waterproof B. To provide a level surface for large format tiles C. To allow the concrete to move independently of the tile to prevent cracks from "telegraphing" through D. To speed up the curing time of the thin-set mortar Correct Answer: C. To allow the concrete to move independently of the tile to prevent cracks from "telegraphing" through Rationale: Crack isolation membranes (ANSI A118.12) create a flexible bridge that absorbs the stress of the slab’s movement so the tile and grout remain intact.
- When working with "highly absorbent" tiles like certain natural stones, why is it often necessary to dampen the back of the tile or the substrate before applying mortar? A. To wash away the dust and debris from the factory B. To prevent the tile from sucking the moisture out of the mortar too quickly, which causes a weak bond
A. 3 lbs per 1,000 sq ft / 24 hours B. 5 lbs per 1,000 sq ft / 24 hours C. 10 lbs per 1,000 sq ft / 24 hours D. 15 lbs per 1,000 sq ft / 24 hours Answer: A. 3 lbs per 1,000 sq ft / 24 hours Rationale: Standard thin-sets may fail if moisture levels are too high; 3 lbs is the industry standard baseline before requiring a moisture mitigation system.
- What is the specific purpose of the "keying in" step when applying mortar to a substrate with the flat side of the trowel? A. To create a smooth surface for the ridges B. To force the mortar into the substrate for a mechanical bond C. To clean the dust off the surface of the concrete D. To measure the depth of the mortar bed Answer: B. To force the mortar into the substrate for a mechanical bond Rationale: Keying in ensures the mortar is pressed into the pores of the substrate, creating the necessary bond strength before combing the ridges.
- Which ANSI standard covers the installation of ceramic tile with chemical-resistant, water-cleanable tile-setting and grouting epoxy? A. ANSI A108. B. ANSI A108. C. ANSI A108.
D. ANSI A118.
Answer: C. ANSI A108. Rationale: ANSI A108.6 specifically details the requirements for epoxy installations, which differ significantly from cementitious mortars.
- According to TCNA EJ171, how often should movement joints be placed in an interior installation that receives direct sunlight? A. Every 8 to 12 feet in each direction B. Every 20 to 25 feet in each direction C. Every 30 to 40 feet in each direction D. Only where the tile meets a wall Answer: A. Every 8 to 12 feet in each direction Rationale: Areas with thermal exposure (sunlight) require more frequent movement joints (8- 12') compared to standard interior areas (20-25').
- What is the minimum cured thickness required for a liquid-applied waterproofing membrane in a shower installation? A. 10 mils B. 30-50 mils (as per manufacturer instructions) C. 1/8 inch D. 1/4 inch Answer: B. 30-50 mils (as per manufacturer instructions)
- Which tool is used to verify that the substrate meets the 1/8" in 10' flatness requirement for large format tiles? A. A standard 2-foot carpenter's level B. A 10-foot straightedge C. A laser distance measurer D. A chalk line stretched tight Answer: B. A 10-foot straightedge Rationale: A 10-foot straightedge is the industry-standard tool for measuring substrate flatness over the required distance.
- Why is it prohibited to use a "spot bonding" (five-spot) method for installing tile on a floor? A. It is too expensive and uses too much mortar B. It leaves hollow voids that cause the tile to crack under a load C. It makes the tile sit too high above the transition D. It prevents the grout from sticking to the edges Answer: B. It leaves hollow voids that cause the tile to crack under a load Rationale: Voids under floor tile offer no support; if a heavy object or foot hits a hollow spot, the tile will likely shatter.
- What does the term "open time" refer to regarding the application of thin-set mortar? A. The time it takes for the mortar to dry in the bucket B. The period after the mortar is combed onto the substrate during which it can still bond to the
tile C. The time the installer has to wait before grouting the tile D. The time the tile must be protected from foot traffic Answer: B. The period after the mortar is combed onto the substrate during which it can still bond to the tile Rationale: Once mortar "skins over," the open time has expired, and the tile will no longer bond properly.
- In a steam shower installation, which type of membrane is required to prevent moisture damage to the wall cavity? A. A standard liquid-applied waterproof membrane B. A 4-mil polyethylene vapor retarder or a vapor-rated membrane C. Standard cement backer board with no membrane D. A coat of oil-based primer Answer: B. A 4 - mil polyethylene vapor retarder or a vapor-rated membrane Rationale: Steam showers require a vapor barrier (measured in "perms") because steam molecules are smaller than water droplets and can penetrate standard waterproofing.
- Which trowel notch type is generally preferred for ensuring maximum coverage and air release when installing large format tiles? A. V-notch trowel B. Square-notch trowel C. Slant-notch or Euro-notch trowel
- When installing glass tile, why is it often necessary to use a bright white, high-polymer- modified thin-set? A. To prevent the color of the mortar from showing through the translucent tile B. Because glass tile is very heavy and needs extra suction C. To make the grout lines look whiter D. Because glass tile expands more than ceramic tile Answer: A. To prevent the color of the mortar from showing through the translucent tile Rationale: Dark or grey mortars will dull the color of glass; white mortar provides a consistent, bright background.
- According to ANSI A108.10, how long should you wait after grouting before performing the final wash with a clean sponge? A. Immediately after filling the joints B. 10 to 20 minutes, or until the grout has become firm C. 24 hours D. 5 minutes Answer: B. 10 to 20 minutes, or until the grout has become firm Rationale: Washing too early pulls grout out of the joints; washing too late makes it impossible to remove the haze from the tile surface.
- What is the maximum allowable size for a "hollow spot" (area with no mortar coverage) under a floor tile in a dry area? A. 1 square inch
B. 2 square inches C. No voids larger than 2 square inches are allowed D. Voids are allowed as long as the tile doesn't move Answer: C. No voids larger than 2 square inches are allowed Rationale: Even if total coverage is 80%, no single void should be larger than 2 sq inches to maintain the structural integrity of the tile.
- Which type of substrate is considered "non-dimensionally stable" and is generally not recommended as a direct-bond substrate for tile? A. Cured concrete B. Oriented Strand Board (OSB) C. Cement backer board D. Brick masonry Answer: B. Oriented Strand Board (OSB) Rationale: OSB swells and shrinks significantly with moisture changes; tile should be installed over an underlayment or specialized membrane rather than directly to OSB.
- What is the significance of the "soak test" when working with certain types of natural stone or highly absorbent ceramic tiles? A. To see if the tile will change color or warp when exposed to water from the mortar B. To clean the dust off the back of the tile C. To make the tile easier to cut with a wet saw D. To increase the "open time" of the mortar
Rationale: Without perimeter joints, the tile has nowhere to go when it expands, causing it to "tent" or pop off the floor.
- When using a 1/2" x 1/2" square-notched trowel, what is the theoretical thickness of the mortar bed after the tile is embedded? A. 1/2 inch B. 1/4 inch C. 1/8 inch D. 3/4 inch Answer: B. 1/4 inch Rationale: When the ridges are collapsed, the mortar thickness is generally half the height of the notch.
- Which of the following is a requirement for the "subfloor" (the layer directly under the underlayment) in a wood-framed floor system? A. 1/2" thick plywood B. Minimum 5/8" or 3/4" tongue-and-groove plywood or OSB C. 1" thick pine planks D. Any thickness as long as it is painted Answer: B. Minimum 5/8" or 3/4" tongue-and-groove plywood or OSB Rationale: Subfloors must be stiff enough to meet L/360 deflection standards to prevent tile and grout cracking.
- Why should you avoid using a "beating block" or hammer directly on the surface of a natural stone tile? A. It might make the mortar dry too fast B. It can cause "star cracks" or internal fractures in the stone that appear later C. It will push the mortar out from under the tile D. It makes too much noise on a job site Answer: B. It can cause "star cracks" or internal fractures in the stone that appear later Rationale: Stone is brittle; impact force can cause micro-fractures that are not immediately visible but ruin the tile over time.
- What is the correct way to "trowel" mortar for large format tiles to ensure air is easily removed? A. Trowel in a circular motion B. Trowel in straight lines, parallel to the short side of the tile C. Trowel in a "swirl" pattern D. Trowel from the center outward in all directions Answer: B. Trowel in straight lines, parallel to the short side of the tile Rationale: Straight ridges allow air to escape as the tile is set. Circular or swirled ridges trap air pockets, reducing coverage.
- If a concrete slab has a "steel trowel" finish (very smooth and shiny), what must be done before thin-setting tile? A. Nothing, a smooth surface is better
Answer: B. Unmodified thin-set (meeting ANSI A118.1) Rationale: Many uncoupling membranes require unmodified thin-set between the membrane and the tile to allow for proper drying through evaporation.
- What is the maximum recommended width for a grout joint when using "unsanded" grout? A. 1/8 inch B. 1/4 inch C. 1/2 inch D. 1 inch Answer: A. 1/8 inch Rationale: Unsanded grout shrinks as it cures; in joints wider than 1/8", it will crack and pull away from the tile.
- What is the definition of "lippage" in a tile installation? A. The distance between the tile and the wall B. The vertical misalignment between the edges of two adjacent tiles C. The amount of grout that overflows onto the tile surface D. The thickness of the tile itself Answer: B. The vertical misalignment between the edges of two adjacent tiles Rationale: Lippage is the "lip" or height difference that occurs when one tile edge is higher than the one next to it.
- When installing tile in a swimming pool, how long must the tile and grout cure before the pool is filled with water? A. 24 hours B. 7 days C. 14 to 21 days (depending on the product) D. 2 hours Answer: C. 14 to 21 days (depending on the product) Rationale: Mortar and grout must reach full chemical cure and strength before being submerged in water to prevent "washout."
- Why is "mastic" (Type I Adhesive) not recommended for use in floor installations or wet areas? A. It is too expensive B. It remains flexible and does not provide enough support for foot traffic C. It re-emulsifies (softens) when exposed to moisture and has low shear strength D. It dries too fast to work with Answer: C. It re-emulsifies (softens) when exposed to moisture and has low shear strength Rationale: Mastic is an organic adhesive; if it gets wet, it turns back into a liquid-like state, causing tiles to fall off.
- What is the purpose of "back-erasing" or cleaning the grout joints with a tool before the thin-set hardens? A. To make sure the grout has a place to go and won't be too thin
