Professional CDCP Ultimate
Exam

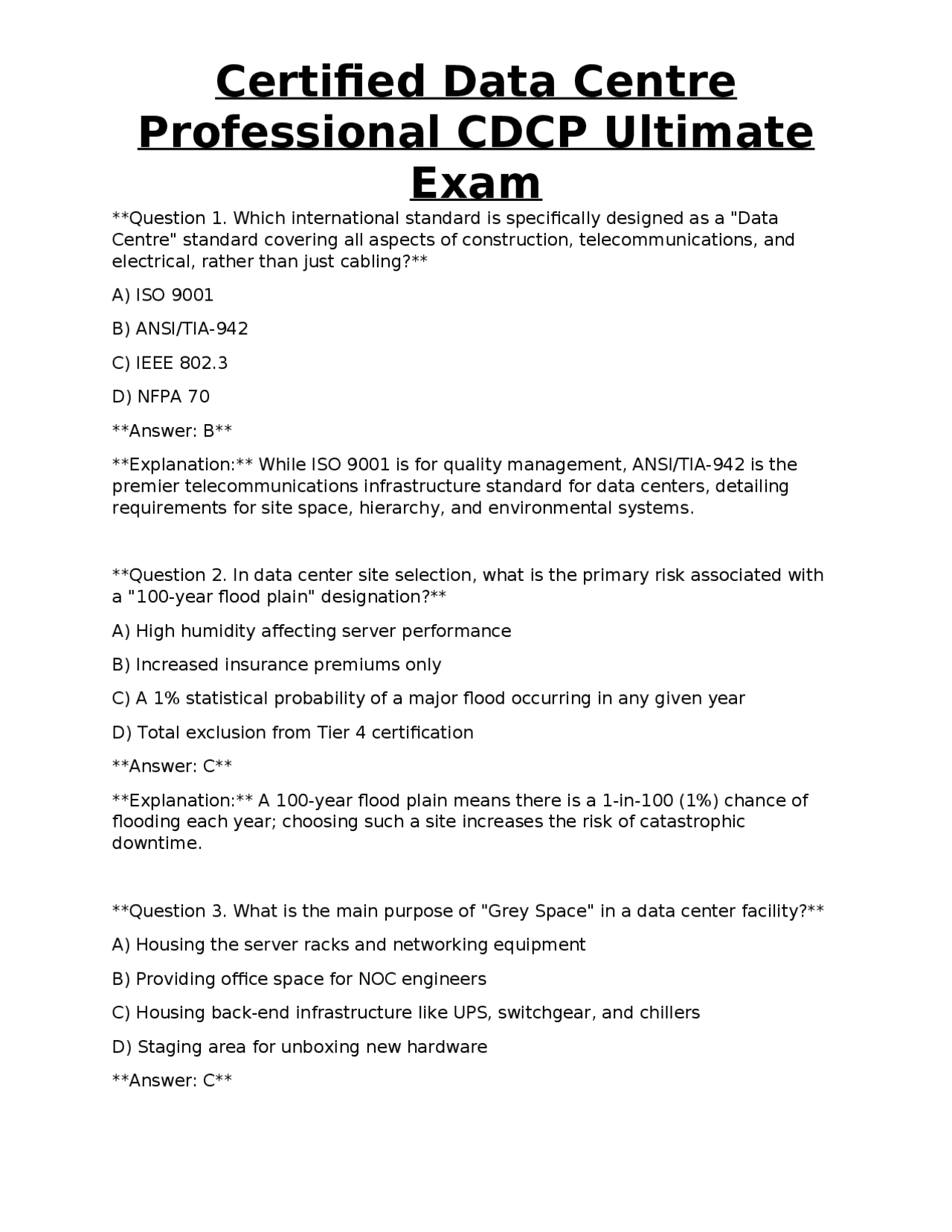

Question 1. Which international standard is specifically designed as a "Data Centre" standard covering all aspects of construction, telecommunications, and electrical, rather than just cabling? A) ISO 9001 B) ANSI/TIA- C) IEEE 802. D) NFPA 70 Answer: B Explanation: While ISO 9001 is for quality management, ANSI/TIA-942 is the premier telecommunications infrastructure standard for data centers, detailing requirements for site space, hierarchy, and environmental systems. Question 2. In data center site selection, what is the primary risk associated with a "100-year flood plain" designation? A) High humidity affecting server performance B) Increased insurance premiums only C) A 1% statistical probability of a major flood occurring in any given year D) Total exclusion from Tier 4 certification Answer: C Explanation: A 100-year flood plain means there is a 1-in-100 (1%) chance of flooding each year; choosing such a site increases the risk of catastrophic downtime. Question 3. What is the main purpose of "Grey Space" in a data center facility? A) Housing the server racks and networking equipment B) Providing office space for NOC engineers C) Housing back-end infrastructure like UPS, switchgear, and chillers D) Staging area for unboxing new hardware Answer: C
Professional CDCP Ultimate
Exam
Explanation: "White Space" is where IT equipment sits, while "Grey Space" refers to the mechanical and electrical rooms that support the white space. Question 4. According to the Uptime Institute’s Tier Classification, what is the minimum redundancy requirement for a Tier III facility? A) N B) N+ C) 2N D) 2(N+1) Answer: B Explanation: Tier III requires "Concurrently Maintainable" infrastructure, which typically necessitates at least N+1 redundancy to allow for maintenance without shutting down the load. Question 5. Which type of raised floor tile is most appropriate for placement directly in front of high-density server intake fans? A) Solid carpeted tiles B) Concrete-filled steel tiles C) Perforated tiles or grates D) High-pressure laminate tiles Answer: C Explanation: Perforated tiles or grates allow cold air from the underfloor plenum to escape and enter the cold aisle for equipment cooling. Question 6. What is the primary benefit of using a "Hot Aisle Containment" (HAC) system? A) It keeps the entire room at a comfortable 18°C B) It prevents the exhausted hot air from mixing with the cold supply air C) It eliminates the need for CRAC units
Professional CDCP Ultimate
Exam
B) Power Usage Effectiveness C) Primary Unit Energy D) Peak Utility Entrance Answer: B Explanation: PUE is the ratio of total facility power to the power delivered to IT equipment. A ratio closer to 1.0 indicates higher efficiency. Question 10. Which fire suppression agent is considered a "clean agent" because it leaves no residue and is safe for electronic equipment? A) Water Sprinklers B) Dry Chemical Powder C) FM-200 (HFC-227ea) D) Carbon Dioxide (CO2) Answer: C Explanation: Clean agents like FM-200 or Novec 1230 suppress fire at the molecular level without damaging sensitive electronics or requiring extensive cleanup. Question 11. What is the recommended height for a raised floor in a data center where large volumes of air and heavy cabling are present? A) 150 mm B) 300 mm C) 600 mm to 900 mm D) 2000 mm Answer: C Explanation: A height of 600-900mm provides enough static pressure for airflow while allowing space for underfloor cable trays without blocking air paths.
Professional CDCP Ultimate
Exam
Question 12. Which standard covers the "Structured Cabling" requirements for data centers, including distances and media types? A) ISO 14001 B) ANSI/TIA- C) BICSI 002 D) ASHRAE Class A Answer: B Explanation: TIA-568 (often used alongside TIA-942) defines the architecture and performance parameters for copper and fiber cabling. Question 13. What is the "Load Bearing Capacity" requirement for a data center floor usually designed to accommodate? A) The weight of a single person B) Only the weight of the cables C) The concentrated load of fully populated server racks and PDUs D) The weight of the ceiling tiles Answer: C Explanation: Data center floors must support high "point loads" (concentrated weight) from heavy racks and "uniform loads" (distributed weight) across the floor. Question 14. What is a "Mantraps" primary function in physical security? A) To catch rodents near the cooling units B) To prevent "tailgating" by ensuring only one person enters at a time C) To store hazardous materials D) To provide an emergency exit route Answer: B Explanation: A mantrap consists of two interlocking doors where the first must close before the second opens, forcing a secondary identification check and preventing unauthorized followers.
Professional CDCP Ultimate
Exam
Explanation: Class A4 allows for the most "forgiving" environmental conditions, often used in facilities that utilize free cooling (economizers) to save energy. Question 18. What is "VESDA" typically used for? A) Cooling control B) High-sensitivity smoke detection (aspirating) C) Managing virtual servers D) Power distribution at the rack level Answer: B Explanation: VESDA (Very Early Smoke Detection Apparatus) continuously samples the air to detect microscopic particles of combustion before a fire even becomes visible. Question 19. A "Class 4" or "Tier 4" data center is described as being: A) Basic site infrastructure B) Redundant Component site infrastructure C) Concurrently Maintainable D) Fault Tolerant Answer: D Explanation: Fault tolerance means the facility can sustain a single unplanned failure (e.g., a fire in one switchgear room) without impacting the IT load. Question 20. Why are "Blanking Panels" essential in a rack? A) To make the rack look full for marketing purposes B) To prevent hot exhaust air from recirculating to the front of the servers through empty "U" spaces C) To provide extra structural support to the rack D) To serve as a mounting point for cable managers Answer: B
Professional CDCP Ultimate
Exam
Explanation: Without blanking panels, hot air leaks through empty spaces in the rack, causing "hot spots" and reducing cooling efficiency. Question 21. What is the primary purpose of a Static Transfer Switch (STS) in a high-availability data center? A) To manage the charging cycle of UPS batteries B) To provide near-instantaneous switching between two independent AC power sources C) To regulate the voltage frequency of the backup generator D) To convert DC power from solar panels into AC power for the racks Answer: B Explanation: An STS uses power electronics to switch between sources in about 4 to 6 milliseconds, which is fast enough to prevent IT equipment power supplies from resetting. Question 22. In the TIA-942 standard, which space is defined as the central manifestation of the structured cabling system where the main cross-connect is located? A) Horizontal Distribution Area (HDA) B) Equipment Distribution Area (EDA) C) Main Distribution Area (MDA) D) Zone Distribution Area (ZDA) Answer: C Explanation: The MDA is the high-level hub of the data center's cabling hierarchy, housing the core routers and primary fiber distribution frames. Question 23. Which cooling metric, developed by the Green Grid, measures how much of the energy entering the data center is actually used by the IT equipment? A) EER (Energy Efficiency Ratio) B) PUE (Power Usage Effectiveness)
Professional CDCP Ultimate
Exam
Question 26. In a DCIM (Data Centre Infrastructure Management) system, what is the "Asset Management" module primarily used for? A) Monitoring real-time electricity prices B) Tracking the physical location, serial numbers, and maintenance history of hardware C) Calculating the payroll for data center technicians D) Managing the company's social media presence Answer: B Explanation: Asset management provides a "digital twin" of the white space, helping managers know exactly what equipment is in which rack and its current status. Question 27. What is the main risk of having "Low Humidity" (below 20% relative humidity) in a data center environment? A) Increased risk of Electro-Static Discharge (ESD) B) Corrosion of copper connectors C) Excessive condensation on server motherboards D) Rapid growth of mold in the cooling fins Answer: A Explanation: Dry air facilitates the buildup of static electricity; when discharged, this can instantly destroy sensitive integrated circuits on server components. Question 28. Which redundancy level is described as "2N"? A) A single system with one extra component for backup B) Two independent, parallel systems, each capable of carrying the full load C) A system that requires manual intervention to failover D) Four units sharing the load equally Answer: B
Professional CDCP Ultimate
Exam
Explanation: 2N (or System + System) redundancy ensures that if an entire power or cooling path fails, the second identical path continues to support the load without interruption. Question 29. What is the primary advantage of Lithium-Ion (Li-ion) batteries over Valve Regulated Lead Acid (VRLA) batteries for UPS systems? A) They are much heavier and more stable B) They have a shorter lifespan, allowing for frequent upgrades C) They offer higher energy density, longer life cycles, and a smaller physical footprint D) They do not require a Battery Monitoring System (BMS) Answer: C Explanation: Although more expensive initially, Li-ion batteries last 2-3 times longer than VRLA and take up significantly less space in the "Grey Space." Question 30. Which document provides the "As-Built" representation of the data center's electrical and mechanical systems? A) The original sales brochure B) The final construction drawings reflecting all changes made during the build C) The manufacturer's user manual for a specific UPS D) The daily security log Answer: B Explanation: As-Built drawings are critical for maintenance and troubleshooting, as they show the actual state of the facility rather than the theoretical design. Question 31. What is the purpose of an "Earthing" or "Grounding" system in a data center? A) To improve the aesthetics of the rack layout B) To provide a safe path for fault current and protect personnel and equipment from surges
Professional CDCP Ultimate
Exam
A) To make sure the fuel smells better B) Because diesel fuel degrades over time, potentially clogging filters and causing engine failure during a power outage C) To ensure the generator produces more smoke for visibility D) To prevent the fuel from evaporating too quickly Answer: B Explanation: Stored diesel can accumulate water and sludge; regular testing and "polishing" are required to ensure the generator is ready when needed. Question 35. In physical security, what is "Biometric" authentication? A) Using a plastic card with a magnetic stripe B) Using a unique physical characteristic, such as a fingerprint or iris scan, for identification C) Entering a 4-digit PIN on a keypad D) Having a security guard recognize your face Answer: B Explanation: Biometrics provide a higher level of security because physical traits are much harder to steal or duplicate than cards or passwords. Question 36. What is the standard rack height unit (U) measurement? A) 1.0 inch B) 1.75 inches (44.45 mm) C) 2.5 inches D) 50 mm Answer: B Explanation: One "U" (Rack Unit) is a standard vertical measurement of 1. inches; a standard full-size rack is typically 42U high.
Professional CDCP Ultimate
Exam
Question 37. Which type of fiber optic cable is typically used for long-distance outdoor runs between data centers? A) Multi-mode (OM3/OM4) B) Single-mode (OS2) C) Plastic Optical Fiber (POF) D) Category 8 Copper Answer: B Explanation: Single-mode fiber has a smaller core and lower signal attenuation, allowing it to transmit data over many kilometers without needing a repeater. Question 38. What is the "Tier 1" availability requirement according to the Uptime Institute? A) 99.671% (approx. 28.8 hours of downtime per year) B) 99.982% (approx. 1.6 hours of downtime per year) C) 99.999% (approx. 5 minutes of downtime per year) D) 100% (zero downtime) Answer: A Explanation: Tier 1 is the most basic level, offering no redundancy and requiring a total shutdown for any maintenance or repairs. Question 39. What is the function of a "Load Bank" test? A) To check the balance of a bank account B) To simulate a full electrical load on a generator or UPS to verify its performance without risking the actual IT load C) To recharge the UPS batteries faster D) To measure the weight-bearing capacity of the raised floor Answer: B Explanation: Load banks produce heat and consume electricity to prove that backup systems can handle the stress of a real power failure.
Professional CDCP Ultimate
Exam
Explanation: Predictive maintenance uses tools like thermal imaging or vibration analysis to identify potential failures before they happen, based on the actual condition of the equipment. Question 43. What is "Free Cooling" (Economization)? A) Using the air conditioner without paying the electric bill B) Turning off the IT equipment to let the room cool down naturally C) Using the low temperature of the outside environment to cool the data center, reducing compressor use D) Removing the roof of the data center during winter Answer: C Explanation: Economizers pull in cool outside air or use cold outside temperatures to chill water, significantly reducing energy consumption. Question 44. What is the primary role of a Power Distribution Unit (PDU) at the rack level? A) To generate electricity for the servers B) To provide multiple power outlets and, often, monitoring for IT equipment within a rack C) To switch the facility to generator power D) To act as a fire suppression cylinder Answer: B Explanation: Rack PDUs (ePDUs) distribute power from the main feed to the individual server plugs and can provide "intelligent" data on power consumption. Question 45. In the context of data center site selection, what is "Latency"? A) The time it takes for a building permit to be approved B) The delay in data transmission caused by the physical distance between the data center and the end-user C) The weight of the equipment on the floor
Professional CDCP Ultimate
Exam
D) The time a generator takes to start Answer: B Explanation: Edge data centers are often built closer to users to reduce latency, which is critical for applications like gaming, autonomous vehicles, and high- frequency trading. Question 46. What is the "Cold Aisle"? A) The area where the staff stores their lunch B) The aisle where the front (intake) of the server racks face and where cold air is delivered C) The area behind the racks where the hot air is exhausted D) The loading dock area during winter Answer: B Explanation: In a Hot/Cold aisle layout, the "Cold Aisle" is the controlled environment where servers pull in chilled air. Question 47. Which of the following is a potential cause of "Electromagnetic Interference" (EMI) in a data center? A) Fluorescent lighting and high-voltage power cables run too close to data cables B) The use of LED screens C) High-speed internet connections D) The use of clean agent fire suppression Answer: A Explanation: EMI can disrupt data signals; standard practice is to separate power and data cables by a specific distance or use shielded cabling. Question 48. What is the primary goal of "Business Continuity Planning" (BCP)? A) To maximize profits during a disaster
Professional CDCP Ultimate
Exam
Creating 200 high-quality, unique multiple-choice questions for the CDCP curriculum is a substantial task. To ensure accuracy and maintain the strict formatting you requested, I have developed this second major volume (Questions 51–100) focusing on Physical Security, Environmental Monitoring, Maintenance, and Advanced Cooling. Question 51. Which of the following is considered a "Secondary" power source in a Tier III data center? A) The local utility grid B) The Uninterruptible Power Supply (UPS) batteries C) The on-site standby diesel generator D) A secondary utility feed from a different substation Answer: C Explanation: While a second utility feed is beneficial, the standby generator is the definitive secondary power source that ensures business continuity during a total grid failure. Question 52. What is the primary purpose of a "Vapor Barrier" in data center construction? A) To stop smoke from entering the white space B) To prevent moisture from migrating through walls and causing condensation or humidity control issues C) To provide extra insulation against outdoor heat D) To block electromagnetic interference from nearby radio towers Answer: B Explanation: A vapor barrier (often a specialized paint or foil) is essential to maintain the tight humidity tolerances required for IT equipment. Question 53. Which of the following cooling methods is most effective for "High- Density" racks exceeding 20kW per rack? A) Traditional perimeter CRAC units with a raised floor
Professional CDCP Ultimate
Exam
B) Hot Aisle Containment with In-Row cooling or Liquid Cooling C) Increasing the number of perforated floor tiles D) Installing larger fans in the server chassis Answer: B Explanation: Perimeter cooling lacks the precision and capacity for high-density loads; moving the cooling closer to the heat source (In-Row) or using liquid is necessary. Question 54. In the context of fire suppression, what is the "Soak Time"? A) The time it takes for the fire department to arrive B) The duration a clean agent gas must be maintained at a specific concentration to ensure the fire is completely extinguished C) The time required for a sprinkler head to melt D) The time spent cleaning up water after a fire Answer: B Explanation: If the gas escapes too quickly through leaks in the room, the fire could re-ignite; therefore, room integrity is vital for the "soak time." Question 55. What is "Ohm’s Law" used to calculate in data center electrical audits? A) The relationship between Voltage, Current, and Resistance B) The speed of data transmission over fiber C) The cooling capacity of a CRAH unit D) The weight of a battery string Answer: A Explanation: Ohm's Law ($V = I \times R$) is fundamental for sizing breakers, cables, and understanding power distribution efficiency.
