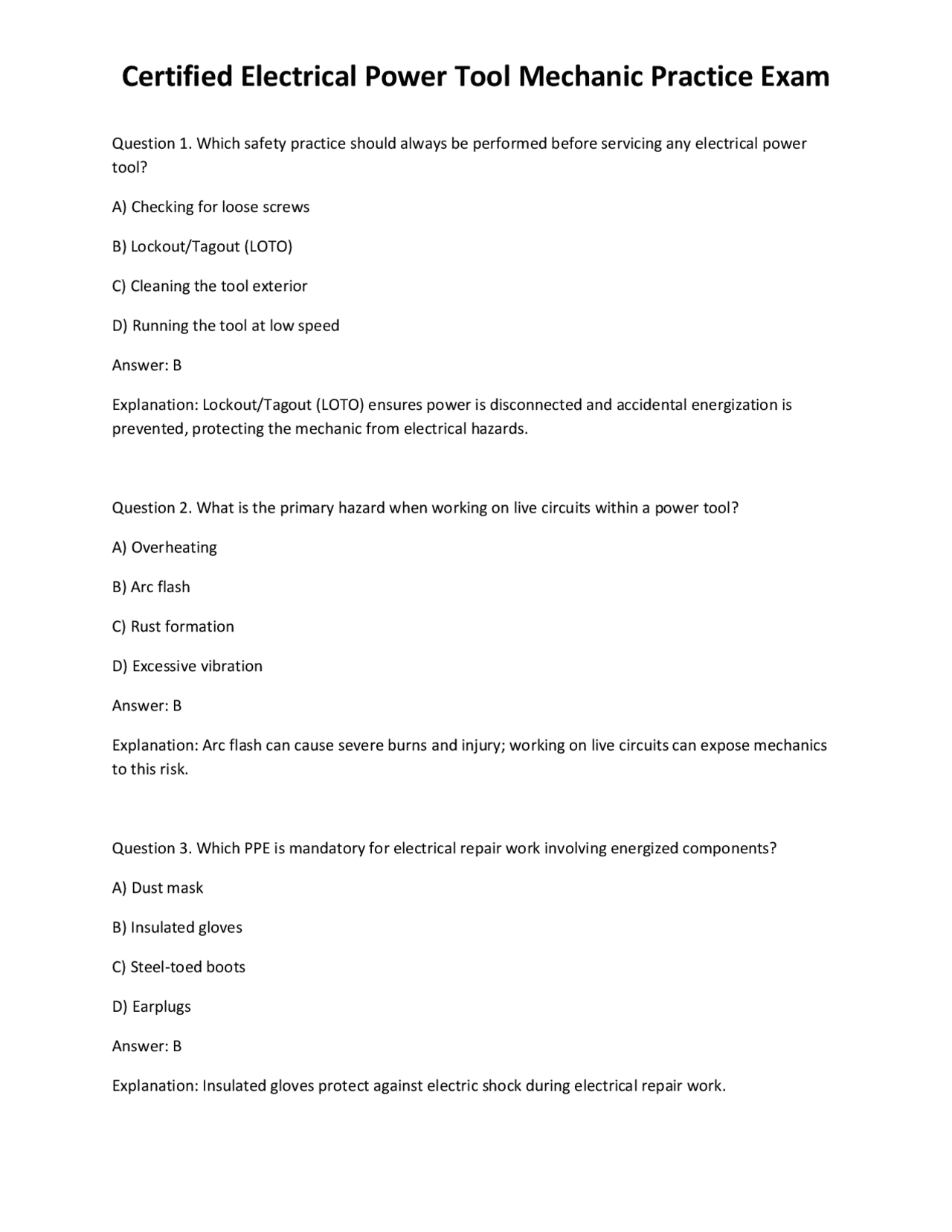

Question 1. Which safety practice should always be performed before servicing any electrical power tool? A) Checking for loose screws B) Lockout/Tagout (LOTO) C) Cleaning the tool exterior D) Running the tool at low speed Answer: B Explanation: Lockout/Tagout (LOTO) ensures power is disconnected and accidental energization is prevented, protecting the mechanic from electrical hazards. Question 2. What is the primary hazard when working on live circuits within a power tool? A) Overheating B) Arc flash C) Rust formation D) Excessive vibration Answer: B Explanation: Arc flash can cause severe burns and injury; working on live circuits can expose mechanics to this risk. Question 3. Which PPE is mandatory for electrical repair work involving energized components? A) Dust mask B) Insulated gloves C) Steel-toed boots D) Earplugs Answer: B Explanation: Insulated gloves protect against electric shock during electrical repair work.
Question 4. What is the recommended method to check the effectiveness of double insulation in a Class II power tool? A) Visual inspection only B) Insulation resistance testing C) Checking the tool weight D) Measuring tool temperature Answer: B Explanation: Insulation resistance testing verifies the integrity of double insulation, preventing electric shock. Question 5. Which organization sets the standard for workplace safety regarding electrical equipment in the United States? A) ANSI B) OSHA C) UL D) NEMA Answer: B Explanation: OSHA enforces safety regulations for electrical equipment in workplaces. Question 6. In electrical safety, what is the primary purpose of grounding? A) Reduce tool weight B) Improve performance C) Prevent electric shock D) Increase tool speed Answer: C
Question 10. Which type of safety glasses is recommended when grinding or cutting with electrical tools? A) Tinted sunglasses B) Basic reading glasses C) Impact-resistant safety glasses D) Prescription glasses only Answer: C Explanation: Impact-resistant safety glasses protect eyes from flying debris during tool operation. Question 11. What identifies a Class II power tool? A) Cordless operation B) Double insulation C) Waterproof casing D) Steel housing Answer: B Explanation: Class II tools feature double insulation, providing extra protection against electrical shock. Question 12. What device is commonly used to check for continuity in a circuit? A) Megohmmeter B) Digital Multimeter (DMM) C) Infrared thermometer D) Oscilloscope Answer: B Explanation: A DMM can check for continuity, resistance, and voltage in circuits.
Question 13. Why is it unsafe to work on capacitors immediately after power is disconnected? A) They lose memory settings B) Capacitors may retain a residual charge C) They become magnetic D) They overheat quickly Answer: B Explanation: Capacitors can store dangerous voltages even after power is removed. Question 14. Which standard applies to the safe design of power tool plugs and strain relief devices? A) ISO 9001 B) ANSI C C) OSHA 1910 D) UL 498 Answer: D Explanation: UL 498 covers safety for plugs and strain relief devices in power tools. Question 15. Which glove material offers the best protection against electrical shock? A) Leather B) Cotton C) Rubber D) Latex Answer: C Explanation: Rubber is an effective insulator and protects against electrical shock.
A) Tool model number B) Person performing maintenance C) Voltage rating D) Tool warranty expiration Answer: B Explanation: The tag identifies the person responsible for maintenance and ensures safety. Question 20. What type of inspection is required for PPE before every use? A) Annual B) Visual and functional C) Random D) Manufacturer recall check Answer: B Explanation: Visual and functional inspections ensure PPE is safe for use each time. Question 21. Which electrical hazard is most commonly associated with tool repair? A) Excessive lubrication B) Arc flash C) Low battery voltage D) Dust accumulation Answer: B Explanation: Arc flash can occur during tool repair if live parts are exposed. Question 22. What does OSHA require for PPE maintenance? A) Weekly cleaning
B) Regular inspection and replacement C) Use of only new PPE D) PPE sharing policy Answer: B Explanation: OSHA mandates regular inspection and replacement to ensure PPE effectiveness. Question 23. What is the primary reason to use safety glasses during tool repair? A) Reduce glare B) Protect eyes from debris and splinters C) Improve focus D) Enhance appearance Answer: B Explanation: Safety glasses protect eyes from flying particles during repairs. Question 24. Which regulatory body certifies electrical tools for safe use in Canada? A) OSHA B) CSA C) ANSI D) NEMA Answer: B Explanation: The Canadian Standards Association (CSA) certifies electrical tools for safety in Canada. Question 25. What must be checked for compliance when inspecting a power tool plug? A) Plug color B) Presence of UL or CSA marking
D) Class IV Answer: B Explanation: Class II tools are double insulated and do not require grounding. Question 29. What should be done if a PPE item fails inspection? A) Continue using it B) Repair and retest or replace C) Store for later use D) Share with coworkers Answer: B Explanation: Damaged PPE must be repaired and retested or replaced for safety. Question 30. What electrical hazard is associated with worn plug blades? A) High resistance heating B) Arc blast C) Short circuits D) Loss of insulation Answer: A Explanation: Worn plug blades can cause poor contact and high resistance heating, leading to fire hazards. Question 31. What is the main risk of working on a power tool without proper PPE? A) Slow repair B) Increased risk of injury C) Reduced tool life
D) Excessive tool noise Answer: B Explanation: Lack of PPE increases exposure to hazards and risk of injury. Question 32. What must be done before opening a cordless power tool housing? A) Discharge capacitors B) Remove battery pack C) Test for vibration D) Lubricate gears Answer: B Explanation: Removing the battery pack eliminates the risk of accidental energization. Question 33. What is the purpose of a Megohmmeter in electrical testing? A) Measure current B) Measure high resistance for insulation testing C) Measure temperature D) Measure vibration Answer: B Explanation: Megohmmeters are used to test insulation resistance for safety. Question 34. Which electrical parameter is calculated using Ohm’s Law? A) Force B) Speed C) Voltage, current, or resistance D) Power factor
Explanation: Relays act as switches, controlling power flow in circuits. Question 38. Which component is commonly used to rectify AC to DC in a cordless tool? A) Capacitor B) Diode C) Resistor D) Inductor Answer: B Explanation: Diodes convert AC to DC for cordless tool operation. Question 39. What is the primary function of the motor commutator? A) Store charge B) Reverse current direction in armature windings C) Lubricate bearings D) Increase tool temperature Answer: B Explanation: The commutator reverses current to maintain motor rotation. Question 40. What does a growler test help identify in a power tool motor? A) Brush wear B) Armature shorts C) Gear misalignment D) Faulty bearings Answer: B Explanation: Growler tests detect shorted windings in armatures.
Question 41. Which motor type is commonly found in corded power tools? A) Synchronous motor B) Universal (series-wound) motor C) Stepper motor D) BLDC motor Answer: B Explanation: Universal motors are used for their high power and speed in corded tools. Question 42. What is the function of brushes in a brushed motor? A) Cool the motor B) Deliver current to the rotating armature C) Lubricate gears D) Reduce vibration Answer: B Explanation: Brushes transfer electrical current to the armature for motor operation. Question 43. What is a common symptom of worn motor brushes? A) Increased torque B) Sparking and intermittent operation C) Reduced tool weight D) Excessive noise Answer: B Explanation: Worn brushes can cause sparking and loss of contact, resulting in intermittent operation.
A) Induction motor B) Brushless DC (BLDC) motor C) Stepper motor D) Universal motor Answer: B Explanation: BLDC motors are efficient and durable, making them ideal for cordless tools. Question 48. What is the main advantage of brushless motors over brushed motors? A) Higher noise level B) Longer lifespan and less maintenance C) Lower torque D) Increased sparking Answer: B Explanation: Brushless motors lack brushes, reducing wear and extending service life. Question 49. What is the symptom of a shorted turn in a motor winding? A) Reduced tool speed B) Excessive heating and possible winding damage C) Increased tool weight D) Lower voltage output Answer: B Explanation: Shorted turns cause overheating and damage in motor windings. Question 50. What component detects the rotor position in a brushless DC motor? A) Diode
B) Hall effect sensor C) Commutator D) Capacitor Answer: B Explanation: Hall effect sensors monitor rotor position for proper BLDC motor control. Question 51. What is the purpose of a solenoid in a power tool circuit? A) Store energy B) Create mechanical movement C) Reduce tool noise D) Increase tool weight Answer: B Explanation: Solenoids convert electrical energy into mechanical movement. Question 52. Which electronic component is most likely to fail and cause intermittent operation in a speed control board? A) Capacitor B) Transistor C) Resistor D) Inductor Answer: B Explanation: Transistors regulate switching and are prone to failure, causing intermittent operation. Question 53. What is the effect of a faulty trigger switch in a power tool? A) Reduced tool speed
C) Ultrasonic tester D) Torque wrench Answer: A Explanation: Bench power supplies allow controlled testing of electrical faults. Question 57. What is the primary difference between electrical and mechanical faults? A) Electrical faults involve current flow; mechanical faults involve moving parts B) Electrical faults are louder C) Mechanical faults increase voltage D) Mechanical faults reduce current Answer: A Explanation: Electrical faults affect current flow, while mechanical faults affect moving components. Question 58. What is the main symptom of a seized bearing in a power tool? A) High voltage B) Excessive heat and noise C) Reduced tool weight D) Lower torque Answer: B Explanation: Seized bearings produce heat, noise, and vibration. Question 59. What is the benefit of using a diagnostic tree during troubleshooting? A) Faster repairs B) Logical fault isolation C) Increased tool speed
D) Improved tool aesthetics Answer: B Explanation: Diagnostic trees guide mechanics through logical fault isolation processes. Question 60. What is done during a resistance check on an armature? A) Measure temperature B) Measure resistance between commutator segments C) Check tool vibration D) Inspect tool housing Answer: B Explanation: Resistance checks detect shorts or opens between commutator segments. Question 61. What does an abnormal gear chatter indicate? A) Proper lubrication B) Gear misalignment or wear C) Reduced speed D) Lower voltage Answer: B Explanation: Gear chatter often points to misaligned or worn gears. Question 62. How can infrared thermometers assist in power tool diagnostics? A) Measure sound B) Identify localized overheating C) Measure resistance D) Test vibration
