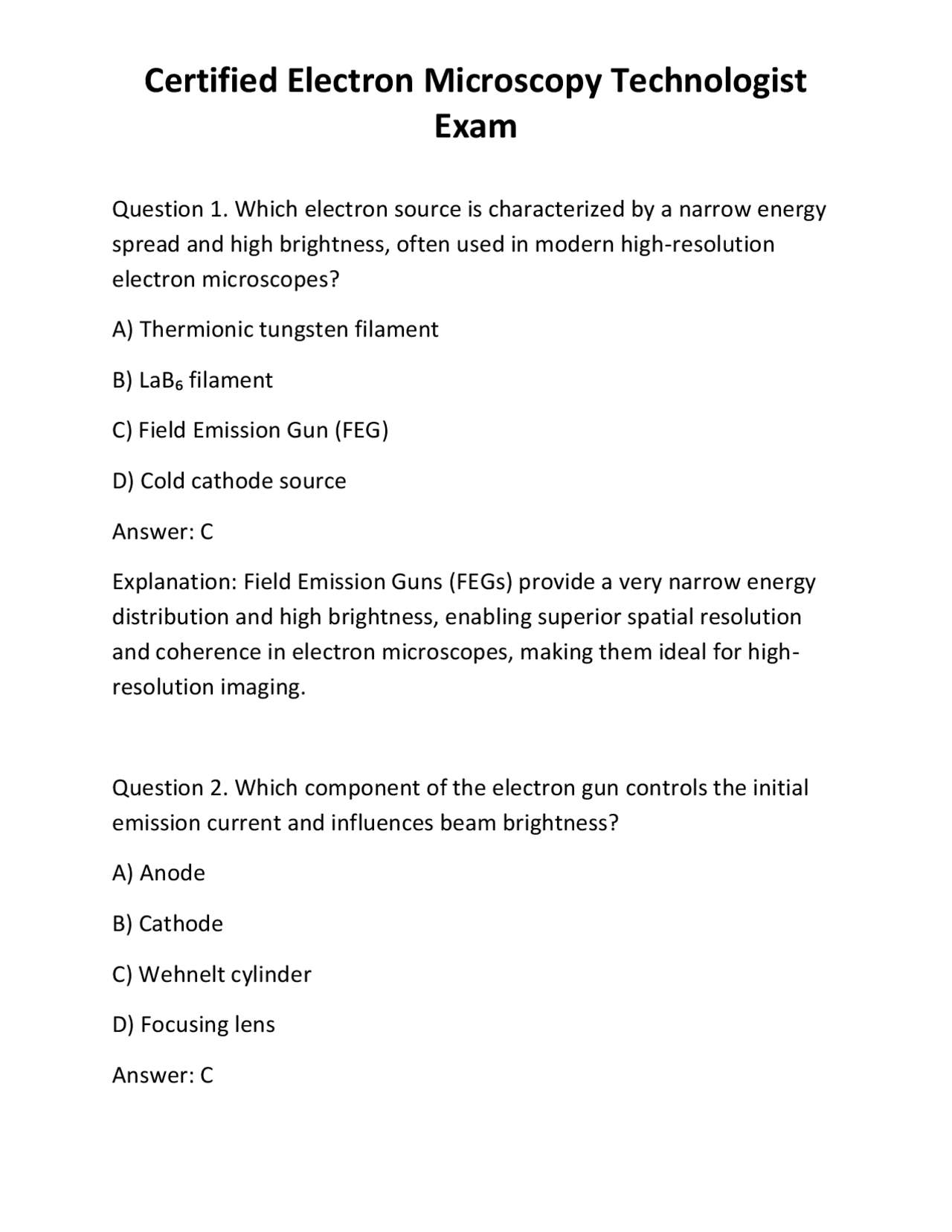

Question 1. Which electron source is characterized by a narrow energy spread and high brightness, often used in modern high-resolution electron microscopes? A) Thermionic tungsten filament B) LaB₆ filament C) Field Emission Gun (FEG) D) Cold cathode source Answer: C Explanation: Field Emission Guns (FEGs) provide a very narrow energy distribution and high brightness, enabling superior spatial resolution and coherence in electron microscopes, making them ideal for high- resolution imaging. Question 2. Which component of the electron gun controls the initial emission current and influences beam brightness? A) Anode B) Cathode C) Wehnelt cylinder D) Focusing lens Answer: C
Exam
Explanation: The Wehnelt cylinder (or suppressor) modulates the electron emission from the cathode and controls the beam current and brightness by affecting the electron beam's initial shape and coherence. Question 3. Which type of electron lens is primarily used for focusing the electron beam in a TEM? A) Electromagnetic lenses B) Electrostatic lenses C) Magnetic resonance lenses D) Optical glass lenses Answer: A Explanation: Electromagnetic lenses, which use magnetic fields generated by coils, are used in TEMs to focus and manipulate the electron beam with high precision. Question 4. Which aberration is primarily caused by the spherical shape of the lens and results in a blurred image? A) Chromatic aberration B) Spherical aberration C) Astigmatism
Exam
B) Beam tilt adjustment C) Beam tilt and shift correction D) Stigmation adjustment Answer: D Explanation: Stigmation correction involves adjusting the electromagnetic lenses to ensure the electron beam is symmetrically focused, eliminating astigmatism and achieving sharp images. Question 7. Which type of scattering involves electrons being deflected coherently, preserving phase information, and is used in diffraction? A) Inelastic scattering B) Elastic scattering C) Phonon scattering D) Compton scattering Answer: B Explanation: Elastic scattering involves electrons being deflected without energy loss, maintaining phase coherence, which is essential for diffraction patterns used to analyze crystal structures.
Exam
Question 8. Bragg's Law relates the diffraction angle to which property of the crystal lattice? A) Atomic number B) Interplanar spacing C) Electron wavelength D) Density of the material Answer: B Explanation: Bragg's Law (nλ = 2d sinθ) relates the diffraction angle (θ) to the interplanar spacing (d) of crystal lattice planes, fundamental in interpreting diffraction data. Question 9. Which inelastic scattering process involves excitation of collective oscillations of electrons in a material? A) Core-level excitation B) Plasmon excitation C) Phonon excitation D) Compton scattering Answer: B
Exam
Answer: B Explanation: Higher atomic number materials cause more scattering, reducing the interaction volume, leading to more surface-sensitive signals such as BSE. Question 12. What is the primary function of a turbo-molecular pump in an electron microscope vacuum system? A) Generate rough vacuum B) Maintain ultra-high vacuum by rapidly removing residual gases C) Detect leaks in the system D) Measure vacuum pressure Answer: B Explanation: Turbo-molecular pumps efficiently achieve and maintain ultra-high vacuum levels necessary for electron microscopy by rapidly removing residual gases. Question 13. Which gauge type measures the pressure by ionizing residual gases and collecting the resulting ions? A) Pirani gauge B) Penning gauge
Exam
C) Ionization gauge D) Capacitance manometer Answer: C Explanation: Ionization gauges, including Penning and Bayard-Alpert types, measure vacuum pressure by ionizing residual gases and collecting ions to determine pressure levels. Question 14. In TEM, which mode captures electrons transmitted through the specimen with minimal scattering for high-resolution imaging? A) Bright-field mode B) Dark-field mode C) Diffraction mode D) Phase contrast mode Answer: A Explanation: Bright-field TEM imaging involves collecting directly transmitted electrons, providing high-resolution images of specimen morphology and structure.
Exam
Explanation: Chemical fixation stabilizes biological structures, and cryo- fixation rapidly freezes samples, preserving ultrastructure for TEM analysis. Question 17. In TEM, what does lattice fringe spacing in high-resolution images reveal? A) The crystal's chemical composition B) Atomic arrangements and interplanar distances C) Surface topography only D) Phase contrast artifacts Answer: B Explanation: Lattice fringes correspond to specific interplanar spacings, enabling atomic-level structural analysis within crystalline materials. Question 18. Which contrast mechanism in TEM is primarily responsible for visualizing differences in atomic number? A) Mass-thickness contrast B) Diffraction contrast C) Z-contrast (high-angle annular dark-field) D) Phase contrast
Exam
Answer: C Explanation: Z-contrast in HRTEM or STEM arises from differences in atomic number, with heavier elements appearing brighter. Question 19. Which SEM detector is best suited for collecting secondary electrons emitted from the specimen surface? A) Everhart-Thornley detector B) Solid-state BSE detector C) Cathodoluminescence detector D) Backscatter electron detector (annular) Answer: A Explanation: The Everhart-Thornley detector is specifically designed for collecting secondary electrons, providing topographical contrast. Question 20. Which in SEM imaging is primarily responsible for contrast related to surface topography? A) Secondary electrons (SE) B) Backscattered electrons (BSE) C) Characteristic X-rays
Exam
C) Fine structure (ELNES) D) Zero-loss peak Answer: B Explanation: The low-loss region in EELS spectra indicates plasmon excitations, useful for analyzing electronic properties and dielectric functions. Question 23. Which element-specific energy loss feature in EELS can provide information about the oxidation state of an element? A) Zero-loss peak B) Core-loss edge fine structure (ELNES) C) Plasmon peak D) Background tail Answer: B Explanation: Fine structures near core-loss edges (ELNES) are sensitive to oxidation states and chemical bonding environments. Question 24. What is the primary purpose of using a cryo-electron microscope (cryo-TEM)? A) To achieve higher spatial resolution
Exam
B) To observe hydrated biological specimens in near-native states C) To increase contrast in metallic samples D) To perform in-situ heating experiments Answer: B Explanation: Cryo-TEM allows the imaging of biological samples vitrified at cryogenic temperatures, preserving native hydrated states and preventing ice crystal formation. Question 25. Which specimen preparation method is commonly used for material science samples to produce electron-transparent sections? A) Ultramicrotomy with resin embedding B) Mechanical polishing only C) Ion milling or FIB (Focused Ion Beam) milling D) Freeze-drying Answer: C Explanation: Ion milling and FIB are used to produce thin, electron- transparent sections of materials, especially metals and ceramics, suitable for TEM.
Exam
Question 28. Which detector in STEM is used to obtain atomic number (Z) contrast images? A) HAADF (High-Angle Annular Dark Field) detector B) Bright-field detector C) EDS detector D) Electron backscatter detector Answer: A Explanation: HAADF detectors collect electrons scattered at high angles, producing Z-contrast images sensitive to atomic number differences. Question 29. Which specimen preparation step is critical for minimizing artifacts in biological TEM samples? A) Dehydration with ethanol B) Heavy metal staining and cryo-fixation C) Mechanical polishing D) Electropolishing Answer: B
Exam
Explanation: Heavy metal staining enhances contrast, and cryo-fixation preserves native structures, minimizing artifacts during imaging. Question 30. Which technique in TEM provides information about the spatial distribution of elements across a specimen? A) SAED B) EDS mapping C) HRTEM lattice imaging D) Phase contrast imaging Answer: B Explanation: EDS mapping spatially localizes elements within the specimen, useful for compositional analysis. Question 31. Which vacuum pump type is most suitable for achieving ultra-high vacuum conditions in electron microscopes? A) Rotary vane pump B) Diffusion pump C) Ion pump D) Cryogenic pump
Exam
B) Ability to image non-conductive samples without coating C) Increased vacuum levels D) Higher electron beam energies Answer: B Explanation: VP-SEM allows imaging of non-conductive and hydrated samples by introducing a controlled gaseous environment, reducing charging effects. Question 34. Which artifact in SEM images results from charge accumulation on insulating specimens? A) Edge effect B) Charging C) Vibration artifacts D) Contamination spots Answer: B Explanation: Charging occurs when electrons accumulate on insulating samples, causing image distortions and bright spots. Question 35. Which electron detector in SEM is optimized for detecting cathodoluminescence emitted from specimens?
Exam
A) Everhart-Thornley detector B) CL detector C) BSE detector D) Secondary electron detector Answer: B Explanation: The cathodoluminescence (CL) detector captures light emitted during electron excitation, providing compositional and optical information. Question 36. Which analytical technique is primarily used to determine the crystallographic orientation of mineral grains? A) EDS B) EBSD (Electron Backscatter Diffraction) C) EELS D) X-ray diffraction (XRD) in TEM Answer: B Explanation: EBSD analyzes backscattered electrons to map crystal orientations at the microscale, critical in mineralogy.
