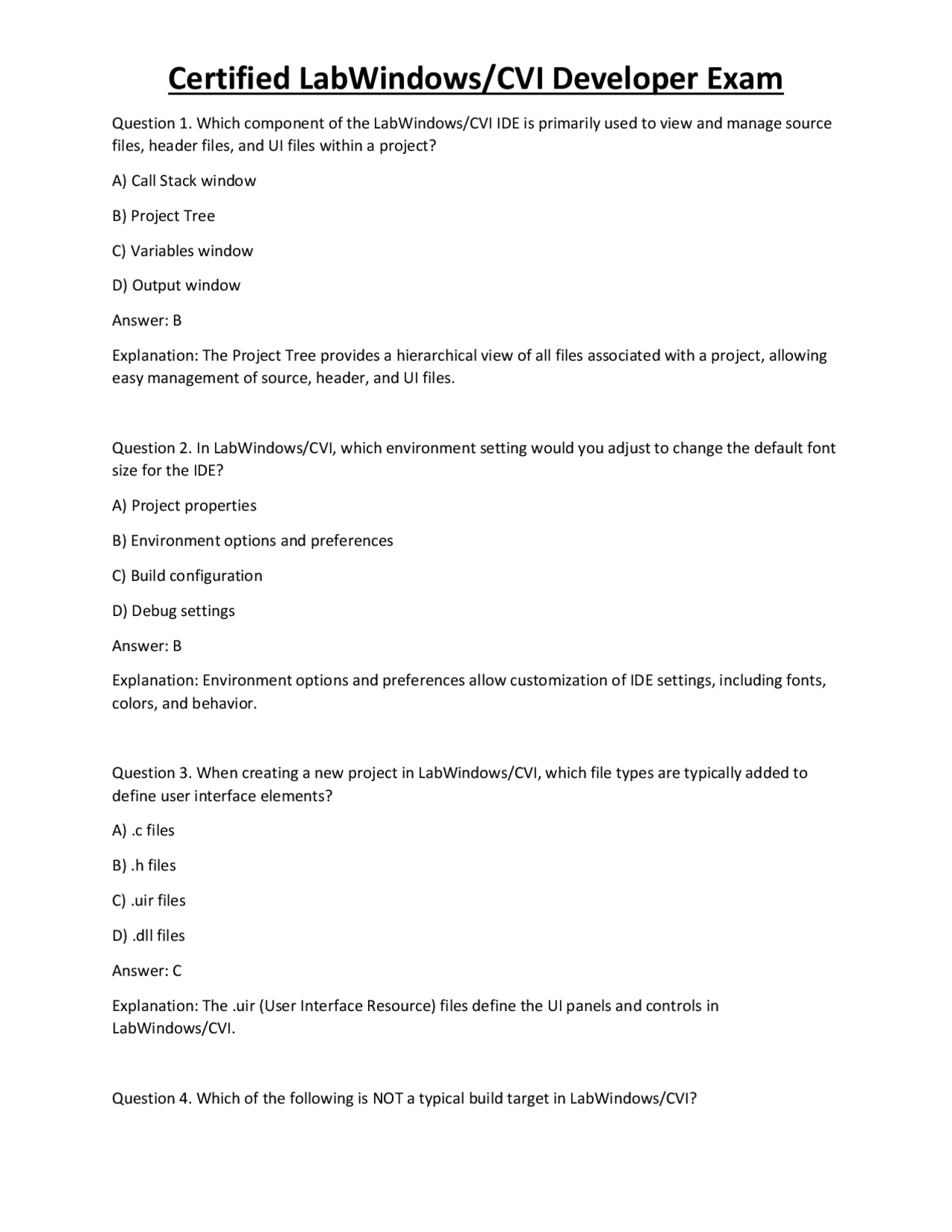

Question 1. Which component of the LabWindows/CVI IDE is primarily used to view and manage source files, header files, and UI files within a project? A) Call Stack window B) Project Tree C) Variables window D) Output window Answer: B Explanation: The Project Tree provides a hierarchical view of all files associated with a project, allowing easy management of source, header, and UI files. Question 2. In LabWindows/CVI, which environment setting would you adjust to change the default font size for the IDE? A) Project properties B) Environment options and preferences C) Build configuration D) Debug settings Answer: B Explanation: Environment options and preferences allow customization of IDE settings, including fonts, colors, and behavior. Question 3. When creating a new project in LabWindows/CVI, which file types are typically added to define user interface elements? A) .c files B) .h files C) .uir files D) .dll files Answer: C Explanation: The .uir (User Interface Resource) files define the UI panels and controls in LabWindows/CVI. Question 4. Which of the following is NOT a typical build target in LabWindows/CVI?
A) Debug B) Release C) Static Library D) Data Logger Answer: D Explanation: Common build targets include Debug, Release, and DLL; "Data Logger" is not a standard build target. Question 5. What is the primary purpose of source code control in LabWindows/CVI projects? A) To increase code execution speed B) To manage and track changes to project files over time C) To compile projects faster D) To generate documentation automatically Answer: B Explanation: Source code control systems track modifications, facilitate collaboration, and help manage different versions of project files. Question 6. Which UI control is best suited for displaying tabular data in LabWindows/CVI? A) Button B) Graph C) Table D) List Box Answer: C Explanation: The Table control is designed specifically for displaying and editing tabular data in a structured format. Question 7. How do you handle a button click event in LabWindows/CVI? A) By creating a callback function registered to the button control B) By writing code in the main() function only C) By using a global variable only
Question 11. What is a primary benefit of creating custom controls in LabWindows/CVI? A) To reduce application size B) To implement application-specific or complex UI elements not provided by default controls C) To increase compile time D) To avoid using callback functions Answer: B Explanation: Custom controls allow developers to create specialized UI elements tailored to specific application needs. Question 12. Which protocol is primarily used in VISA for instrument communication over serial ports? A) TCP/IP B) GPIB C) RS-232/RS- 485 D) USB Answer: C Explanation: VISA can communicate over serial ports such as RS-232 and RS-485 using appropriate resource strings. Question 13. In VISA, which function is used to open a session to an instrument resource? A) VISA_Open() B) viOpen() C) VISA_Init() D) viConfigure() Answer: B Explanation: The viOpen() function initializes a session to an instrument resource specified by a resource string. Question 14. Which driver type is most suitable for controlling an instrument that conforms to the IVI standard?
A) VXIplug&play driver B) VXI driver C) IVI driver D) VISA driver Answer: C Explanation: IVI drivers conform to the IVI standard and provide a consistent API for instrument control. Question 15. To perform a direct read of data from an instrument in LabWindows/CVI, which function is typically used? A) VISA_Write() B) VISA_Read() C) VISA_Configure() D) VISA_Close() Answer: B Explanation: VISA_Read() is used to read data directly from an instrument session. Question 16. When configuring NI-DAQmx for data acquisition, which object represents a collection of channels and timing settings? A) DAQmxTaskHandle B) DAQmxChannel C) DAQmxTask D) DAQmxController Answer: C Explanation: A DAQmxTask groups channels, timing, and triggering configurations within a single task object. Question 17. Which DAQmx function is used to start data acquisition on a configured task? A) DAQmxCreateTask() B) DAQmxStartTask() C) DAQmxRead()
Explanation: Checking and handling error codes returned by functions ensures robustness and proper error handling. Question 21. Which debugging feature allows pausing program execution at a specific line to examine the current state? A) Breakpoint B) Watch window C) Step over D) Run to cursor Answer: A Explanation: Breakpoints pause execution at designated code lines, facilitating step-by-step debugging. Question 22. Which technique is best for identifying performance bottlenecks in a LabWindows/CVI application? A) Using the profiler tool B) Disabling all controls C) Increasing buffer sizes D) Rebuilding the project multiple times Answer: A Explanation: Profilers analyze runtime behavior and identify slow or inefficient code segments. Question 23. How should code be organized for better modularity in LabWindows/CVI? A) Use multiple source files with header files for declarations B) Write all code in a single main() function C) Avoid using functions altogether D) Embed all code directly into UI callbacks only Answer: A Explanation: Separating code into multiple source and header files enhances modularity, readability, and reusability.
Question 24. Which file format is commonly used in LabWindows/CVI for storing large sequential data with fast read/write performance? A) Text files (.txt) B) Binary files (.bin) C) TDMS files D) CSV files Answer: C Explanation: TDMS (Technical Data Management Streaming) files are optimized for high-speed storage of large measurement data. Question 25. Which graph type is best suited for displaying a series of data points over time? A) XY Graph B) Waveform Graph C) Bar Graph D) Pie Chart Answer: B Explanation: Waveform Graphs are designed to display continuous data, such as signals over time. Question 26. When performing data analysis, which library function would you typically use for calculating the mean of an array? A) Mean() B) Average() C) CalcMean() D) The Analysis Library provides functions like 'Mean' for statistical calculations Answer: D Explanation: The LabWindows/CVI Analysis Library includes functions like 'Mean' for statistical operations on data arrays. Question 27. In database connectivity, which API is commonly used for accessing databases in LabWindows/CVI?
D) Word documents Answer: B Explanation: PDF files are commonly used for generating portable, well-formatted reports. Question 31. When configuring a serial communication port in LabWindows/CVI VISA, which parameter is NOT typically set? A) Baud rate B) Data bits C) Parity D) IP address Answer: D Explanation: IP address is used in network communication, not serial port configuration. Question 32. Which function in LabWindows/CVI is used to write formatted data to a file? A) fprintf() B) fwrite() C) WriteFile() D) SaveData() Answer: A Explanation: fprintf() writes formatted text to a file stream. Question 33. What is the primary purpose of using a callback function in UI programming? A) To handle user events asynchronously and respond appropriately B) To compile the project faster C) To initialize hardware automatically D) To generate code automatically Answer: A Explanation: Callbacks provide event-driven responses, allowing the application to react to user actions.
Question 34. Which approach is recommended for handling multiple UI panels in an application? A) Create all panels at startup and show/hide them as needed B) Create panels dynamically each time they are needed C) Use a single panel for all controls D) Avoid using multiple panels to simplify the UI Answer: A Explanation: Creating panels at startup and toggling visibility offers better performance and management. Question 35. During instrument communication, what does the VISA resource string typically specify? A) The physical or logical address of the instrument (e.g., "GPIB0::14::INSTR") B) The IP address only C) The file path to the driver D) The USB port number only Answer: A Explanation: VISA resource strings identify the specific instrument resource, including bus and address information. Question 36. Which function is used to close an instrument session in VISA? A) VISA_Close() B) viClose() C) VISA_Disconnect() D) CloseInstrument() Answer: B Explanation: viClose() terminates the session to the instrument, releasing resources. Question 37. To perform a continuous analog input measurement with NI-DAQmx, which configuration is necessary? A) Set up an analog input channel with continuous sampling mode B) Use a single conversion command only
Explanation: TDMS files are optimized for high-speed storage and retrieval of large, complex measurement data. Question 41. How does setting the 'tab order' in LabWindows/CVI UI panels affect user experience? A) It determines the sequence of focus when pressing the Tab key for controls B) It changes the control's position on the panel C) It modifies the control's label D) It automatically disables controls in sequence Answer: A Explanation: Tab order controls the navigation sequence for keyboard users, enhancing usability. Question 42. Which feature of LabWindows/CVI helps visualize the execution flow and variable states during debugging? A) Call Stack window B) Variables window C) Breakpoints D) Watch window Answer: D Explanation: The Watch window allows monitoring specific variables' values during execution. Question 43. How can you improve application performance when handling large data sets in LabWindows/CVI? A) Use efficient data structures and minimize unnecessary data copying B) Use global variables only C) Avoid error handling D) Recompile after every data update Answer: A Explanation: Efficient data structures and minimizing redundant operations help optimize performance with large data.
Question 44. Which programming concept is essential for creating reusable code modules in LabWindows/CVI? A) Functions and libraries B) Global variables only C) Hardcoded values D) Inline code only Answer: A Explanation: Functions and libraries promote code reuse, modularity, and maintainability. Question 45. Which file extension is used for static libraries in LabWindows/CVI? A) .lib B) .dll C) .a D) .so Answer: A Explanation: Static libraries in C are typically stored with the .lib extension. Question 46. Which protocol is commonly used for instrument control over Ethernet in LabWindows/CVI? A) GPIB B) USB C) VISA over TCP/IP D) Serial Answer: C Explanation: VISA supports communication over Ethernet using TCP/IP protocols. Question 47. Which error handling strategy involves checking return codes immediately after function calls? A) Error code checking B) Exception handling
Explanation: Synchronization ensures data from multiple sources is temporally aligned for accurate analysis. Question 51. Which LabWindows/CVI feature allows the user to automatically generate documentation for their project? A) Help system and online resources B) Auto-documentation tool in the IDE C) Manual commenting only D) Export to Word feature Answer: B Explanation: The IDE provides tools to generate documentation from code comments, project settings, and resources. Question 52. Which of the following best describes the purpose of the 'Call Stack' window during debugging? A) To view the sequence of function calls leading to the current point of execution B) To monitor variable values C) To set breakpoints D) To compile code Answer: A Explanation: The Call Stack shows the active chain of function calls, aiding in understanding program flow. Question 53. Which attribute of a control determines whether it can receive focus during tab navigation? A) ATTR_TAB_STOP B) ATTR_FOCUS C) ATTR_VISIBLE D) ATTR_ENABLED Answer: A Explanation: ATTR_TAB_STOP controls whether a control is included in tab order navigation.
Question 54. Which statement about managing project dependencies in LabWindows/CVI is true? A) Dependencies must be manually linked and configured in project settings B) Dependencies are automatically managed by the IDE without configuration C) Dependencies are irrelevant for project compilation D) Dependencies are only used for documentation purposes Answer: A Explanation: Developers need to specify and configure dependencies such as linked libraries or source files explicitly. Question 55. Which type of file typically stores configuration settings and preferences for a LabWindows/CVI environment? A) .ini or .cfg files B) .txt files only C) .xml files only D) .log files Answer: A Explanation: Configuration files like .ini or .cfg store user preferences and environment settings. Question 56. When creating a new UI panel, which component is used to add buttons, sliders, and other controls visually? A) UI Editor B) Source Code Editor C) Variable window D) Project Tree Answer: A Explanation: The UI Editor provides a drag-and-drop interface for designing panels and placing controls. Question 57. To ensure application robustness, what is recommended when handling errors from instrument communication functions?
D) Hardcoding values everywhere Answer: A Explanation: Modular design with functions, libraries, and clear interfaces enhances maintainability. Question 61. What is the typical extension for a static library in C projects used in LabWindows/CVI? A) .lib B) .dll C) .a D) .so Answer: A Explanation: Static libraries in C are often stored as .lib files. Question 62. Which control property would you modify to change the font or color of a control? A) ATTR_TEXT_FONT or ATTR_TEXT_COLOR B) ATTR_LABEL_FONT C) ATTR_STYLE D) ATTR_CONTROL_COLOR Answer: A Explanation: ATTR_TEXT_FONT and ATTR_TEXT_COLOR control the font and color of text within the control. Question 63. Which method is appropriate for capturing mouse click events on a panel in LabWindows/CVI? A) Registering a callback for mouse events on the panel B) Polling the mouse position continuously C) Using global variables only D) Modifying the Windows registry Answer: A Explanation: Registering callback functions for mouse events allows event-driven handling.
Question 64. What is the main purpose of the 'Variables' window during debugging? A) To monitor the current values of variables in scope during execution B) To set breakpoints C) To compile the code D) To edit source code Answer: A Explanation: The Variables window displays real-time values of variables for debugging purposes. Question 65. Which data format is suited for exporting measurement data for post-processing in external tools? A) CSV (Comma-Separated Values) B) XML C) TDMS D) Binary files only Answer: A Explanation: CSV format is widely supported and easily imported into external analysis tools like Excel. Question 66. How does using a 'callback' function differ from polling in UI event handling? A) Callbacks are event-driven and invoked automatically upon event occurrence, whereas polling requires actively checking for events B) Callbacks require continuous checking C) Polling is faster and more efficient D) Callbacks only work for hardware interrupts Answer: A Explanation: Callbacks provide an event-driven model, improving responsiveness and efficiency. Question 67. Which function is used to save data to a binary file in C? A) fwrite()
