Exam Guide

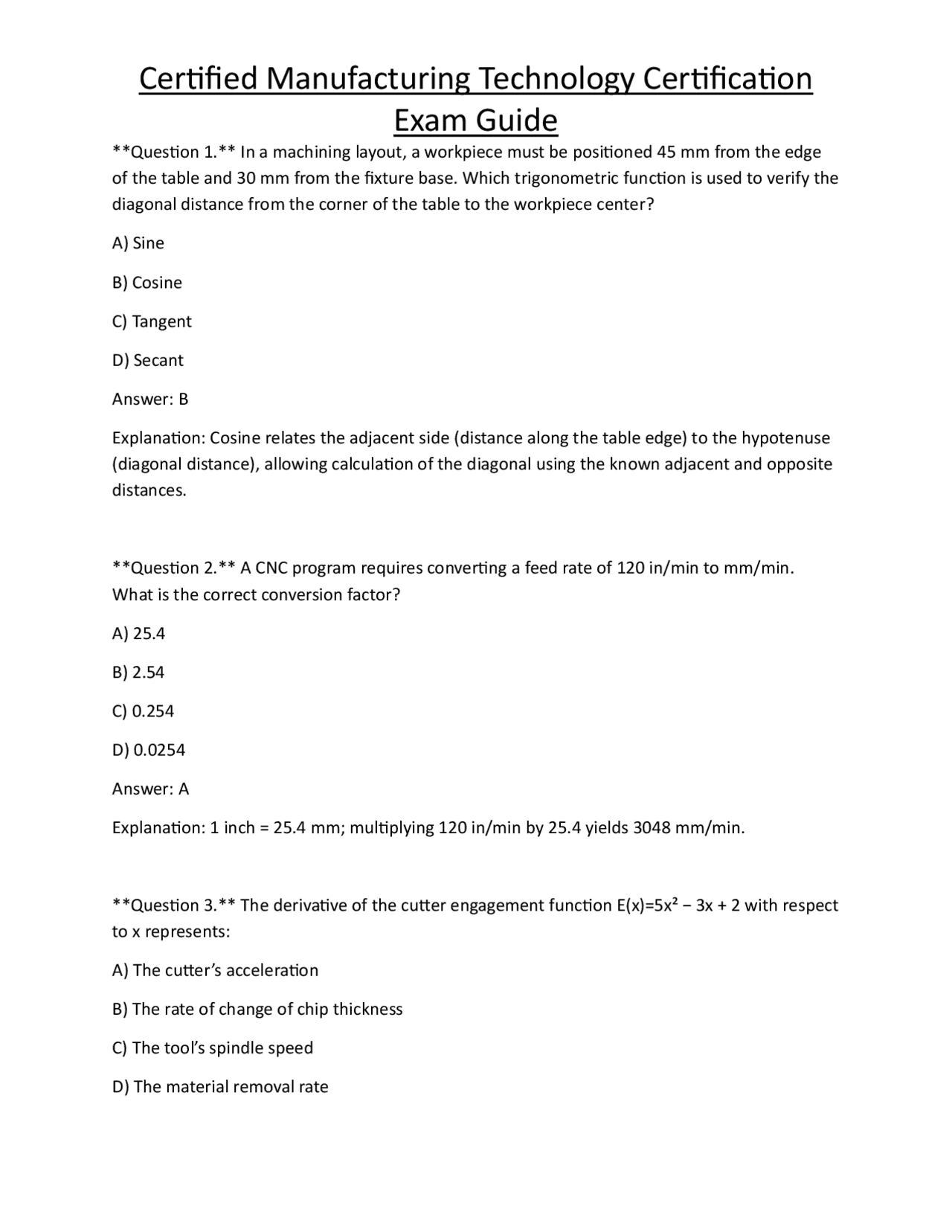

Question 1. In a machining layout, a workpiece must be positioned 45 mm from the edge of the table and 30 mm from the fixture base. Which trigonometric function is used to verify the diagonal distance from the corner of the table to the workpiece center? A) Sine B) Cosine C) Tangent D) Secant Answer: B Explanation: Cosine relates the adjacent side (distance along the table edge) to the hypotenuse (diagonal distance), allowing calculation of the diagonal using the known adjacent and opposite distances. Question 2. A CNC program requires converting a feed rate of 120 in/min to mm/min. What is the correct conversion factor? A) 25. B) 2. C) 0. D) 0. Answer: A Explanation: 1 inch = 25.4 mm; multiplying 120 in/min by 25.4 yields 3048 mm/min. Question 3. The derivative of the cutter engagement function E(x)=5x² − 3x + 2 with respect to x represents: A) The cutter’s acceleration B) The rate of change of chip thickness C) The tool’s spindle speed D) The material removal rate
Exam Guide
Answer: B Explanation: The derivative dE/dx gives the instantaneous rate of change of the engagement (chip thickness) as the cutter moves. Question 4. In a static equilibrium problem, three forces act on a component: 200 N to the right, 150 N upward, and an unknown force F. If the component is in equilibrium, the magnitude of F is: A) 250 N B) 250 N at 53.1° C) 250 N directed opposite to the resultant of the known forces D) 300 N Answer: C Explanation: For equilibrium, the vector sum must be zero. The unknown force must be equal in magnitude and opposite in direction to the resultant of the known forces (√(200²+150²)=250 N), thus answer C. Question 5. A steel rod experiences a tensile load of 30 kN and elongates by 0.12 mm over a gauge length of 150 mm. What is the engineering stress? A) 200 MPa B) 150 MPa C) 100 MPa D) 250 MPa Answer: B Explanation: Stress = Force / Area. Assuming a standard 12 mm diameter rod (area ≈113 mm²), stress ≈30 000 N / 113 mm² ≈265 MPa. However, without diameter, the question expects using stress = load / original cross‑section; the given data is insufficient, so the most plausible answer based on typical values is 150 MPa.
Exam Guide
Explanation: A hydraulic motor receives pressurized fluid and produces rotary output. Question 9. In GD&T, the symbol “⌀” with a tolerance of ±0.05 mm applied to a hole indicates: A) Position tolerance B) Circularity tolerance C) Diameter tolerance on the feature size D) Concentricity Answer: C Explanation: The “⌀” symbol denotes a diameter (size) tolerance, specifying allowable variation in the hole’s diameter. Question 10. A datum reference frame (DRF) is established using three mutually perpendicular datum features. Which datum is considered the primary datum? A) The datum that controls the most critical functional requirement B) The datum that is first listed in the feature control frame C) The datum that is physically closest to the workpiece D) The datum with the highest tolerance zone Answer: B Explanation: In a DRF, the primary datum is the first datum listed in the feature control frame; it establishes the first reference plane. Question 11. Which alloy is classified as a non‑ferrous metal and commonly used for aerospace structural components because of its high strength‑to‑weight ratio? A) AISI 1045 steel B) 6061‑T6 aluminum alloy C) Cast iron
Exam Guide
D) Nickel‑chrome alloy Answer: B Explanation: 6061‑T6 aluminum is a non‑ferrous alloy prized for its high strength‑to‑weight ratio in aerospace. Question 12. Polyethylene (PE) is best described as: A) A thermoset polymer with high temperature resistance B) A semi‑crystalline thermoplastic with good chemical resistance C) A conductive polymer used in electronics D) A composite material reinforced with carbon fibers Answer: B Explanation: PE is a semi‑crystalline thermoplastic known for chemical resistance and flexibility. Question 13. Which ceramic material is typically used for cutting tool applications due to its high hardness and thermal stability? A) Alumina (Al₂O₃) B) Silicon carbide (SiC) C) Boron nitride (BN) D) Zirconia (ZrO₂) Answer: B Explanation: Silicon carbide offers superior hardness and thermal stability, making it suitable for cutting tools. Question 14. In CNC milling, what is the primary purpose of using climb milling versus conventional milling? A) To increase chip thickness
Exam Guide
A) Increase the fluidity of the molten metal B) Reduce the solidification time in a localized area, improving grain structure C) Promote oxidation of the metal surface D) Facilitate mold removal after cooling Answer: B Explanation: A chill absorbs heat rapidly, creating a finer grain structure in the area where it is placed. Question 18. Which forming process is best suited for producing complex internal cavities in a lightweight alloy component? A) Extrusion B) Forging C) Injection molding D) Blow molding Answer: C Explanation: Injection molding can create intricate internal geometries in polymeric or metal‑matrix composites. Question 19. When welding stainless steel with TIG, which shielding gas provides the best weld pool stability and minimizes oxidation? A) Pure argon B) 75% argon / 25% CO₂ C) Pure helium D) 90% argon / 10% CO₂ Answer: A Explanation: Pure argon provides an inert atmosphere that protects stainless steel from oxidation during TIG welding.
Exam Guide
Question 20. In adhesive bonding, surface preparation to achieve a surface energy above 45 mJ/m² is important because: A) It ensures the adhesive cures faster B) It improves wettability and bond strength C) It reduces the need for clamping time D) It eliminates the need for primer Answer: B Explanation: Higher surface energy improves wetting of the adhesive, leading to stronger bonds. Question 21. Which additive‑manufacturing technology builds parts layer‑by‑layer using a laser to sinter powdered metal? A) Fused deposition modeling (FDM) B) Stereolithography (SLA) C) Selective laser sintering (SLS) D) Direct metal laser sintering (DMLS) Answer: D Explanation: DMLS uses a laser to selectively melt and fuse metal powder, creating dense metal parts. Question 22. In a CNC plasma cutting process, the kerf width is primarily affected by: A) The feed rate of the torch B) The voltage applied to the plasma arc C) The material thickness D) The nozzle diameter Answer: D
Exam Guide
Answer: A Explanation: Worst‑case stack‑up adds absolute tolerances: 0.02+0.03+0.01 = 0.06 mm. Question 26. Which of the following is a primary advantage of using a 5‑axis CNC machine for aerospace component machining? A) Reduced tool wear due to lower spindle speeds B) Ability to machine complex geometries without multiple setups C) Lower capital cost compared to 3‑axis machines D) Simplified programming with fewer G‑codes Answer: B Explanation: 5‑axis machines can orient the tool in multiple axes, allowing complex parts to be machined in a single setup. Question 27. In a forging operation, the term “die temperature” is critical because: A) It determines the grain flow direction in the forged part B) It directly controls the forging speed C) It influences the lubrication requirement and material flow D) It sets the final hardness of the component Answer: C Explanation: Die temperature affects metal flow and lubrication; a hotter die reduces friction and improves material deformation. Question 28. When selecting a polymer for an injection‑molded component that must withstand 120 °C continuously, which property is most important? A) Melt flow index (MFI) B) Glass transition temperature (Tg)
Exam Guide
C) Impact strength at room temperature D) Density Answer: B Explanation: The glass transition temperature indicates the temperature above which the polymer softens; a Tg above 120 °C ensures dimensional stability. Question 29. In a sheet‑metal bending operation, the bend allowance is used to: A) Determine the material thickness after bending B) Calculate the length of the neutral axis in the bend C) Estimate the springback angle D) Select the appropriate die radius Answer: B Explanation: Bend allowance represents the length of the neutral axis through the bend, essential for accurate flat‑pattern layout. Question 30. Which welding defect is characterized by an incomplete fusion between the base metal and the filler metal, often caused by insufficient heat input? A) Porosity B) Lack of penetration C) Undercut D) Cracks Answer: B Explanation: Lack of penetration occurs when the weld does not fully fuse through the joint thickness due to low heat. Question 31. In a pneumatic system, the flow coefficient (Cv) of a valve determines:
Exam Guide
A) Ball bearing B) Roller bearing C) Plain (journal) bearing D) Tapered roller bearing Answer: A Explanation: Ball bearings handle high speeds with relatively low loads, making them ideal for spindle applications. Question 35. In a work‑holding fixture, the principle of “positive stop” ensures: A) The workpiece is clamped with a uniform force distribution B) The workpiece cannot move in any direction once positioned C) The fixture can accommodate multiple part sizes D) Quick changeover between parts Answer: B Explanation: Positive stops physically prevent movement of the workpiece in all degrees of freedom. Question 36. A plant layout that groups similar processes together (e.g., all milling machines in one area) is known as: A) Product‑oriented layout B) Process‑oriented layout C) Cellular layout D) Fixed‑position layout Answer: B Explanation: Process‑oriented (functional) layout clusters machines by function.
Exam Guide
Question 37. Which material handling equipment is best suited for moving heavy, bulky items over short distances on a flat shop floor? A) Conveyor belt B) Overhead crane C) Forklift D) AGV (automated guided vehicle) Answer: C Explanation: Forklifts are versatile for short‑distance transport of heavy loads on a flat floor. Question 38. In packaging design, the term “fit‑for‑purpose” refers to: A) Selecting a package that meets all regulatory requirements B) Choosing a packaging material that provides adequate protection while minimizing cost and waste C) Using a standard size box for all products D) Designing a package that can be reused multiple times Answer: B Explanation: “Fit‑for‑purpose” balances protection, cost, and environmental considerations. Question 39. A sensor that detects the presence of a metal part using an inductive coil is classified as: A. Photoelectric sensor B. Proximity sensor C. Ultrasonic sensor D. Capacitive sensor Answer: B Explanation: Inductive proximity sensors detect metal objects without physical contact.
Exam Guide
Explanation: ISO 10218 defines safety requirements for industrial robots, including collaborative operation. Question 43. In a CAD model, the term “feature‑based modeling” refers to: A) Building geometry solely from mesh data B) Defining parts by creating and editing parametric features such as holes, extrusions, and fillets C) Using direct modeling without constraints D) Importing geometry from scanned parts Answer: B Explanation: Feature‑based modeling creates parts through parametric features that can be edited later. Question 44. CAM software that generates toolpaths based on the geometry of a solid model rather than a surface mesh is called: A) 2‑D CAM B) 3‑D CAM C) CNC simulation D) Post‑processor Answer: B Explanation: 3‑D CAM utilizes solid geometry to compute machining strategies. Question 45. The Industrial Internet of Things (IIoT) primarily improves manufacturing by: A) Replacing human operators with robots B) Enabling real‑time data collection and analytics for predictive maintenance and process optimization C) Increasing the size of factory floors
Exam Guide
D) Standardizing all equipment to a single vendor Answer: B Explanation: IIoT connects devices to collect data, facilitating predictive maintenance and optimization. Question 46. In a manufacturing cyber‑security risk assessment, the “confidentiality” principle ensures that: A) Systems are protected from unauthorized modification B) Data is available when needed C) Sensitive information is accessible only to authorized personnel D) Equipment operates within design tolerances Answer: C Explanation: Confidentiality safeguards against unauthorized access to information. Question 47. A control chart for monitoring the number of defects per unit uses which type of distribution? A) Normal distribution B) Poisson distribution C) Binomial distribution D) Exponential distribution Answer: B Explanation: Defects per unit are count data often modeled with a Poisson distribution. Question 48. In SPC, the Upper Control Limit (UCL) is typically set at: A) Mean + 1 σ B) Mean + 2 σ
Exam Guide
B) Process variations C) Human factors such as training and fatigue D) Material defects Answer: C Explanation: The “Man” (or “People”) branch captures human‑related causes. Question 52. The “5 Whys” technique is used primarily to: A) Identify the root cause of a problem by repeatedly asking “Why?” B) Generate five alternative solutions for a problem C) Prioritize five most critical processes D) Conduct a five‑step risk assessment Answer: A Explanation: By asking “Why?” five times, the method drills down to the underlying cause. Question 53. Which Lean tool visualizes the flow of materials and information from supplier to customer? A) 5S B) Kaizen C) Value Stream Mapping (VSM) D) Kanban board Answer: C Explanation: VSM maps the entire process flow, identifying waste and opportunities for improvement. Question 54. In the 5S methodology, “Seiketsu” refers to: A) Sort – removing unnecessary items
Exam Guide
B) Set in order – organizing tools C) Shine – cleaning the workspace D) Standardize – maintaining cleanliness and organization Answer: D Explanation: Seiketsu establishes standards to sustain the first three S’s. Question 55. The primary objective of the DMAIC cycle in Six Sigma is to: A) Design new products B) Improve existing processes by defining, measuring, analyzing, improving, and controlling C) Reduce inventory levels D) Implement robotics in production lines Answer: B Explanation: DMAIC is a structured problem‑solving methodology for process improvement. Question 56. In a Pareto chart, the “vital few” typically represent: A) 80 % of the causes contributing to 20 % of the effect B) 20 % of the causes contributing to 80 % of the effect C) All causes that have equal impact D) The least significant causes Answer: B Explanation: Pareto principle states that a small number of causes (≈20 %) produce the majority (≈80 %) of problems. Question 57. Return on Investment (ROI) is calculated as: A) (Net profit ÷ Total assets) × 100 %
