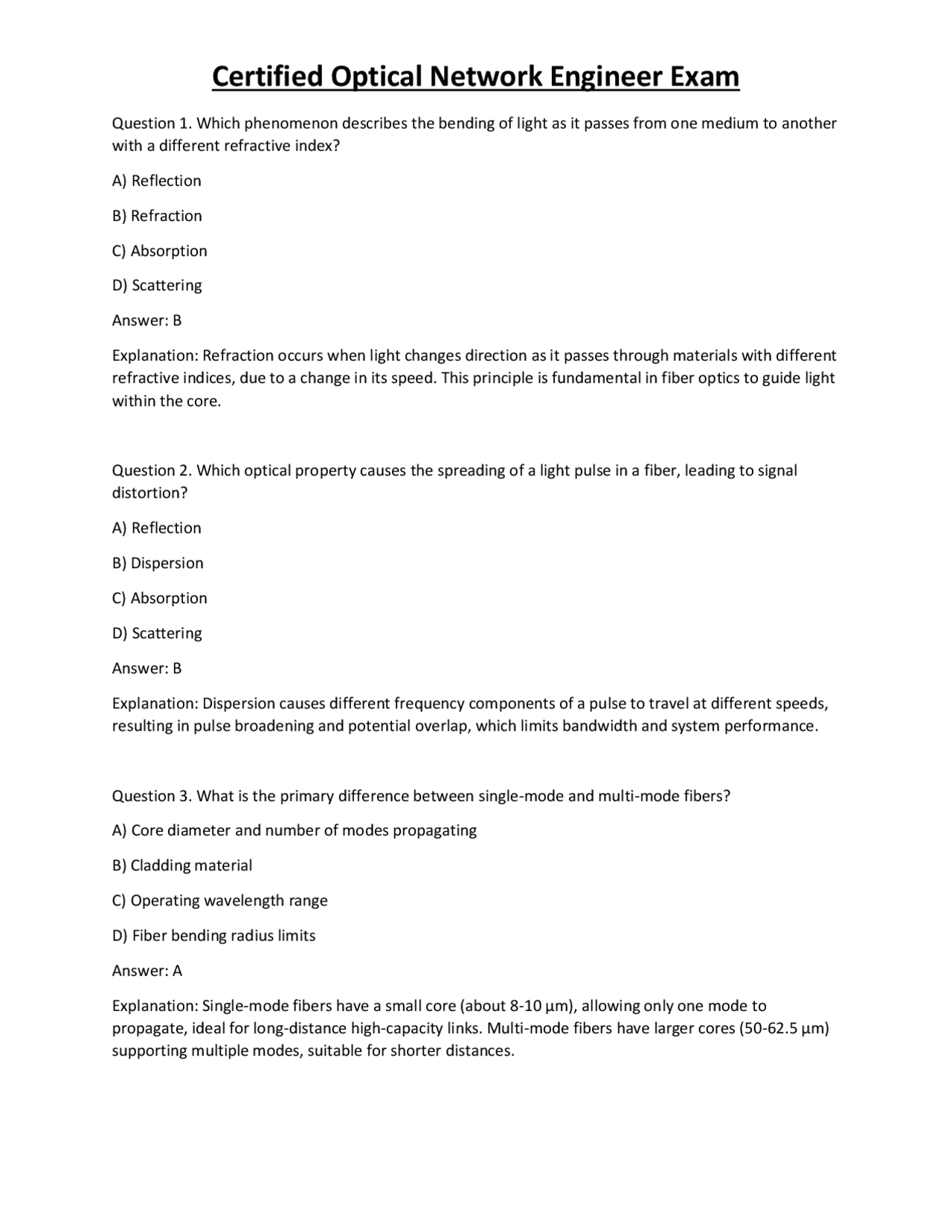

Question 1. Which phenomenon describes the bending of light as it passes from one medium to another with a different refractive index? A) Reflection B) Refraction C) Absorption D) Scattering Answer: B Explanation: Refraction occurs when light changes direction as it passes through materials with different refractive indices, due to a change in its speed. This principle is fundamental in fiber optics to guide light within the core. Question 2. Which optical property causes the spreading of a light pulse in a fiber, leading to signal distortion? A) Reflection B) Dispersion C) Absorption D) Scattering Answer: B Explanation: Dispersion causes different frequency components of a pulse to travel at different speeds, resulting in pulse broadening and potential overlap, which limits bandwidth and system performance. Question 3. What is the primary difference between single-mode and multi-mode fibers? A) Core diameter and number of modes propagating B) Cladding material C) Operating wavelength range D) Fiber bending radius limits Answer: A Explanation: Single-mode fibers have a small core (about 8-10 μm), allowing only one mode to propagate, ideal for long-distance high-capacity links. Multi-mode fibers have larger cores (50-62.5 μm) supporting multiple modes, suitable for shorter distances.
Question 4. Which fiber parameter quantifies the loss of optical power as light travels through the fiber? A) Attenuation B) Dispersion C) PMD D) Non-linear coefficient Answer: A Explanation: Attenuation measures the decrease in optical power (dB/km) due to absorption, scattering, and other losses as light propagates through the fiber. Question 5. Chromatic dispersion in fibers primarily results from: A) Variations in fiber core diameter B) Differing velocities of different wavelength components C) Random scattering centers D) Nonlinear interactions at high power levels Answer: B Explanation: Chromatic dispersion arises because different wavelengths travel at different velocities in the fiber, causing pulse spreading and limiting bandwidth. Question 6. Which fiber type is most suitable for ultra-long-haul applications due to its low attenuation and dispersion? A) Multi-mode fiber B) Single-mode fiber C) Plastic optical fiber D) Graded-index multi-mode fiber Answer: B Explanation: Single-mode fibers exhibit very low attenuation and dispersion, making them ideal for long- distance, high-capacity optical communication systems. Question 7. Which of the following is a common method for joining two fiber ends? A) Connectorization
Answer: B Explanation: PIN photodiodes are favored for their high-speed response and moderate sensitivity, making them suitable for many optical receiver applications. Question 11. Which device is used to combine multiple wavelengths onto a single fiber? A) Optical amplifier B) Multiplexer C) Demultiplexer D) Modulator Answer: B Explanation: Multiplexers combine multiple optical signals at different wavelengths onto one fiber, enabling WDM operation. Question 12. DWDM stands for: A) Dense Wave Division Multiplexing B) Distributed Wave Division Multiplexing C) Dynamic Wavelength Division Multiplexing D) Digital Wave Division Multiplexing Answer: A Explanation: DWDM densely packs multiple wavelengths in a narrow spectral band, allowing high- capacity transmission over a single fiber. Question 13. Which component allows the reconfiguration of wavelength channels dynamically in a flexible optical network? A) Fixed WDM multiplexer B) Reconfigurable Optical Add/Drop Multiplexer (ROADM) C) Passive splitter D) Optical circulator Answer: B
Explanation: ROADM enables dynamic addition/drop of wavelengths, facilitating flexible and efficient wavelength routing. Question 14. Which of the following is a non-linear effect in fibers that can impair signal quality at high power levels? A) Rayleigh scattering B) Stimulated Raman Scattering (SRS) C) Chromatic dispersion D) Polarization mode dispersion Answer: B Explanation: SRS is a non-linear effect where high power causes energy transfer between wavelengths, leading to crosstalk and signal degradation. Question 15. Which device converts electrical signals into optical signals in optical communication systems? A) Photodiode B) Laser diode C) Modulator D) Amplifier Answer: B Explanation: Laser diodes serve as the light sources that convert electrical signals into coherent optical signals. Question 16. What is the main advantage of coherent detection over direct detection? A) Simpler receiver design B) Higher sensitivity and spectral efficiency C) Lower cost D) Less complex DSP requirements Answer: B Explanation: Coherent detection offers higher sensitivity, allows advanced modulation formats, and improves spectral efficiency through DSP.
Question 20. Which performance metric indicates the quality of an optical signal relative to noise, typically used to assess system performance? A) OSNR B) BER C) Q-factor D) Attenuation coefficient Answer: A Explanation: OSNR (Optical Signal-to-Noise Ratio) measures the ratio of signal power to noise power, indicating link quality. Question 21. Forward Error Correction (FEC) enhances system performance primarily by: A) Reducing noise B) Correcting errors in the received data C) Increasing bandwidth D) Amplifying signals Answer: B Explanation: FEC adds redundancy to the transmitted data, allowing the receiver to detect and correct errors, thereby extending reach and improving reliability. Question 22. Wavelength division multiplexing (WDM) enables: A) Multiple signals over a single fiber using different wavelengths B) Time-division multiplexing C) Spatial multiplexing D) Frequency hopping Answer: A Explanation: WDM combines multiple wavelengths, each carrying separate data streams, onto one fiber, vastly increasing capacity. Question 23. Which technique is used to increase the capacity of optical fibers by transmitting different polarization states simultaneously?
A) Wavelength multiplexing B) Polarization multiplexing C) Spatial multiplexing D) Time multiplexing Answer: B Explanation: Polarization multiplexing transmits two orthogonal polarization states simultaneously, effectively doubling the data rate. Question 24. Which of the following is a typical application of ultra-long-haul optical networks? A) Data center interconnects B) Submarine communications C) Local access networks D) Residential fiber-to-the-home Answer: B Explanation: Submarine networks span thousands of kilometers, requiring ultra-long-haul systems with low loss and dispersion management. Question 25. Which architecture organizes a data center network with a spine layer and leaf layer to optimize traffic flow? A) Ring topology B) Spine-leaf architecture C) Mesh topology D) Star topology Answer: B Explanation: The spine-leaf architecture provides scalable, low-latency connectivity by connecting leaf switches to spine switches in a fabric. Question 26. Which protection scheme involves switching traffic to a backup path in response to a failure? A) Restoration
Answer: C Explanation: GMPLS extends MPLS to control multiple layers and technologies, including optical circuits and wavelengths. Question 30. Which is an advantage of Software-Defined Networking (SDN) in optical networks? A) Decentralized control B) Increased manual configuration C) Centralized control and programmability D) Fixed network policies Answer: C Explanation: SDN centralizes control, enabling dynamic, programmable network management and rapid provisioning. Question 31. What is a typical goal of optical network planning? A) Maximizing latency B) Ensuring sufficient capacity and resilience C) Reducing fiber count regardless of demand D) Eliminating amplification Answer: B Explanation: Planning aims to provide enough capacity, reliability, and flexibility to meet current and future traffic demands. Question 32. Which measurement device is used to analyze the optical time domain reflectometry (OTDR) signature? A) Power meter B) Spectrum analyzer C) OTDR instrument D) BER tester Answer: C
Explanation: An OTDR sends pulses down the fiber and measures reflections to locate faults and characterize fiber loss. Question 33. Which is a primary consideration when deploying fiber in a dense urban environment? A) Fiber type B) Installation cost C) Space availability and cable management D) Operating wavelength Answer: C Explanation: Urban deployments require careful planning of space, conduit access, and cable management for efficient installation. Question 34. Which technology is used to test the quality of an optical link by measuring optical power and loss? A) OTDR B) Power meter C) Spectrum analyzer D) BER tester Answer: B Explanation: Power meters measure optical power levels at various points in the link, helping assess link performance. Question 35. Which is a common challenge in optical network operations? A) Managing electrical interference B) Handling fiber splicing errors C) Maintaining polarization stability D) Managing optical signal degradation and drift Answer: D Explanation: Signal degradation due to dispersion, non-linear effects, and component aging requires ongoing management.
Question 39. Which is a key benefit of using AI/ML in optical network management? A) Manual troubleshooting B) Predictive maintenance and automation C) Increased hardware complexity D) Reduced data analytics capabilities Answer: B Explanation: AI/ML enable predictive analytics, automation, and proactive management, improving network reliability and efficiency. Question 40. Quantum key distribution (QKD) over optical fibers primarily provides: A) High-capacity data transmission B) Secure encryption keys based on quantum mechanics C) High-speed classical data transfer D) Fiber fault detection Answer: B Explanation: QKD uses quantum principles to securely distribute encryption keys, offering theoretically unbreakable security. Question 41. Which type of fiber is most suitable for short-distance, high-bandwidth data center interconnects? A) Multi-mode fiber B) Single-mode fiber C) Plastic optical fiber D) Graded-index multi-mode fiber Answer: A Explanation: Multi-mode fibers are preferred for short-distance data centers due to ease of coupling, lower cost, and high bandwidth. Question 42. Which device in an optical network is used to add or drop specific wavelengths without affecting others?
A) Optical amplifier B) OADM C) Switch D) Transceiver Answer: B Explanation: OADMs selectively add or drop particular wavelengths, enabling flexible wavelength management in complex networks. Question 43. In optical network design, what does the term "traffic grooming" refer to? A) Consolidating low-rate traffic into higher-capacity channels B) Splicing fibers C) Installing protection schemes D) Managing fiber bends Answer: A Explanation: Traffic grooming aggregates low-rate or fragmented traffic streams into higher-capacity channels for efficient utilization. Question 44. Which optical network layer is primarily responsible for routing and wavelength assignment? A) Physical layer B) Control plane C) Data link layer D) Application layer Answer: B Explanation: The control plane manages routing and wavelength assignment (RWA), coordinating resource allocation across the network. Question 45. Which protection scheme offers fast restoration by switching traffic to a pre-established backup path in a ring topology? A) 1+1 protection
D) Single vendor solutions only Answer: B Explanation: Open optical line systems promote disaggregation, allowing interoperability between hardware and software from different vendors. Question 49. In system design, the link budget calculation accounts for: A) Only fiber attenuation B) Transmitter power, fiber loss, connector losses, and receiver sensitivity C) Only amplifier gain D) Only dispersion effects Answer: B Explanation: The link budget sums all gains and losses, including transmitter power, fiber attenuation, connector losses, and receiver sensitivity, to ensure reliable communication. Question 50. Which testing device measures the spectral composition of optical signals? A) Power meter B) Spectrum analyzer C) OTDR D) BER tester Answer: B Explanation: Spectrum analyzers display the optical spectrum, identifying wavelength components, channel spacing, and signal quality. Question 51. Which is a common approach to mitigate polarization mode dispersion in fibers? A) Using dispersion-shifted fibers B) Polarization-maintaining fibers C) Increasing transmission power D) Reducing fiber length Answer: B
Explanation: Polarization-maintaining fibers preserve the polarization state, minimizing PMD effects that cause pulse broadening. Question 52. Which component is essential for wavelength conversion in optical networks? A) Optical amplifier B) Wavelength converter C) Demultiplexer D) Modulator Answer: B Explanation: Wavelength converters change the wavelength of an optical signal, enabling flexible routing and wavelength assignment. Question 53. Which of the following is a key benefit of coherent optical communication systems? A) Simpler hardware B) Higher spectral efficiency and longer reach C) Lower cost D) Reduced need for DSP Answer: B Explanation: Coherent systems enable high-order modulation and advanced DSP, increasing spectral efficiency and extending transmission distance. Question 54. Which network topology provides multiple redundant paths, enhancing survivability? A) Point-to-point B) Mesh C) Bus D) Star Answer: B Explanation: Mesh topologies have multiple paths between nodes, improving resilience and fault tolerance.
A) Laser diode B) PIN photodiode C) Modulator D) WDM multiplexer Answer: B Explanation: PIN photodiodes detect optical signals and convert them into electrical signals for processing. Question 59. Which component is critical for enabling dynamic wavelength assignment in flexible grid systems? A) Fixed filter B) Colorless, directionless, contentionless (CDC) ROADMs C) Passive splitter D) Optical amplifier Answer: B Explanation: CDC ROADMs allow wavelength flexibility, enabling dynamic, wavelength-agnostic routing. Question 60. The main purpose of optical spectrum analysis in network troubleshooting is to: A) Measure fiber attenuation B) Identify wavelength spacing and channel power C) Detect physical fiber faults D) Measure dispersion Answer: B Explanation: Spectrum analysis helps verify wavelength allocation, power levels, and signal integrity of optical channels. Question 61. Which fiber type is most suitable for high-power laser delivery with minimal nonlinear effects? A) Standard single-mode fiber B) Large mode area fiber
C) Plastic optical fiber D) Graded-index multi-mode fiber Answer: B Explanation: Large mode area fibers have a bigger core and lower power density, reducing nonlinear effects at high power levels. Question 62. What is the primary function of a circulator in optical networks? A) Amplify signals B) Direct light from one port to another sequentially C) Convert electrical signals to optical D) Filter specific wavelengths Answer: B Explanation: Optical circulators route light from one port to another in a unidirectional manner, often used in testing and signal routing. Question 63. Which is a common challenge when deploying optical networks in subsea environments? A) Fiber bending B) High attenuation C) Pressure and temperature extremes D) Limited bandwidth Answer: C Explanation: Subsea fibers face harsh conditions like high pressure and temperature, requiring robust design and protection. Question 64. Which device is used to expand the number of ports in a multi-layer optical switch? A) Cross-connect B) Power splitter C) Wavelength converter D) Demultiplexer Answer: A
