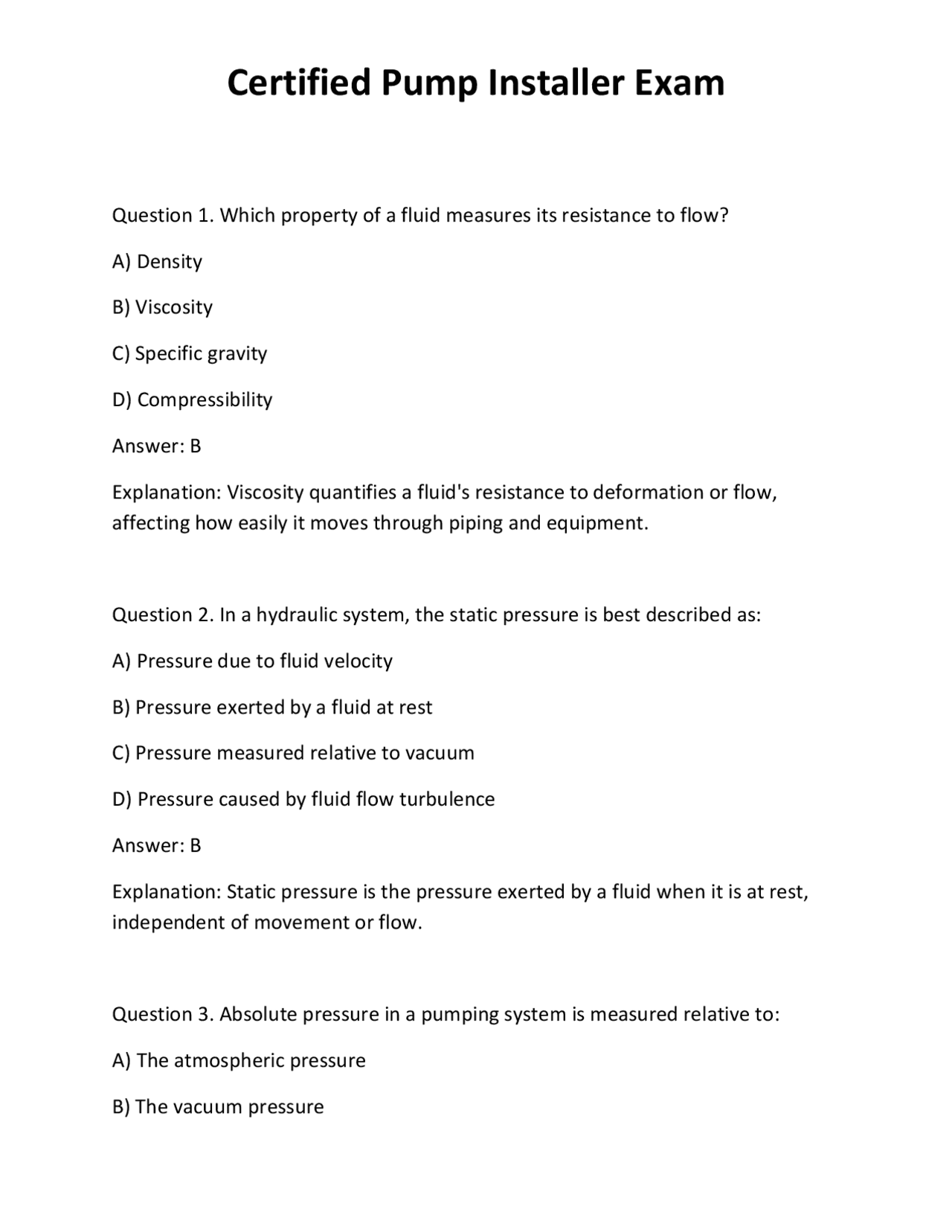

Question 1. Which property of a fluid measures its resistance to flow? A) Density B) Viscosity C) Specific gravity D) Compressibility Answer: B Explanation: Viscosity quantifies a fluid's resistance to deformation or flow, affecting how easily it moves through piping and equipment. Question 2. In a hydraulic system, the static pressure is best described as: A) Pressure due to fluid velocity B) Pressure exerted by a fluid at rest C) Pressure measured relative to vacuum D) Pressure caused by fluid flow turbulence Answer: B Explanation: Static pressure is the pressure exerted by a fluid when it is at rest, independent of movement or flow. Question 3. Absolute pressure in a pumping system is measured relative to: A) The atmospheric pressure B) The vacuum pressure
C) The total vacuum (perfect vacuum) D) The gauge pressure plus atmospheric pressure Answer: C Explanation: Absolute pressure is measured relative to a perfect vacuum (zero pressure), providing an absolute reference point. Question 4. Total dynamic head (TDH) in a pumping system includes all of the following EXCEPT: A) Static head B) Friction head C) Velocity head D) Pump efficiency head Answer: D Explanation: TDH comprises static, friction, and velocity heads; pump efficiency head is not part of the head measurement. Question 5. Bernoulli's principle states that in a flowing fluid, an increase in velocity results in: A) An increase in static pressure B) A decrease in static pressure C) An increase in static head D) No change in pressure
Question 8. Water hammer is primarily caused by: A) Sudden valve closure or pump startup/shutdown B) Excessive fluid viscosity C) Cavitation inside the pump D) Corrosion of piping materials Answer: A Explanation: Water hammer occurs due to rapid changes in fluid velocity, often caused by quick valve closures or pump operation changes. Question 9. The primary purpose of a volute in a centrifugal pump is to: A) Convert velocity energy into pressure energy B) Reduce flow turbulence C) Support the impeller shaft D) Increase fluid viscosity Answer: A Explanation: The volute collects fluid discharged from the impeller and converts velocity energy into pressure, increasing head. Question 10. Which pump type is best suited for high-viscosity fluids? A) Centrifugal pump B) Positive displacement pump C) Jet pump
D) Submersible pump Answer: B Explanation: Positive displacement pumps are ideal for high-viscosity fluids due to their ability to deliver a constant flow regardless of pressure. Question 11. The Net Positive Suction Head required (NPSHr) is specified by: A) Pump manufacturer B) System designer C) Regulatory authority D) Water source characteristics Answer: A Explanation: The pump manufacturer specifies NPSHr based on the pump design to prevent cavitation during operation. Question 12. The affinity laws relate to: A) Pump performance parameters when speed or impeller size changes B) Electrical power consumption of motors C) Pipe friction losses D) Water quality standards Answer: A Explanation: Affinity laws describe how pump head, flow, and power change proportionally with impeller diameter or rotational speed.
A) Centrifugal force B) Venturi effect to entrain and lift fluids C) Reciprocating motion of pistons D) Gear meshing Answer: B Explanation: Jet pumps utilize the Venturi effect, where high-velocity fluid creates a vacuum to entrain and lift additional fluid. Question 16. When selecting piping materials, which of the following is most resistant to corrosion in a potable water system? A) Steel B) Copper C) PVC D) Cast iron Answer: C Explanation: PVC piping is highly resistant to corrosion, making it suitable for potable water systems. Question 17. Which valve type is best suited for controlling flow rate in a pipeline? A) Gate valve B) Globe valve
C) Check valve D) Ball valve Answer: B Explanation: Globe valves are designed for regulating flow and throttling, allowing precise control. Question 18. In a system, a pressure tank is used primarily to: A) Store water at atmospheric pressure B) Maintain consistent pressure and reduce pump cycling C) Filter water before reaching the pump D) Provide thermal insulation Answer: B Explanation: Pressure tanks help stabilize system pressure and reduce pump cycling by storing water under pressure. Question 19. The function of a check valve in a pumping system is to: A) Prevent backflow of fluid B) Regulate pressure C) Isolate sections of the system D) Increase flow velocity Answer: A
Question 22. A typical purpose of a surge tank is to: A) Store excess water for emergency use B) Absorb pressure fluctuations caused by rapid valve closures or pump operation changes C) Filter out debris from water D) Increase flow velocity in the system Answer: B Explanation: Surge tanks mitigate pressure transients (water hammer) by providing a cushion for sudden changes in flow or pressure. Question 23. When sizing a pump for a new application, the first step is to determine: A) The total dynamic head (TDH) and required flow rate B) The electrical power supply capacity C) The type of piping material D) The water quality parameters Answer: A Explanation: Proper pump sizing begins with calculating the required flow and head to meet system demands. Question 24. An essential component of system design compliance involves: A) Selecting the most expensive equipment
B) Following local, state, and national plumbing codes C) Ignoring environmental regulations for flexibility D) Relying solely on manufacturer recommendations without local code review Answer: B Explanation: Ensuring compliance with relevant codes and regulations is critical for safety, legality, and system integrity. Question 25. Which safety practice is crucial before starting electrical work on a pump system? A) Wearing safety glasses only B) Lockout/Tagout procedures to de-energize equipment C) Removing all electrical panels D) Disabling the system without verifying power is off Answer: B Explanation: Lockout/Tagout procedures prevent accidental energization, protecting workers from electrical hazards. Question 26. Proper foundation preparation for pump installation includes: A) Ensuring a level, stable base to prevent vibrations and misalignment B) Filling the foundation with gravel only C) Using unlevel concrete to compensate for uneven surfaces D) Installing the pump directly on soil without support
Question 29. When installing a check valve, it should be placed: A) Upstream of the pump and in the direction of flow B) Downstream of the pump in either direction C) At the system's highest point regardless of flow direction D) In a location where it can be bypassed easily Answer: A Explanation: Check valves are installed upstream of the pump in the flow direction to prevent backflow and protect equipment. Question 30. Which of the following motor types is most suitable for operation in a high-humidity environment? A) Open drip-proof motor B) Totally Enclosed Fan-Cooled (TEFC) motor C) Open motor with no enclosure D) Ventilated motor with exposed windings Answer: B Explanation: TEFC motors are sealed to prevent ingress of moisture, making them suitable for humid environments. Question 31. When selecting a pressure gauge, it should be chosen based on: A) The maximum system pressure expected
B) The color of the gauge face C) The age of the pump system D) The type of piping material used Answer: A Explanation: The pressure gauge's maximum range should exceed the highest pressure expected for accurate readings. Question 32. In a water system, the drawdown refers to: A) The static water level in the well B) The reduction in water level caused by pumping C) The height of the water column in the pipe D) The total volume of water stored in the tank Answer: B Explanation: Drawdown is the lowering of the water level in a well or aquifer during pumping. Question 33. An advantage of variable frequency drives (VFDs) is: A) Increased electrical consumption B) Precise control of pump speed and energy savings C) Limiting pump operation to fixed speeds only D) Eliminating the need for system maintenance Answer: B
Question 36. When testing system performance, a pump is producing less flow than specified. One potential cause is: A) Excessive NPSH available B) Impeller wear or blockage C) Overpowered motor D) Too high system pressure Answer: B Explanation: Impeller wear, damage, or blockage reduces flow rate below design specifications. Question 37. In system design, the primary reason for pipe sizing is to: A) Minimize friction losses and ensure adequate flow B) Reduce material costs regardless of flow requirements C) Maximize pressure drops D) Simplify installation procedures Answer: A Explanation: Proper pipe sizing reduces friction losses and maintains desired flow and pressure levels. Question 38. An important safety regulation during trenching is to: A) Use proper shoring or sloping to prevent collapse B) Avoid any protective gear to speed up work
C) Dig without checking underground utilities D) Use untrained personnel for excavation Answer: A Explanation: Proper shoring or sloping prevents trench collapses, protecting workers. Question 39. When connecting a motor to a control panel, it is essential to: A) Use the smallest gauge wire possible B) Follow the wiring schematic and adhere to electrical codes C) Connect all wires directly without insulation D) Bypass circuit protection devices for efficiency Answer: B Explanation: Following schematics and electrical codes ensures safe, compliant, and reliable connections. Question 40. A wellhead seal is installed to: A) Prevent surface water contamination entering the well B) Increase water flow rate C) Support the pump casing D) Facilitate easy removal of the pump Answer: A
Question 43. A common cause of low pressure in a pump system is: A) Excessive head loss due to clogged filters or pipes B) Oversized pump impeller C) Too much NPSH available D) Pump operating at too low speed Answer: A Explanation: Blockages and leaks increase head loss, reducing system pressure. Question 44. To diagnose electrical faults, a technician should use: A) Multimeter and clamp meter B) Hammer and screwdriver C) Pipe wrench and pliers D) Water flow meter only Answer: A Explanation: Multimeters and clamp meters are essential tools for diagnosing electrical issues. Question 45. Seal failure in a pump can cause: A) Water leakage and potential pump damage B) Increased efficiency C) Reduced cavitation risk
D) Higher flow rates Answer: A Explanation: Seal failure leads to leakage, which can cause damage and reduce pump performance. Question 46. Preventative maintenance for a pump's bearings includes: A) Regular lubrication and inspection B) Ignoring abnormal noises C) Running the pump dry for extended periods D) Removing bearings entirely for cleaning Answer: A Explanation: Proper lubrication and inspection prolong bearing life and prevent failure. Question 47. The purpose of a coupling in pump systems is to: A) Connect the pump shaft to the motor shaft and accommodate misalignment B) Seal the pump casing C) Control flow rate D) Provide electrical insulation Answer: A Explanation: Couplings connect shafts and absorb slight misalignments, reducing vibration and wear.
